(Update 8/4/11!!!)(Update 8/4/11!!!)(Update 8/4/11!!!)(Update 8/4/11!!!)(Update 8/4/11!!!)(Update 8/4/11!!!)(Update 8/4/11!!!)(Update 8/4/11!!!)(Update 8/4/11!!!)(Update 8/4/11!!!)(Update 8/4/11!!!)(Update 8/4/11!!!) When it will be released + all the info about the system + Specifications + m14x year release**
I talked with some one from Dell's Chat tool:
20:48:39 System
You are now being connected to an agent. Thank you for using Dell Chat
20:48:39 System
Connected with Timothea Dominica B
20:49:24 Timothea Dominica B
20:49:24 Timothea Dominica B
hi there David!
20:49:36 David
hi nice to meet you
20:50:06 David
I'm intresting for buying m11x model
20:50:53 David
but I would like to know, if ther will be a new model (R3 no?).
20:51:09 Timothea Dominica B
Thanks for chatting in, hope you are doing good. Let me gladly assist you with that
20:51:55 Timothea Dominica B
right now, we dont have info yet if there would be an R3 series coming up, as we are also waiting for the m15x to have R3 as well, so right now it is only the m17x
20:52:40 David
oh... ok and how much will cost the R3 model? (if you know)
20:53:04 Timothea Dominica B
im not definite about that, but it could be around $800- $1000+
20:53:55 David
ok, and... R3 will have a new cideo card?
20:53:58 David
video*
20:54:30 Timothea Dominica B
it should have a new video card, it could be Nvidia optimus as welll
20:54:52 David
ok nice
20:55:13 David
I think I will wait for the r3 model
20:55:18 David
but
20:55:41 David
do you know, when it will be released? this year? next year?
20:56:35 Timothea Dominica B
we dont have an estimated date yet, but it could be this year, we are hearing about it early this year so im sure there would be developments as months go by
20:57:01 David
cool
20:57:05 David
ok thank you
20:57:17 David
for helping
20:57:20 David
have a nice day

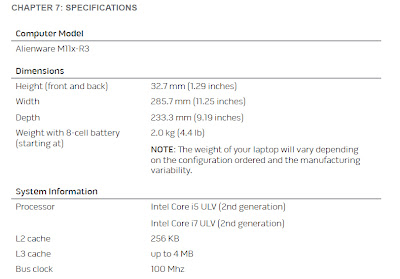

[Update]So here some info about the R3:
Computer Model
Alienware M11x-R3
Dimensions
Height (front and back) - 32.7 mm (1.29 inches)
Width - 285.7 mm (11.25 inches)
Depth - 233.3 mm (9.19 inches)
Weight with 8-cell battery (starting at) - 2.0 kg (4.4 lb)
NOTE: The weight of your laptop will vary depending on the configuration ordered and the manufacturing variability.
System Information
Processor
- Intel Core i5 ULV (2nd generation)
- Intel Core i7 ULV (2nd generation)
L2 cache - 256 KB
L3 cache up to - 4 MB
Bus clock - 100 Mhz
System Information
System chipset - Mobile Intel QS67 Express Chipset
SDRAM bus width - one or two 64-bit channels of DDR3 memory up to 1333 MHz
Processor address bus width - 32 bits
Processor data width - 64 bits
BIOS EPROM - 32 Mbit
Graphics bus - PCIe x16 Gen2
Memory
Connectors - two internally-accessible DDR3 SODIMM sockets
Capacities - 1 GB, 2 GB, and 4 GB
Memory type - up to 1333 MHz, unbuffered non-ECC, dual‑channel DDR3 configuration
Memory configurations - 2GB, 3GB, 4GB, and 8GB
IEEE 1394
Controller - JMicron JMB380
Interface - compliant with standard IEEE 1394a-2000 specification
Ports and Connectors
Network adapter - one RJ45 connector
USB
one 4-pin USB 2.0-compliant connector with PowerShare

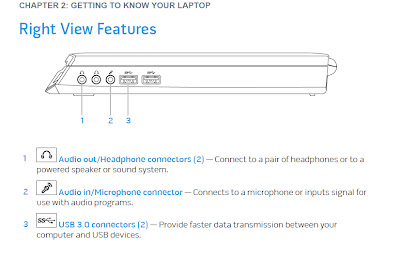

two 4-pin USB 3.0-compliant connectors
HDMI - one 19-pin connector
DisplayPort - one 20-pin connector
Audio - two audio output/headphone connectors and one audio input/microphone connector
Media Card Reader - one 8-in-1 slot
SIM card - one SIM card slot
IEEE 1394 - one 4-pin serial connector
Communications
Network adapter - 10/100/1000 Mbps Ethernet LAN on system board
Wireless
one half Mini-Card slot
one full Mini-Card slot
Bluetooth; Intel Wireless Display (optional);
3G Wireless Internet (optional); 4G Wireless Internet (optional)
Video
Video controller
Integrated - Intel HD Graphics 3000
Discrete - NVIDIA GeForce GT 540M
Video memory
Integrated - 512 MB dedicated video memory (for total system memory greater than 4 GB)
Discrete
1 GB
2 GB
External display support - HDMI 1.4, DisplayPort, and Intel Wireless Display (optional)
Audio
Controller - Intel High Definition Audio
Speaker - single 8-ohms speakers in both the left and right speaker assembly
Internal speaker amplifier - up to 1 W per channel; up to 2 W total power
Internal microphone support - dual array digital microphone in camera assembly
Volume controls - program menus and keyboard media function keys
Hard-Drive Storage
Interface - SATA
Number of hard drives - one
Hard drive - 2.5 inch SATA hard drive
Type - standard portable and solid-state hard-drives
Cards Supported
Media cards
Secure Digital (SD) memory card
MultiMedia Card (MMC)
Memory Stick PRO
MultiMedia Card plus (MMC+)
Memory Stick
xD-Picture Card (type - M and type - H)
Video cards
Intel HD Graphics 3000
NVIDIA GeForce GT 540M (discrete)
Display
Type - 11.6 inch HD TrueLife, WLED
Maximum resolution - 1366 x 768
Dimensions
Height - 144 mm (5.67 inches)
Width - 256.12 mm (10.08 inches)
Diagonal - 293.83 mm (11.57 inches)
Refresh rate - 60 Hz
Operating angle - 0° (closed) to 140°
Pixel pitch - 0.2550 mm
Controls - brightness can be controlled through keyboard shortcuts
Keyboard (Backlit)
Number of keys - 82 (Korea, U.S., and Canada); 83 (Europe); 86 (Japan)
Backlight color - RGB; colors can be changed by invoking the AlienFX software in the Alienware Command Center. For information, see “Alienware Command Center” on page 38.
Camera
Camera resolution - 2.0 megapixel
Video resolution - 1600 x 1200
Diagonal viewing angle - 60 °
Touch Pad
X/Y position resolution (graphics table mode) - 240 cpi
Size
Height - 71.7 mm (2.82 inches) sensor-active area
Width - 34.0 mm (1.34 inches) rectangle
Battery
8-cell “smart” lithium ion (63 Whr)
Height - 11.2 mm (0.44 inches)
Width - 173 mm (6.81 inches)
Depth - 109.4 mm (4.31 inches)
Weight - 0.43 kg (0.94 lb)
Voltage - 14.8 V
Operating time - battery operating time varies depending on operating conditions and can be significantly reduced under certain power-intensive conditions.
Life span (approximate) - 300 discharge/charge cycles
Temperature range
Operating - 0° to 50°C (32° to 122°F)
Storage - –20° to 60°C (–4° to 140°F)
Coin-cell battery - CR-2032
AC Adapter
Type - 65 W/90 W
Input voltage - 100-240 VAC
Input current (maximum)
65 W - 1.7 A
90 W - 1.5 A
Input frequency - 50-60 Hz
Output current
65 W - 3.34 A (continuous)
90 W - 4.62 A (continuous)
[Update]***New Info about the release date!!!!!!!!!!!***
Exit
19:06:50 System
You are now being connected to an agent. Thank you for using Dell Chat
19:06:50 System
Connected with Md Maqdoom M
19:06:56 Md Maqdoom M
19:06:56 Md Maqdoom M
Hi Ariel
19:07:04 Ariel
Hi
19:07:24 Ariel
I would like to buy m11
19:07:39 Ariel
when the r3 will be released?
19:07:51 Md Maqdoom M
I would be happy to help you with that
19:08:08 Ariel
19:08:18 Ariel
I'm intresting about the new model, r3
19:08:41 Md Maqdoom M
I apologize, as of now we do not have update or information about its availability so we are not sure
19:09:13 Md Maqdoom M
It is expected to be available soon but we are not sure about the time frame. If you want I can email you as soon as we have any update about its availability
19:09:40 Ariel
this is bad... it will be ... this year or next year?
19:10:26 Ariel
do you know at least that thing?
19:10:36 Md Maqdoom M
It is expected to be available this year
19:11:09 Ariel
ok cool
19:11:16 Ariel
in a few months yes?
19:11:26 Ariel
about 3~4?
19:12:11 Md Maqdoom M
Yes
19:12:45 Ariel
cool
19:14:09 Ariel
?
19:14:51 Md Maqdoom M
Ariel, as of now we do not have update about it too so we are not sure
19:15:37 Ariel
no no, I just wanna know if the model will be released
19:16:10 Ariel
I dont care when, I just want to be sure that it will be "real"
19:16:16 Ariel
the m14
19:16:56 Md Maqdoom M
Yes, Alienware M14x is also expected to be available soon
19:17:18 Ariel
ncie
19:17:20 Ariel
nice*
19:17:25 Ariel
ok thank you very much]
19:17:34 Ariel
you helped me so much
19:18:01 Md Maqdoom M
My Pleasure. If you want I can email you as soon as we have more update about the said products
19:18:17 Ariel
no no its ok
19:18:26 Md Maqdoom M
ok. Is there anything else that I can assist you with?
19:18:40 Ariel
no, that's all
19:18:46 Md Maqdoom M
Our Chat team strives to provide the very best levels of customer service. If you have a minute, we would really appreciate your feedback on a quick survey that will pop up in a new window once the session ends. My manager gets all the feedback and we use it to help our customers. Thank you for choosing Dell’s Sales Chat and have a wonderful day!
19:19:03 Ariel
ok
19:19:12 Ariel
Bye
M14X Thank to DrGoodvibes for info it
Computer Model
Alienware M14x
Dimensions
Height
Front 37.80 mm (1.49 inches)
Back 37.80 mm (1.49 inches)
Width 337.00 mm (13.27 inches)
Depth 258.34 mm (10.17 inches)
Weight with 8-cell battery and optical drive (starting at) 2.88 kg (6.35 lb)
NOTE: The weight of your laptop will vary depending
on the configuration ordered and the manufacturing
variability.
Processor and System Chipset
Processor
Second Generation Intel Core i5
Second Generation Intel Core i7
L2 cache 256 KB
L3 cache up to 8 MB
Bus clock 100 MHz
System chipset
Mobile Intel HM67 Express Chipset
SDRAM bus width one or two 64-bit channels of DDR3 memory up to 1600 MHz
Processor address bus width 32 bits
Processor data width 64 bits
BIOS SPI Flash Memory 32 Mbit
Graphics bus PCIe x16 bus Gen2
Memory
Connectors two internally-accessible DDR3 using JEDEC SODIMM sockets
Capacities 1 GB, 2 GB, and 4 GB
Memory type up to 1600 MHz unbuffered non-ECC dual-channel DDR3 configuration
Memory configurations possible 2 GB, 3 GB, 4 GB, 6 GB, and 8 GB
Ports and Connectors
Network adapter one RJ45 connector
USB
one 4-pin USB 2.0-compliant connector with PowerShare
two 4-pin USB 3.0-compliant connectors
HDMI one 19-pin connector
Mini-DisplayPort one 20-pin connector
VGA one 15-hole connector
Ports and Connectors
Audio
two stereo headphones/speaker connectors
one microphone-in connector
NOTE: You can also use the connectors to set up 5.1 channel speakers.
Media Card Reader one 9-in-1 slot
SIM Card Reader one SIM card slot
Communications
Network adapter 10/100/1000 Mbps Ethernet LAN on system board
Wireless
one half Mini-Card slot
one full Mini-Card slot
one full Display Mini-Card slot
Bluetooth; Intel Wireless Display (optional); SiBeam WirelessHD (optional); 3G Wireless Internet (optional); 4G Wireless Internet (optional)
Video
Video controller
Integrated Intel HD Graphics 3000
Discrete NVIDIA GeForce GT555M
Video memory
Integrated 512 MB dedicated video memory (for total system memory greater than 4 GB)
Discrete
1.5 GB
3.0 GB
External display support HDMI 1.4, Mini DisplayPort, VGA, Intel Wireless Display (optional), and SiBeam WirelessHD (optional)
Audio
Type
High-Definition surround sound audio
5.1 analog connection and 7.1 HDMI connection
Controller Realtek ALC665-GR
Audio
Speaker dual 8-ohms speakers in both the left and right speaker
assembly
Internal speaker amplifier
up to 2 W average per channel; up to 4 W average total power
1 subwoofer up to 3 W average
Internal microphone support dual digital microphone-in camera assembly
Volume controls program menus and keyboard media function keys
Hard-Drive Storage
Number of storage drives one
Hard drive
one 2.5 inch SATA 2.0 (3Gb/s) or SATA 3.0 (6Gb/s) hard drive
one solid-state drive
Media Card Reader
Cards supported
Secure Digital (SD) memory card
Secure Digital Input/Output (SDIO) card
Secure Digital Extended Capacity (SDXC) card
MultiMedia Card (MMC)
MultiMedia Card plus (MMC+)
Memory Stick
Memory Stick PRO
xD-Picture Card (type - M and type - H)
Hi Density-SD (SDHD)
Hi Capacity-SD (SDHC)
Display
Type
14.0 inch HD WLED with TrueLife
14.0 inch HD+ WLED with TrueLife
Maximum internal resolution
1366 x 768 (HD)
1600 x 900 (HD+)
Dimensions (active area)
Height 173.95 mm (6.85 inches)
Width 309.40 mm (12.18 inches)
Diagonal 355.60 mm (14.00 inches)
Refresh rate 60 Hz
Operating angle 0° (closed) to 140°
Pixel pitch 0.1933 mm
Controls brightness can be controlled through keyboard
shortcuts
Keyboard (Backlit)
Number of keys 82 (Korea, U.S., and Canada); 83 (Europe); 86 (Japan)
Backlight color RGB; colors can be changed by invoking the AlienFX
software in the Alienware Command Center. For information, see “Alienware Command Center” on page 40
Touch Pad
X/Y position resolution (graphics table mode) 953 cpi
Size
Height 42.0 mm (1.65 inches) sensor-active area
Width 81.0 mm (3.19 inches) rectangle
Camera
Camera resolution 2.0 megapixel HD
Video resolution 1600 x 1200
Diagonal viewing angle 70°
Battery
Type 8-cell “smart” lithium polymer (63 Whr)
Dimensions
Height 11.2 mm (0.44 inches)
Width 173 mm (6.81 inches)
Depth 109.4 mm (4.31 inches)
Weight 0.43 kg (0.94 lb)
Voltage 14.8 V
AC Adapter
Type 150 W
Input voltage 100 - 240 VAC
Input current (maximum) 2.50 A
Input frequency 50-60 Hz
Output current 7.70 A (continuous)
Output power 150 W
Rated output voltage 19.50 V
Temperature range
Operating 0° to 35°C (32° to 95°F)
Storage –40° to 70°C (–40° to 158°F)
Connector types
DC connector 3-pin, 7.4 mm plug
AC connector 3-pin – C13
So the M11x will be released at Jul~Aug!!! (6/2011~7/2011)
M14x this year, I3/I5/I7 2 Gen. ,GT 540M GPU, 1333Mhz Ram, will cost around 800~1000$ the basic system and more info' I will give soon :S or just look up^^
-
-
-
-
-
-
-
-
-
-
Anyone remember M11xR1 before 2.0Ghz
lest we forget.
-
-
-
-
-
-
Alienware M11x R3 this year?? what will be?
Discussion in 'Alienware M11x' started by daniel1112333, Apr 6, 2011.
