    Anyone having sucess with overclocking 335M GPU?

    Discussion in 'Alienware M11x' started by cliffmidnite, Oct 9, 2010.

  1. cliffmidnite

    cliffmidnite Notebook Enthusiast

    Reputations:
    39
    Messages:
    44
    Likes Received:
    0
    Trophy Points:
    15
    I would like for some people to chime on any success stories of overclocking the m11x gpu r1 or r2. I always used Rivatuner on my desktop Nvidia GPU's, but it won't properly detect my card and give me any overclocking options. It actually may have detected my card, but didn't give me any overclocking options. I definately had Nvidia mode on. Is it possible and what software did you use. I have an M11xr1. Thanks!

  2. cliffmidnite

    cliffmidnite Notebook Enthusiast

    Reputations:
    39
    Messages:
    44
    Likes Received:
    0
    Trophy Points:
    15
    Also for those who could overclock, what speeds did you reach for gpu/shaders/memory. Thanks

  3. MassiveOverkill

    MassiveOverkill Notebook Consultant

    Reputations:
    70
    Messages:
    264
    Likes Received:
    1
    Trophy Points:
    30
    MSI Afterburner is the best flavor of Riva Tuner.........works fine on my R2. I'm on my desktop right now but I'll post my mild OC when I get back on my R2.

  4. City.

    City. Notebook Evangelist

    Reputations:
    132
    Messages:
    461
    Likes Received:
    0
    Trophy Points:
    30
    I use EVGA precision, best Oc I've ever used.

    Orginal GPU spec: 450/1080/790
    Oced To : 580/1480/820
    Average Temp: under 65.

  5. MassiveOverkill

    MassiveOverkill Notebook Consultant

    Reputations:
    70
    Messages:
    264
    Likes Received:
    1
    Trophy Points:
    30
    500/1200/900
    Memory is the bottleneck so that's what I concentrated on. Didn't want to push GPU too much because of heat.

  6. nzv

    nzv Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Also using EVGA Precision at 540/1300/835 works great for me.

  7. cliffmidnite

    cliffmidnite Notebook Enthusiast

    Reputations:
    39
    Messages:
    44
    Likes Received:
    0
    Trophy Points:
    15
    Are any of you guys using an R1?
    . I'm installing evga precision right now. I will report back with my findings.

  8. City.

    City. Notebook Evangelist

    Reputations:
    132
    Messages:
    461
    Likes Received:
    0
    Trophy Points:
    30
    Yeah oops forgot to mention mines the R1, not R2, tbh I don't think you could achieve the same OC with R2, purely because of the CPU heat. But thats just my 2 cent.

  9. DrGoodvibes

    DrGoodvibes Notebook Deity

    Reputations:
    389
    Messages:
    973
    Likes Received:
    1
    Trophy Points:
    31
    M11xR1 SU7300 1.73Ghz BIOS A05 4GB RAM nVidia 197.72 (Dell)

    Standard GT335M GPU clocking 450/1080/790

    EVGA Precision v2.0.0.0 clocking 585/1404/890 @ 1280x768

    3DMark06 Score 6989
    SM 2.0 Score: 3239
    SM 3.0 Score: 3433
    CPU Score: 1457

    For game play, I use GPU 520/1248/840 with temperature normally no more than 60C when playing Crysis.

  10. Porter

    Porter Notebook Virtuoso

    Reputations:
    786
    Messages:
    2,219
    Likes Received:
    1,044
    Trophy Points:
    181
    Using the Nvidia overclocking tool here. I'm not sure why everyone seems to use another program? The Nvidia one works great! The 335m is an overclocking beast!

    Running 580/880/1450 here, and haven't hit a wall yet, just slowly creeping up a few mhz at a time. Runs cool (never seen anything above 54 in my testing), which is the same as stock temps. I have to assume that it's because a fan kicks on sooner and keeps it the same temp but that's just a guess.

    I am confused about what driver I should be using. I have an R2 that came with the dell 257.30, but I had constant crashes in Sacred 2 so I decided to try another driver. I am using the 258.96 now and Sacred 2 hasn't crashed yet so it may have fixed that problem. However when I run 3dmark06 I get about half the score I got with the 257 (4400 vs 8000). I know it is just a benchmark, but my worry is that big of a descrepancy could mean that my games are running with much lower framerates. :confused: I never get temps above 54 so it's not overheating and I even tried stock clocks and its the same thing so it's definetly a driver thing.

  11. jeremyshaw

    jeremyshaw Big time Idiot

    Reputations:
    791
    Messages:
    3,210
    Likes Received:
    231
    Trophy Points:
    131
    MSI afterburner and eVGA precision both give readouts of temps, clocks, etc.

    Also in our favorite time-graph mode :)

  12. kizwan

    kizwan Lord Pringles

    Reputations:
    1,502
    Messages:
    3,229
    Likes Received:
    10
    Trophy Points:
    106
    On the 3DMark06 what is the resolution? Default demo version is 1280x768. I have read somewhere that after overclock (CPU & GPU I think), M11x can score up to 9XXX but I can't remember where I read it. On my Asus, the GT 335M only fitted with DDR3 memory. If you want to see my GT 335M score after overclock, you can find the link at my signature. :)

  13. Bushman87

    Bushman87 Notebook Guru

    Reputations:
    1
    Messages:
    71
    Likes Received:
    0
    Trophy Points:
    15
    My 3dmark06 score is 6840 when overclocking. I used EVGA Precision but it caused my NVidia driver to crash every now and then (irrespective of the OC settings). I switched to MSI Afterburner and havent had any issues with it yet. OH YEAH! Starcraft II on Ultra baby! :)

  14. tassadar898

    tassadar898 Notebook Evangelist

    Reputations:
    101
    Messages:
    592
    Likes Received:
    24
    Trophy Points:
    31
    585/1490/930 Gpu Oc

    m11xR2 i5 162 FSB OC 260.63 beta drivers

  15. cliffmidnite

    cliffmidnite Notebook Enthusiast

    Reputations:
    39
    Messages:
    44
    Likes Received:
    0
    Trophy Points:
    15
    Thanks for the replies. EVGA precision worked great for me. I haven't checked for differences in my games yet. I played gta iv for a while overclocked at 550/1400/905 very stable. Since its so cpu bottlenecked, the OC didn't really do any justice their. I will check my improvements on Crysis Warhead soon though.

  16. Gavingoh

    Gavingoh Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    R1, Cpu Oc'd 1.73, 4GB ram
    Using Nvidia preformance tools

    550/890/1280 with 6779 score

  17. Bily42

    Bily42 Notebook Consultant

    Reputations:
    27
    Messages:
    145
    Likes Received:
    0
    Trophy Points:
    30
    I just used EVGA Precision to overclock to 580/1480/820 (using Iris's settings) and everything seems fine. CPU is overclocked to 166.
    In fact, Portal and Dragon Age seem to play better.
    I like EVGA...nice and easy... but the "test" setting does not work because you have to have a EVGA card to use the feature.
    I used HWinfo32 (can't seem to find a 64bit version) and the benchmarks on it were very high.

  18. stevenxowens792

    stevenxowens792 Notebook Virtuoso

    Reputations:
    952
    Messages:
    2,040
    Likes Received:
    0
    Trophy Points:
    0
    @kizwan - 3dmark scores are R1 -> low 7000 range (7200 or close to that)
    R2 -> 81xx (low 8000 range).

    Nobody has ever scored into the 9000 range with a m11x.

    Best Wishes, StevenX

  19. seeratlas

    seeratlas Notebook Deity

    Reputations:
    272
    Messages:
    869
    Likes Received:
    1
    Trophy Points:
    31
    Isn't there a huge thread on benchmarks on this board? :)
    In any event, i havn't pushed my r1 to the max but just a quickie "can mine use those settings' kind of deal, I got a rock solid 06 of 6990. I remember someone getting 7100'ish on an r1, BUT, here's the kicker..In *many* games, the R1 will beat the fps of the i5 R2's..most likely because the stock software doesn't handle the i5's scaling up and down very well. The R2 i7's can reportedly beat the r1's in *some* games by a few fps.

    What I want to see is when those early buyers get out of warranty and hard mod the PLL to kill the TME. The Asus guys with the su7300 routinely get 1900mghz plus, I think we will do better. This is based solely on my own o'clocking experience with core2duo's. Assuming quality support components on the boards, i'm *fairly* confident we can hit 2k-2100 on a substantial number of units. At that speed and given current drivers, the r1's may very well challenge the r2's. Be forewarned though, not many are going to be able to mod the pll. Competence with a very small soldering iron, a steady hand and good eyesight will be
    critical to success.

    seer

  20. kizwan

    kizwan Lord Pringles

    Reputations:
    1,502
    Messages:
    3,229
    Likes Received:
    10
    Trophy Points:
    106
    Yeah, I'm might be mistaken. :p Sorry if I caused CPU & GPU overclocking spree among M11x owners. :D

  21. Tinderbox (UK)

    Tinderbox (UK) BAKED BEAN KING

    Reputations:
    4,745
    Messages:
    8,513
    Likes Received:
    3,823
    Trophy Points:
    431
    I have an Samsung R590 with an GT 330m and i get 7445 points with 3dmark06 demo at 1280x720 , my stock clocks are 575 core 790 memory 1265 shader.

    I heard the 335m got 20% higher score than the 330m , but it`s a shame when the manufacture cripples a good card, and you have to use software to get back to the normal clocks.

  22. kizwan

    kizwan Lord Pringles

    Reputations:
    1,502
    Messages:
    3,229
    Likes Received:
    10
    Trophy Points:
    106
    EDIT: Just forget what I said. :p Yeah, on my asus the memory clock is 790MHz. It supposed 1066MHz because it use DDR3, right? Is it true GT 335M core clock should be 550MHz? On notebookcheck website, GT 335M core clock is 450MHz.

  23. cliffmidnite

    cliffmidnite Notebook Enthusiast

    Reputations:
    39
    Messages:
    44
    Likes Received:
    0
    Trophy Points:
    15
    .Wow, I never knew the stock clocks were that much higher on the 330m. I did some research and found the manufacturing specs comparing the 320m,325m,330m, and 335m. The 330m has 42 shaders and the 335m has 72 shaders, but the stock clock on 330m is 575 vs 450 on 335m. Atleast we have good overclocking headroom to widen the gap between these cards. Check out the link for details. manufacturing specs show the memory to run at 1066 and we are only at 790. Has anyone tried overclocking their memory that high? Precision only goes up to 948 on memory. I have tried 550/1400/905 and went from 32 to 40 fps in Crysis Warhead. When I pushed past 550, my display driver would crash. I noticed that every time it would crash, my fps in Crysis would drop to 18-20 until I did a full reboot on my system. It must be some kind of safety mechanism in the gpu to throttle it down or something. Anyone have similar results after a display driver crash due to OC'ing?
    NVIDIA GeForce GT 335M - Notebookcheck.net Tech

  24. kizwan

    kizwan Lord Pringles

    Reputations:
    1,502
    Messages:
    3,229
    Likes Received:
    10
    Trophy Points:
    106
    Yeah, I experienced the same thing. If your GT 335M have GDDR3 memory, I don't think you can overclock memory clock too much since stock GDDR3 memory clock is 800MHz.

  25. Tinderbox (UK)

    Tinderbox (UK) BAKED BEAN KING

    Reputations:
    4,745
    Messages:
    8,513
    Likes Received:
    3,823
    Trophy Points:
    431
    GPU-Z says my 330m has 48 shaders not 42

    Also GDDR3 can be clocked up to 1000MHz, depending and how well the memory chips are cooled , it`s a pity they do not have a temp sensor, though the core temp sensor is of limited use as i have seen graphic corruption with an core of only 65c on my old 9200m GS , but i clocked the memory to 950MHz fine.


  26. cliffmidnite

    cliffmidnite Notebook Enthusiast

    Reputations:
    39
    Messages:
    44
    Likes Received:
    0
    Trophy Points:
    15
    Maybe they disable 6 of the shaders for the 330m in the Samsung R590. Well, I just played an hour of Crysis Warhead with memory at 948 and gpu/shaders at stock. So my memory doesn't seem to be my problem. I'm going to start boosting my gpu/shaders with my mem maxed at 948 and see what I reach.

  27. Porter

    Porter Notebook Virtuoso

    Reputations:
    786
    Messages:
    2,219
    Likes Received:
    1,044
    Trophy Points:
    181
    This sounds similar to what I was experiencing. Although I never had any memorable crashes, or any heat issues so I couldn’t quite figure it out. My issue started after I started switching drivers, and yes I did try to do a clean driver uninstall and reinstall each time. I used driver sweeper, ccleaner, windows safe mode etc but still had problems. It got so bad that it didn’t even matter if it was overclocked or stock clocks my FPS was about half of what it used to be. I did a complete clean reinstall last night to fix the problem. Everything seems to be back to how it was when I first got it, but now I won’t change drivers or be overclocking until after I verify all is well and the problems are gone for good.

    The fact that the 335m is such an awesome overclocker actually makes this all worse! Since there was no appreciable heat increase and no crashing in my case I couldn’t find a “hard limit”. Eventually I ended up with this half speed problem then could not get rid of it regardless of driver version or back to stock clocks.

    I had a heck of a time choosing which driver to use on my fresh install because there are so many available and (to my knowledge) no comparison between them all. I am aware of the punkbuster issue with anything above the 189.xx but other than that I couldn’t figure out which one was best. Sacred 2 was the reason I started changing drivers in the first place, it crashed on 257.30 and ran solid on 258.xx (but at half speed ). I decided on the 259.47. I'm giong to try playing tonight, wish me luck :)

  28. City.

    City. Notebook Evangelist

    Reputations:
    132
    Messages:
    461
    Likes Received:
    0
    Trophy Points:
    30
    Theres two ways to really OC, fast core or huge shaders. Most games, esp. fps games will gain some difference in shader & and a bit of memory increase but for rts I use, fast core & memory.
    RTS: 600/1360/900.
    FPS: 580/1480/900.
    The good thing is that EVGA saves profiles so you can just click and auto OC it.

    Also for anyone that has no idea about what you should be Ocing :

    You can OC three things Core, Shader, and Memory.
    Core & Memory: The Core makes out whats to be drawn, how it should be and etc on the screen, the Memory sends that information over to the shader Thus if you have a high core it'll make quick decisions and send it over to the memory. Ideal for rts, and most intensive games, where there are random explosions.

    Shader: The shader judges how fast pixels can be shown from card to the screen(I might be wrong on this), ideal for fps games but generally all types of games.

    Note: Ocing the memory clock is very important to whichever part you oc whether its the Core or Shader, if the memory can't handle the rate at which the Core sends information to the shader or vice versa, the usual Driver Crash will occur making the card sluggish until reboot.

    edit: I have no idea why I just quoted :/.

  29. askwas

    askwas Notebook Enthusiast

    Reputations:
    11
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5

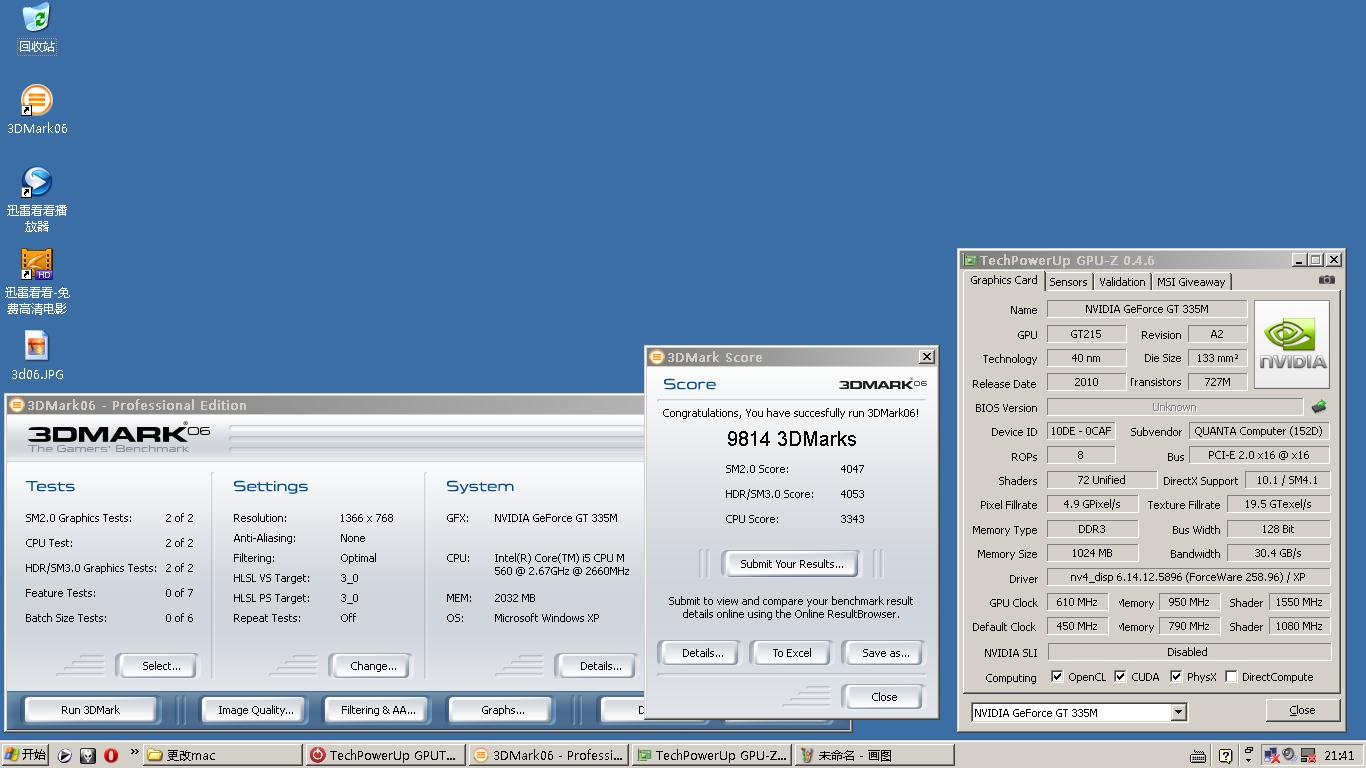

    gt335m clock @ 610/950/1550
    1366×768 with i5 560m
    nearly 10,000 score
    :p
    [​IMG]


    Attached Files:

  30. City.

    City. Notebook Evangelist

    Reputations:
    132
    Messages:
    461
    Likes Received:
    0
    Trophy Points:
    30
    thats gotta be a new record... imagine if you had i7...
    Nice OC lol, thats a setting I dream about although could never achieve.

  31. jeremyshaw

    jeremyshaw Big time Idiot

    Reputations:
    791
    Messages:
    3,210
    Likes Received:
    231
    Trophy Points:
    131
    Please tell me you are running LN2 on that laptop :p :D


    Welcome to NBR! :)

  32. MassiveOverkill

    MassiveOverkill Notebook Consultant

    Reputations:
    70
    Messages:
    264
    Likes Received:
    1
    Trophy Points:
    30
    i5 560m huh, guess we know what to look for in the next revision eh?

  33. jeremyshaw

    jeremyshaw Big time Idiot

    Reputations:
    791
    Messages:
    3,210
    Likes Received:
    231
    Trophy Points:
    131
    he probably doesn't know this is the m11x section, lol :p


    The title is ambigous.

  34. MassiveOverkill

    MassiveOverkill Notebook Consultant

    Reputations:
    70
    Messages:
    264
    Likes Received:
    1
    Trophy Points:
    30
    I actually wouldn't be surprised if it were true and he's got an early edition. Things get released over on that side of the world alot sooner.

  35. jeremyshaw

    jeremyshaw Big time Idiot

    Reputations:
    791
    Messages:
    3,210
    Likes Received:
    231
    Trophy Points:
    131
    Screen IS 13xx/768
    from that screenie.

    If GPU is same, me = ticked

    The OS is Vista or XP (more likely XP), as far as I can tell...

  36. MassiveOverkill

    MassiveOverkill Notebook Consultant

    Reputations:
    70
    Messages:
    264
    Likes Received:
    1
    Trophy Points:
    30
    I'm betting XP as XP gets pretty high scores in 06 where Vantage is more multi-core/thread-friendly.

  37. jeremyshaw

    jeremyshaw Big time Idiot

    Reputations:
    791
    Messages:
    3,210
    Likes Received:
    231
    Trophy Points:
    131
    Either way, the OEM ID is one of Taiwan's big ODM/OEM boys :)

    Could be intersting :D
