    Best Memory for M11x R1 Overclock

    Discussion in 'Alienware M11x' started by deathpulse, May 3, 2011.

  1. deathpulse

    deathpulse Notebook Enthusiast

    Reputations:
    6
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    What is the BEST memory (price not an issue) to overclock the M11x R1 with?

    deathpulse, May 3, 2011
    #1
  2. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    I had 8GB G.Skill in there prior to OC, but had to revert back to the stock Micron that came with it, but only 4GB. But works like a charm so far @ CAS6 266MHz. Would prefer 8GB but I guess that's the sacrifice I'll have to make unless I go with Kingston HyperX for ~ $100 if lucky enough to find it on sale and in stock.

    HTWingNut, May 3, 2011
    #2
  3. deathpulse

    deathpulse Notebook Enthusiast

    Reputations:
    6
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    So Kingston HyperX is the best? Newegg a decent place to find it?

    deathpulse, May 3, 2011
    #3
  4. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    overclock how? pin mod or bios overclock?

    ajslay, May 3, 2011
    #4
  5. deathpulse

    deathpulse Notebook Enthusiast

    Reputations:
    6
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    Either ajslay. I planned on Pin Modding but I want RAM that can handle the highest overclock.

    deathpulse, May 3, 2011
    #5
  6. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    if its the bios overclock, then the ram doesnt matter. but if your pin modding, then i use samsung ram. il post a screenshot of what it looks like if you want.

    ajslay, May 3, 2011
    #6
  7. deathpulse

    deathpulse Notebook Enthusiast

    Reputations:
    6
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    cool!! thanks ajslay and htwinnut! if you can post a part number or model number, then I can search for it online :).

    deathpulse, May 3, 2011
    #7
  8. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    here you go man.

    ajslay, May 3, 2011
    #8
  9. deathpulse

    deathpulse Notebook Enthusiast

    Reputations:
    6
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    deathpulse, May 3, 2011
    #9
  10. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    ajslay, May 4, 2011
    #10
  11. deathpulse

    deathpulse Notebook Enthusiast

    Reputations:
    6
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    deathpulse, May 4, 2011
    #11
  12. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    ajslay, May 4, 2011
    #12
  13. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    My machine came stock with Samsung.

    HTWingNut, May 4, 2011
    #13
  14. deathpulse

    deathpulse Notebook Enthusiast

    Reputations:
    6
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    OK - I just threw Newegg a few bucks and got 8GB (2 4gb sticks) of the Samsung RAM in my last link! Can't wait to get the R1, the RAM and PIN MOD her! Might was well get a resistor too... hm......

    deathpulse, May 4, 2011
    #14
  15. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    you can get the resister from radio shack =D and your going to need a solering iron and solder.

    ajslay, May 4, 2011
    #15
  16. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    And a strong magnifying glass, and a steady hand, and a lot of patience, and a full list of four letter words.

    HTWingNut, May 4, 2011
    #16
  17. whitrzac

    whitrzac The orange end is cold...

    Reputations:
    497
    Messages:
    1,142
    Likes Received:
    7
    Trophy Points:
    56
    NO caffeine!!!!

    whitrzac, May 4, 2011
    #17
  18. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    rofl. true. forgot to mention those too. i just hope he doesnt end up getting so mad he throws his m11x out the window.

    ajslay, May 4, 2011
    #18
  19. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    I forgot to mention a case of beer or box of wine won't hurt either. At least for after the fact to calm your nerves.

    Now back ON TOPIC, I had to pull my 8GB G.Skill since it wouldn't work with my 1.73GHz OC so maybe sell that and get some 8GB of that Samsung. :D

    HTWingNut, May 4, 2011
    #19
  20. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    mmmm samuel adams beer.. my mother wouldnt have to know =P

    just kidding. would definitely need something to calm you down after having to concentrate that hard for big period of time.

    ajslay, May 4, 2011
    #20
  21. deathpulse

    deathpulse Notebook Enthusiast

    Reputations:
    6
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    Got me an iron and magnifying lens for 'lectric work already :). This should be a FUN project. Any pin modding necessary to volt and clock mod the GPU?

    deathpulse, May 4, 2011
    #21
  22. HTWingNut

    HTWingNut Potato

    Reputations:
    21,580
    Messages:
    35,370
    Likes Received:
    9,877
    Trophy Points:
    931
    None determined so far. Only thing so far is the hacked BIOS update to push the voltage from 0.90v to 0.95v. Gives a moderate boost to the GPU core.

    HTWingNut, May 4, 2011
    #22
  23. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    well i have some info on how there might be a pinmod to increase the GPU voltage even more. this hasnt quite gone into testing yet tho.

    ajslay, May 5, 2011
    #23
  24. mardon

    mardon Notebook Deity

    Reputations:
    127
    Messages:
    920
    Likes Received:
    131
    Trophy Points:
    56
    Get sum Valium/Diazepam. Steady hand, all the patience in the world and you wont care if you brick your new Lappy :D

    Also isn't the samsung RAM you just purchased the same RAM you get in the machine from stock??

    mardon, May 5, 2011
    #24
  25. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    i dont think so, mine came with hynix ram.

    ajslay, May 5, 2011
    #25
  26. DrGoodvibes

    DrGoodvibes Notebook Deity

    Reputations:
    389
    Messages:
    973
    Likes Received:
    1
    Trophy Points:
    31

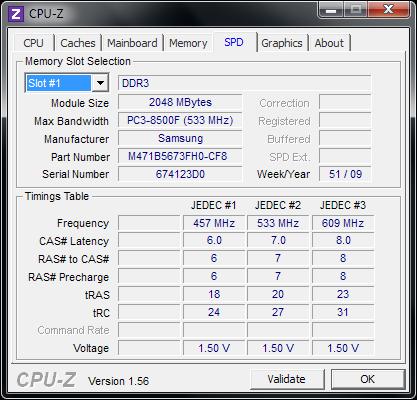

    So if one has Samsung PC3-8500F(533 MHz) memory, that's not good then?

    200–533 MHz I/O clock is the peak of DDR2... how sad is that.

    [​IMG]

    DrGoodvibes, May 5, 2011
    #26
  27. DavyGT

    DavyGT Overclocker

    Reputations:
    496
    Messages:
    900
    Likes Received:
    0
    Trophy Points:
    30
    That's good. I have the 1333mhz version in my R2 but the 1066mhz version consistently clocks over 1000mhz, with a sample of 3 kits.

    DavyGT, May 5, 2011
    #27
  28. DrGoodvibes

    DrGoodvibes Notebook Deity

    Reputations:
    389
    Messages:
    973
    Likes Received:
    1
    Trophy Points:
    31
    I like good, but I don't fully understand the whole memory thing yet.

    Where was I.??. oh yes. So I'm reading DDR3 Wikis and JEDEC standard white papers and etc.

    Now onto Column Address Strobe (CAS) and hopefully should have it sorted in the next few hours.

    Well, maybe a better idea of what everyone else is talking about at least. :)

    Cheers dude.

    DrGoodvibes, May 5, 2011
    #28
  29. el_pitaya

    el_pitaya Notebook Consultant

    Reputations:
    29
    Messages:
    216
    Likes Received:
    1
    Trophy Points:
    31
    hi guys I'm not sure what clock speed is my ram and how good is it
    I hope you guys help me

    this is my image cpuz isgiving me I have m11x r1 BIOS OC to 1.6
    [​IMG]

    I suppose my ram is running 800 Mhz for the 2:3 FSB/DRAM or is it running @ 1033?

    any help would be nice thanks =D

    el_pitaya, May 22, 2011
    #29
  30. el_pitaya

    el_pitaya Notebook Consultant

    Reputations:
    29
    Messages:
    216
    Likes Received:
    1
    Trophy Points:
    31
    anyone heeelp?

    el_pitaya, May 23, 2011
    #30
  31. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    if your just using the bios cpu overclock then its running at 800mhz cas6

    ajslay, May 23, 2011
    #31
