    M11X R1 Speaker Mod: For those who want way better Audio for Games and Music :)

    Discussion in 'Alienware M11x' started by Daskalos, Apr 12, 2012.

  1. Daskalos

    Daskalos Notebook Enthusiast

    Reputations:
    134
    Messages:
    30
    Likes Received:
    1
    Trophy Points:
    16
    M11x is a portable multimedia and gaming beast but the included speakers might affect the entertainment experience... The speakers are good but not that good, It lacks some bass and crispiness. Loudness has some issues too, sliding your volume bar or equalizer up will just make the speakers like someone who's screaming for his life...

    Would it be nice to have better sounding speakers for R1?

    Yes we can have that :) How?
    By replacing the speakers :D

    I just found out that the Altec Lansing speakers from my old laptop works well with R1... Luckily, you don't have to solder things, because it has the same connector as r1's speakers...speaker size are just the same too... And the audio is fantastic :)

    Now I have a better sounding M11X R1 than all of you :D at least for now :)

    <param name="movie" value="http://www.youtube.com/v/sLxPC3wp6ss?version=3&amp;hl=en_US&amp;rel=0"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/v/sLxPC3wp6ss?version=3&amp;hl=en_US&amp;rel=0" type="application/x-shockwave-flash" width='420' height="315" allowscriptaccess="always" allowfullscreen="true"></embed></object>


    GUIDE IN MOUNTING THE ALTEC LANSING SPEAKERS ON M11X R1

    This is just a rough guide... procedure will depend on what model of speakers you will try.
    This is for the Altec Lansing Speakers found in Compaq CQ40

    Just follow the pics ;)

    Note: Don't forget to test your Altec speakers before and after the whole procedure :)

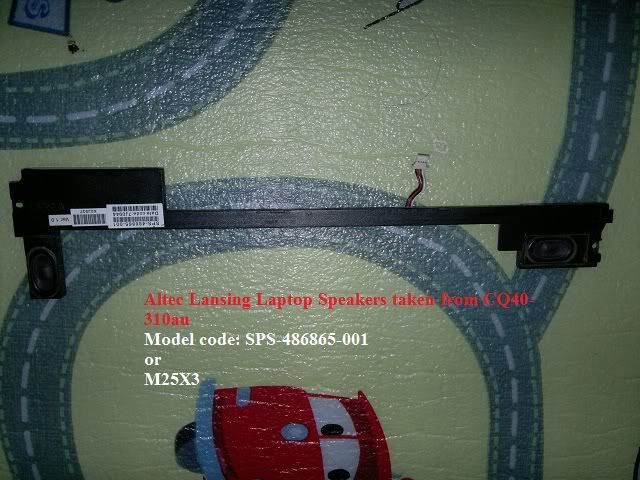

    1. You'll need this

    [​IMG]

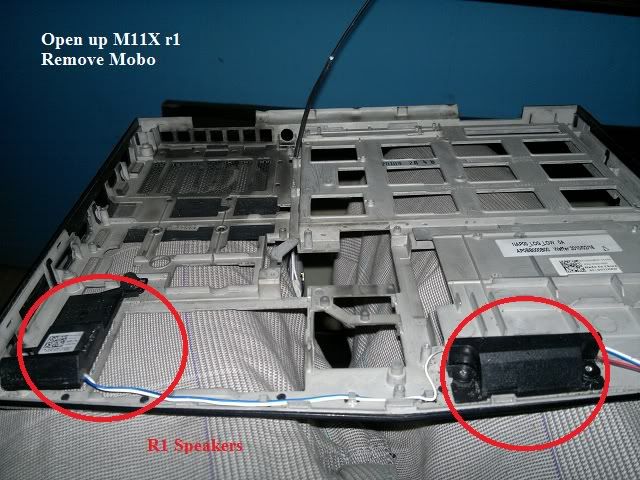

    2. Disassemble your M11X r1

    [​IMG]

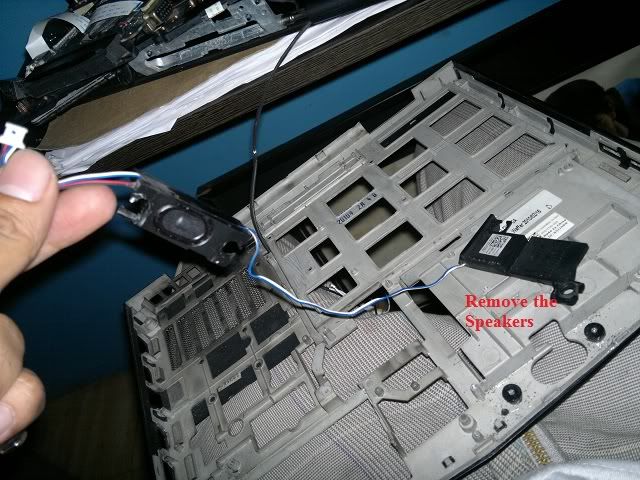

    3 . Remove R1's speakers

    [​IMG]

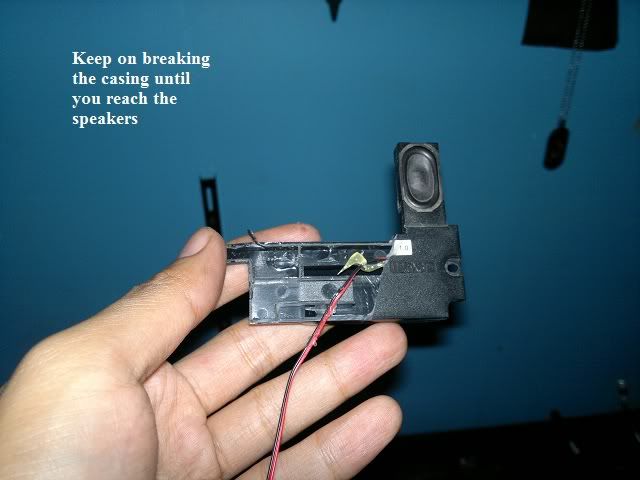

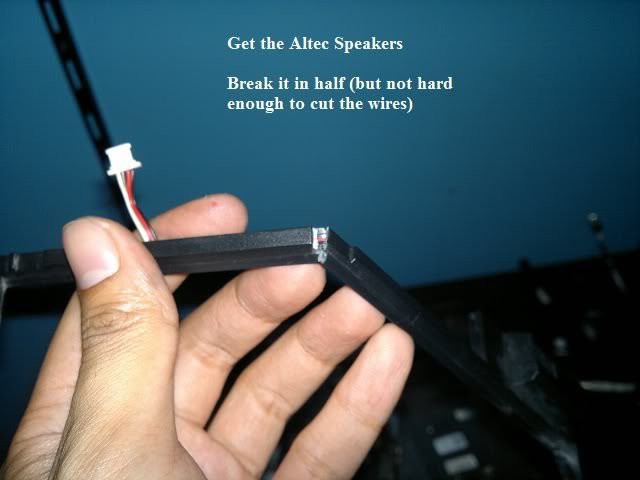

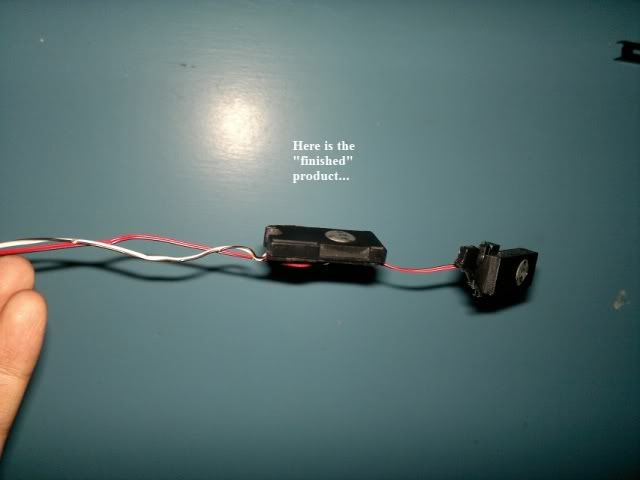

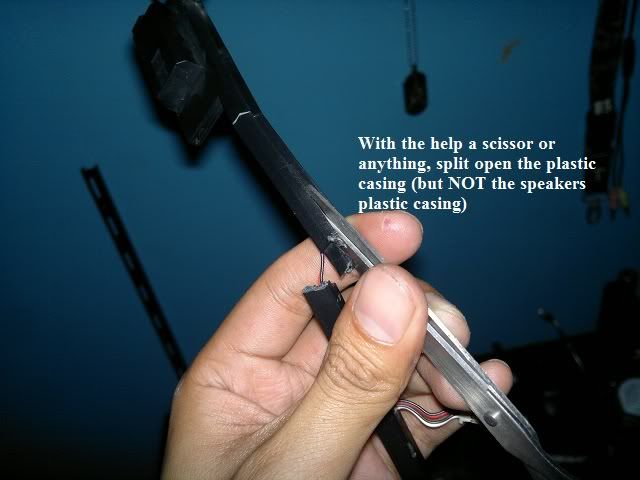

    4. Prepare the Altec Lansing Speakers

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

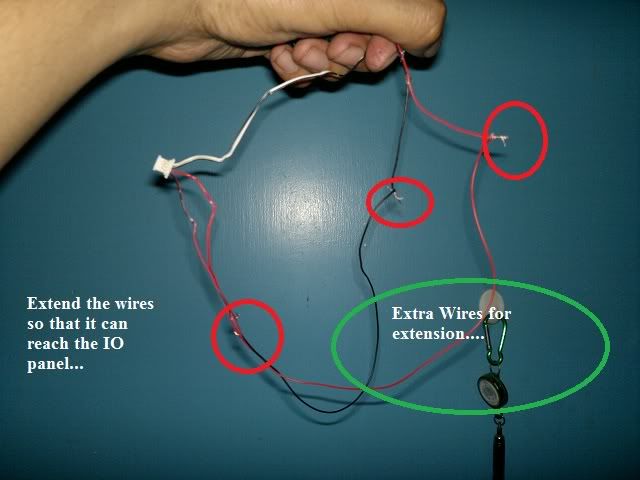

    5. Make extensions

    [​IMG]

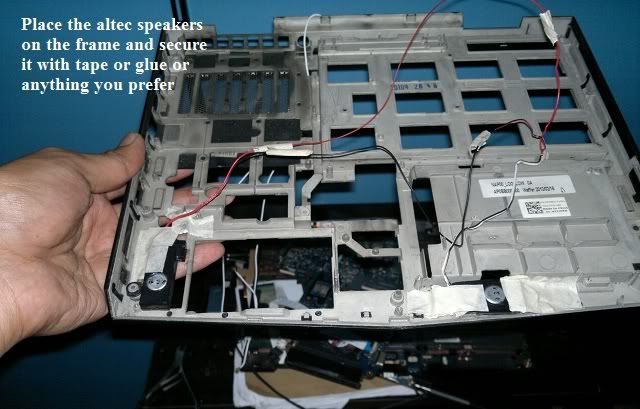

    6. Mount your "new" speakers

    [​IMG]

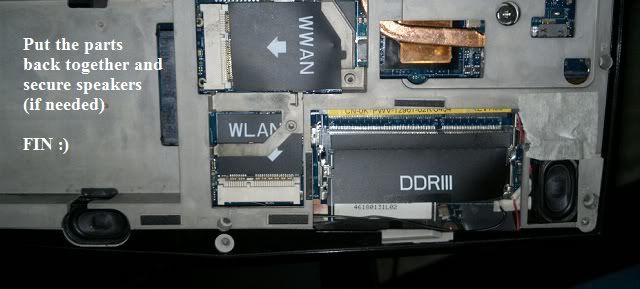

    7. Assemble and Profit :)

    [​IMG]

    Last edited by a moderator: May 6, 2015
    Daskalos, Apr 12, 2012
    #1
  2. ejohnson

    ejohnson Is that lemon zest?

    Reputations:
    827
    Messages:
    2,278
    Likes Received:
    104
    Trophy Points:
    81
    Nice, cant wait to see some pics. I have been dreaming of nice m11x speakers. Waiting to find a set of r3 speakers and a m14x subwoofer to give a try.

    ejohnson, Apr 12, 2012
    #2
  3. Daskalos

    Daskalos Notebook Enthusiast

    Reputations:
    134
    Messages:
    30
    Likes Received:
    1
    Trophy Points:
    16
    video uploaded :)

    Daskalos, Apr 12, 2012
    #3
  4. ejohnson

    ejohnson Is that lemon zest?

    Reputations:
    827
    Messages:
    2,278
    Likes Received:
    104
    Trophy Points:
    81
    Wow, huge change!

    So what laptop you get them from?

    ejohnson, Apr 12, 2012
    #4
  5. Daskalos

    Daskalos Notebook Enthusiast

    Reputations:
    134
    Messages:
    30
    Likes Received:
    1
    Trophy Points:
    16
    From Compaq CQ40 310 au
    but AFAIK it seems all CQ40 series has Altec lansing Speakers

    rough guide added

    Daskalos, Apr 12, 2012
    #5
  6. ejohnson

    ejohnson Is that lemon zest?

    Reputations:
    827
    Messages:
    2,278
    Likes Received:
    104
    Trophy Points:
    81
    ejohnson, Apr 12, 2012
    #6
  7. katalin_2003

    katalin_2003 NBR Spectre Super Moderator

    Reputations:
    14,963
    Messages:
    5,671
    Likes Received:
    1,521
    Trophy Points:
    331
    Very nice, Daskalos, good to see your M11x up and running again ;)

    katalin_2003, Apr 12, 2012
    #7
  8. Daskalos

    Daskalos Notebook Enthusiast

    Reputations:
    134
    Messages:
    30
    Likes Received:
    1
    Trophy Points:
    16
    Thanks again for the help :)

    Daskalos, Apr 12, 2012
    #8
  9. some guy

    some guy Modding Addict

    Reputations:
    568
    Messages:
    1,125
    Likes Received:
    4
    Trophy Points:
    56
    awesome!

    and a rep for you sir! :)

    some guy, Apr 15, 2012
    #9
  10. Yiddo

    Yiddo Believe, Achieve, Receive

    Reputations:
    1,086
    Messages:
    4,643
    Likes Received:
    1
    Trophy Points:
    105
    Nice to see successful modding +1. I understand that the R3 comes with better speaker than the previous 2 revisions but does anyone know what make?

    I have used altec speakers before they would be certainly worth the hassle if they are better than the stock ones in my R3.

    Yiddo, Apr 16, 2012
    #10
  11. Rishwin

    Rishwin Notebook Deity

    Reputations:
    215
    Messages:
    886
    Likes Received:
    0
    Trophy Points:
    30
    Yea the R3 has Klipsch speakers. Have purchased an R1 which i should be receiving in the next week or so, i'll do a sound test among other things to see the difference.

    Rishwin, May 4, 2012
    #11
  12. tonkatrain

    tonkatrain Notebook Consultant

    Reputations:
    35
    Messages:
    143
    Likes Received:
    0
    Trophy Points:
    30
    I know my R3 sounded a little nicer than my R2. But i wouldn't mind upgrading the R3's speakers if i could find some better ones..

    tonkatrain, May 5, 2012
    #12
  13. DashTheHand

    DashTheHand Notebook Geek

    Reputations:
    14
    Messages:
    90
    Likes Received:
    0
    Trophy Points:
    15
    Not to knock modding, but to get some decent sound and if you're willing to drop a bit of cash your best bet is portable external speaker. They even make them with BT so you don't have to deal with wires. I got a Jawbone Jambox a few months ago, and its a perfect companion in size for my M11x. Yes its a bit pricey, but its completely portable, battery life that refuses to die, and even adds a bit of bass.

    DashTheHand, May 7, 2012
    #13
  14. Panther8644

    Panther8644 Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    so if i wanted to do this mod would you guess recommend using the altec ones (found some for $4) or the new R3 ones? or even a different set all together?

    Panther8644, Jul 12, 2012
    #14
  15. ejohnson

    ejohnson Is that lemon zest?

    Reputations:
    827
    Messages:
    2,278
    Likes Received:
    104
    Trophy Points:
    81
    Not sure if these will work yet since I dont have a m11x chassis sitting next to me, but these look interesting
    Tang Band T0-2008S Speaker Module Pair | 264-928

    1 inch by 2 inches, speaker with a passive radiator (extra bass)

    I think with some chassis mods these could be made to fit in there. Im going to grab one of my spare m11x chassis tonight and see if they can be fit into there.

    ejohnson, Mar 11, 2014
    #15
  16. CZroe

    CZroe Notebook Evangelist

    Reputations:
    90
    Messages:
    364
    Likes Received:
    0
    Trophy Points:
    30
    The so-called "Powered by Klipsch" speakers in my M11x R3 are a lower overall volume than my M11x R1. My R1 speakers often weren't loud enough, so this was a problem until I found ways to crank the volume higher in the audio drives and system utilities. Now they sound every bit as crappy, though.

    They look exactly the same. I doubt Klipsch actually made them. If all Klipsch did to certify this was to lower the output level, color me disappointed. Has anyone tried putting R3 speakers in an R1/R2?

    CZroe, Jul 28, 2014
    #16
  17. ZombieKiller

    ZombieKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    ZombieKiller, Mar 5, 2015
    #17
  18. ZombieKiller

    ZombieKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    ZombieKiller, Mar 7, 2015
    #18
  19. ZombieKiller

    ZombieKiller Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    N/A

    ZombieKiller, Mar 7, 2015
    #19
