Quadro M4000M testing

My Quadro M4000M arrived today. Unfortunately, I haven't been able to do a lot of testing.

The first Firestrike run is about the same as the GTX 970M.

Quadro M4000M with 940XM
6255
http://www.3dmark.com/fs/10121551

6274 - with power settings to Performance (new Win 7 install)
http://www.3dmark.com/fs/10121969

GTX 970M with 920XM (daughter's machine)
6036
http://www.3dmark.com/fs/7942992


The card installed easily. No need to futz around with disabling the audio to get the hardware to install. A simple INF mod is required to install the drivers

Driver: Quadro 364.72 QNF (Quadro New Feature)
Max temp: 63c - Grizzly Kryonaut

Nvidia Inspector allows for GPU overclocking up to +130MHz +135MHz. The slider does not move for memory overclocking. Funny thing is I lost performance.

It runs out of power so I may have to see about getting this thing unlocked.


ASIC Quaility:



Nvidia Inspector:


GPU-Z Render Test:



Pics:

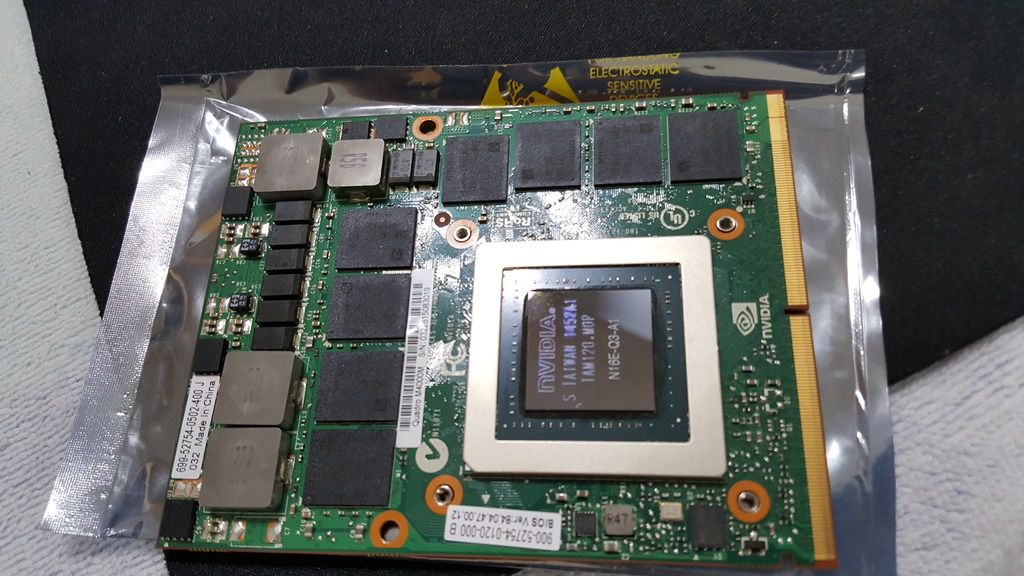

Front

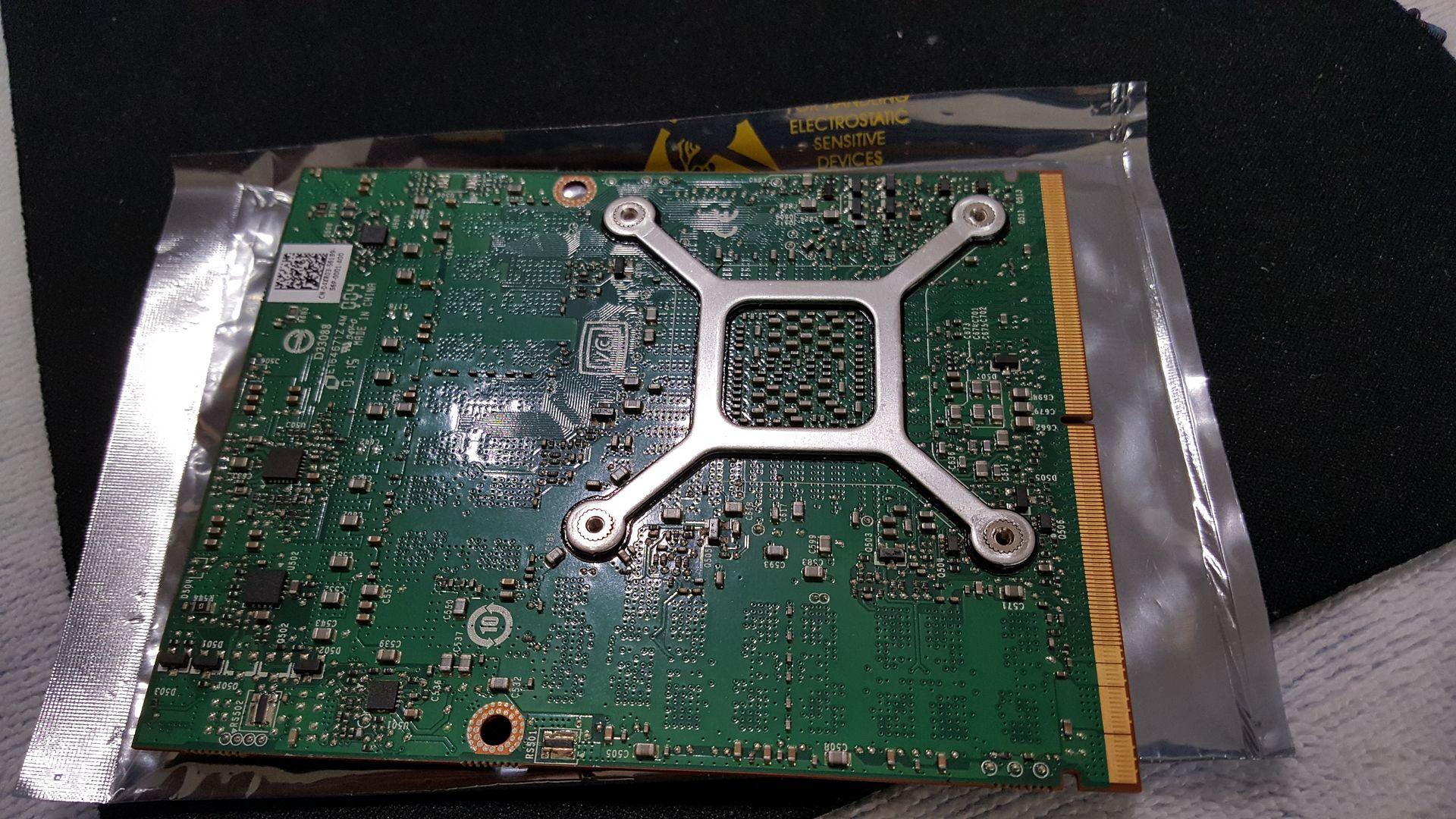

Back (no RAM chips, not a bad thing!)



Ask prema to unlock it. Be sure to give a contribution for all the hard work he does

Pretty good news though. Stock performance is already greater than 970M! Shows that extra rops and vram bandwidth is more valuable than a clock speed boost.

Any feedback about heat, power consumption compared to 970M?

Sent from my SM-A500FU using Tapatalk



That's great news DS. Many thanks for taking it on, seems a great card at stock. Be good to see an in depth look at how it performs.
As KIT asked, would like to know heat at load and also if the DP works OK as game on TV sometimes.

Sent from my Nexus 6P using Tapatalk



Max temp was 63c when the GPU was overclocked by 130MHz.

Sent from my overpriced Galaxy S6 Edge +



This is fantastic! Looks like a well balanced card while the lack of vram on the underside really helps the M15x cool the card under load. Need to unchain the beast however!

Did you contact Prema

Sent from my SM-A500FU using Tapatalk



I did contact Prema.

I want to see how this does. Right now it does not appear to matter if it is overclocked due to the power limit being pegged.

Sent from my overpriced Galaxy S6 Edge +



I will check DisplayPort functionality for you as soon as I can buddy. I left town this morning and won't be home until later this evening.

Sent from my overpriced Galaxy S6 Edge +



No worries. That would be great. Cheers.

Sent from my Nexus 6P using Tapatalk



DisplayPort works perfectly with my TV, sound and all. Looks good!



That's brilliant. Thanks for all your effort in trying this card. Seems a good buy.

Sent from my Nexus 6P using Tapatalk



Where did you get it from?



Ebay.

Specifically here: http://www.ebay.com/itm/NVIDIA-Quad...302938?hash=item1a18fbc55a:g:fRQAAOSw6n5Xqhuz

This company is based in Nashville, TN and it's about 40 minutes from where I live!
The card arrived in double bubble wrap and inside a sealed anti-static back. No issues at all. I gave them positive feedback on ebay.

If you can find a GTX 970M used it will probably be cheaper. New GTX 970M goes for $460 at RJTech.



I was gonna say...what's the point if a used 970M can be had for little more than 300USD



I just wanted to try it out. Plus, the only 970M I have seen go for a little over $300 has been here on the marketplace.

Sent from my overpriced Galaxy S6 Edge +



EDIT: Added some screenshots to the original post.



Rarely and it is an superior card for the M15x than the 970M. Runs cooler too thanks to vram free backside

Sent from my SM-A500FU using Tapatalk



Looks like @Prema will be able to help me out pretty soon. w00t!

Sent from my overpriced Galaxy S6 Edge +



@Prema has done some great work on this for me. Testing is being done initially in my M17x R4 because a brick is easily recovered. We worked late (for me) into the night last night on this. It runs really well in the M17x R4 and stays under 80c at 1412MHz

Firestrike
M8789 Graphics 10554
http://www.3dmark.com/fs/10205916


3DMark11
P11160 Graphics 12545
http://www.3dmark.com/3dm11/11589511

Edit: @Prema says this is an HP card. Just FYI...


Sent from my overpriced Galaxy S6 Edge +



Wow that is mighty impressive!

1412mhz is very fast! Is this the top speed?

Can you do some testing in the M15x now that you have unlocked it?

Sent from my SM-A500FU using Tapatalk



My 980M achieved a graphics score of 10247 in firestrike @ 1200mhz. Running pretty hot.

You have beaten that score! Would love to see the thing in the M15x with some liquid ultra to see the load temps at 1400mhz!

Sent from my SM-A500FU using Tapatalk



Well, it doesn't like going that fast in 3DM11 as it doesn't complete the run, even at 1.200v. It runs faster in Firestrike and completes the benchmark, so I would say it's not that stable at the moment.

Right now the M4000M does not like the M15x with the vBIOS that is currently in it as it will not post. @Prema has sent me a new vBIOS early this morning to try and fix the no post situation. I should be able to test it tonight.

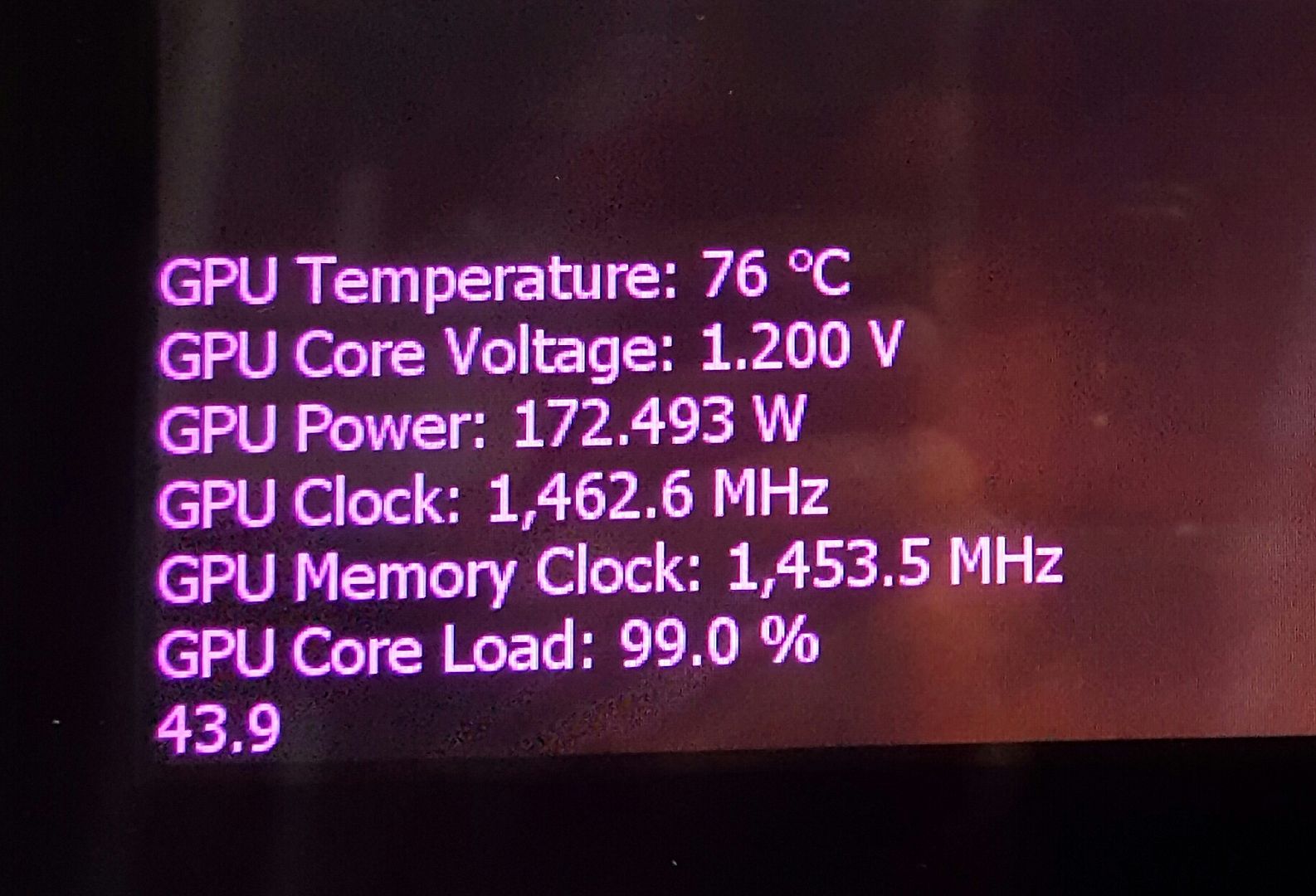

Fastest speed I was able to hit was 1462MHz in Firestrike. The card pulled 170w at that speed and hit 83c (if memory serves me...) I know it sounds very cool, but it IS running very cool. This is in the M17x R4 mind you, not the M15x.



Oh that is a shame! Still iam sure Prema will work some extra magic and get it to work! 170w sounds like alot though! M15x wouldnt be able to handle that.



Sent from my SM-A500FU using Tapatalk



That was just the peak. It didn't stay there. Before the VBIOS mod it could not exceed 75w.

@King of Interns



Sent from my overpriced Galaxy S6 Edge +



Traveling the rest of this week so I will have to pick this up later.

Sent from my overpriced Galaxy S6 Edge +



Hey deadsmiley any updates on this and comparisons to make between this card and the 970M? I need a final card for my M15x and don't know what to get...final upgrade I guess...



I like the M4000M in the M17x R4. I also like it in the M15x, however there are some trade offs.

Pros for the Quadro M4000M

* Wider memory bus (192 vs. 256 bit) means that memory overclocking doesn't do much. This allows more power for other things.
* It runs very cool at stock speeds in the M15x.
* It runs very cool overclocked to 1462MHz at 170w in the M17x R4.
* It runs at full clocks (no throttling) with the stock VBIOS as long as it does not hit the power limit of 75w.


Cons for Quadro M4000M

* Once Prema started modding the VBIOS the M15x would no long post with that card installed. This is when I moved to the M17x R4 for testing and it works very well with the superior cooling in that machine.
* The first card I bought is an HP card. Prema tells me it's a funky VBIOS to work with.
* I THINK my second card is from Dell. I am not certain of this.
* I tried restoring the original VBIOS to the M15x and it still would not post in the M15x. It worked fine in the M17x R4.
* I bought a second M4000M for additional testing. I was thinking that may I juked up the VBIOS when I saved it from GPU-Z instead of using nvflash. This second card I used nvflash and will try to restore the VBIOS from the second card into the first. I will update this thread when that happens.

So I have no idea how well the M4000M works in the M15x. I wish I did because I think with 4GB RAM it will run cooler and faster than the 970M. However this is just a guess. I am currently using the second card in my M15x with the 940XM and it runs pretty good.

At this point I cannot recommend the M4000M for the M15x unless you can get it for a really cheap price.

Stick with the 970M as I haven't had any issues with it and it will run pretty darn good with an unlocked VBIOS.



Dude...what? You got the M4000M working in the M17x R2???



Sorry that is a typo.

Sent from my overpriced smartphone



Dammit, I was really excited there for a second.



Be aware that the M4000M does not have an SLI connector.

Sent from my overpriced smartphone



Good feedback here. Really torn about upgrading to 970M tbh. Do not support Ngreedia in any way...how much slower is the m290x at this point? I guess somewhere between 30-40% stock for stock which is a lot!! Damn AMD

Sent from my SM-A500FU using Tapatalk



Hello.
Please share vbios M4000M.
84.04.47.00.12 or other



I will see what I have. Right now I have one working M4000M in the M15x.



@deadsmiley


Hello.
Do you have the vbios for this m4000m card?

(sorry for my English)



I apologize, I am out of town for the next couple of days. I will attach the stock VBIOS for M4000M when I return.



So just to be clear, if I were to buy a m4000m card and install it in M15X as-is, will it work or do I need the vBIOS for it to function?
Thanks in advance.



If you buy an M4000M you do not need a vBIOS for it to function. A modified vBIOS for this card does results in a no boot situation.



Thank you kindly.



Hello
Again, please share vbios 84.04.47.00.12 to M4000M.

I have vbios 84.04.8d.00.02 and 84.04.6d.00.07 but it does not work with clevo p751zm.

I'm sorry for my english.



I deeply apologize as I completely forgot about this. I will see if I can get that for you. The laptop went to my daughter-in-law and she lives in another State. Just hang on and I will see what I can do.



@CZARLIII Here is the stock VBIOS from an M4000M. It is version 84.04.47.00.12



Photobucket can suckit.



@deadsmiley
Hello, I would like to replace the Radeon HD 7970M with a used Quadro M4000M in my M17X R4 to make it a workstation. Could you please tell me the procedure to get it work?
Thanks for your help.



Yes I can help. I will start a conversation with you.



@deadsmiley
Thanks for the reply.



Hi guys i'm new on forum and i have a quadro M4000M recently bought and i installed on Hp 8770w, it won't boot, i suspect it's because of dell's vbios.
According to this post i see that you had one with HP vbios, could you please send me the bios? ( my mail: [email protected])



I just bought the M4000M (a Dell version) for my M6700. I am wondering if the vbios that Prema modified could be shared with me. The one that allows for higher voltage and overclock. Thanks



@Prema



My Quadro M4000M is due to arrive in a couple of days, any chance for getting a modded driver? I've seen a bunch of GTX 970M popping out around?



I finally got one but I had to pay for it.
