[m15x] Finally I´m able to OC the 8800 GTX

http://img295.imageshack.us/img295/3716/10699ql6.jpg

Hey guys ...

finally I found a way to "unlock" the Bios from the 8800 GTX in my m15x ...

At the moment I run all test´s with the 175.80 WHQL driver .. with the 175.50 I had alway around 500 points more ... that means .. I´m able to hit the 11K mark

for this score the geforce was running on 571 GPU Core and 928 GPU Memory ... temp is not going over 80° maximum was 79° and than the fan starts working and cool the card down to 71° ... so there is enough room to OC

the bios which I use is still beta version ... as soon as I tried ALL options ... I can provide you the bios ...



Way to go markus; good to know that this is an option. Great score!

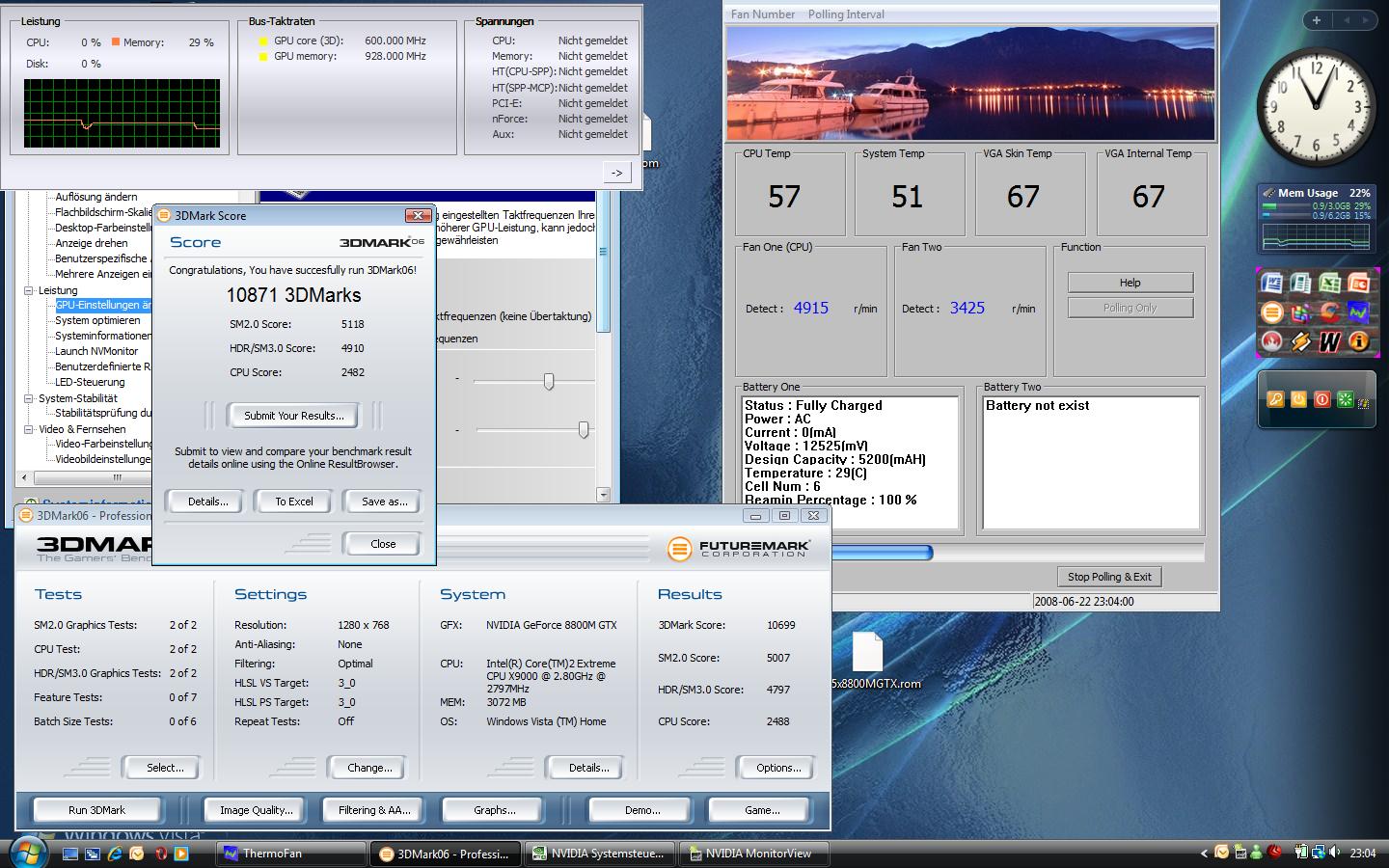

10871 points at 600/928



mm nice... nice clocks.. this is why i think the 9800m GTX may be put in the m15x.
how did i exactly unlock overclocking?... was it just via drivers right?



Markus, just curious why you went from a m1730 to a m15x? Pretty drastic change.



so is 1 to 5 hours battery i guess?



as you can see, I had the 1730 for gaming and the 1330 for everything else ... but it was very bothersome to work with both, always to sync. the files ... and with the m15x I have more or less a 1730 and 1330 in one

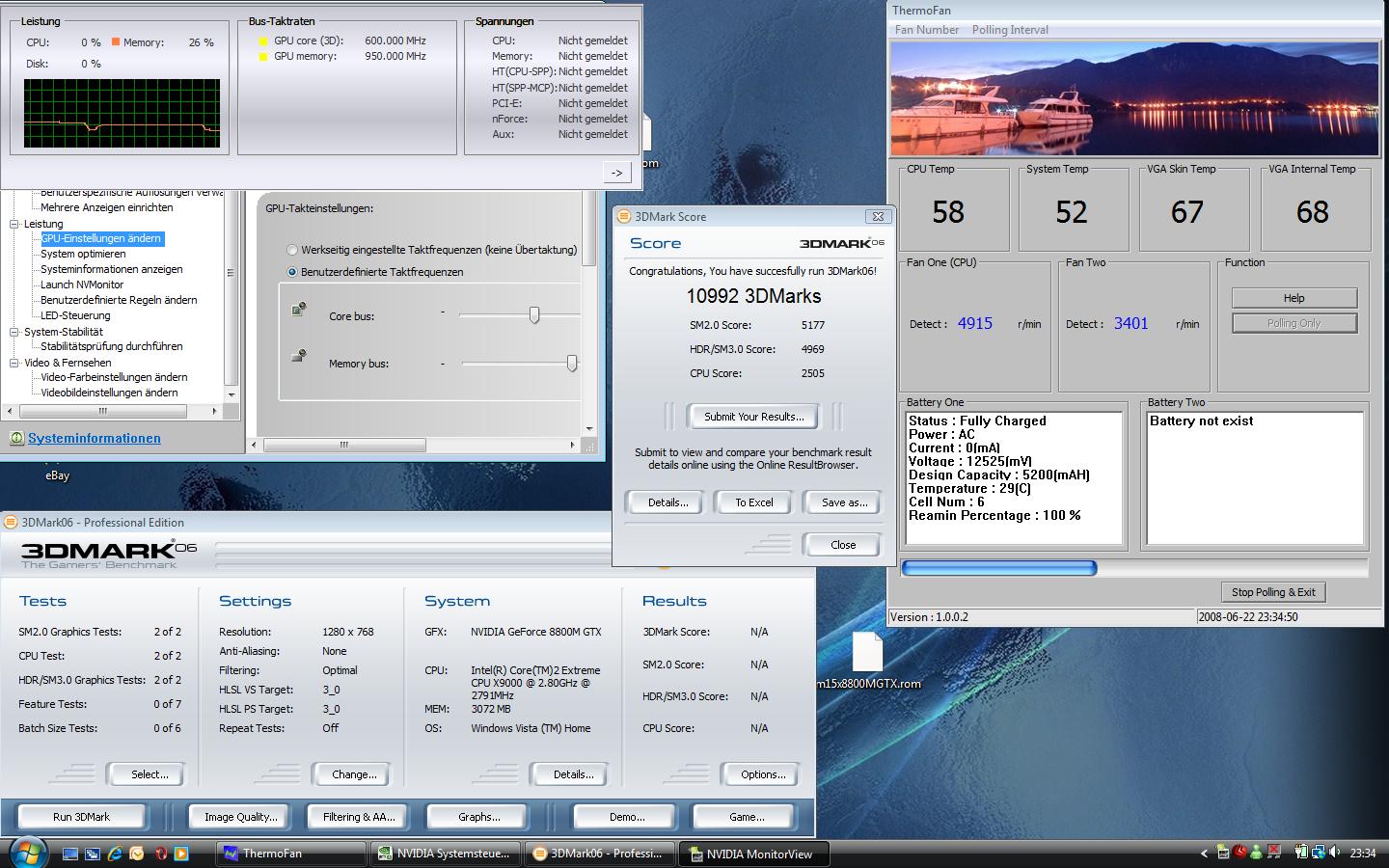

10992 points at 600/950



Have you used Rivatuner to monitor your GPU's temperatures? Or are you using Thermofan (this program does not give an accurate reading of the GPU temperatures and largely underestimates it)?
Could you please post some graphs with Rivatuner (with clock speeds, temperatures, etc...).
How are you testing your GPU? Only with 3DMark06?

Appart from that... well done. Although what's the difference between 10000 3DMark06 (what I have at stock) and 10900 (what you have OCed)? Is the difference in performance really significative to justify the OC?



can you try 1280x1024 if possible?



@Nirvana:

no, i can´t because as you see in my signature .. 1440x900

@milcs:

The ThermoFan gives me the correct temparatur, I checkt this with Everest and GPU-Z!

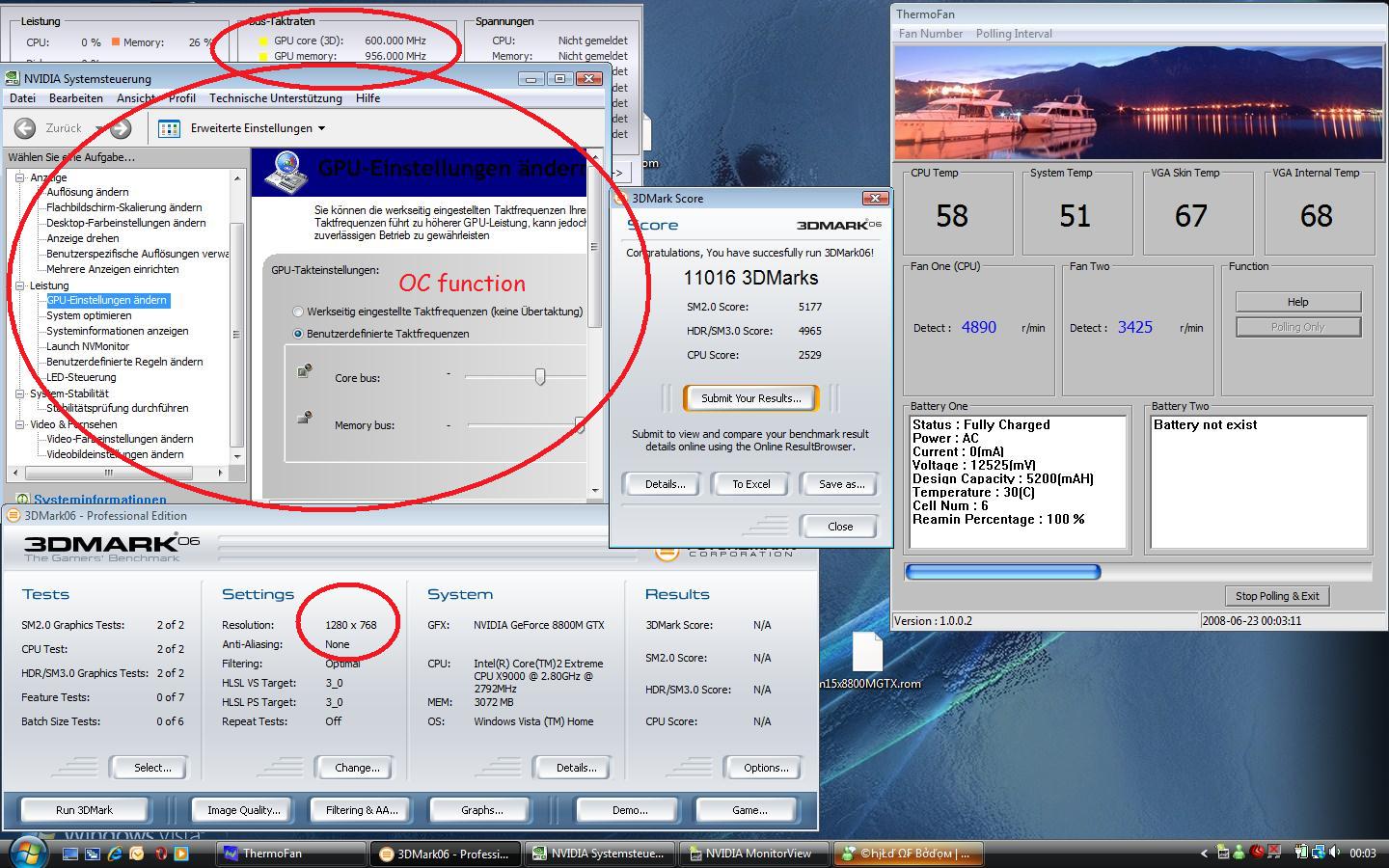

In the attached picture I marked the settings.
You can´t use RivaTuner, because the 8800M has got 4 performance Level, and RivaTuner is just able to manage 3!
I use the nTune for OC!

edit:

The link shows the score with the same system just without OC
http://img291.imageshack.us/my.php?image=981017580rl2.jpg



at what speeds does a average 8800m GTX start to arterfact? mabye some of the NP5973 /1730 or /901 users could tell us?... Markus did your 1730 have 8800m GTX at what temps did they start to artifact? from what we have been told i would guess its 100 ish?



Makes sense. I actually ordered and canceled a m1730 awhile back for the very same reasons. I was just curious. Glad you're enjoying the m15x.



dexgo hitted 12528 with a single 8800m gtx. 1280x1024.



*rofl* I really don´t know what "artifact" means ... and leo.org shows me just stupid options

can you explain me what you mean ...

No, I had just the 8700 Sli in the 1730!



which system?



"Clevo D901c, Quad Core@3ghz 1333mhz fsb OC'D, 8800m-GtX 600-1500-950 37degrees idle, 64@peak. 10198 stock 12528 oc'd. 1 card"



lol ... but you know, you can´t compare this system with an m15x ... allone because of the FSB ....

And I have a encreased score from 1200 points ... from 98xx to 11xxx

edit:

Now I just have to find out, how to OC the X9000, than I´ll hit the 12K with the right driver



That's really impressive Kainer. I will overclock when I feel braver. Right now, I'm such a chicken. Afraid of screwing up my m15x.



that would be cool if you could OC the x9000 if it could handle the heat.



THat would be nice taco. You could squeeze out more juice from your 8700 right?



lol well don't really care to much for the 8700 but it gets the job done. It would help me convert my videos faster



artifacting when visual output from the GPU is distorted due to excessive heat or lack of power at high frequency . I have not overclocked a laptop before but in a desktop enviroment the point at which it starts to artifact is the point you have hit your thermal limit. usualy GPus start artifacting long before any risk to gpu takes place.



have u experienced any of this at higher speeds or are u just stoping due to not wanting a warm laptop



Ohh ... I understand

So, I had never somthing like this in my laptops, because the videocard was never going to hot, like it is in the m15x, the maximum rate at the moment is 600/950 ... and as soon as I encrease one of the value, I get a "frezze". and after 10 sec. the display shows me the Vista Desktop and the videocard is on performance level 2 with 150/200 ... than I have to restart the laptop, after the restart everything is normal again!

But I gues also the geforce would start around 100° to "artifacting"

edit:

@tacomenace21

I use for playing an Laptopcooler, and in crysis the max temp. was CPU 79° (so more than 14° space) and GPU 76° (so more than enough space)

In the "stress test" the CPU never went above 83° !!



Allow me to disagree... Thermofan is innacurate measuring the temperatures of the GPU. Use HWmonitor to get all the temperatures of CPU, HDD and GPU. This program will also keep the maximum temperatures registred, so you will know what is the maximum temp your GPU has gone to.



I´ll do it for you ... just for you

So, I´m going to find the maximum of my m15x tonight ... I don´t know what time this is for you ... I have it now 9.54 am



sounds like the 8800m GTX still has alot of fail safes just one more tick to the list why people should stop stressing about the temps imo.



100C is something to worry about in a laptop like this.

Markus, if you could then do us that favour and test the GPU during gameplay (e.g. crysis) and send us a screen of your HWMonitor program with max temps that the 8800GTX reached during gameplay, that would really be helpful.

Hope they did manage to sort out the 8800GTX heating problem.

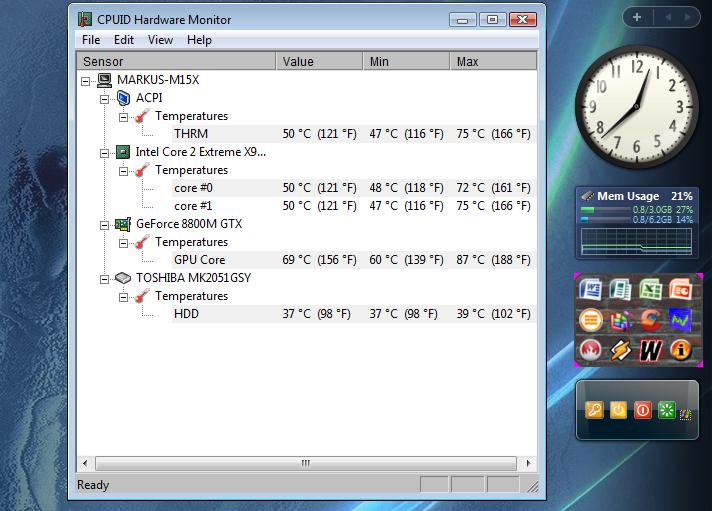

here we go

after around 1h crysis



Seems brilliant! Cheers... Good luck and keep us up to date with your experiments!



thats not a good comparison.. since a Quadcore could make a huge difference in the scores



I´m very impressed now ... I have a "final" bios now on, which one works without faults 100% ... Driver 175.75 ... and now I hit the 11K with 1.05 Volt, the first scores I just could get with 1.1 Volt ...

I think I´m able to hit the 12K now ...



wow thats 12k thats pretty impressive. I don't think anyone has even hit 11k on the m15x



What do you mean with "final bios"?



I mean the by myself optimized final bios for the geforce 8800M ... don´t worry, I don´t have the final bios for the laptop



12k with one 8800 is awesome. With two 8800's you can get about 15k right?



Oh... sooooo... when are you sharing your knowledge with us?



lol. Yes, what's the secret??

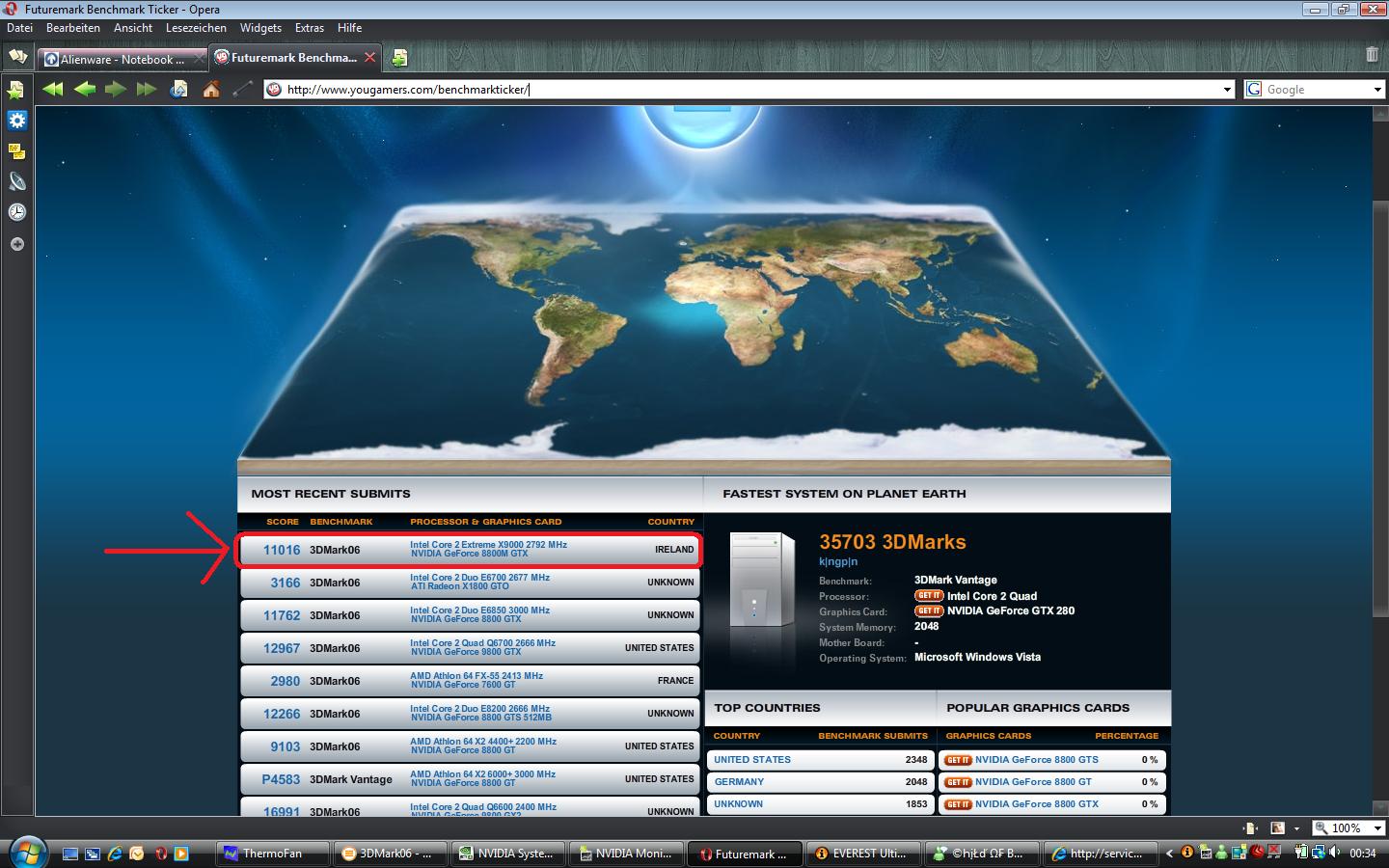

Take a look at this

And the system is solid ... so he can play all games with this settings

The most of my knowledge I´ve got from him



Yep, 15k. That's sweet. Too bad that I can't read that...



but you can see the 15K ... that´s enough

listen guys ... I try to write a "HowTo" till this evening, latest tomorrow!

But I´ll tell you, that every videocard is diffarent, so maybe someone can get better core/memory speed, the other one can oc the card just 5% ...

AND VERY IMPORTANT:

It´s all at your own risk ...

I mean, I´ll provide you the bios for the videocard, the most of you know anyway how to flash the bios ... but I´ll write it down!

OK ... so give me one more day ... than I´ll tell you the "secret" ... which one is no secret, just a bit playing around ... because ... there is ALWAYS a way



Cheers and thanks for that.
Not that I will do it myself... but at least for the enthusiasts... there's a way!



Nice scores Markus.

Questions: you said you unlocked the GPU’s to OC. I am confused. Rivatuner works right out of the box with the stock drivers. But I cannot get any other drivers from (i.e.) laptopvideo2go.com (yes I know to use the custom INF).

Is this what you unlocked? Also, does this fix the downclocking on battery thing with the m15x? Thanks a bunch and looking forward to your guide =)



Again ... RivaTuner is NOT working correctly with the 8800M ...

REASON: The 8800M has got 4 performance Level, RivaTuner can handle just 3!

When you change the core/gpu speeds with RivaTuner ... open Everest, or nTune and check the speed ... I promise you, the 4th level is still on the same speed!!!

You can the downclock the videocard ... but not overclock ... try nTune and come back to me



*gasp @ this thread* I can't believe you risked overclocking the 8800 on a machine this finicky! Nice results though.



he might have as well have gone for a Great British Fry Up in the same session.. all made on the AW.



wow, nice catch markus, i did not think to of that... cant check atm, but will at home.

I still pulled off 10k 3dmark06 /w the t9300 using riva.

now i'm really looking forward to your guide. i just got mine Friday so only had the weekend to play around. i pretty much stopped when laptopvideo2go drivers failed...

i couldnt get Ntune to work at all... reverts settings back as soon as you apply... i figured this is because of the stock drivers, but i cant get others to install...



I agree there will be no need to keep this system OC anytime in the very near future, unless you want to really bump up those setting in Crysis (for example)

but i have to say, the system did handel very well while OC. like markus had, i did not get any temps over 90C with Core 575 mem 950. it can go further, but not recommended



Here can you see, that RivaTuner just work with 3 Levels. When you start RivaTuner, the program will read the bios from the videocard, and shows you wrong speeds ...

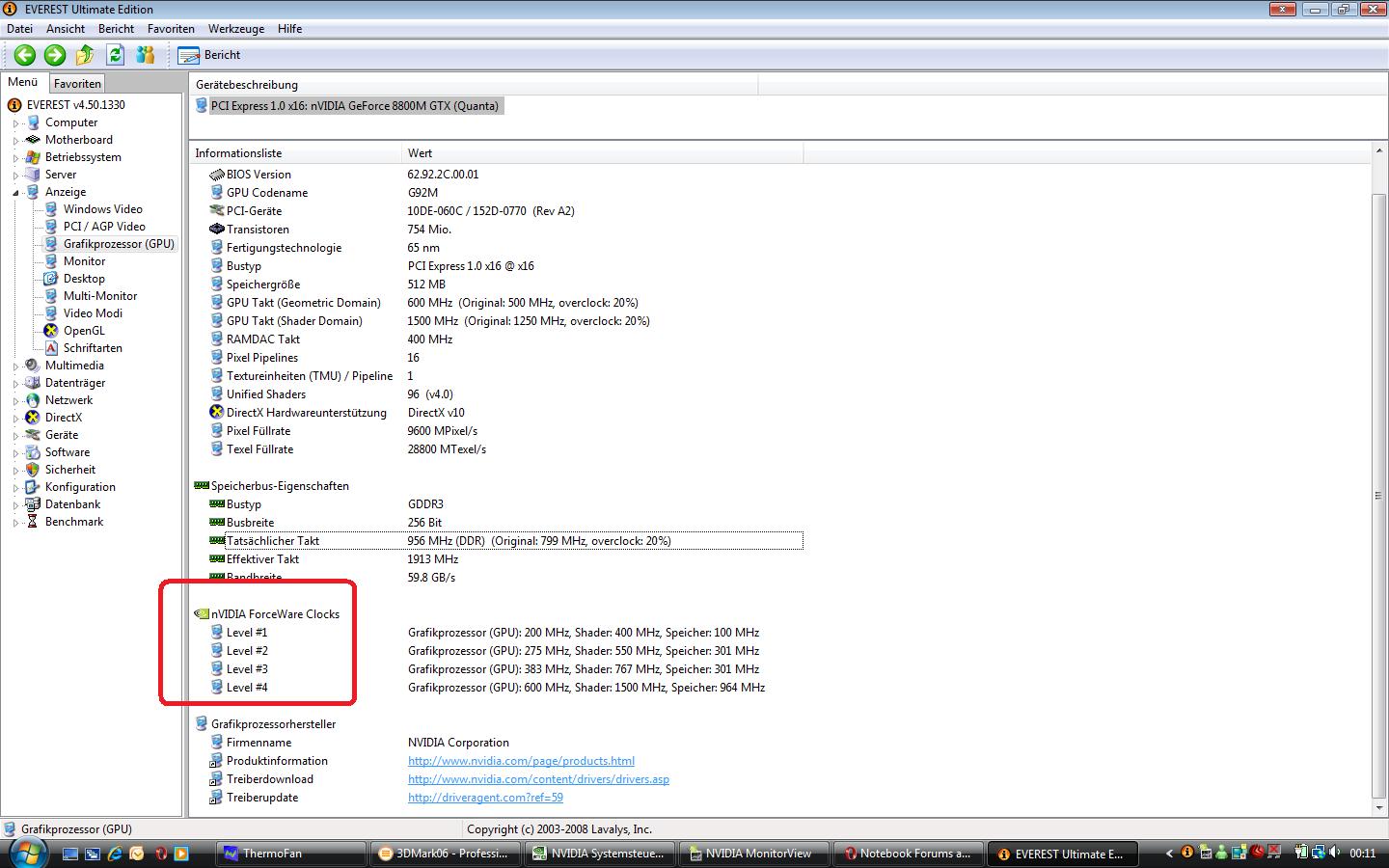

And in this picture Everest shows us clearly that the videocard works with 4 Level!



This is a very simple tool from nVidia (ntune 5.05.) ... you move the small line, and here you go ...



And here you can check if the card accept the score ...

@tech17

the 10K is not about the processor, because the different is not decisive for the 3DMark!

And there is a huge different in games with this core/memory speed ... I´ll post later on details ...

@maceto

no problems with the temps at all



Thanks again markus. I'll give ntune another shot when i get back, but i assume your BIOS flash is needed first.

PS: what was your processor score? we can calculate exactly how much of the total score is contributed by the faster processor with a compare.

But of MOST imporatance to me, does any of your tweaking fix the GPU downclock when running on battery? far as i can tell we'll need a BIOS flash for that...

thanks again, very helpful.
