(To be Made) Vapor Chamber Mod for Area51m Heat Sink

Greetings,

Found a couple of heat vapor chamber on Aliexpress, most of them them are 70x70mm^2, and 3mm in thickness.

If I drill through the vapor chamber for the screw locations (assuming this wont damage the vapor chamber somehow) and at the same time I fill the gab between the chamber and the CPU copper plate?

I think the thickness of the chamber is what holding the potential of this mod; any insight would be appreciated as Im willingly to test it on my Area51m.

Best Regards

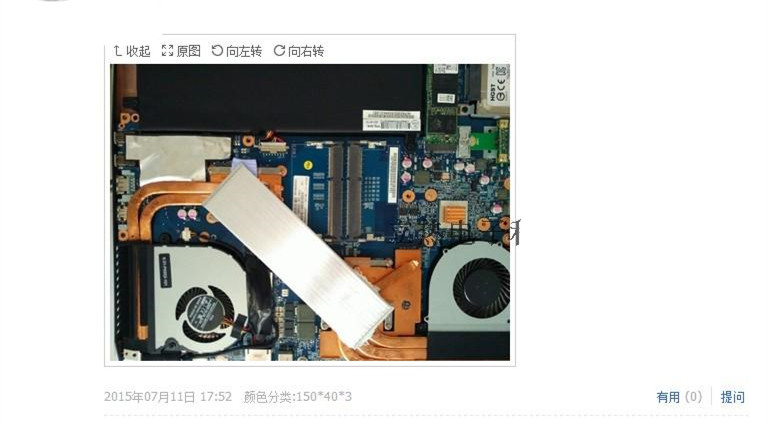

Found this Vapor Chamber mod



If you drill the vapor chamber it will be rendered useless, because its filled with gas..



Unless the VC has mounting holes in it already, you should not drill in it. Since as mentioned above, you will ruin it.

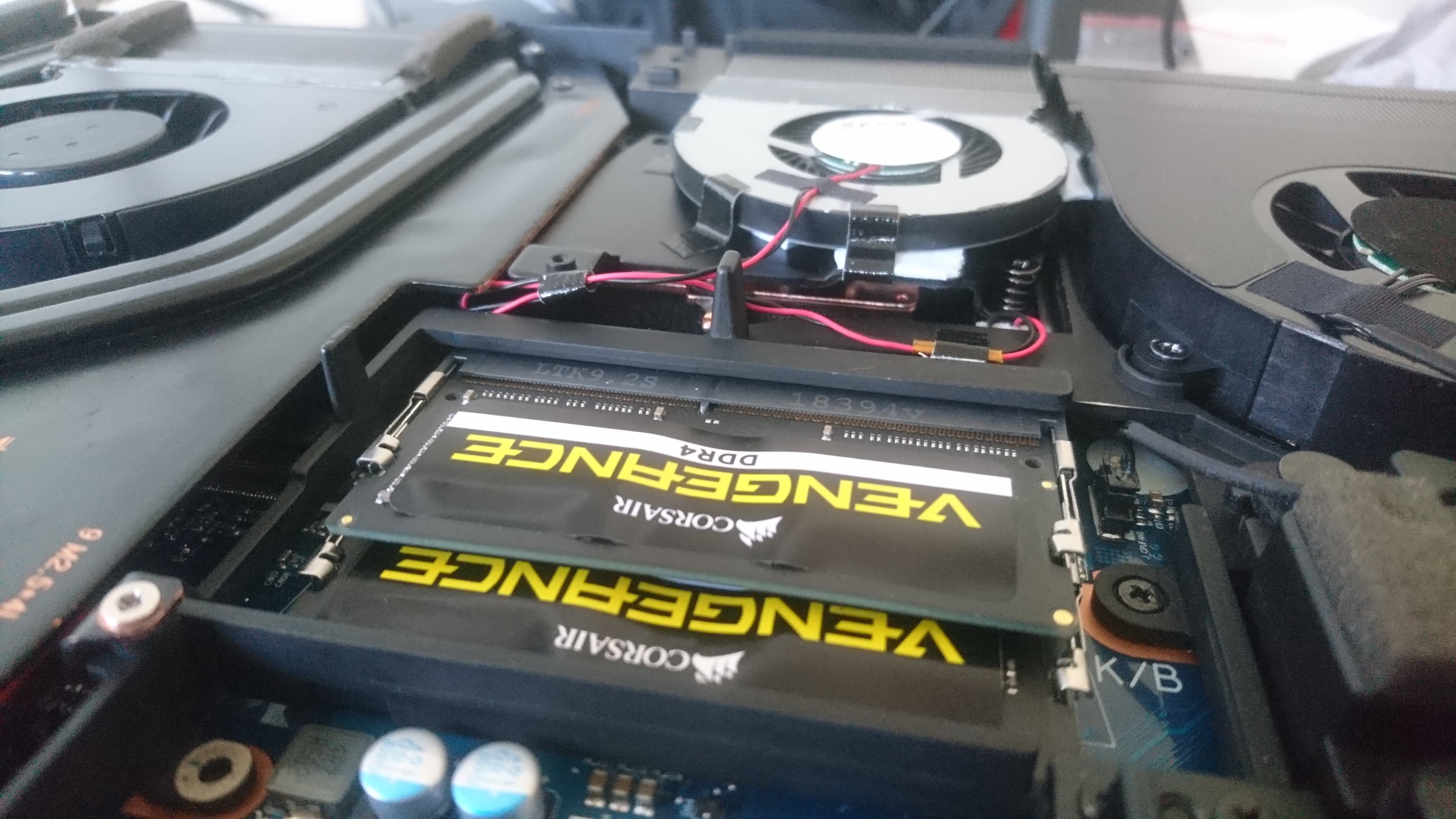

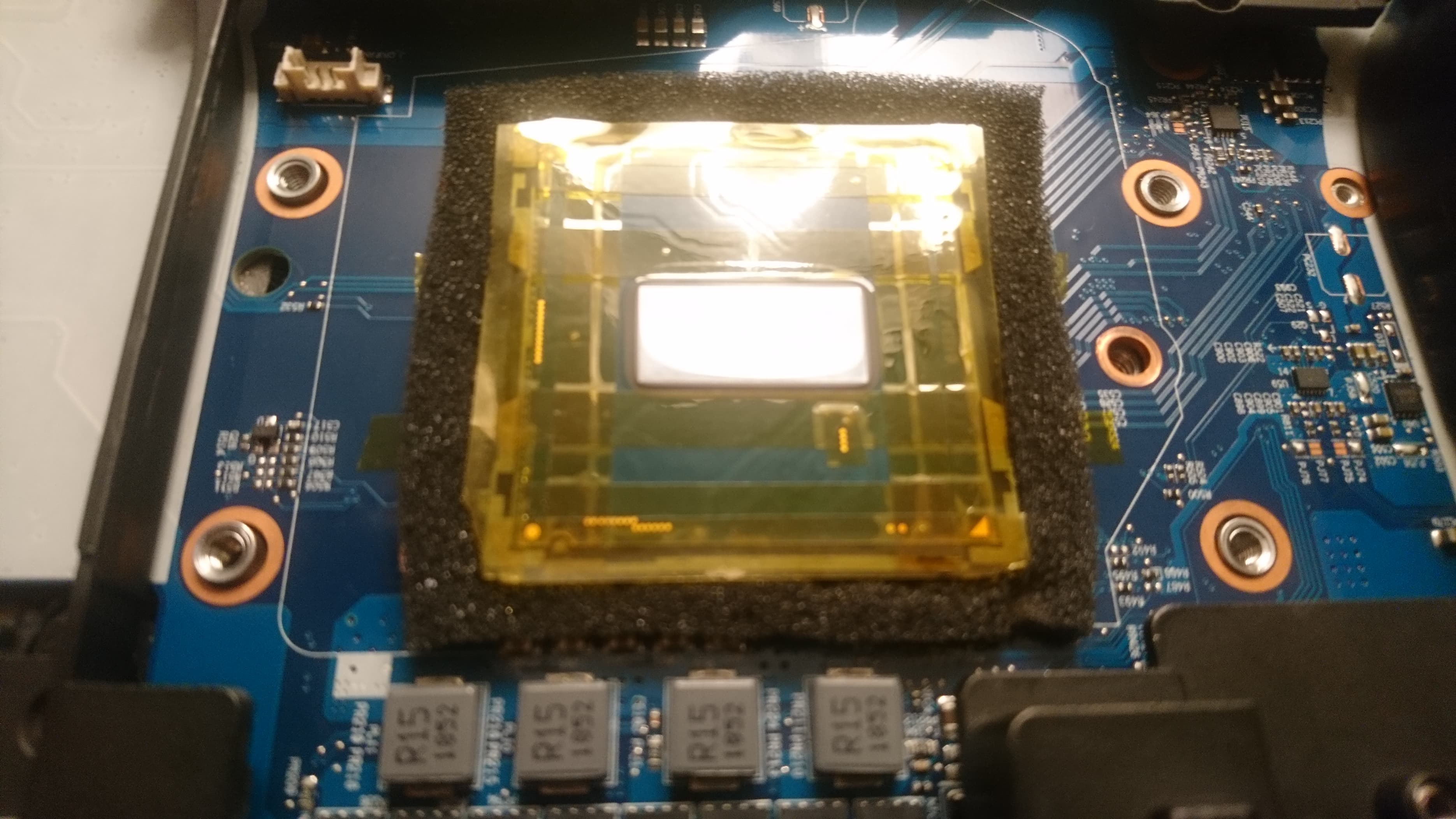

I've used this 56x56x3mm vapor chamber as a IHS replacement for a direct die cooling mod.

https://www.quick-cool-shop.de/en/heatdiffuser/heatdiffuser-quadratic/heat-diffuser-quadratic.html



That looks really interesting brother, do you have a thread anywhere...

You know i love all things custom



Man, did I not tag you in the original post? Shame on me! Here's the write up, it basically dropped temps by 11c when compared to my custom 4.37mm BartX IHS.
@ole!!! had this idea about doing a direct die to vapor chamber mod, and it fits like a glove into the P870 chassis.
http://forum.notebookreview.com/threads/clevo-overclockers-lounge.788975/page-1886#post-10999525



incredible, nice work mate !!

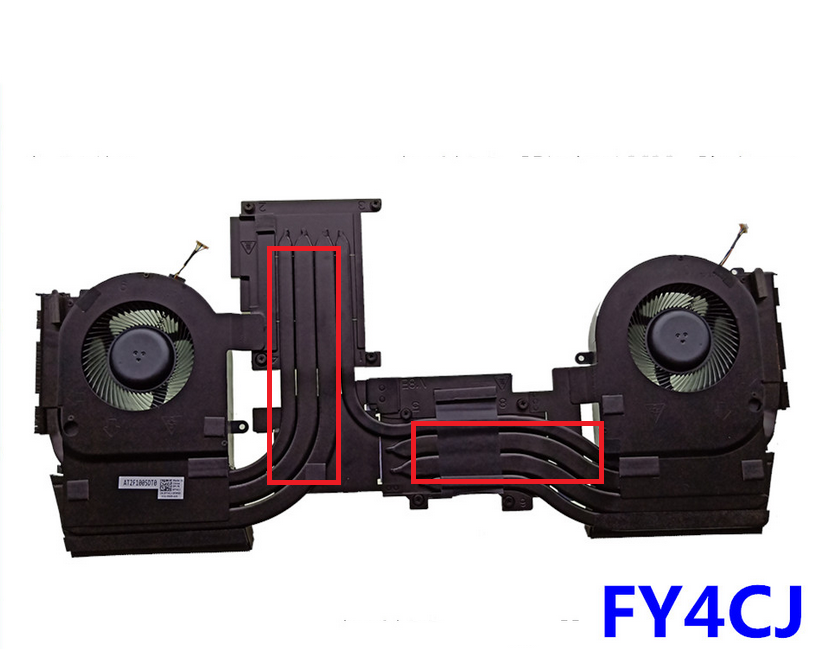

For some reason I didnt get any notification for replies, Anyways I plan to get two plates and stick them on top of CPU, and GPU main copper plate from the outside. Meaning the heat sink will be modified externally, this can vastly damp thermal spikes, any user can notice this when he launches a benchmark and the fan takes a while to kick in (since it doesnt react fast for thermal spikes) and also may help conduct additional heat and on top of that I can get any thickness of vapor plate.

I could only find aluminum, wish I can get hold of copper plates as thick as 5mm.


So the configuration goes like this

CPU ---> Copper Plate (original from Alienware) ---> Vapor chamber (one end) ---> Heat pipes near the fans.

will keep you updated and Im placing an order soon.

5.5x5.5 cm is quite large, it can block screw holes location. I thought of it, good effort however.

Thanks Homer, no need for drilling now



I got two of these that has copper fins for passive cooling. It take TDP up to 165F



My take was to have the vapor chamber mounted direct die to the 9900KF whilst connected to a remote condenser on top.



order has been placed

lets wait and see

https://www.ebay.com/itm/264882164884



I ordered one as well.
What is your experience with it so far? Is it better than stock cooling?

Cheers



willing to order one. Is it good?. Thank you



I have no idea currently. I am waiting for Mr. Chen to dispatch the item from Hong Kong. It should arrive in the UK early next month...hopefully...
I tried to contact @devilhunter, but I am unable to get in contact with him it seem



I would also be interested to know it it's any good vs stock.



I will let you guys know once I have it and install it.
Expect a full review with installation, thermals and testing

Cheers!



Hi! Any updates with vapour chamber heatsink installation?



ohhh... saw the update in the Alienware Area-51M R1 Owner's Lounge
