    Fried Part of 980m

    Discussion in 'Alienware' started by 1Schumsta1, May 28, 2018.

  1. 1Schumsta1

    1Schumsta1 Notebook Consultant

    Reputations:
    88
    Messages:
    108
    Likes Received:
    150
    Trophy Points:
    56

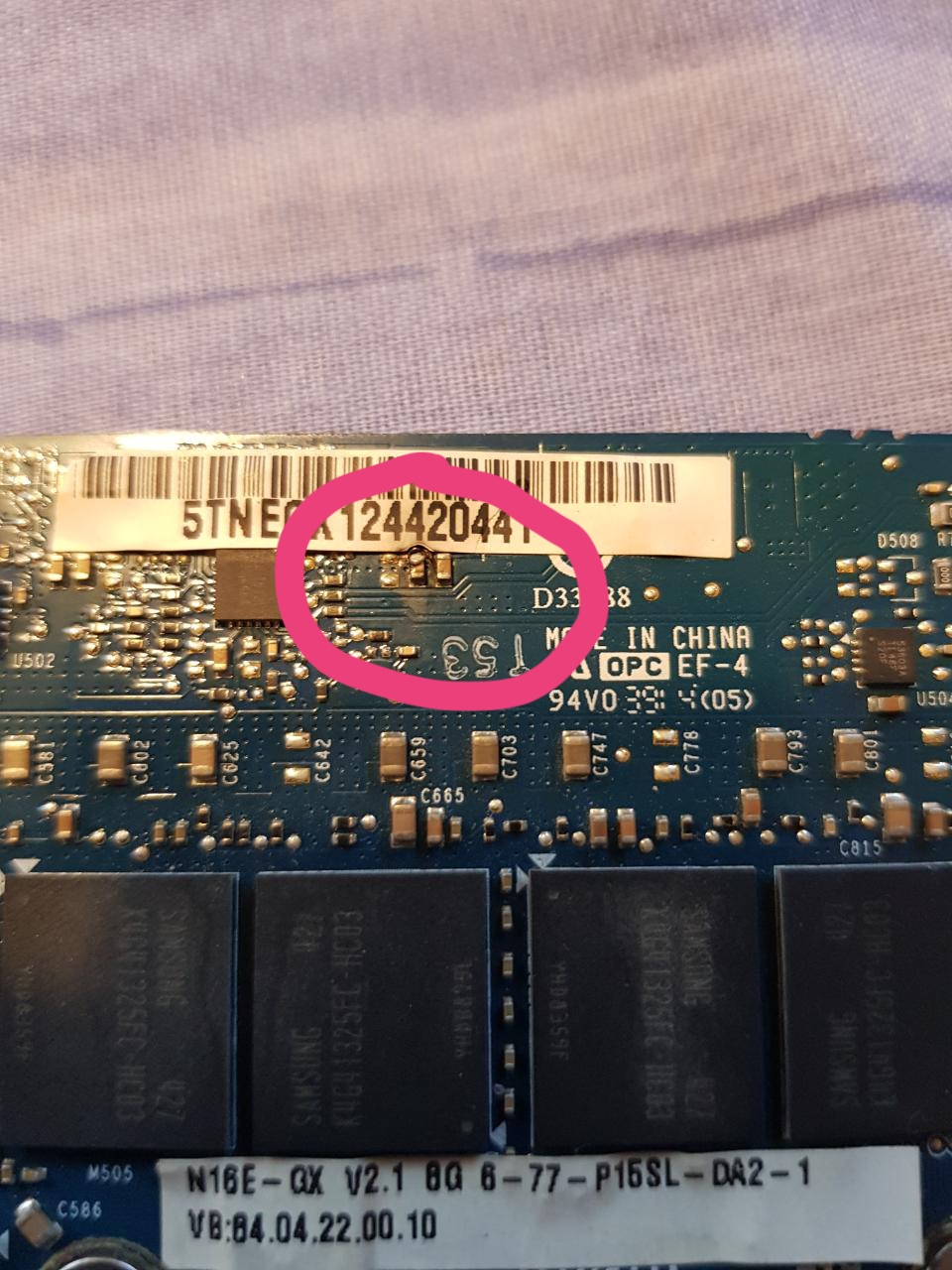

    I just want to know what that part is and if its repairable.
    Thanks in Advance!


    Attached Files:

    1Schumsta1, May 28, 2018
    #1
  2. Arrrrbol

    Arrrrbol Notebook Deity

    Reputations:
    3,235
    Messages:
    707
    Likes Received:
    1,054
    Trophy Points:
    156
    Looks like a surface mount capacitor, easiest way to fix it would be to find another dead 980M and desolder the part you need from it.

    Arrrrbol, May 28, 2018
    #2
  3. 1Schumsta1

    1Schumsta1 Notebook Consultant

    Reputations:
    88
    Messages:
    108
    Likes Received:
    150
    Trophy Points:
    56
    Yeah but where to get such capacitor? I am from austria and if somebody has a dead card or know where to get... Please tell me!

    1Schumsta1, May 28, 2018
    #3
  4. senso

    senso Notebook Deity

    Reputations:
    565
    Messages:
    1,645
    Likes Received:
    789
    Trophy Points:
    131
    Remove the sticker and take another photo.

    Its a decoupling cap most likely given the location.

    The cap next to it looks like its cracked, so that must be replaced as well, given the place, and the pair, I would bet that its a 0603 size cap, one 100nF, one 10uF.

    But what caused it to burn?

    Did you drop the card?

    senso, Jun 5, 2018
    #3
