    Intel Rapid Storage Technology 11.1.0.1006 - SSD RAID0 TRIM Support

    Discussion in 'Alienware' started by Mr. Fox, May 17, 2012.

  1. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,250
    Messages:
    39,346
    Likes Received:
    70,717
    Trophy Points:
    931

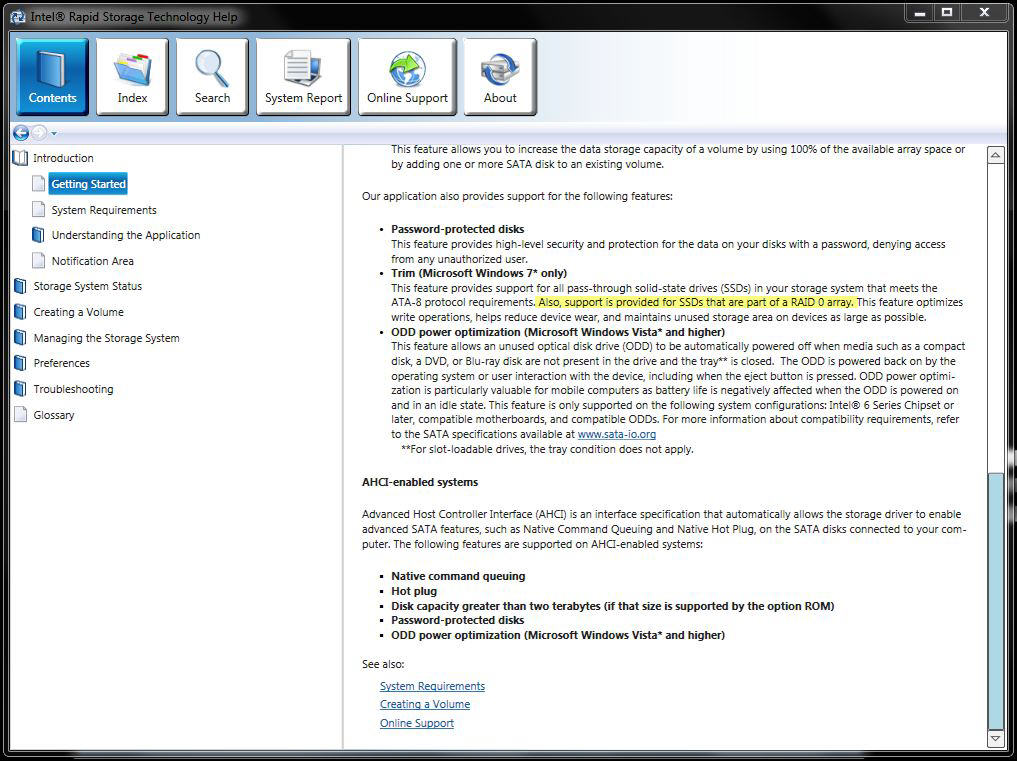

    For those that are interested, there is a desktop version that provides SSD RAID0 TRIM support that is working fine on the M18x under Windows 7. Below is information from a discussion from another thread where a few of us began testing it. Posting a notice here in the main forum for those that want to try it and discuss the results.

    Download it here: Intel® Rapid Storage Technology Driver for Intel Desktop Boards - even though this was intended for desktop boards, it's working great.

    [​IMG]


    Mr. Fox, May 17, 2012
    #1
  2. Xenn0X

    Xenn0X Notebook Evangelist

    Reputations:
    177
    Messages:
    547
    Likes Received:
    0
    Trophy Points:
    30
    will test this on my r3 now, have raid M4

    Installed, package has support for mobile chipsets.
    Love the trim for raid 0!

    Xenn0X, May 17, 2012
    #2
  3. long2905

    long2905 Notebook Virtuoso

    Reputations:
    2,443
    Messages:
    2,314
    Likes Received:
    114
    Trophy Points:
    81
    Just curious but are you able to launch the intel RST app? After a few install and uninstall mine always shows error.

    long2905, May 17, 2012
    #3
  4. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,250
    Messages:
    39,346
    Likes Received:
    70,717
    Trophy Points:
    931
    Yes, no problem. Are you sure you have the correct 11.1.0.1006 desktop version installed? (11.5 beta has issues, including problems with the RST app.) I originally posted a link to the ThinkPad beta for Windows 8 and that one does not work properly. The version linked in the opening post is working good for me and Stevie Jones on the M18x.

    [​IMG]

    Last edited by a moderator: Feb 6, 2015
    Mr. Fox, May 17, 2012
    #4
  5. long2905

    long2905 Notebook Virtuoso

    Reputations:
    2,443
    Messages:
    2,314
    Likes Received:
    114
    Trophy Points:
    81
    Thanks, I did a reinstall and all is right again :D

    long2905, May 17, 2012
    #5
  6. sjefferson

    sjefferson Notebook Consultant

    Reputations:
    130
    Messages:
    249
    Likes Received:
    5
    Trophy Points:
    31
    ok i'm little bit confused. the link is for the desktop version and you guys seem to be saying it works fine on M18x and M17x? does M18x and M17x have desktop version of intel chipset, rather than notebook version of chipset?

    sjefferson, May 17, 2012
    #6
  7. steviejones133

    steviejones133 Notebook Nobel Laureate

    Reputations:
    7,172
    Messages:
    10,077
    Likes Received:
    1,122
    Trophy Points:
    581
    No. It's just fortunate that this desktop version is also working for mobile platforms too, right now. I am pretty confident that there will be a mobile release of the RST that will officially support RAID 0 TRIM for SSD's fairly soon...until then, this version seems to be working just fine.

    steviejones133, May 17, 2012
    #7
  8. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,250
    Messages:
    39,346
    Likes Received:
    70,717
    Trophy Points:
    931
    The Intel Extreme Tuning Utility (XTU) is designed for certain desktop motherboards, and it also provides some added functionality with the M18x and M17x.

    Mr. Fox, May 17, 2012
    #8
  9. Xenn0X

    Xenn0X Notebook Evangelist

    Reputations:
    177
    Messages:
    547
    Likes Received:
    0
    Trophy Points:
    30
    there drivers work fine, needed an extra reboot the get the rts manager visible but all good and trimming the raid 0 :)

    Xenn0X, May 18, 2012
    #9
  10. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,250
    Messages:
    39,346
    Likes Received:
    70,717
    Trophy Points:
    931
    Awesome! Glad it's working good for you also, Xenn0X.

    Mr. Fox, May 18, 2012
    #10
  11. AgentYura

    AgentYura Notebook Guru

    Reputations:
    37
    Messages:
    60
    Likes Received:
    7
    Trophy Points:
    16
    Hey guys!
    Any issues using TRIM in RAID 0?
    Does it increase the latency?
    Maybe TRIM in RAID0 doesn't do such a good job as does TRIM with a single drive?
    Is TRIM supported in RAID1 SSDs?

    AgentYura, Jun 13, 2012
    #11
  12. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,250
    Messages:
    39,346
    Likes Received:
    70,717
    Trophy Points:
    931
    No issues that I have found. Everything seems to be working peachy.

    Not sure about RAID1 TRIM support, as I don't use RAID1. Intel probably has a white paper on the subject that would tell you.

    Mr. Fox, Jun 14, 2012
    #12
  13. crellion

    crellion Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Hey Fox. Can you do some testing regarding the RAID 0, TRIM support on WIN 7 for this driver?

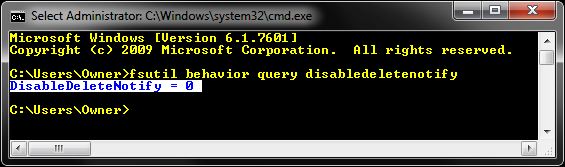

    I know some other threads who were using the 11.5 Alpha did some screens where they looked at the HEX-VALUES of a large test file to see if the TRIM was actually working (replacing with 00 's)...

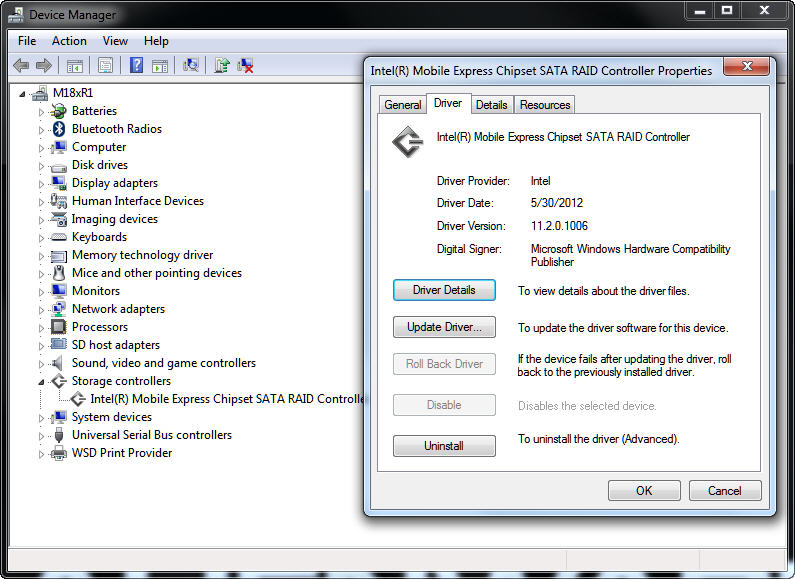

    Also it seems like the official WHQL 11.2 is out now -

    http://downloadcenter.intel.com/Det...Desktop+Boards"&DownloadType=Drivers&lang=eng

    don't know whats the difference between that and the original 11.1...

    crellion, Jun 17, 2012
    #13
  14. Prasad

    Prasad NBR Reviewer 1337 NBR Reviewer

    Reputations:
    1,804
    Messages:
    4,956
    Likes Received:
    10
    Trophy Points:
    106
    Thanks! :) Downloading now...

    Prasad, Jun 17, 2012
    #14
  15. ole!!!

    ole!!! Notebook Prophet

    Reputations:
    2,879
    Messages:
    5,952
    Likes Received:
    3,983
    Trophy Points:
    431
    so.. do i download the driver thats on the 1st page? or the latest one thats posted up?

    ole!!!, Jul 8, 2012
    #15
  16. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,250
    Messages:
    39,346
    Likes Received:
    70,717
    Trophy Points:
    931
    Mr. Fox, Jul 8, 2012
    #16
  17. vince207gti

    vince207gti Notebook Guru

    Reputations:
    13
    Messages:
    51
    Likes Received:
    5
    Trophy Points:
    16
    Hi, I do have one question,
    how do I use/ install the .zip files ?

    thank you very much :)

    vince207gti, Jul 16, 2012
    #17
  18. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    namaiki, Jul 16, 2012
    #18
