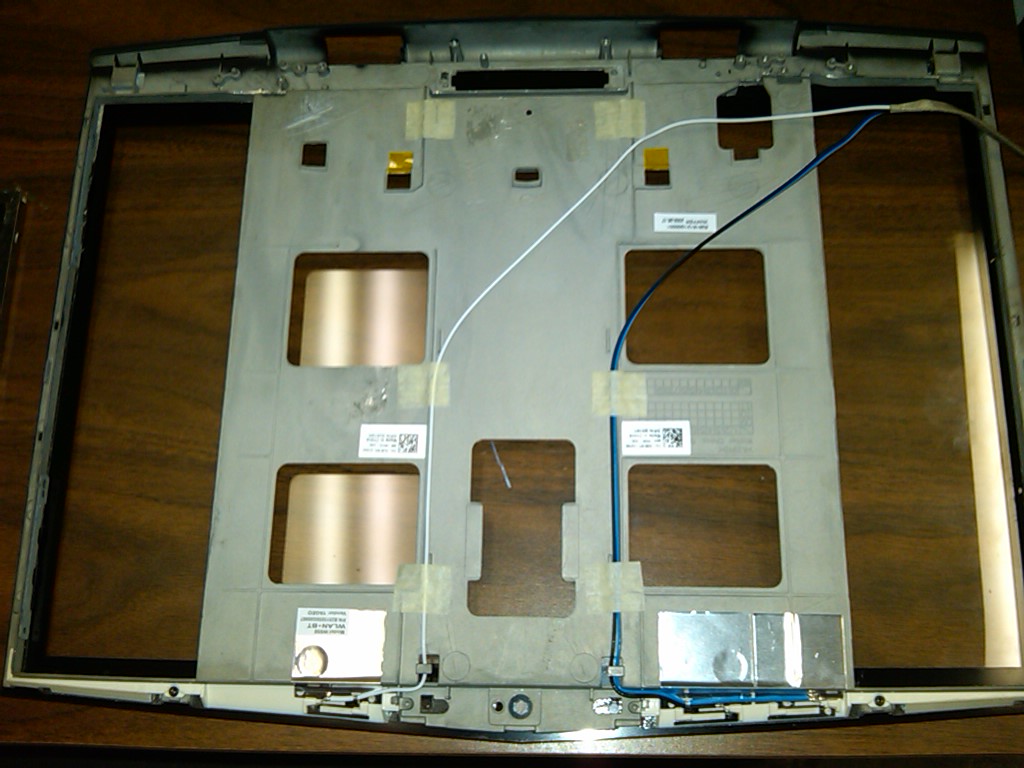

M17x Panel Dismanteling

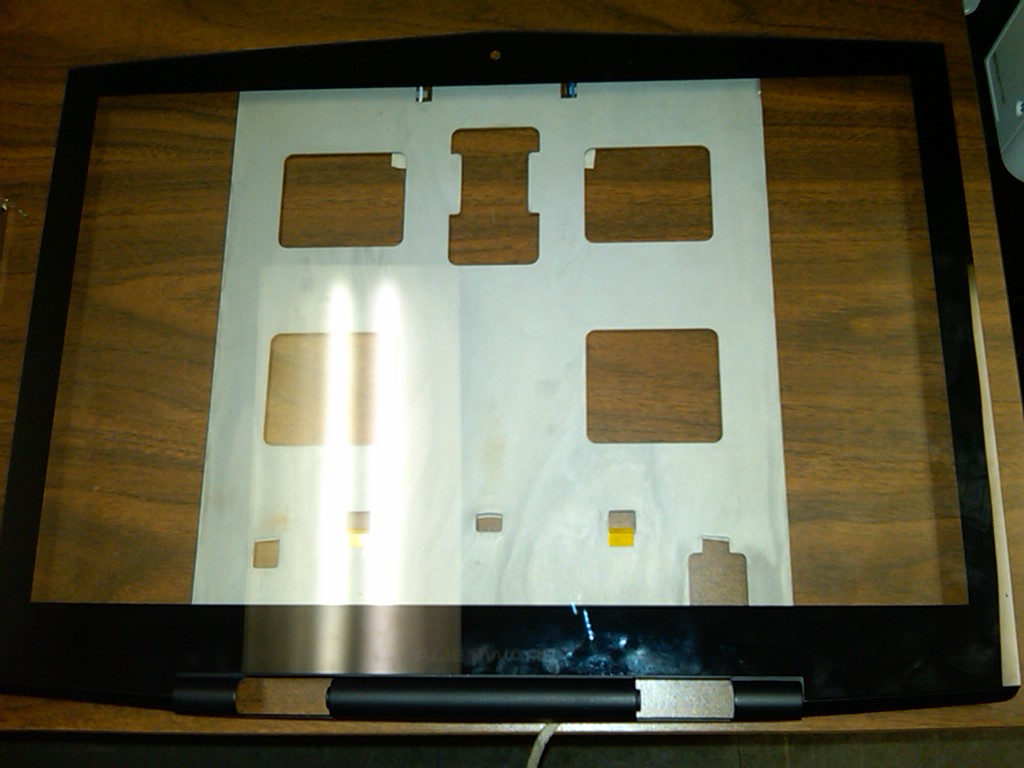

hi quadzilla and sleey0 i know you want to see this because this is the first time somebody take apart the allpowerfull panel sorry sleey0 i know i supose to sell it to you but this save you some money and time and believe or not was a pain in the A now since i start with this i need to know what is the best screen we can trow in there maybe a tl-a2 or tl-a5 or a led back light well enjoy



Nice, but please use some punctuation. Good work though .



led screens will not work

you have to get a dual bulb 16:10 screen



thank's and sorry i was exited, i hope zfactor apears to help with this.



led don't work you sure? any way this is better than the one comes with the laptop right http://cgi.ebay.com/ws/eBayISAPI.dl...o=CRX&its=S%2BI%2BSS&itu=SI%2BISS%2BUCI&otn=4



yes led has different connectors.....



come on sleey0 quadzilla and zfactor were you guys are



+rep for doing that.

can you explain the procedure?

And if you can find a TLA2, that would most likely be the best panel you could put in there....

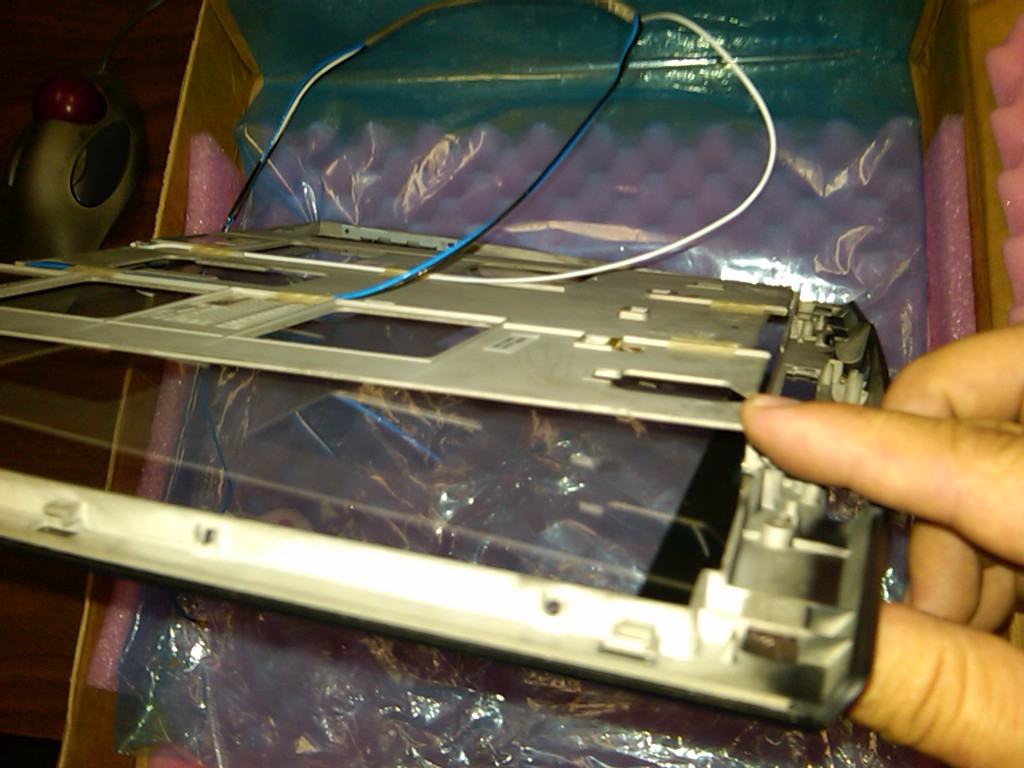

to take that apart you will have to cut the two aluminum pieces on the buttom by the converter is hard to explain let me post another pic



i hope you can see what i did with this pic



Does it screw back on without the metal you cut?



Wow thats fantastic and pretty much what i thought would have to be done instead of removing the glass ).

Get a TLA2 and just use one of the connectors for power and everything "should" be fine .


Oh and slide it back into a bag so you dont have 5 pounds of dust floating around inside of it .



yes the screen has 8 screws and after you set the new one all you need to do is glue the aluminum thogether with some like epoxy glue also the screen has same double side tape to keep dust out i know what i can use for that 3m double side tape for car moldings. http://www.hootoo.com/170-inchs-laptop-lcd-screen-panel-lp171wu1tla2-1920x1200-p-4528.html hey is this the right screen is kind a spensive



hi quad were is my +rep that took me 3 hours to have it done



Lol i cant rep you again as i just tried .



ok guys i need to find a tla2 for good price all i see on the net. are like 200



thank you for try any way



I would buy from these guys . Price is about the same but they have no dead pixel guarantee and 180 day warranty which most of the panel resellers do not ..

http://cgi.ebay.com/A-NEW-LP171WU1-...in_0?hash=item5ad319d5a6&_trksid=p3286.c0.m14



LOL +Rep.

This is a trick I will not perform, but I do like to see the pictures from the inside of this machine.



thank's thadutchy i order the tla2 from dallas and they ship today i shut have it this friday i want to see if that is going to make a big difference yesterday i play fallout 3 and the screen was to dark my eyes get tired i hope this a good move



Theres people that were claiming the dimming does not happen during games but i tried to explain they were wrong



Quad... I already admitted my mistake... Yes, there is a dimming feature.

(Allthough my screen is not on 100% brightness, which could make the dimming less obvious.)



yeah i not complain about the resolution looks awesome but on my desktop with a 24" samsung hd my eyes never get tired so something is wrong with the dell panels looks like they on power saver but no is hi performance settings i think the dimming is present all the time



Yeah its when theres a dark scene in a game it makes the panel dark which makes you strain your eyes to see things which in turn makes them tired. Stupidest idea ever to do on a notebook IMHO and i really hope you adding the new panel will fix it as ill be ordering again then when the ATI cards come out if its fixed .

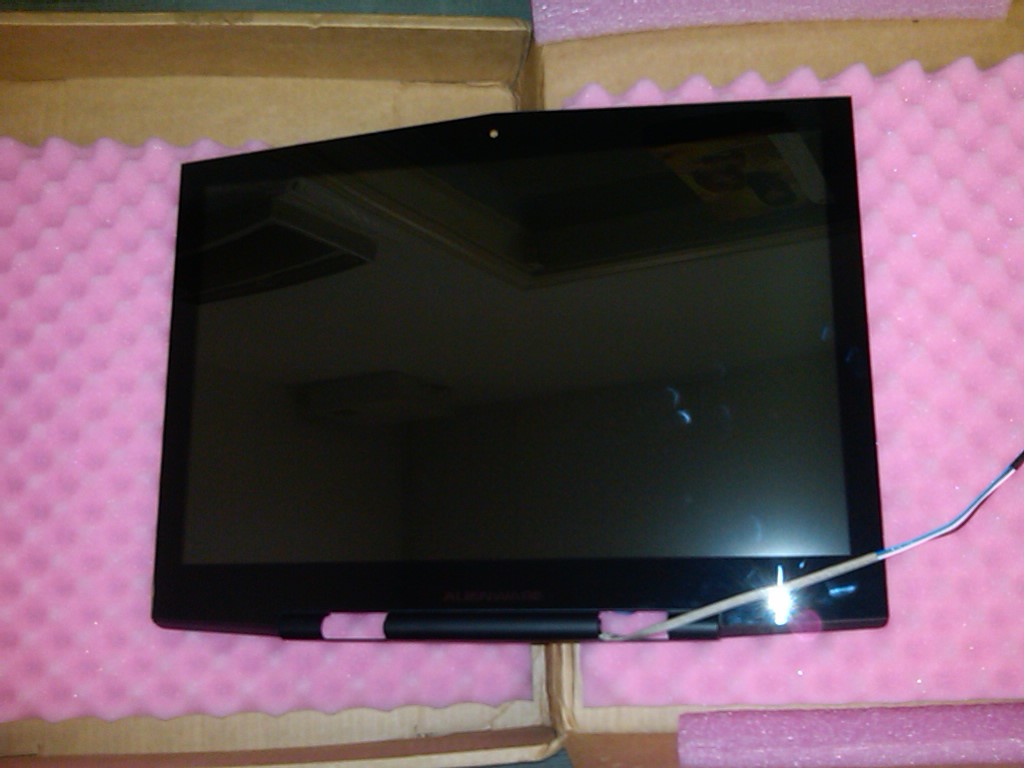

hi quad the tla2 is in the panel all sealed and ready to install but the connector don't looks the same is maybe a different design i start worryng about that all the 30 pin conectors are the same?



Does it fit ?? The connector on the back of the panel ??


Didnt you have to remove the inverter off the TLA2 to make it fit ? were there metal brackets spot welded onto the frame of the LCD or riveted on ?.


Please take a pic of the area your talking about so i can get a better idea .



What he said.



i have to remove the rivets of the top and butom remove the inverter and apply 3m double side tape on the front to seal the screen but the data connector don't looks the same



Did you try to plug it in the back of the panel ? your saying it does not look the same but your not saying if you tried to actually plug it in or not ? Its either going to fit or it wont .


You should not have hacked the panel apart until you knew the screen was going to work though since you would not be able to return it .

As for the 3m tape ? i thought you removed the panel from the back ? so what was the tape needed for . Does the tape go along the borders the whole screen to get it to seal ? .



that's why i asking if all the 30 pin data connectors are the same because my laptop is not here is at home, i'm going to install the panel when i get there but i have the wxga samsung here and the plug don't looks the same ----------------- Does the tape go along the borders the whole screen to get it to seal ? .yes



According to Zfactor its a standardized thing so it "Should" fit . Thats all i can tell you honestly .

The plug might look a little different because the clips on it may be positioned differently but it still should fit.



team i was scared looks like the difference are the clips like you say you want to see a pic of the two panels?



Yes Zoom in on both connectors for me .

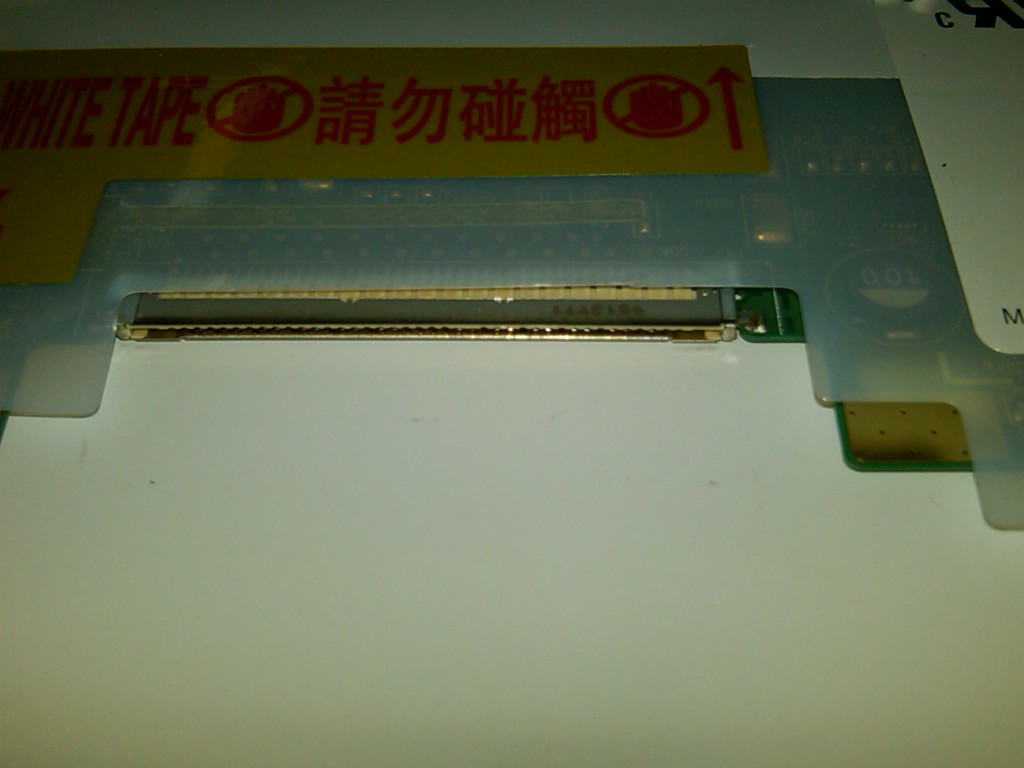

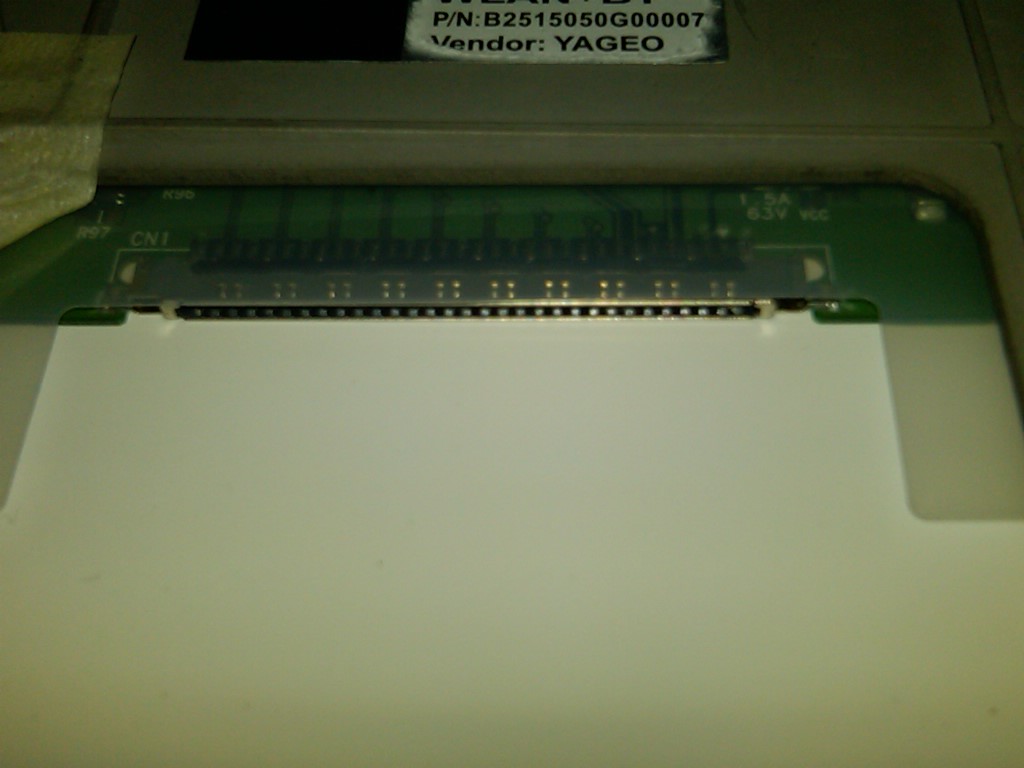

here they are the one with yellow sticker is the samsung



You should be fine they are just manufactured different is all .



well i let you know how it goes this night thank's



Yes i cant wait to hear so report back as soon as possible .



Me too!

Hurry up, witcher



My money says it works.



i guess i am the stupid i should use that money to pay my speed ticket the tla2 is not compatible with M17X and the connectors in the lcd screens not the same not even close please understand my feeling i am mad



NOOO!

:::dreams shattering:::



Wow not cool at all. I am sorry it did not work out witcher but would like to thank you for trying all that you did . You spent quite abit of money in this whole thing and also saved some others the $$ to try it themself including me.

Well i guess im no longer interested in this machine then at all till Dell/Alienware gets it sorted out ...


Witcher you still should be able to resell that panel even with the brackets taken off since most people would have to remove them anyhow for there machine.

Ill be sure to Rep you when ever it gives me the chance to .



Yes, thank you VERY much witcher for trying this.

Sorry it didn't work out and I will also rep you when I can.

Like quad said, you should have zero problems selling that panel as it is one of the best 17" lcd's you can get.



A few Clevo users would like to get their hands on that TLA2. However, all hope is not lost. If you can find the proper motherboard cable that is compatible with the socket on the LG, then you can make it happen.



That cable might be hard to come by even if it exists at all . The one that connects to the motherboard might be specific to the M17x . Not positive on that though but i guess it depends how determined you are to make it work .



well that's ok thank's guys i try but i guess is not my time i still like my machine and the dimming issue is something i can live with
