    MY SCREEN start having a problems

    Discussion in 'Alienware' started by wkkus, Jan 19, 2010.

  1. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    yesterday i was watching movie and my screen went black and there lines and i can't do anything so i recovery my computer and it still happening did any1 had solution

    wkkus, Jan 19, 2010
    #1
  2. mfractal

    mfractal T|I

    Reputations:
    1,948
    Messages:
    2,890
    Likes Received:
    1
    Trophy Points:
    55
    hey, can you elaborate a little ?
    What's the model of your laptop ? What exactly happens when you turn it on ? maybe provide a picture ? does the computer beep/the lights flash ?

    mfractal, Jan 19, 2010
    #2
  3. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    I will post the picture later my model was m17x. no the computer does nor beep or lights flash

    wkkus, Jan 19, 2010
    #3
  4. mfractal

    mfractal T|I

    Reputations:
    1,948
    Messages:
    2,890
    Likes Received:
    1
    Trophy Points:
    55
    And what exactly can you see on the screen?

    mfractal, Jan 19, 2010
    #4
  5. SillyHoney

    SillyHoney Headphone Enthusiast

    Reputations:
    543
    Messages:
    1,202
    Likes Received:
    1
    Trophy Points:
    55
    Sounds like defective graphic card...

    SillyHoney, Jan 19, 2010
    #5
  6. inap

    inap .........................

    Reputations:
    4,417
    Messages:
    7,827
    Likes Received:
    19
    Trophy Points:
    206
    ^^^^ i agree, sound like a bad gpu :(

    dam silly your avatar keep getting more and more sexy, i like it!!! :D

    inap, Jan 19, 2010
    #6
  7. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15

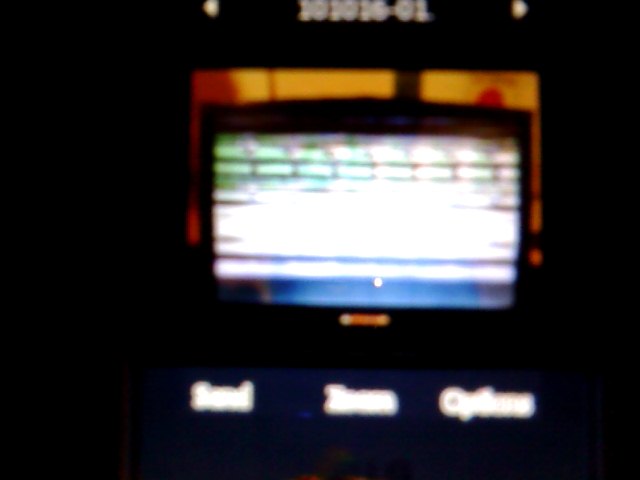

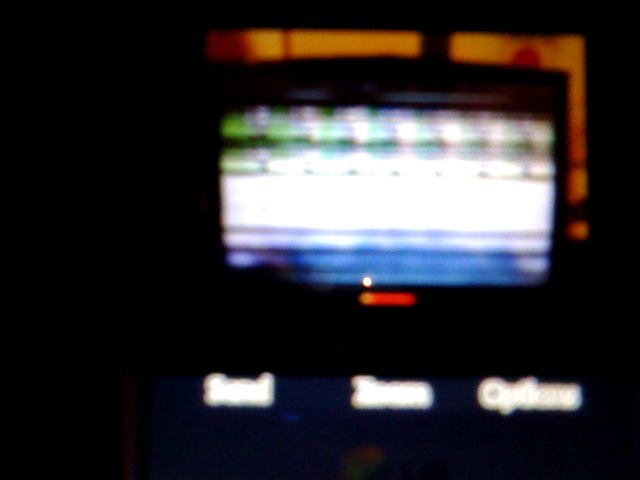

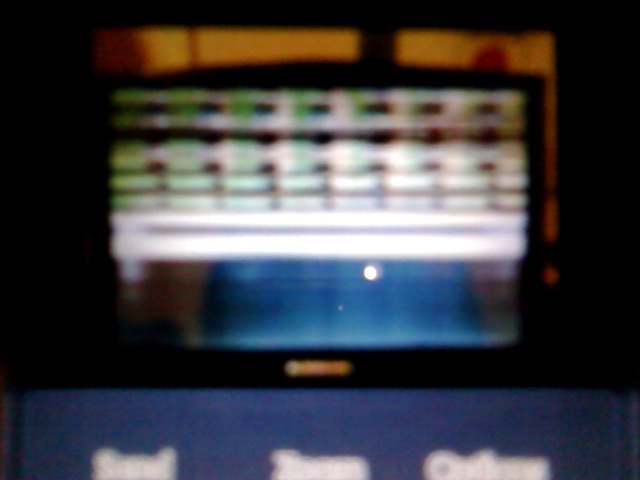

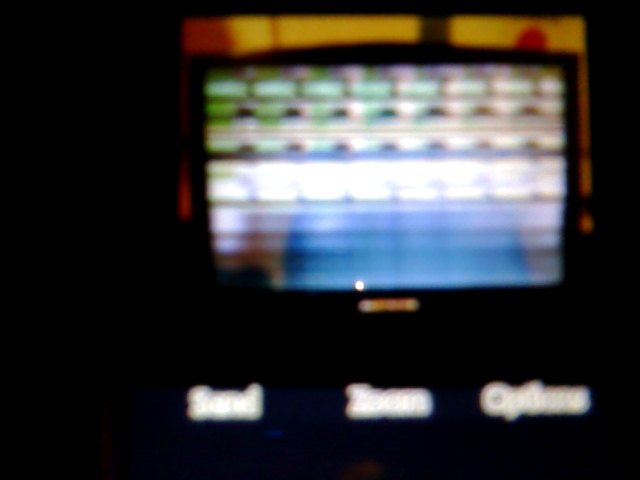

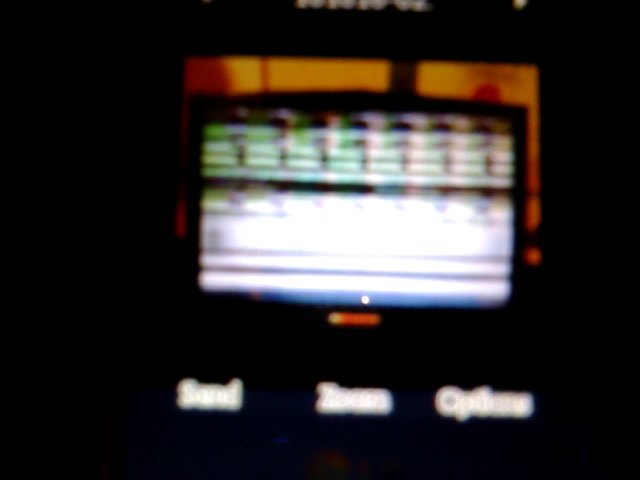

    Here is the pic of it i know it low resolution because i can't upload it to my computer so i have to take a pic with my phone and retake it with my laptop may be a graphic


    Attached Files:

    wkkus, Jan 19, 2010
    #7
  8. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    i might get a better 1 later when i get the cable

    wkkus, Jan 19, 2010
    #8
  9. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    it was all find in the morning and in afternoon i was watching movie and later the screen went black and it become like this

    wkkus, Jan 19, 2010
    #9
  10. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    if it a graphic can i do anything about it because i can't contact alienware because i can't find my account number for my laptop

    wkkus, Jan 19, 2010
    #10
  11. mfractal

    mfractal T|I

    Reputations:
    1,948
    Messages:
    2,890
    Likes Received:
    1
    Trophy Points:
    55
    Might be the inverter cable. Is there a dissasembly manual for M17x?

    mfractal, Jan 19, 2010
    #11
  12. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    i don't think so

    wkkus, Jan 19, 2010
    #12
  13. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    now i am using it everything is fine but it happen sometime when i reopen my computer or sometimes it happen in the middle of what i am doing

    wkkus, Jan 19, 2010
    #13
  14. SillyHoney

    SillyHoney Headphone Enthusiast

    Reputations:
    543
    Messages:
    1,202
    Likes Received:
    1
    Trophy Points:
    55
    You can find your account number when you log in to your account on Dell.

    And you can check for Service Tag (7 digits and letters) on the bottom of your laptop. That should be enough.

    Good to know lol

    SillyHoney, Jan 19, 2010
    #14
  15. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    the problems is i can't contact or chat with any tech team

    wkkus, Jan 19, 2010
    #15
  16. mfractal

    mfractal T|I

    Reputations:
    1,948
    Messages:
    2,890
    Likes Received:
    1
    Trophy Points:
    55
    Now I am 100% sure this the inverter cable that is broken. I had the exact same issue with my m1730. There is a cable connecting the LCD to the motherboard/video card. Either it has a bad contact or it needs reseating but I am positive the problem is there. You just need to figure out how to get to it. It was trivial on m1730 but I have no idea how to access it on m17x. Ask around in the forum. It should be easy.

    mfractal, Jan 19, 2010
    #16
  17. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    ok i will try it

    wkkus, Jan 19, 2010
    #17
  18. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    thx by the way oh i add u in the gmail to be easy to contact there is no problems if don't want to add me

    wkkus, Jan 19, 2010
    #18
  19. mfractal

    mfractal T|I

    Reputations:
    1,948
    Messages:
    2,890
    Likes Received:
    1
    Trophy Points:
    55
    Sure. I am going to sleep now it's two am where I am. I will try and help u tomorrow. Don't worry we will figure this out.

    mfractal, Jan 19, 2010
    #19
  20. weddingvideos4u

    weddingvideos4u Notebook Consultant

    Reputations:
    3
    Messages:
    235
    Likes Received:
    0
    Trophy Points:
    30
    Its not that difficult.

    remove the back and then find the 2 long screws that hold the power strip. carefully remove watching out for the ribbon cable, undo the 5 screw that hold the keyboard, remove the 2 ribbon cable that hold the keyboard on.

    you then have access to the conectors for the Lcd.

    its not that difficult just take your time and be careful removing the ribbon cables!

    weddingvideos4u, Jan 19, 2010
    #20
  21. inap

    inap .........................

    Reputations:
    4,417
    Messages:
    7,827
    Likes Received:
    19
    Trophy Points:
    206
    your service tag should be on the bottom of your laptop, if you should need it.

    also here is a link to the service manual if you wish to take your laptop apart.
    hope all goes well :D

    http://support.dell.com/support/edocs/systems/M17x/en/index.html

    inap, Jan 19, 2010
    #21
  22. mfractal

    mfractal T|I

    Reputations:
    1,948
    Messages:
    2,890
    Likes Received:
    1
    Trophy Points:
    55
    Well there you go. Let us know what you found.

    mfractal, Jan 20, 2010
    #22
  23. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    Just use the sevice tag when you call dell. It'll be on the bottom of the system. If your within the warranty period they will take care of it

    DR650SE, Jan 20, 2010
    #23
  24. mfractal

    mfractal T|I

    Reputations:
    1,948
    Messages:
    2,890
    Likes Received:
    1
    Trophy Points:
    55
    is this more or less what's happening to you ?
    [​IMG]

    mfractal, Jan 20, 2010
    #24
  25. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    kinda of but wait today i will upload a pic of it

    wkkus, Jan 20, 2010
    #25
  26. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15

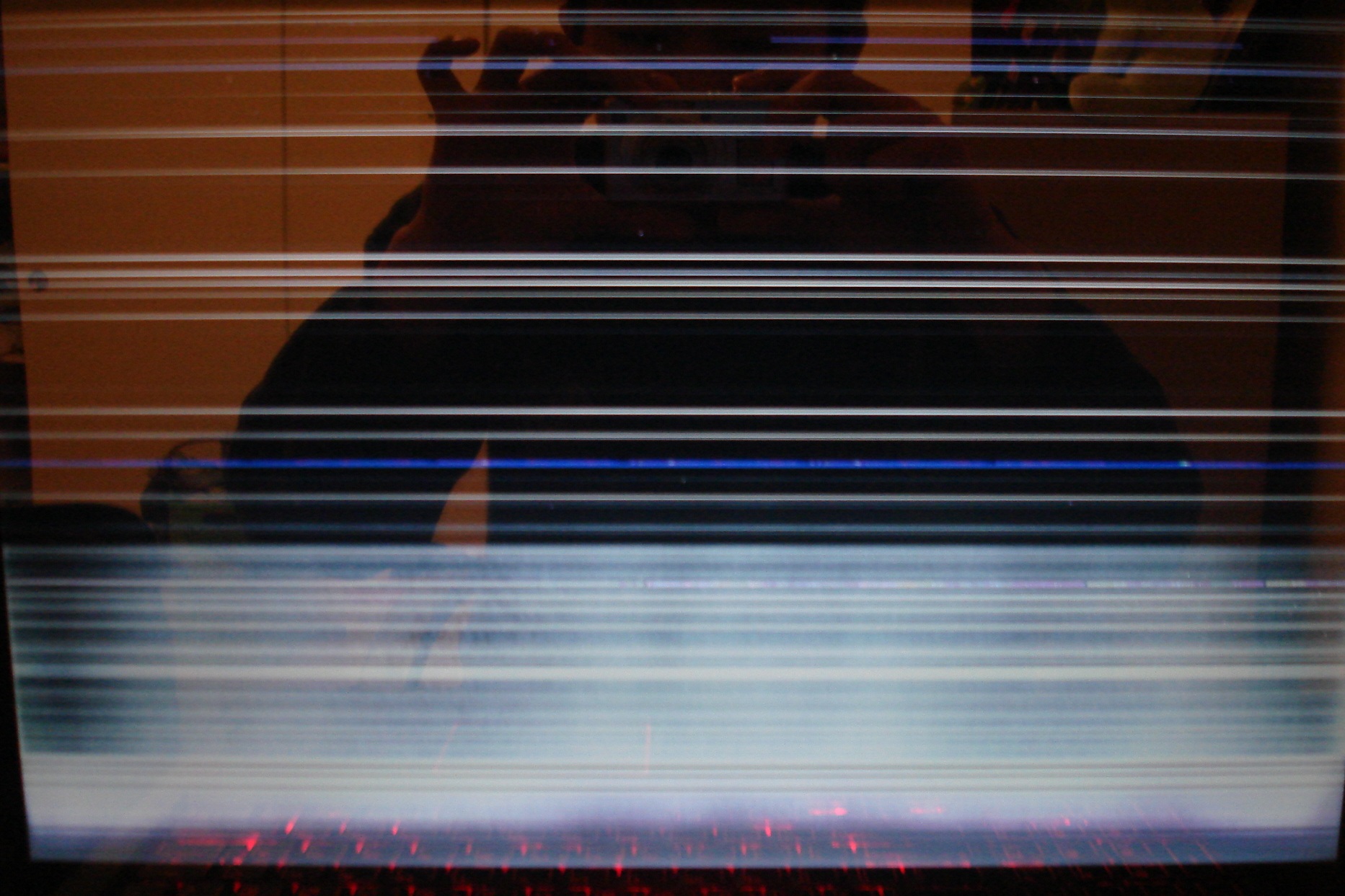

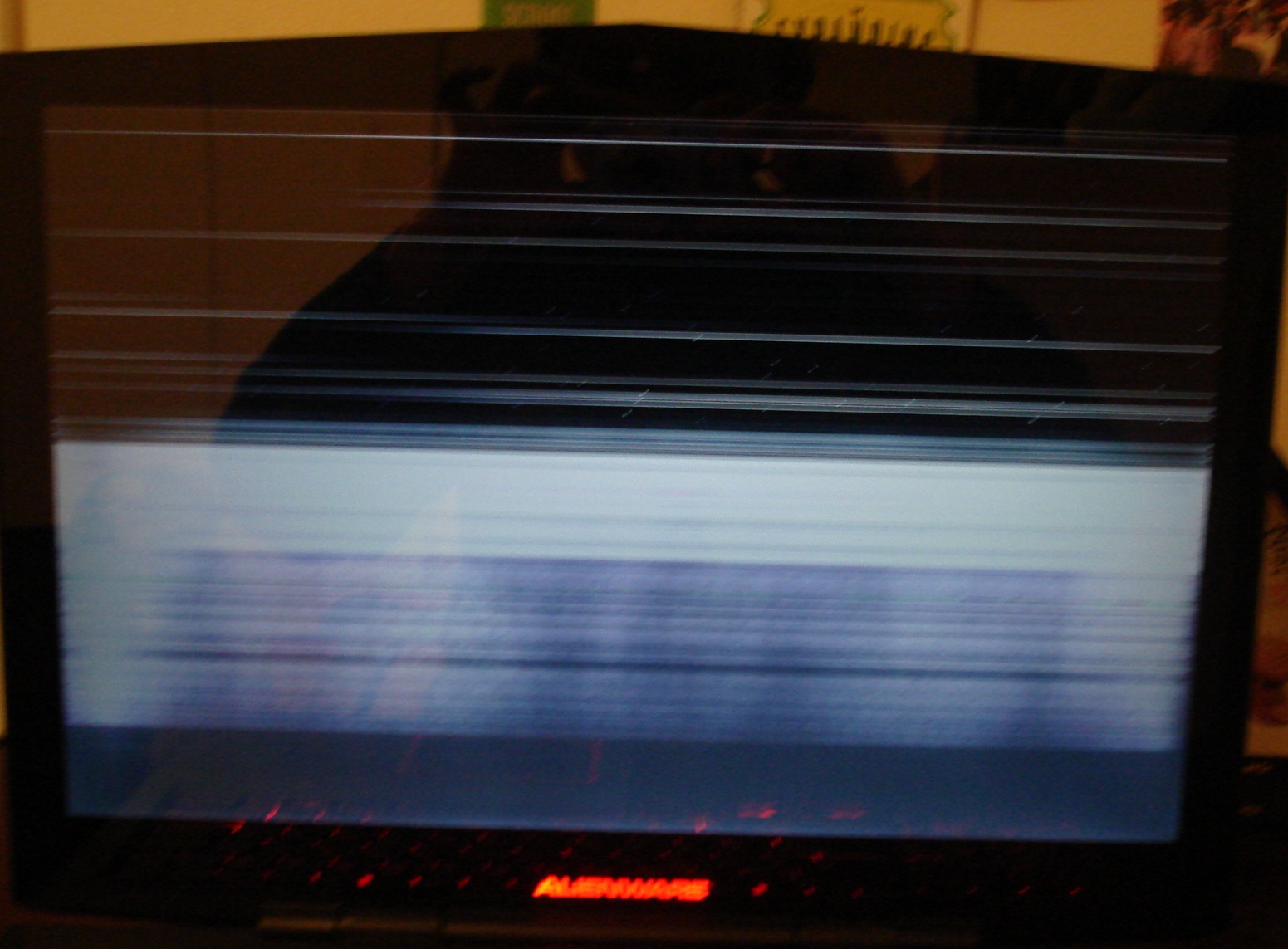

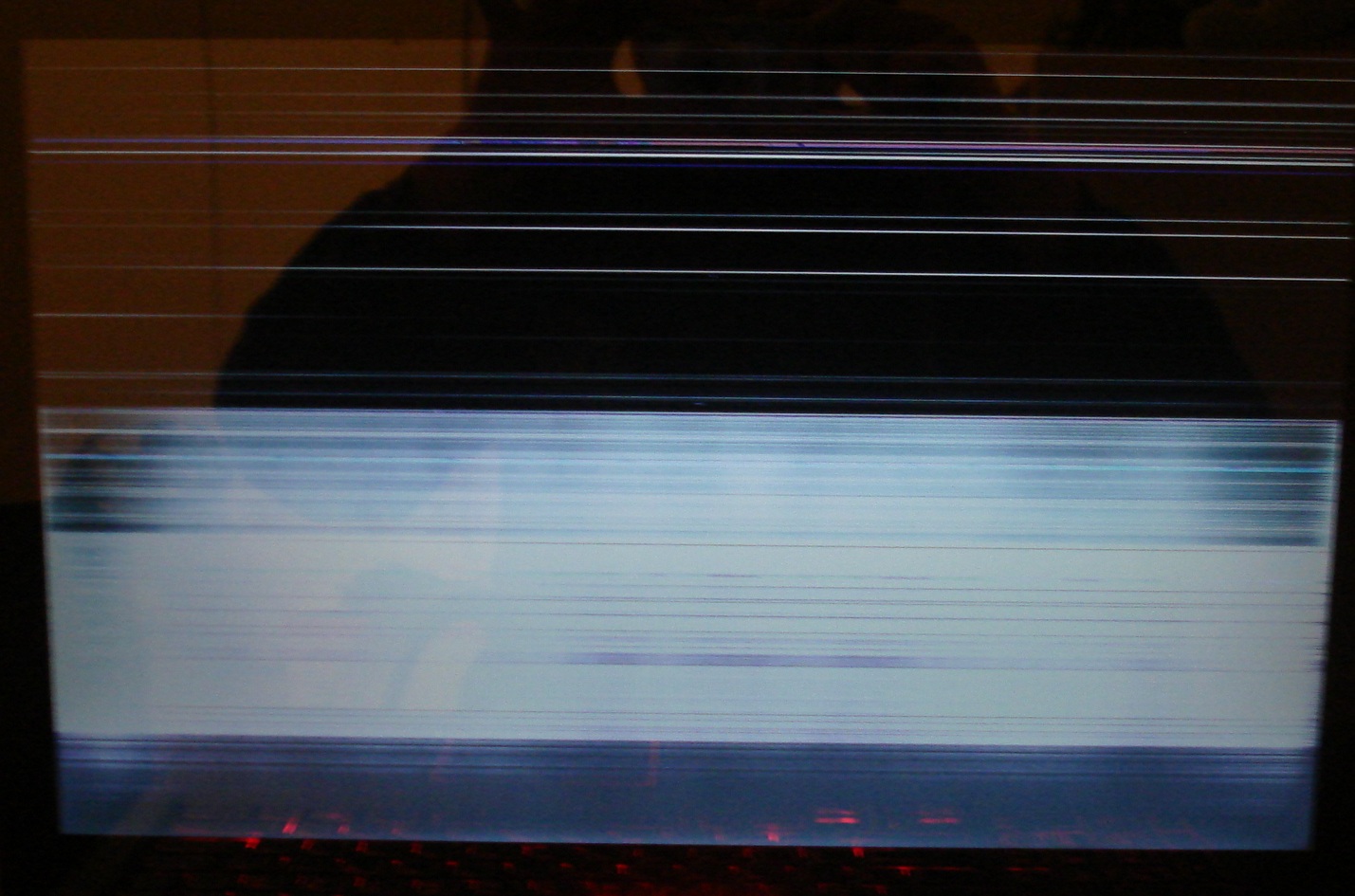

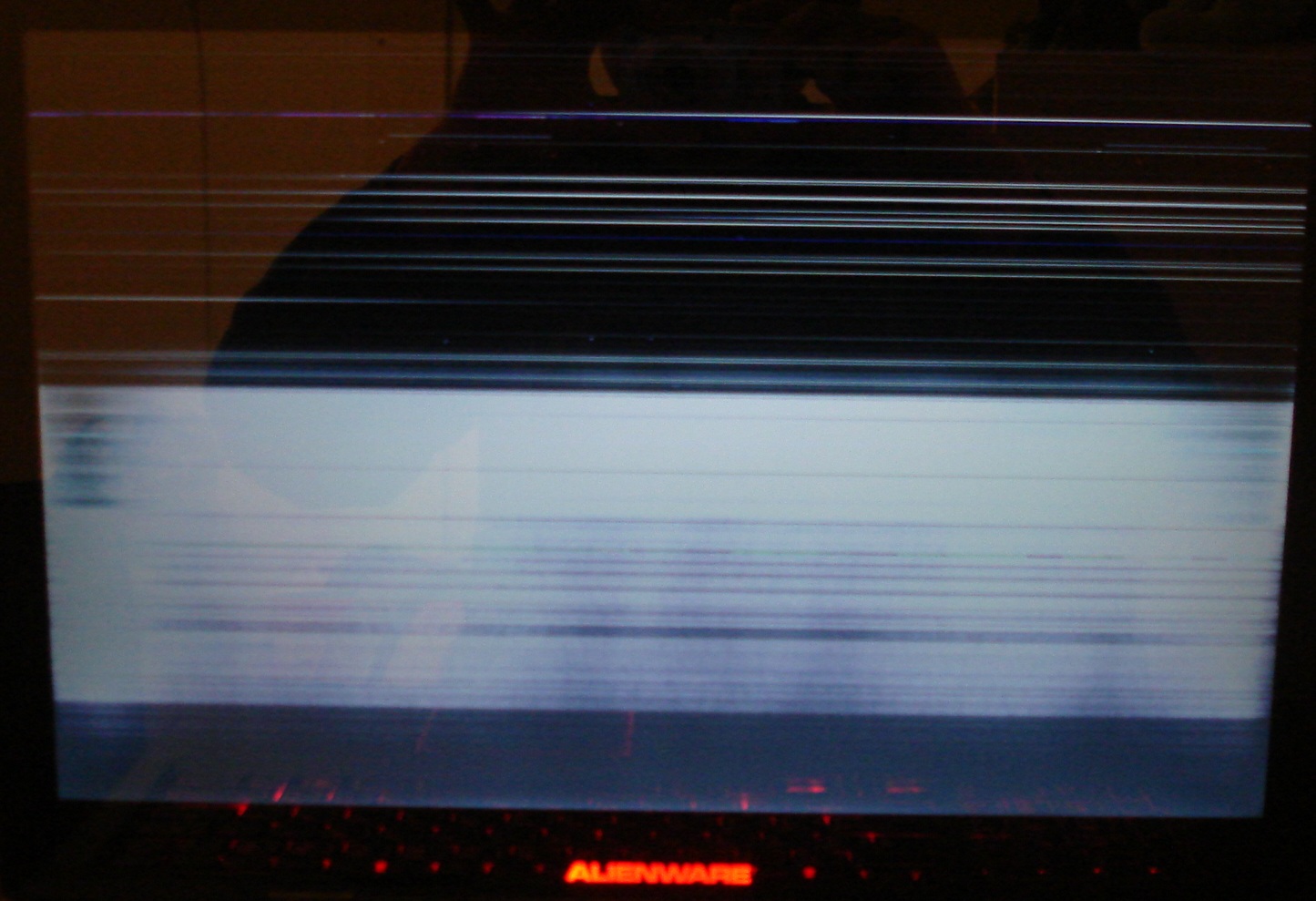

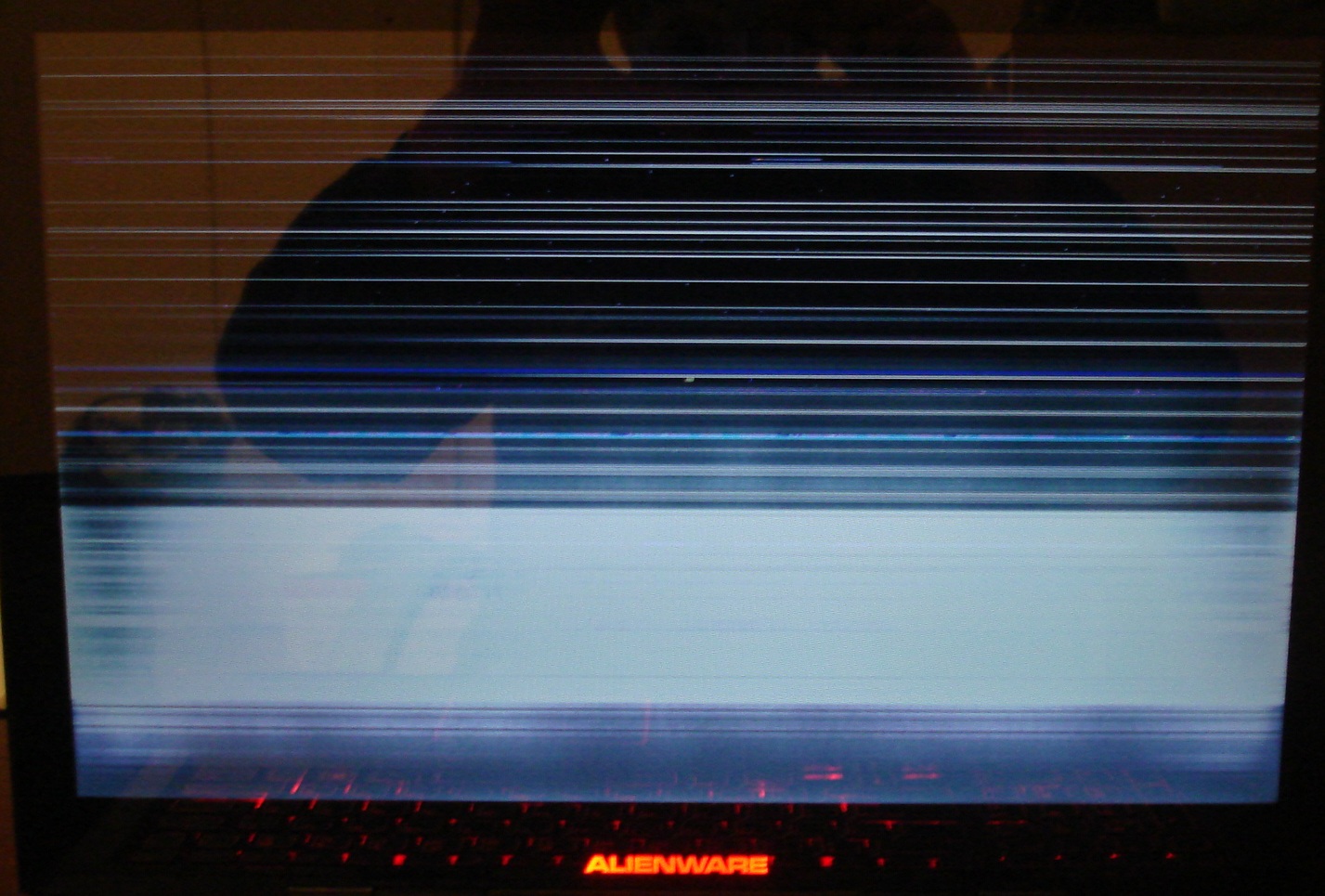

    HERE is what happen


    Attached Files:

    wkkus, Jan 20, 2010
    #26
  27. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    there are two kind 1 is on my phone but the problems is i don't have the cable

    wkkus, Jan 20, 2010
    #27
  28. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    it only happen when i turn off my laptop at night sleep the next morning i turn it on and it happen

    wkkus, Jan 20, 2010
    #28
  29. Wattos

    Wattos Notebook Deity

    Reputations:
    968
    Messages:
    1,200
    Likes Received:
    3
    Trophy Points:
    55
    My first guess would be to check the connection between the lcd and gfx card. Something probably happened when you last closed the lappie

    Also, can you try and plug in an external monitor? this should verify the gfx card.

    In any case, the lappie is on warranty, call dell to have it fixed. There is nothing you really can do by software to fix it

    Wattos, Jan 20, 2010
    #29
  30. mfractal

    mfractal T|I

    Reputations:
    1,948
    Messages:
    2,890
    Likes Received:
    1
    Trophy Points:
    55
    In my case it helped to just reseat the cable.

    mfractal, Jan 20, 2010
    #30
  31. wkkus

    wkkus Notebook Enthusiast

    Reputations:
    0
    Messages:
    38
    Likes Received:
    0
    Trophy Points:
    15
    ok i will reseat the cable

    wkkus, Jan 20, 2010
    #31
