Mr. Fox's GeForce 344.75 Desktop Driver Mod for 780M, 880M and 980M Mobile GPUs

Does they work on gtx 780m?



install them, works, but the same score in 3dmark 11...even lower with 70-90 points from 347.09



Mr. Fox I kept the initial mod from you.. Basically 347.09 doesn't improve anything.. Only new profiles in nvidia control center for new games.. Which I don't own or will ever buy because of ubisucks being a total Jackass about watch dogs or assassin's Creed unity lol. Hope your Christmas was great my friend and everyone in NBR community as well. A big hug to everyone



Use the modded one linked in the opening post, NOT the 347.09 desktop mod. The former works great and the latter is junk.



Watchdogs actually works fine now.. it's quite good but I kind off gave up in Chapter V due to it being too hard



Im not sure what you're saying here, I dont see any link but the one in the opening post (and only that one link). Im on 344.75?



img hosting
this is how my speed goes...



your testing it with counterstrike ????
I am not even certain that maxed out settings accross the board would even be considered a load for that game.
The build on HD Graphics chip on my extreme Core can play that game @ 2560x1600 resolution max details and still gets 60 FPS non-stop.
I think the AERO desktop impacts performance more.

My cell phone can play it without heating up.

you should try something that requires more then standby powermode to play...

something from the last decade, or the second to last decade, like year 2000+

is this normal:

---------------
Display Devices
---------------
Card name: NVIDIA GeForce GTX 880M
Manufacturer: NVIDIA
Chip type: GeForce GTX 880M
DAC type: Integrated RAMDAC
Device Key: Enum\PCI\VEN_10DE&DEV_1198&SUBSYS_05501028&REV_A1
Display Memory: 4095 MB
Dedicated Memory: 3072 MB
Shared Memory: 1023 MB
Current Mode: 2560 x 1600 (32 bit) (60Hz)
Monitor Name: HP LP3065 Wide LCD Monitor
Monitor Model: HP LP3065
Monitor Id: HWP2690
Native Mode: 2560 x 1600(p) (59.860Hz)
Output Type: Displayport External
Driver Name: nvd3dumx.dll,nvwgf2umx.dll,nvwgf2umx.dll,nvd3dum,nvwgf2um,nvwgf2um
Driver File Version: 9.18.0013.4475 (English)
Driver Version: 9.18.13.4475
DDI Version: 11
Driver Model: WDDM 1.1
Driver Attributes: Final Retail
Driver Date/Size: 11/12/2014 19:20:36, 19966344 bytes
WHQL Logo'd: n/a
WHQL Date Stamp: n/a
Device Identifier: {D7B71E3E-52D8-11CF-E362-5D251CC2C435}
Vendor ID: 0x10DE
Device ID: 0x1198
SubSys ID: 0x05501028
Revision ID: 0x00A1
Driver Strong Name: oem87.inf:NVIDIA_SetA_Devices.NTamd64.6.1:Section152:9.18.13.4475 ci\ven_10de&dev_1198
Rank Of Driver: DERP


anyways, says I have 4Gb of memory here. 3GB dedicated 1Gb shared



until last update cs go would have hold 850 mhz, as you didnt check what it needs cs go to work, please check and then come with a good replay...with hd 4600 i cant get 5 fps...you dont know what you are talking about but carry on.
Your like a friend at my work that says " i7 there isnt an aplication that can work on it..it's just for high stuff...in gaming and normal stuff you can only use i5" )
IT IS COUNTER STRIKE GLOBAL OFFENSIVE RELEASED 2012...AND MANY UPDATES



Theres a new counterstrike ? Does it resemble the original ? like, is it basically like playing the same game, from the original 1990's ? Anyways, sounds like it is a new game or something, which case It may very well use up more resources, but in university I was able to play the game on a PII 266 Celeron ith 32mb RAM and a 8GB HD using a geforce2



I thought that was really funny until I read this hilarious one:



delete please double post.



1 - Yes. New from 2012.
2 - Yes. It's basically updated graphics (and I do mean GRAPHICS. Not animations. You still float up ladders) and a couple weapon tweaks. There's also a molotov now.
3 - Pretty much the same game from 1990s, despite a couple tweaks, yes.
4 - If you're going for 60fps, I'm fairly certain a 8800GT could work.



On all max out, 32 players on map for a good play I need more then 120 fps to be smooth...you wont understand but the profesional players are playing with gtx 780ti sli this game to get steddy over 300 fps. Ok, on the thread....Why from the last update I cant hold 850 mhz?



The downclocking aggressiveness seems to be high with newer drivers. I would recommend forcing the power management setting in nVidia Control panel for that game to "prefer maximum performance". I'll show you in a picture below my text what it looks like.

Also, I know 120fps is something you'd want. CS:GO however, is very retarded and SOMETIMES it won't hold high FPS and other times it will. The whole source engine appears to be on a whim as to when it'll keep high FPS counts. I've played a bot match on De_Dust2 and gotten ~160 average FPS (maxed out) with drops under 120, only to restart my PC and (with the same system load; checked in real-time in both cases) sit at ~270fps with drops only hitting 220 at the lowest point. Game forced to one card, no overclocks, in both cases. The game is just weird. Nothing else I can say about it. Source engine on the whole appears to like giving me sub-120fps in games while barely touching my available power. I'll see 110fps in L4D2 with my cards sitting chilly at under 60 degrees and a glorious 35% load. I'm not asking for 35% load, I'm asking for 120+ fps 24/7 and use as much as you want to achieve it. BF4 is a similar matter. "Hey we're gonna drop you from your target 125 fps and give you 80-100 but your PC load is only at about 55%" is the big thing.

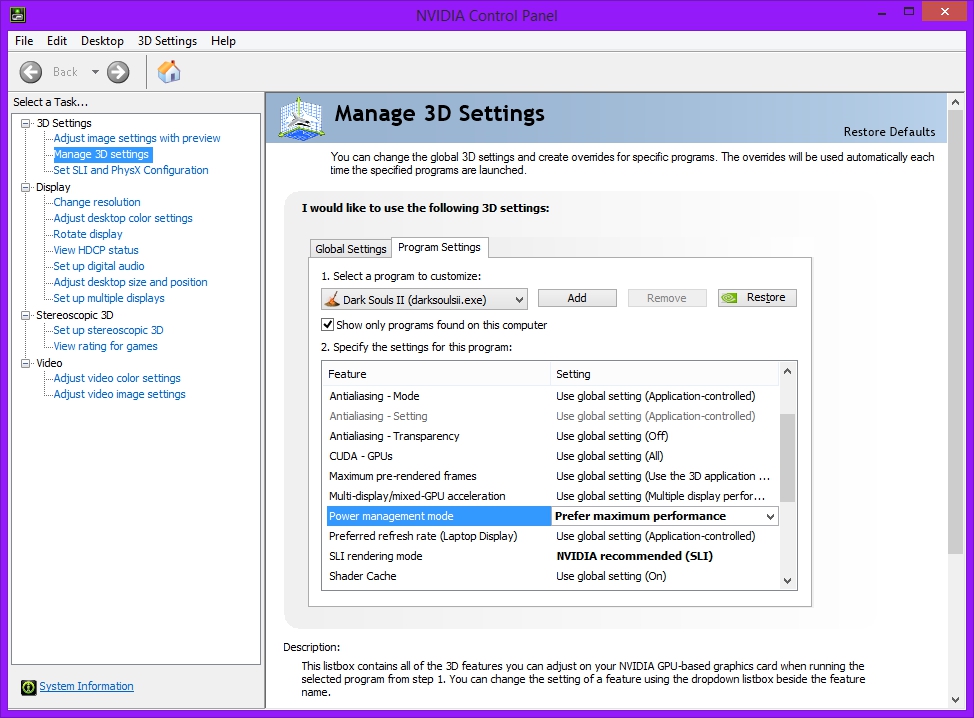

Anyway, photo below:



I didnt change anything, in nvidia control I set everything to max performance.



like its going to make you play better with 120fps compared to 60fps. Its clever marketing making people invest in 120hz screens and better hardware. I do understand that its sweet on the eyes playing on 120hz but it wont affect your performance when playing competitively.



Is the thing that under 100 fps the image doesnt look like over 100fps...I can see the diffrence...stupid but that I can tell



I like mine as a solid 144hz, I do notice a slight difference from 100hz but it is simplifying returns.



Well for one, if you're on a 128 tick server you need 128+ FPS for your game to refresh as fast as the server, so 60Hz screen or not, you WANT say a minimum of 130fps in CS:GO if on 128 tick servers.

That being said, 120fps helps a bit in faster motion FPS games when you're spinning and locking onto people. People don't "disappear" as easily if they duck out of sight around you. This is not as prevalent in CSGO however, where nobody ever attempts anything like that.



Your driver just topped the scores of my HW category mr.fox



After only a couple of days with a 144hz monitor I can definitely see how it would be a substantial advantage in FPS games. Tracking movements and enemy directional changes is much easier. Especially keeping orientation during fast horizontal movements. Its not a necessity, but certainly gives an edge that would make all the difference at a pro level.
I've gone and done the lightboost hack mod to my monitor and it's pretty impressive. Those of you with SLIed 120hz beasts are lucky to have it all in 1 package.



Why do you think I want to keep this shell and upgrade it till intel squeals meow and I must upgrade?



Yeah.. you've got a keeper. Also the 570mw with a 120hz screen is a nicey too.
Have you tried doing a Lightboost mod? Not sure if you'll be able to but it's worth doing it you can.
LightBoost HOWTO | Blur Busters



mr.fox i have 2 gtx 880m sli and 4940mx alienware m18 , is there a way to maximize the performance of the laptop with out damging it etc ---

i been reading this thread - so ur driver improves perforamnce by 50 percent over all .



Haven't tried it. I see extremely little motion blur here; enough that I find it pretty negligible if it does appear, so I never bothered hunting for it. My colour profile also helps the actual backlight from this thing; it lacks a bit of blue, but after a while I got used to it and now really prefer it. It's a lot easier on my eyes than normal. That probably has nothing to do with lightboost, though.

Edit: can't lightboost. Only works on supported screens. Probably would also automatically disable itself once it sees I'm using a laptop GPU, because they're super clear that laptops aren't supported (even though I don't have the Optimus it claims doesn't support). Also, my calibration just deals with how my screen is on my eyes and lightboost would actually kill the colours slightly XD.



Mr Fox, I really love your Desktop driver mod but I've not been able to modify it myself.. My Hardware Device ID is PCI\VEN_10DE&DEV_13D8&SUBSYS_05511028

Could you please update your driver mod so I could use it? Thanks .. Also is 344.75 better or 347.09 in your opinion? I'm a bit confused as people are saying 347.09 locks out ocing etc and I have no idea about the situation! Thanks



Installed it on mij m15x with 970m but no real changes, scores on 3dmark11 and unigine heaven still the same. What did change was....now i see my graphicscard as a real gtx 970m so i am happy.



347.09 locks Ocing on Maxwell cards.



Owww thats why i cant do it than........lol.


Sent from my iPad using Tapatalk



Unzip these files to overwrite the originals in the downloaded driver package and you should be good to go. View attachment Display.Driver.zip

If you are using Windows 8, don't forget to reboot with DSE disabled. If you have other drivers installed right now, use DDU in Safe Mode (replace GPU/shutdown method) before installing.

I am using 344.75. I don't like 347.09 at all.



Do I do this when I download the desktop driver right? I won't download the notebook version right? Sorry if the question is a bit stupid



Right, totally skip the notebook driver and download the desktop 344.75, extract the contents to any folder where you want it, then replace those two files in the Display.Driver folder.



Mr. Fox is the real MVP
Such a kind guy eheh. I'm glad I knew people like him, Prema and so on in this forums



Hey Mr Fox! Is it possible for these to work with the 680M? Worth trying out?



Amazing work mr fox I have 2 questions about this driver #1 will it work on sli 770m #2 will it let me use Dynamic Super Resolution
Thanks for any help



It certainly won't hurt to try it for either of your GPUs. You would have to update the mod to include your GPUs first. Take the zip file I linked above for Tom, open the nv_dispi.inf in NotePad and add a line to each section as noted in the example code below, or edit one of the existing lines and change the information to your hardware. For example, for 680M you could change the first line in each section from 119F (780M) to 11A0 for 680M (note the hardware ID is in two places on the same line). Under [Strings] you would also need to change 119F to 11A0 and change the name 780M to 680M. If your system is running a GPU that came stock as an option (not sure what kiwikewl is running) you need to open the INF file that normally supports your laptop and delete or mess up the lines with your hardware ID in order to force the driver installer to use the nv_dispi.inf file. An Alienware would be the nvdmi.inf file. 11E0 is the 770M hardware ID, so you could use the NotePad Find>Replace feature and just "Replace All" 11E0 with E011 or XXXX or anything else you want to as long as it is wrong.

If this doesn't make sense or you need more help let me know.

Code:

[NVIDIA_SetA_Devices.NTamd64.6.0]
%NVIDIA_DEV.119F%           = Section034, PCI\VEN_10DE&DEV_119F
%NVIDIA_DEV.1198%           = Section034, PCI\VEN_10DE&DEV_1198
%NVIDIA_DEV.13D7%           = Section034, PCI\VEN_10DE&DEV_13D7
%NVIDIA_DEV.13D8%           = Section034, PCI\VEN_10DE&DEV_13D8

[NVIDIA_SetA_Devices.NTamd64.6.1]
%NVIDIA_DEV.119F%           = Section152, PCI\VEN_10DE&DEV_119F
%NVIDIA_DEV.1198%           = Section152, PCI\VEN_10DE&DEV_1198
%NVIDIA_DEV.13D7%           = Section152, PCI\VEN_10DE&DEV_13D7
%NVIDIA_DEV.13D8%           = Section152, PCI\VEN_10DE&DEV_13D8

[SignatureAttributes.PETrust]
PETrust = true

[NVIDIA_SetA_Devices.NTamd64.6.2]
%NVIDIA_DEV.119F%           = Section153, PCI\VEN_10DE&DEV_119F
%NVIDIA_DEV.1198%           = Section153, PCI\VEN_10DE&DEV_1198
%NVIDIA_DEV.13D7%           = Section153, PCI\VEN_10DE&DEV_13D7
%NVIDIA_DEV.13D8%           = Section153, PCI\VEN_10DE&DEV_13D8

[NVIDIA_SetA_Devices.NTamd64.6.3]
%NVIDIA_DEV.119F%           = Section154, PCI\VEN_10DE&DEV_119F
%NVIDIA_DEV.1198%           = Section154, PCI\VEN_10DE&DEV_1198
%NVIDIA_DEV.13D7%           = Section154, PCI\VEN_10DE&DEV_13D7
%NVIDIA_DEV.13D8%           = Section154, PCI\VEN_10DE&DEV_13D8

[Strings]
DiskID1 = "NVIDIA Windows (64 bit) Driver Library Installation Disk 1"
NVIDIA = "NVIDIA"
NVIDIA_A = "NVIDIA"
NVIDIA_DEV.119F = "NVIDIA GeForce GTX 780M"
NVIDIA_DEV.1198 = "NVIDIA GeForce GTX 880M"
NVIDIA_DEV.13D7 = "NVIDIA GeForce GTX 980M"
NVIDIA_DEV.13D8 = "NVIDIA GeForce GTX 970M"



I stumbled into this when I modded the wrong driver by mistake, however for me it blanked out some of my sensor readings.

Still why notebooks force a reboot on sli for instance baffles me.



A reboot fixed my sensor readings. I'm unsure if I exited and restarted the sensors if it would have worked.



Hi Mr Fox,is it possible to modify this driver for geforce 860m (Maxwell) [ lenovo y50 ]? thanks.



I personally did it for 650M but games didn't run from Nvidia GPU even if I told to.
So there are possibly new bugs for some mobile GPUs.



Yea, 860m maxwell[y50] woud be epic!



Dear Mr Fox

I need help, I understand that this is a your thread but am desperate. I had gone thru all the threads but still dont understand how to get a working driver for my AW M17XR4.
I just replaced my GTX660M with a GTX970M. I have all the signs that I need a modded driver. I bought mine from HIDEvolution and had tried to install their driver. But I understand that its not a modded one.
My Bios A13, recognizes it as nVidia GFX. But windows only acknowledges it as a "Standard VGA Adapter" All the drivers from nVidia and Hide refuses to install indicating that "The graphics driver could not find compatible hardware.
I had reinstalled Windows 7 64-bit, installed all drivers EXCEPT Intel 4000 and the Nvidia one.

This is my first time upgrading my graphics card and I dont understand how to mod my own .inf file despite reading thru alot of diff threads.
Please help as its frustrating trying to get it to work.



1. Disable driver signature verification in OS.
2. Install Intel HD Driver if there are 2 VGA Devices in Device manager.
3. Dowhnload modded driver and install.

stupid hidevolution... monkeys.



Dear JAmes,

Really appreciate your prompt reply. However, As stated, I am using windows 7 premium 64-Bit. And not Windows 8/8.1.
I tried to go thru the video, but its not helping me on Windows 7.
Any Alternatives?



So, what's the difference between this and the vanilla driver? Also will you update this for 347.09 beta?



He did provide the modded&gfe_rd 347.09 but they don't give any improvements.. So stick with 344.75. 349.07 don't bring nothing worth it... Just profiles for recent games... As I said... Nothing worth it..



See post 132, 133 and 134. Use the file I provided to Tom and you should be good to go. You definitely need to use a modded INF or the drivers will never be installed. The zip file has the modded files you need.



Mr. Fox How did you manage on the M18xR1 ( HM67, i7 2920XM ) to run 2 x HD 7970M CF bus Interface PCI-E 3.0 ?



Hey Mr. Fox I was wondering if it would be at all possible, for you to modify the inf for my MSI GT70 Dominator PRO 2pe with the 880m, i would be forever in your debt and would rep you. I've been searching high and low and cant seem to find out how to do it myself. As well the modded driver did install the strange thing though is im seeing the same performance as before as well now i dont have any options in my Nvidia Control Panel. You seem like your the literally the best at this sort of thing, so i figured i would just ask. Thank you so much, I greatly appreciate it.

PS I beleieve these aare my hardware IDS

PCI\VEN_10DE&DEV_1198&SUBSYS_11051462&REV_A1
PCI\VEN_10DE&DEV_1198&SUBSYS_11051462
PCI\VEN_10DE&DEV_1198&CC_030000
PCI\VEN_10DE&DEV_1198&CC_0300
