    Something interesting about GPU

    Discussion in 'Alienware' started by exiled, Jun 19, 2008.

  1. exiled

    exiled -_-

    Reputations:
    115
    Messages:
    1,770
    Likes Received:
    0
    Trophy Points:
    55
    I think some people will know that the m15x has 2 different 8800M GTX heatsinks.

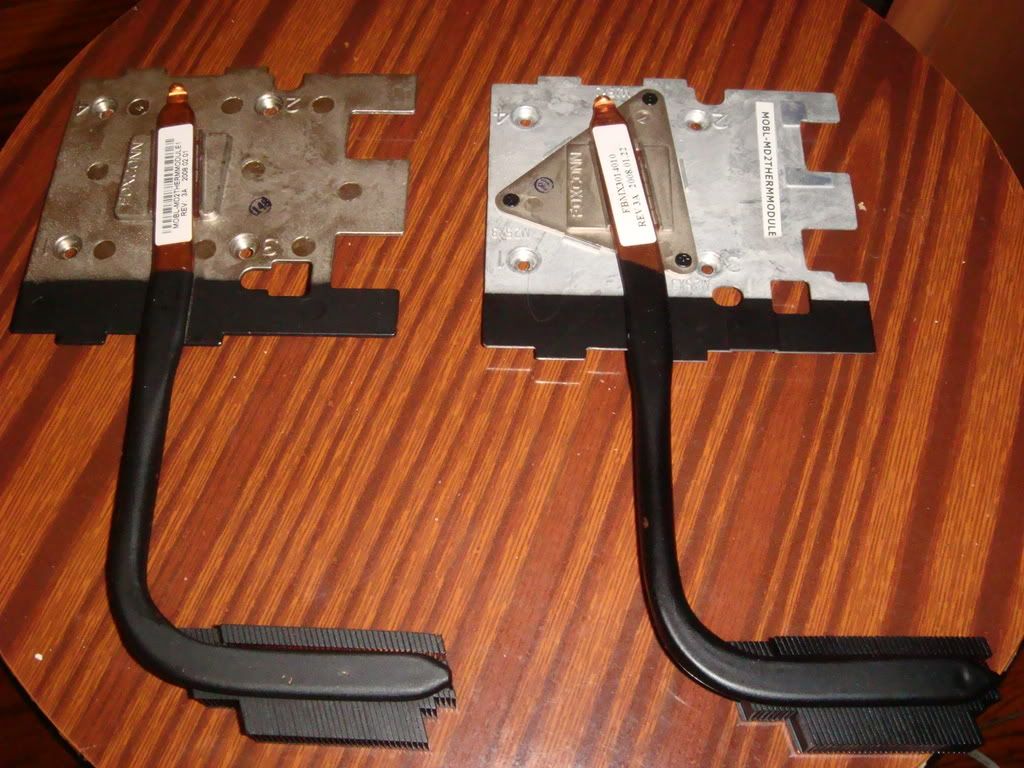

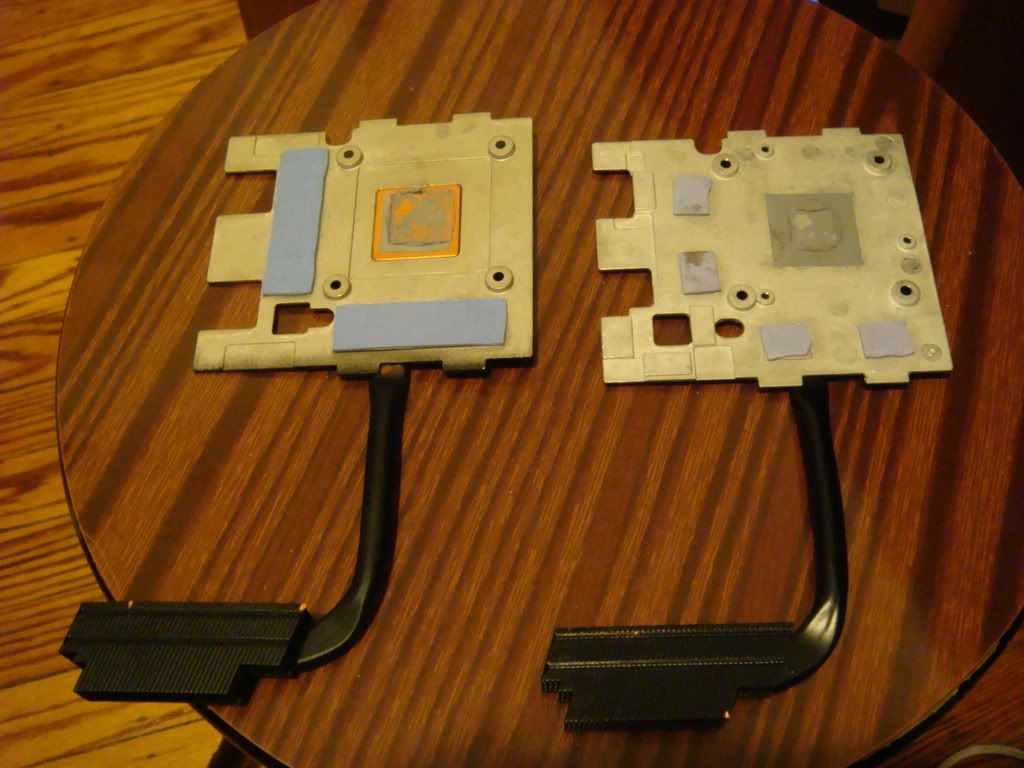

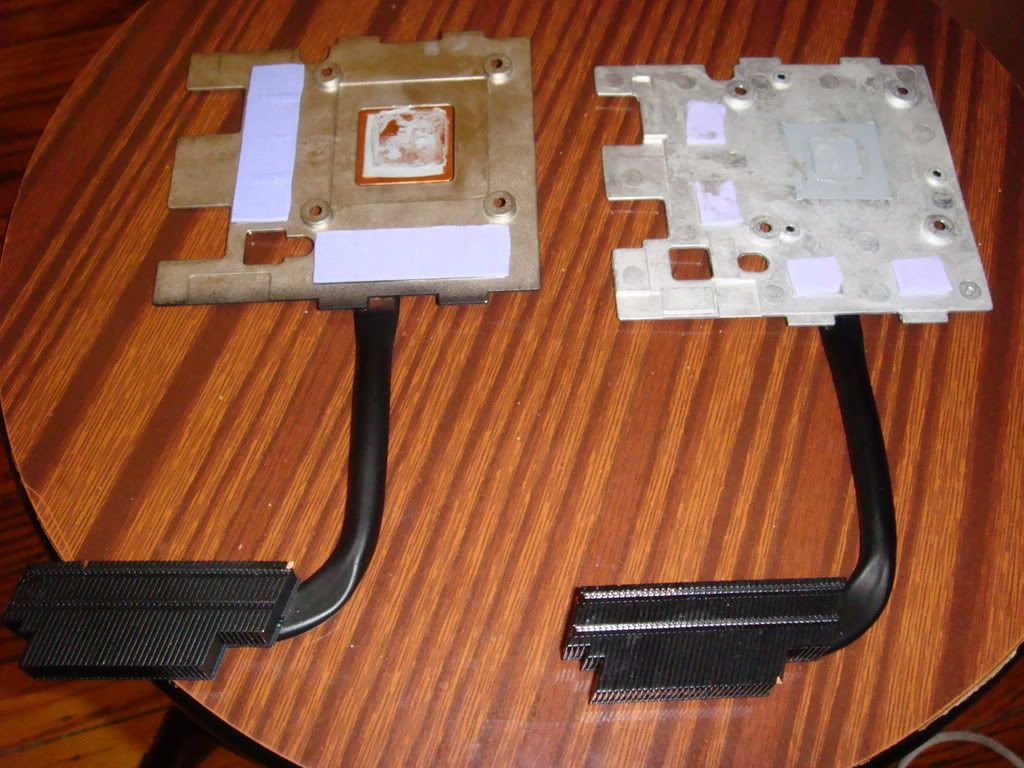

    Here are the two heatsinks side by side
    [​IMG]

    [​IMG]

    [​IMG]

    The two different build dates are 2/1/08 and 1/22/08.

    Unfortunately the one with the date 1/22/08 could not be mounted on my 8800 since it could not fit. I could not test the other heatsink to see which is better. i was wondering if anyone else had that heatsink so maybe we could find the better of the two heatsinks and make the 8800 temps a bit more tolerable. I was thinking maybe the 8800 has another physical layout so one of the heatsinks could not fit. Either that or AW sent me a heatsink for the 8700 or 8600.

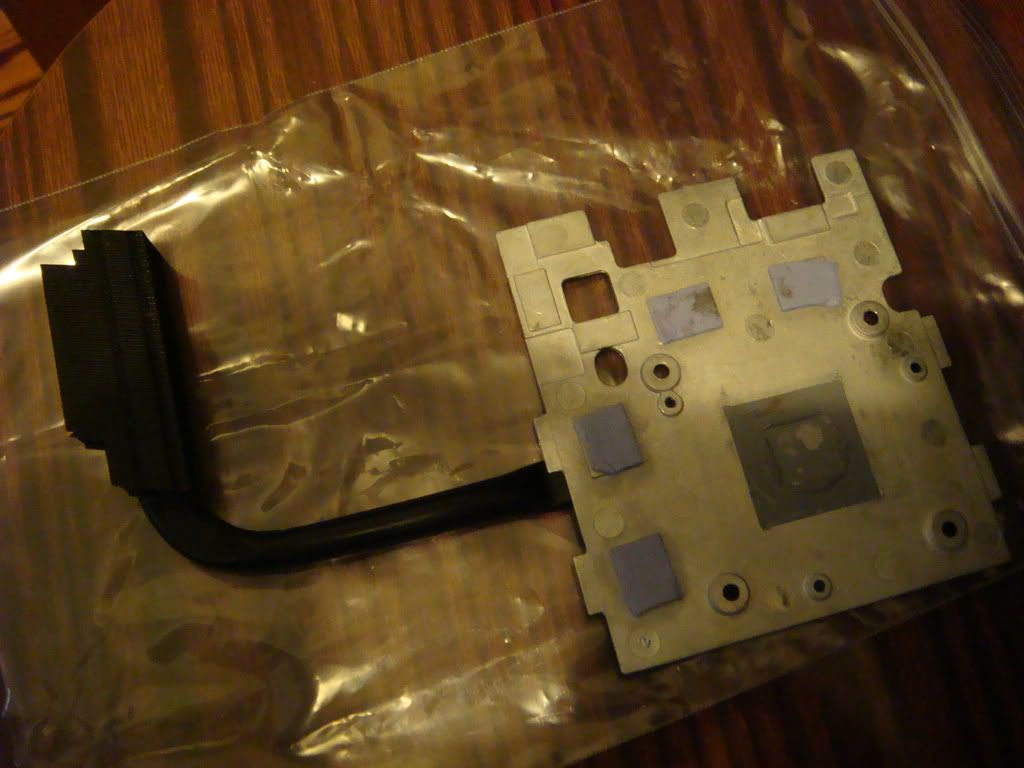

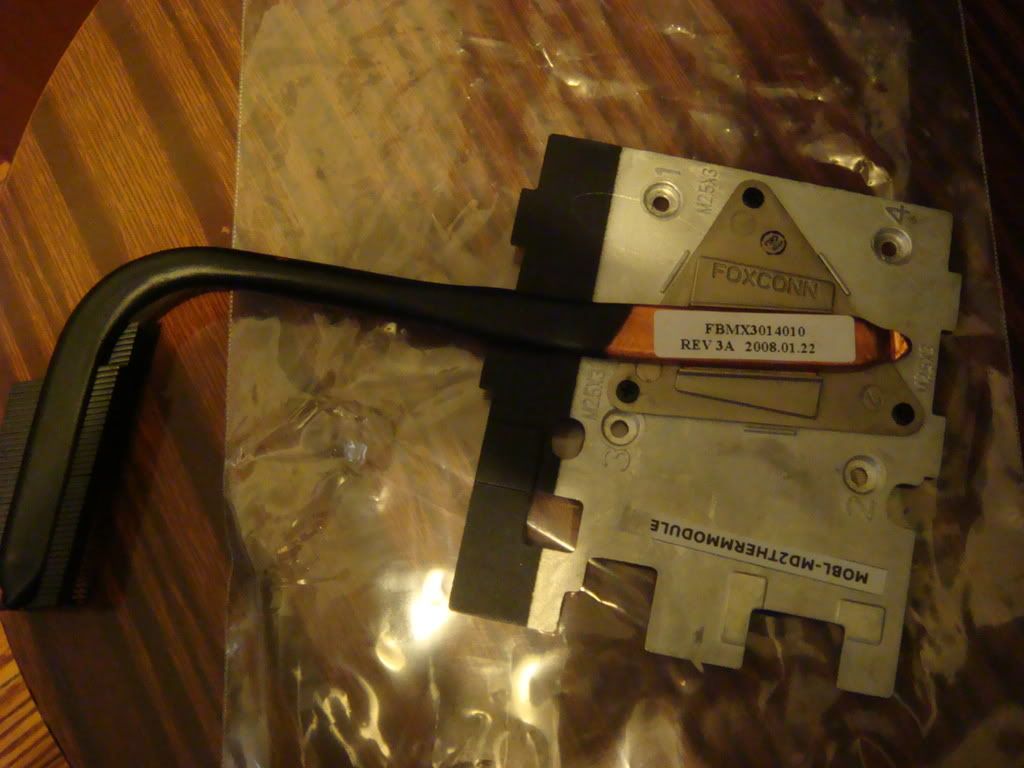

    pics of the heatsink i could not fit on the 8800
    [​IMG]

    [​IMG]

    EDIT: im sending the one that doesnt fit back soon so request any more pics if you want more.

    exiled, Jun 19, 2008
    #1
  2. GRB

    GRB Notebook Deity

    Reputations:
    102
    Messages:
    1,475
    Likes Received:
    0
    Trophy Points:
    55
    That's exactly it. The triangle heatsink is for the 8700/8600s, not the 8800.

    GRB, Jun 19, 2008
    #2
  3. tacomenace21

    tacomenace21 Notebook Deity

    Reputations:
    75
    Messages:
    1,124
    Likes Received:
    0
    Trophy Points:
    55
    yep I have the triangle

    tacomenace21, Jun 19, 2008
    #3
  4. maceto

    maceto Notebook Evangelist

    Reputations:
    11
    Messages:
    483
    Likes Received:
    0
    Trophy Points:
    30
    arrrghh I hoped we had a solution to the heat and just the case left..

    maceto, Jun 19, 2008
    #4
