    WIFI BLUE Wire connection

    Discussion in 'Alienware' started by GravelyMistaken, Apr 22, 2008.

  1. GravelyMistaken

    GravelyMistaken Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    I opened the bottom of the laptop today and noticed that the blue wire connected to the wifi card was not connected to anything but the other two were! My question is should it be connected and if so where does it connect to?

    GravelyMistaken, Apr 22, 2008
    #1
  2. Stone825

    Stone825 Notebook Virtuoso

    Reputations:
    404
    Messages:
    2,439
    Likes Received:
    0
    Trophy Points:
    55
    Well does your Wi-Fi work? If it does then you shouldn't worry about anything. Also what laptop do you have?

    Stone825, Apr 22, 2008
    #2
  3. Mystik

    Mystik Notebook Deity

    Reputations:
    164
    Messages:
    1,095
    Likes Received:
    0
    Trophy Points:
    55
    this is common with m15x units. my guess is that originally, they had a mini-PCIe Bluetooth card that needed the antenna connection, but for some reason, never removed the antenna... but they did switch to a USB alternative to the Bluetooth card. (probably takes less power)

    Mystik, Apr 23, 2008
    #3
  4. Sogarth

    Sogarth Notebook Consultant

    Reputations:
    25
    Messages:
    194
    Likes Received:
    0
    Trophy Points:
    30
    Actually, it's because the m15x has the Intel 4965, which supports three antennae, unlike the Intel 3945 and earlier, which only supported two. I would imagine that the chassis hasn't been updated to figure out a dedicated location for the third antenna (I don't know what other manufacturers do), so they've left it to sit at the bottom of the system.

    Sogarth, Apr 23, 2008
    #4
  5. crizzler

    crizzler Notebook Consultant

    Reputations:
    23
    Messages:
    247
    Likes Received:
    0
    Trophy Points:
    30

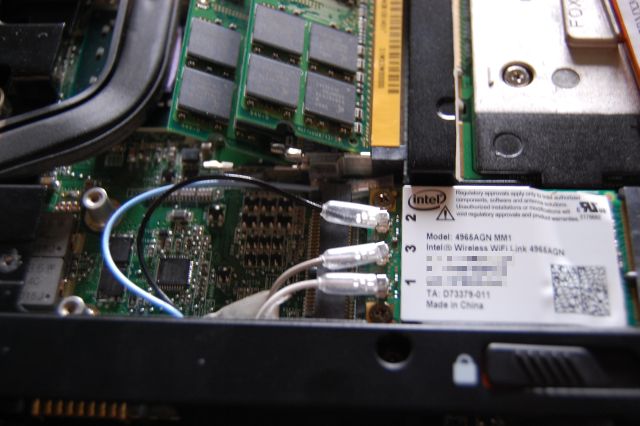

    actually there are 4 cables around the wifi-module (see image attached)


    Attached Files:

    crizzler, Apr 23, 2008
    #5
