    help tv adapter

    Discussion in 'Alienware' started by al1984, May 28, 2008.

  1. al1984

    al1984 Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5

    Attached Files:

    al1984, May 28, 2008
    #1
  2. Marshall1975

    Marshall1975 Notebook Consultant

    Reputations:
    20
    Messages:
    269
    Likes Received:
    0
    Trophy Points:
    30
    Hello Mate

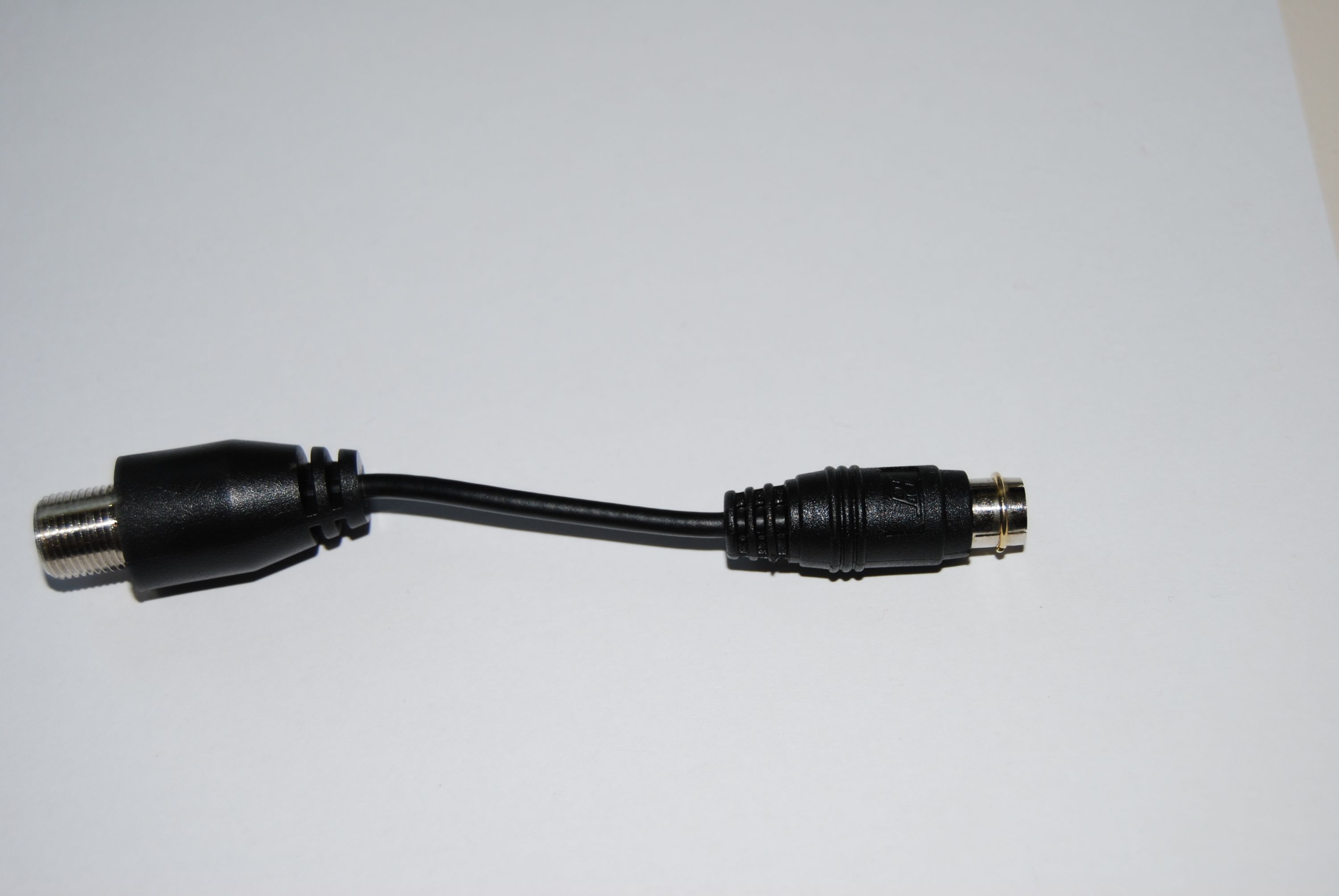

    The right hand small end of the cable goes into the back of the tv card at the back of the laptop. Then the end of an external aerial goes into the left hand larger end of your cable. Job done

    Marshall1975, May 28, 2008
    #2
  3. al1984

    al1984 Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5

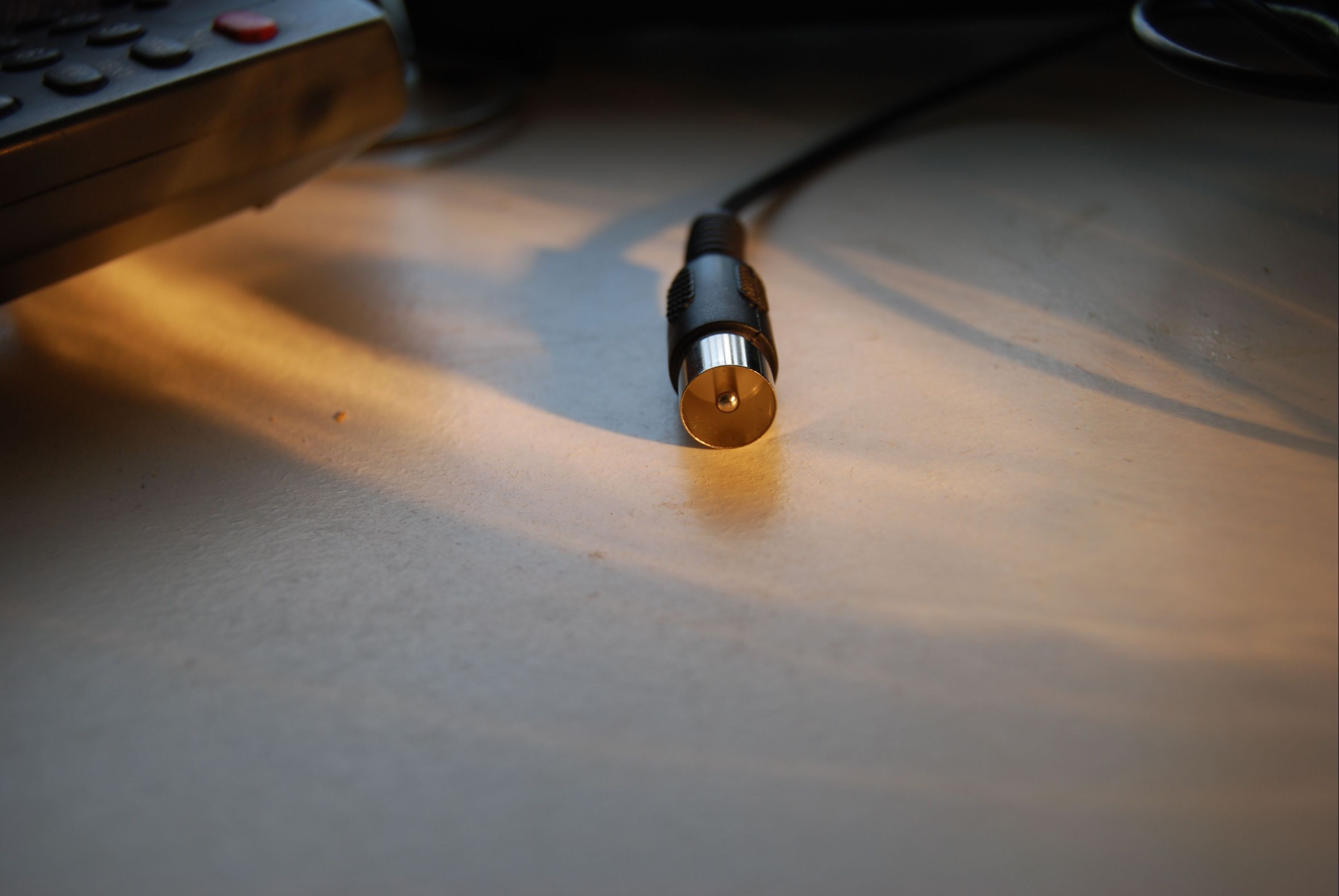

    but the aerial is not screw in it is a push in one

    al1984, May 28, 2008
    #3
  4. mjl2142

    mjl2142 Notebook Evangelist

    Reputations:
    16
    Messages:
    494
    Likes Received:
    0
    Trophy Points:
    30
    Photo of antenna plug?

    You will most likely need a (whatever-it-is) to coax adapter, to connect to the adapter in your photo.

    I know the US uses coaax, i assume europe is the same?

    mjl2142, May 28, 2008
    #4
  5. al1984

    al1984 Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5

    Attached Files:

    al1984, May 29, 2008
    #5
  6. al1984

    al1984 Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    al1984, May 29, 2008
    #6
  7. czjabarin

    czjabarin Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Did you manage to make it work in the UK? I am having the same problem.

    czjabarin, Sep 28, 2008
    #7
  8. findvikas

    findvikas Notebook Deity

    Reputations:
    272
    Messages:
    1,184
    Likes Received:
    1
    Trophy Points:
    56
    not sure about the solution... but I like your camera :) very crisp and clear images

    findvikas, Sep 28, 2008
    #8
  9. Vitotherm

    Vitotherm Notebook Consultant

    Reputations:
    18
    Messages:
    179
    Likes Received:
    0
    Trophy Points:
    30
    I have solved it on my M9750 a long time ago...
    ( i thought we only have that problem in the Netherlands :p )

    You can take a look at some stores like this one
    http://www.altex.com/F-Series-Adapter-F-Male-to-RCA-Female-7580-P140730.aspx

    But basically you can do it yourself, buy some connectors.. and make a small cable. (that worked for me)

    There's also a company that makes cables as you would like them.
    it's in the Netherlands, but if you guys need something from them i can help you out.

    http://www.antennekabel.nl/foto-verloop-kabels/20-FME3023.JPG

    Vitotherm, Sep 28, 2008
    #9
  10. Mystik

    Mystik Notebook Deity

    Reputations:
    164
    Messages:
    1,095
    Likes Received:
    0
    Trophy Points:
    55
    they use RCA connectors on the ends of COAX lines in europe? strange. very strange.

    the screw-y plug is a standard Coaxial connector here in N. America. the antenna plug you showed us was coming from a standard RCA style cable...

    RCA Connectors
    F Connector (The standard endpoint for Coax (cable and antenna TV) lines in N. America)

    obviously these two are not compatible. But it's not hard to switch between them... neither is it hard to create either cable, or attach the end of either type of cable, etc. etc.

    HOWEVER, if your RCA Connector is attached to something other than a Cable TV signal, (eg. from the video-out of a device), you'll need a RF Modulator box to do the conversion between signal types. In my experience (here in canada) almost all RCA connectors are labelled Yellow, Red, and White (signifying Video, Right, and Left audio channels respectively); it's this type of setup that would require the use of a Modulator.

    With your connector being black (not yellow, red, white, green, or blue) I suspect that it is A TV relay cable, a Coax cable. so a simple connector-type conversion adapter is the only necessary component.

    Mystik, Sep 28, 2008
    #10
  11. Vitotherm

    Vitotherm Notebook Consultant

    Reputations:
    18
    Messages:
    179
    Likes Received:
    0
    Trophy Points:
    30
    You are maybe right.. because the name of the connectors i am not sure of..:wub:
    ( we call them just coax connectors, and the other one's are used for a satellite dish here "those F connectors" )

    but here's a link http://eshop2.euras.com/include/showpic.php?source=kk&id=233312&typ=jpg

    About a month after i bought my M9750, i started to build a media center.
    With my TV tuners i ordered, these connectors where included.
    so it's nothing really special...

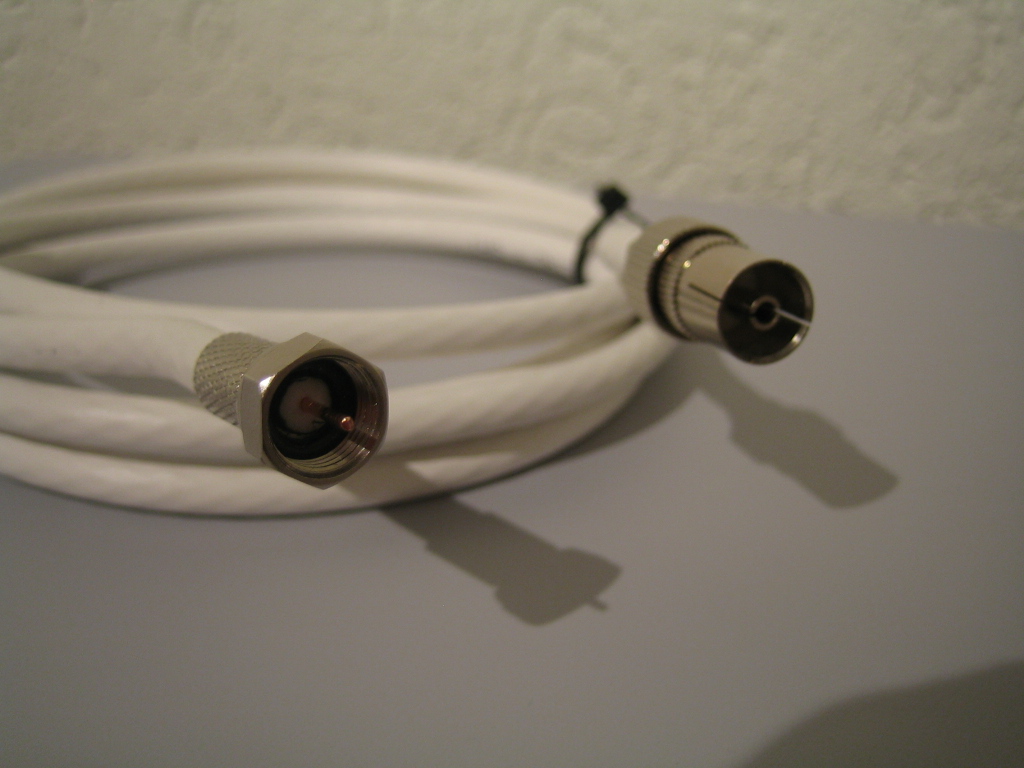

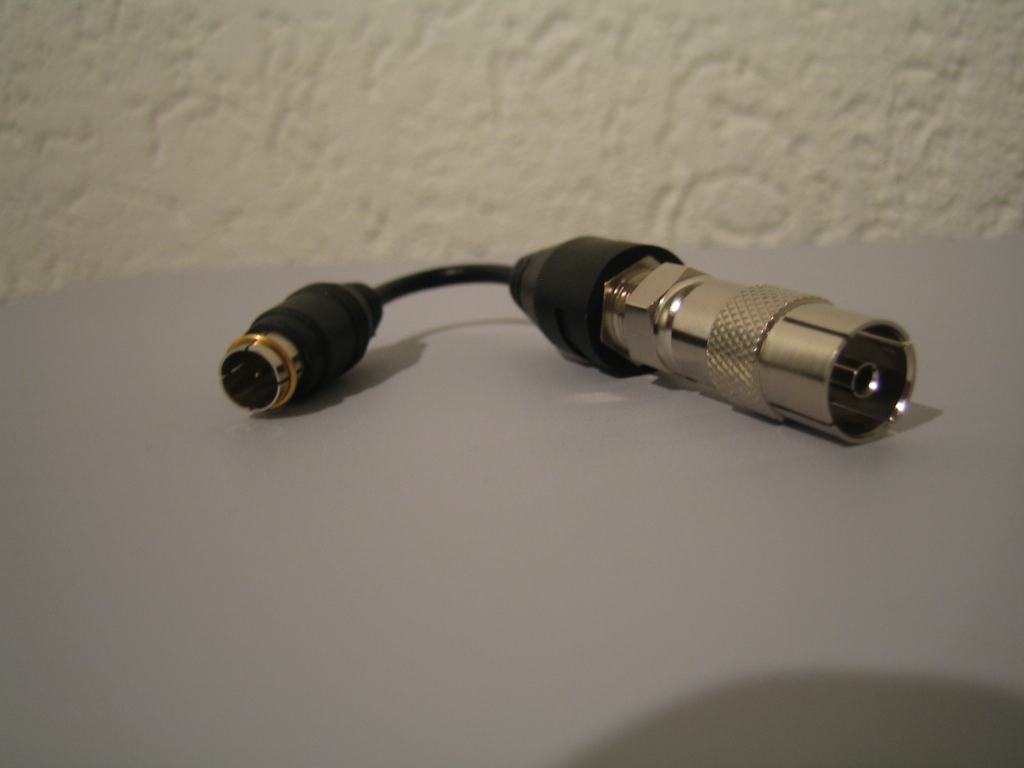

    First picture my cable.. second picture with the adapter more professional... :D


    Attached Files:

    Vitotherm, Sep 28, 2008
    #11
