Problems? See this thread at archive.org.
testing, screenshots, results: http://g51jbsod.wikia.com/wiki/CPU_throttling
BIOS disassembly: http://g51jbsod.wikia.com/wiki/BIOS_disassembly
all discussion goes here.
as with the BSoD thread, let's keep it mostly on topic.
a short summary:

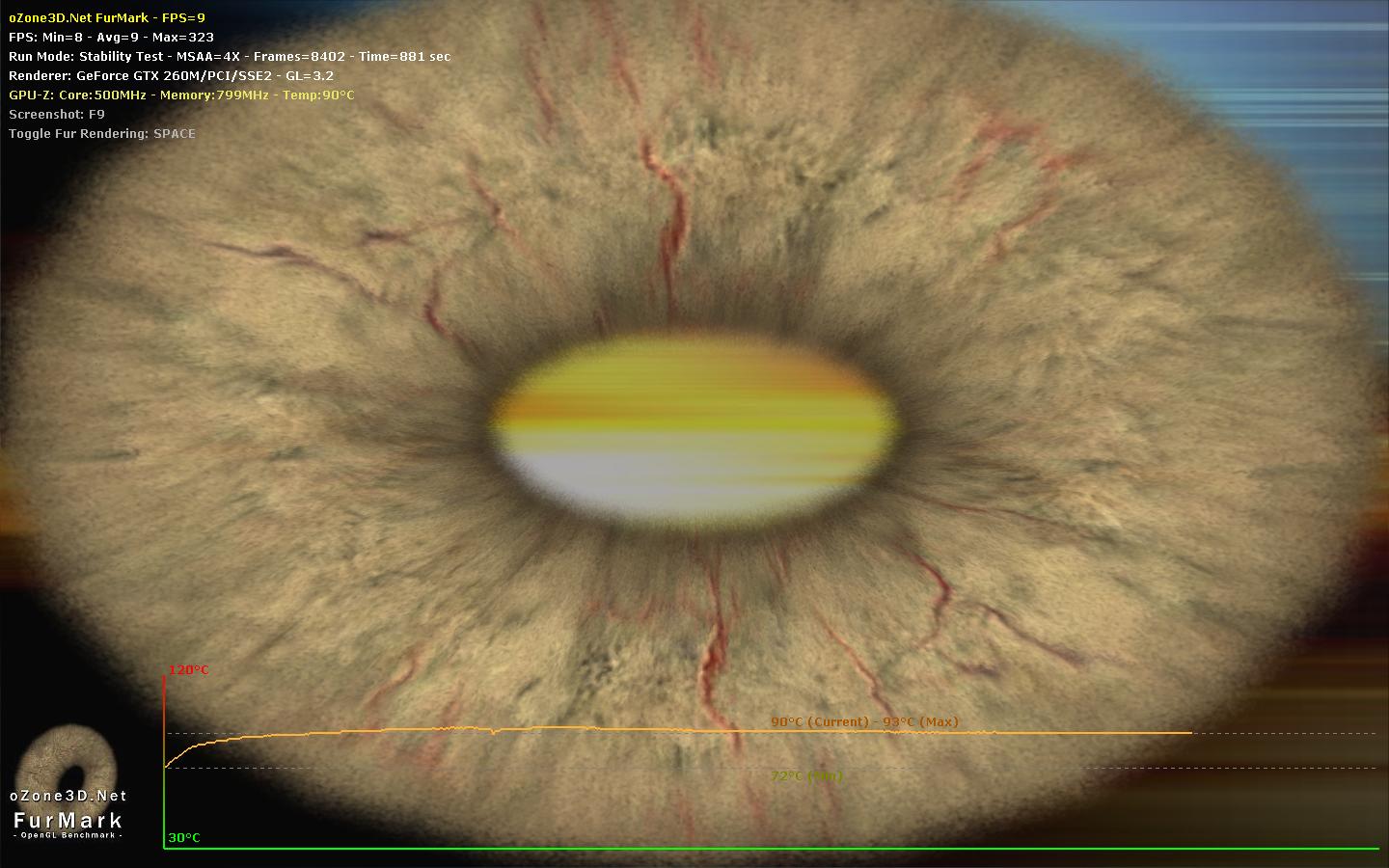

under intense (power consumption) load, the CPU will be throttled to 900MHz. the simplest test is #3, run furmark and prime95 together while using RealTemp and GPU-z to watch clocks. observe what happens to the CPU when you toggle (space) rendering in furmark.
READ BELOW IF YOU'RE INTERESTED IN REMOVING THE LIMIT (BOTH G51J AND G51Jx)
http://g51jbsod.wikia.com/wiki/CPU_throttling#fix
note that this might:
- shut down your power brick (need a hard reset from the wall) if you pull more than it can provide
- raise your temps by a good amount (especially during games that would throttle before)
this does not:
- disable thermal throttling for i2c and driver-based thermal monitors (ACPI, CPU, GPU)
quick solution for windows:
1) download the latest throttlestop @ http://www.fileden.com/files/2008/3/3/1794507/ThrottleStop.zip
2) check off "Unlock bidirectional PROCHOT" and "Start minimized" in options
3) uncheck "BD PROCHOT" in the main screen"
4) drop a shortcut to throttlestop in your startup folder
no more worries about throttling.
/READ
-
-
-
-
-
was about to say, unless my machine has deeper issues other than the keyboard light hotkeys not working, i don't see how else i can be doing this wrong. multi is locked to 13 (12 without turbo boost), and it still fluctuates.
temps are not an issue.Attached Files:
-
-
-
-
-
![[IMG]](images/storyImages/throttlestop.jpg)
Code:01/21/10 00:07:12 7.00 100.0 100.0 100.0 19 01/21/10 00:07:12 7.00 100.0 100.0 100.0 20 01/21/10 00:07:12 7.00 100.0 100.0 100.0 20 01/21/10 00:07:13 7.00 100.0 100.0 100.0 21 01/21/10 00:07:13 7.00 100.0 100.0 100.0 21 01/21/10 00:07:13 7.00 100.0 100.0 100.0 22 01/21/10 00:07:13 7.00 100.0 100.0 100.0 22 01/21/10 00:07:14 7.00 100.0 100.0 100.0 22 01/21/10 00:07:14 7.00 100.0 100.0 100.0 21 01/21/10 00:07:14 7.00 100.0 100.0 100.0 22 01/21/10 00:07:14 7.00 100.0 100.0 100.0 22 01/21/10 00:07:15 7.00 100.0 100.0 100.0 22 01/21/10 00:07:15 7.00 100.0 100.0 100.0 19 01/21/10 00:07:15 11.10 99.9 100.0 100.0 17 01/21/10 00:07:15 12.53 99.9 100.0 100.0 15 01/21/10 00:07:16 12.52 99.9 100.0 100.0 15 01/21/10 00:07:16 12.54 99.9 100.0 100.0 15 01/21/10 00:07:16 12.53 99.9 100.0 100.0 15 01/21/10 00:07:16 12.50 99.9 100.0 100.0 15 01/21/10 00:07:17 12.49 99.9 100.0 100.0 15 01/21/10 00:07:17 12.52 99.9 100.0 100.0 15 01/21/10 00:07:17 12.49 99.9 100.0 100.0 15 01/21/10 00:07:18 12.48 99.9 100.0 100.0 14 01/21/10 00:07:18 12.49 99.9 100.0 100.0 15 01/21/10 00:07:18 12.49 99.9 100.0 100.0 15 01/21/10 00:07:18 12.50 99.9 100.0 100.0 14 01/21/10 00:07:19 12.53 99.9 100.0 100.0 15 01/21/10 00:07:19 12.57 99.9 100.0 100.0 14 01/21/10 00:07:19 12.59 99.9 100.0 100.0 15 01/21/10 00:07:19 12.53 99.9 100.0 100.0 14 01/21/10 00:07:20 12.49 99.9 100.0 100.0 15 01/21/10 00:07:20 11.86 99.9 100.0 100.0 18 01/21/10 00:07:20 7.00 100.0 100.0 100.0 20 01/21/10 00:07:20 7.00 100.0 100.0 100.0 21 01/21/10 00:07:20 7.00 100.0 100.0 100.0 22 01/21/10 00:07:21 7.00 100.0 100.0 100.0 21 01/21/10 00:07:21 7.00 100.0 100.0 100.0 22 01/21/10 00:07:21 7.00 100.0 100.0 100.0 22 01/21/10 00:07:21 7.00 100.0 100.0 100.0 22 01/21/10 00:07:22 7.00 100.0 100.0 100.0 23 01/21/10 00:07:22 7.00 100.0 100.0 100.0 23 01/21/10 00:07:22 7.00 100.0 100.0 100.0 22 01/21/10 00:07:22 7.00 100.0 100.0 100.0 23 01/21/10 00:07:23 7.00 100.0 100.0 100.0 23 01/21/10 00:07:23 7.00 100.0 100.0 100.0 23 01/21/10 00:07:23 7.00 100.0 100.0 100.0 23 01/21/10 00:07:23 8.83 100.0 100.0 100.0 18 01/21/10 00:07:24 12.57 99.9 100.0 100.0 17 01/21/10 00:07:24 12.57 99.9 100.0 100.0 17 01/21/10 00:07:24 12.57 99.9 100.0 100.0 17 01/21/10 00:07:24 12.55 99.9 100.0 100.0 16 01/21/10 00:07:25 12.54 99.9 100.0 100.0 16 01/21/10 00:07:25 12.53 99.9 100.0 100.0 16 01/21/10 00:07:25 12.51 99.9 100.0 100.0 16 01/21/10 00:07:26 12.51 99.9 100.0 100.0 16 01/21/10 00:07:26 12.51 99.9 100.0 100.0 16 01/21/10 00:07:26 12.51 99.9 100.0 100.0 15 01/21/10 00:07:27 12.54 99.9 100.0 100.0 16 01/21/10 00:07:27 12.50 99.9 100.0 100.0 16 01/21/10 00:07:27 12.52 99.9 100.0 100.0 16 01/21/10 00:07:28 12.53 99.9 100.0 100.0 16 01/21/10 00:07:28 12.52 99.9 100.0 100.0 16 01/21/10 00:07:28 12.54 99.9 100.0 100.0 16 01/21/10 00:07:28 12.54 99.9 100.0 100.0 16 01/21/10 00:07:29 12.52 99.9 100.0 100.0 15 01/21/10 00:07:29 12.50 99.9 100.0 100.0 16 01/21/10 00:07:29 12.50 99.9 100.0 100.0 16 01/21/10 00:07:29 12.53 99.9 100.0 100.0 16 01/21/10 00:07:30 12.52 99.9 100.0 100.0 15 01/21/10 00:07:30 12.52 99.9 100.0 100.0 16 01/21/10 00:07:30 12.50 99.9 100.0 100.0 16 01/21/10 00:07:30 12.53 99.9 100.0 100.0 16 01/21/10 00:07:30 12.53 99.9 100.0 100.0 15 01/21/10 00:07:31 12.52 99.9 100.0 100.0 16 01/21/10 00:07:31 12.51 99.9 100.0 100.0 15 01/21/10 00:07:31 12.52 99.9 100.0 100.0 16 01/21/10 00:07:31 12.54 99.9 100.0 100.0 16 01/21/10 00:07:32 12.52 99.9 100.0 100.0 15 01/21/10 00:07:32 12.55 99.9 100.0 100.0 15 01/21/10 00:07:32 12.51 99.9 100.0 100.0 15 01/21/10 00:07:32 12.52 99.9 100.0 100.0 15 01/21/10 00:07:33 12.51 99.9 100.0 100.0 16 01/21/10 00:07:33 12.51 99.9 100.0 100.0 15 01/21/10 00:07:33 12.52 99.9 100.0 100.0 16 01/21/10 00:07:34 12.50 99.9 100.0 100.0 16 01/21/10 00:07:34 12.50 99.9 100.0 100.0 15 01/21/10 00:07:34 12.53 99.9 100.0 100.0 15 01/21/10 00:07:34 12.51 99.9 100.0 100.0 16 01/21/10 00:07:35 12.52 99.9 100.0 100.0 15 01/21/10 00:07:35 12.50 99.9 100.0 100.0 15 01/21/10 00:07:35 12.52 99.9 100.0 100.0 15 01/21/10 00:07:36 12.51 99.9 100.0 100.0 16 01/21/10 00:07:36 12.48 99.9 100.0 100.0 15 01/21/10 00:07:36 12.52 99.9 100.0 100.0 16 01/21/10 00:07:37 12.62 99.9 100.0 100.0 15 01/21/10 00:07:37 12.57 99.9 100.0 100.0 16 01/21/10 00:07:37 12.62 99.9 100.0 100.0 15 01/21/10 00:07:37 12.51 99.9 100.0 100.0 16 01/21/10 00:07:38 12.63 99.9 100.0 100.0 15 01/21/10 00:07:38 12.51 99.9 100.0 100.0 15 01/21/10 00:07:38 12.52 99.9 100.0 100.0 15 01/21/10 00:07:39 12.52 99.9 100.0 100.0 15 01/21/10 00:07:39 12.52 99.9 100.0 100.0 15 01/21/10 00:07:39 12.53 99.9 100.0 100.0 15 01/21/10 00:07:40 12.52 99.9 100.0 100.0 15 01/21/10 00:07:40 12.57 99.9 100.0 100.0 15 01/21/10 00:07:40 12.49 99.9 100.0 100.0 14 01/21/10 00:07:41 12.51 99.9 100.0 100.0 15 01/21/10 00:07:41 12.51 99.9 100.0 100.0 14 01/21/10 00:07:41 12.54 99.9 100.0 100.0 15 01/21/10 00:07:41 12.54 99.9 100.0 100.0 15 01/21/10 00:07:42 12.52 99.9 100.0 100.0 15 01/21/10 00:07:42 12.50 99.9 100.0 100.0 15 01/21/10 00:07:42 12.50 99.9 100.0 100.0 15 01/21/10 00:07:43 12.53 99.9 100.0 100.0 14 01/21/10 00:07:43 12.53 99.9 100.0 100.0 15 01/21/10 00:07:43 12.54 99.9 100.0 100.0 14 01/21/10 00:07:43 12.52 99.9 100.0 100.0 14 01/21/10 00:07:44 12.51 99.9 100.0 100.0 15 01/21/10 00:07:44 12.52 99.9 100.0 100.0 14 01/21/10 00:07:44 12.50 99.9 100.0 100.0 15 01/21/10 00:07:44 12.51 99.9 100.0 100.0 15 01/21/10 00:07:45 12.51 99.9 100.0 100.0 15 01/21/10 00:07:45 12.50 99.9 100.0 100.0 14 01/21/10 00:07:45 12.52 99.9 100.0 100.0 15 01/21/10 00:07:45 12.54 99.9 100.0 100.0 15 01/21/10 00:07:46 12.51 99.9 100.0 100.0 15 01/21/10 00:07:46 12.50 99.9 100.0 100.0 14 01/21/10 00:07:46 12.50 99.9 100.0 100.0 15 01/21/10 00:07:47 12.50 99.9 100.0 100.0 15 01/21/10 00:07:47 12.51 99.9 100.0 100.0 15 01/21/10 00:07:47 12.53 99.9 100.0 100.0 15 01/21/10 00:07:47 12.54 99.9 100.0 100.0 14 01/21/10 00:07:48 12.51 99.9 100.0 100.0 14 01/21/10 00:07:48 12.49 99.9 100.0 100.0 15 01/21/10 00:07:48 12.51 99.9 100.0 100.0 15 01/21/10 00:07:49 12.52 99.9 100.0 100.0 14 01/21/10 00:07:49 12.49 99.9 100.0 100.0 14 01/21/10 00:07:49 12.52 99.9 100.0 100.0 15 01/21/10 00:07:49 12.51 99.9 100.0 100.0 15 01/21/10 00:07:50 12.51 99.9 100.0 100.0 14 01/21/10 00:07:50 12.51 99.9 100.0 100.0 15 01/21/10 00:07:50 12.52 99.9 100.0 100.0 14 01/21/10 00:07:50 12.51 99.9 100.0 100.0 15 01/21/10 00:07:50 12.51 99.9 100.0 100.0 14 01/21/10 00:07:51 12.51 99.9 100.0 100.0 14 01/21/10 00:07:51 12.50 99.9 100.0 100.0 15 01/21/10 00:07:51 12.49 99.9 100.0 100.0 15 01/21/10 00:07:52 12.50 99.9 100.0 100.0 15 01/21/10 00:07:52 12.52 99.9 100.0 100.0 14 01/21/10 00:07:52 12.52 99.9 100.0 100.0 14 01/21/10 00:07:52 12.50 99.9 100.0 100.0 14 01/21/10 00:07:53 12.53 99.9 100.0 100.0 15 01/21/10 00:07:53 12.53 99.9 100.0 100.0 15 01/21/10 00:07:53 12.56 99.9 100.0 100.0 15 01/21/10 00:07:53 12.65 99.9 100.0 100.0 14 01/21/10 00:07:54 12.60 99.9 100.0 100.0 14 01/21/10 00:07:54 12.61 99.9 100.0 100.0 14 01/21/10 00:07:54 12.56 99.9 100.0 100.0 15 01/21/10 00:07:54 12.50 99.9 100.0 100.0 15 01/21/10 00:07:55 12.53 99.9 100.0 100.0 14 01/21/10 00:07:55 12.52 99.9 100.0 100.0 15 01/21/10 00:07:55 12.49 99.9 100.0 100.0 14 01/21/10 00:07:56 12.57 99.9 100.0 100.0 15 01/21/10 00:07:56 12.58 99.9 100.0 100.0 15 01/21/10 00:07:56 12.62 99.9 100.0 100.0 15 01/21/10 00:07:56 12.63 99.9 100.0 100.0 14 01/21/10 00:07:57 12.64 99.9 100.0 100.0 14 01/21/10 00:07:57 12.62 99.9 100.0 100.0 14 01/21/10 00:07:57 12.57 99.9 100.0 100.0 14 01/21/10 00:07:58 12.50 99.9 100.0 100.0 14 01/21/10 00:07:58 12.49 99.9 100.0 100.0 15 01/21/10 00:07:58 12.59 99.9 100.0 100.0 14 01/21/10 00:07:58 12.57 99.9 100.0 100.0 14 01/21/10 00:07:59 12.52 99.9 100.0 100.0 14 01/21/10 00:07:59 12.52 99.9 100.0 100.0 14 01/21/10 00:07:59 12.56 99.9 100.0 100.0 14 01/21/10 00:08:00 12.63 99.9 100.0 100.0 14 01/21/10 00:08:00 12.62 99.9 100.0 100.0 14 01/21/10 00:08:00 12.59 99.9 100.0 100.0 14 01/21/10 00:08:00 12.65 99.9 100.0 100.0 14 01/21/10 00:08:01 12.57 99.9 100.0 100.0 14 01/21/10 00:08:01 12.58 99.9 100.0 100.0 14 01/21/10 00:08:01 12.57 99.9 100.0 100.0 14 01/21/10 00:08:01 12.57 99.9 100.0 100.0 14 01/21/10 00:08:02 12.52 99.9 100.0 100.0 14 01/21/10 00:08:02 12.51 99.9 100.0 100.0 14 01/21/10 00:08:02 12.49 99.9 100.0 100.0 14 01/21/10 00:08:03 12.53 99.9 100.0 100.0 14 01/21/10 00:08:03 12.58 99.9 100.0 100.0 14 01/21/10 00:08:03 12.62 99.9 100.0 100.0 14 01/21/10 00:08:03 12.61 99.9 100.0 100.0 14 01/21/10 00:08:04 12.64 99.9 100.0 100.0 14 01/21/10 00:08:04 12.64 99.9 100.0 100.0 14 01/21/10 00:08:04 12.64 99.9 100.0 100.0 14 01/21/10 00:08:05 12.56 99.9 100.0 100.0 14 01/21/10 00:08:05 12.50 99.9 100.0 100.0 14 01/21/10 00:08:05 12.56 99.9 100.0 100.0 14 01/21/10 00:08:05 12.53 99.9 100.0 100.0 13 01/21/10 00:08:06 12.57 99.9 100.0 100.0 14 01/21/10 00:08:06 12.50 99.9 100.0 100.0 14 01/21/10 00:08:06 12.52 99.9 100.0 100.0 14 01/21/10 00:08:06 12.54 99.9 100.0 100.0 15 01/21/10 00:08:07 12.55 99.9 100.0 100.0 14 01/21/10 00:08:07 12.54 99.9 100.0 100.0 14 01/21/10 00:08:08 12.51 99.9 100.0 100.0 14 01/21/10 00:08:08 12.51 99.9 100.0 100.0 14 01/21/10 00:08:08 12.51 99.9 100.0 100.0 14 01/21/10 00:08:08 12.49 99.9 100.0 100.0 15 01/21/10 00:08:09 12.54 99.9 100.0 100.0 14 01/21/10 00:08:09 12.52 99.9 100.0 100.0 15 01/21/10 00:08:09 12.48 99.9 100.0 100.0 15 01/21/10 00:08:09 12.57 99.9 100.0 100.0 14 01/21/10 00:08:10 12.60 99.9 100.0 100.0 14 01/21/10 00:08:10 12.54 99.9 100.0 100.0 14 01/21/10 00:08:10 12.58 99.9 100.0 100.0 14 01/21/10 00:08:10 12.56 99.9 100.0 100.0 14 01/21/10 00:08:11 12.50 99.9 100.0 100.0 14 01/21/10 00:08:11 12.51 99.9 100.0 100.0 14 01/21/10 00:08:12 12.52 99.9 100.0 100.0 14 01/21/10 00:08:12 12.47 99.9 100.0 100.0 14 01/21/10 00:08:12 12.48 99.9 100.0 100.0 14 01/21/10 00:08:12 12.62 99.9 100.0 100.0 14 01/21/10 00:08:13 12.59 99.9 100.0 100.0 14 01/21/10 00:08:13 12.61 99.9 100.0 100.0 14 01/21/10 00:08:13 12.62 99.9 100.0 100.0 14 01/21/10 00:08:13 12.62 99.9 100.0 100.0 14 01/21/10 00:08:14 12.48 99.9 100.0 100.0 14 01/21/10 00:08:14 12.55 99.9 100.0 100.0 13 01/21/10 00:08:14 12.56 99.9 100.0 100.0 14 01/21/10 00:08:14 12.54 99.9 100.0 100.0 14 01/21/10 00:08:15 12.51 99.9 100.0 100.0 14 01/21/10 00:08:15 12.51 99.9 100.0 100.0 14 01/21/10 00:08:15 12.51 99.9 100.0 100.0 14 01/21/10 00:08:16 12.57 99.9 100.0 100.0 14 01/21/10 00:08:16 12.58 99.9 100.0 100.0 14 01/21/10 00:08:16 12.59 99.9 100.0 100.0 14 01/21/10 00:08:17 12.52 99.9 100.0 100.0 14 01/21/10 00:08:17 12.50 99.9 100.0 100.0 14 01/21/10 00:08:17 12.49 99.9 100.0 100.0 14 01/21/10 00:08:17 12.52 99.9 100.0 100.0 15 01/21/10 00:08:18 12.53 99.9 100.0 100.0 14 01/21/10 00:08:18 12.47 99.9 100.0 100.0 14 01/21/10 00:08:18 12.47 99.9 100.0 100.0 14 01/21/10 00:08:18 12.47 99.9 100.0 100.0 14 01/21/10 00:08:19 12.49 99.9 100.0 100.0 14 01/21/10 00:08:19 12.50 99.9 100.0 100.0 14 01/21/10 00:08:20 12.48 99.9 100.0 100.0 14 01/21/10 00:08:20 12.47 99.9 100.0 100.0 15 01/21/10 00:08:20 12.50 99.9 100.0 100.0 14 01/21/10 00:08:20 12.51 99.9 100.0 100.0 14 01/21/10 00:08:21 12.49 99.9 100.0 100.0 13 01/21/10 00:08:21 12.48 99.9 100.0 100.0 14 01/21/10 00:08:21 12.47 99.9 100.0 100.0 13 01/21/10 00:08:22 12.47 99.9 100.0 100.0 13 01/21/10 00:08:22 12.49 99.9 100.0 100.0 14 01/21/10 00:08:22 12.51 99.9 100.0 100.0 13 01/21/10 00:08:23 12.51 99.9 100.0 100.0 14 01/21/10 00:08:23 12.50 99.9 100.0 100.0 14 01/21/10 00:08:23 12.54 99.9 100.0 100.0 13 01/21/10 00:08:24 12.58 99.9 100.0 100.0 14 01/21/10 00:08:24 12.57 99.9 100.0 100.0 14 01/21/10 00:08:24 12.52 99.9 100.0 100.0 14 01/21/10 00:08:24 12.53 99.9 100.0 100.0 15 01/21/10 00:08:25 12.57 99.9 100.0 100.0 15 01/21/10 00:08:25 12.69 99.9 100.0 100.0 14 01/21/10 00:08:25 12.50 99.9 100.0 100.0 14 01/21/10 00:08:25 12.49 99.9 100.0 100.0 14 01/21/10 00:08:26 12.49 99.9 100.0 100.0 14 01/21/10 00:08:26 12.53 99.9 100.0 100.0 14 01/21/10 00:08:26 12.57 99.9 100.0 100.0 14 01/21/10 00:08:27 12.57 99.9 100.0 100.0 13 01/21/10 00:08:27 12.53 99.9 100.0 100.0 14 01/21/10 00:08:27 12.54 99.9 100.0 100.0 14 01/21/10 00:08:27 12.52 99.9 100.0 100.0 14 01/21/10 00:08:28 12.50 99.9 100.0 100.0 14 01/21/10 00:08:28 12.50 99.9 100.0 100.0 14 01/21/10 00:08:28 12.47 99.9 100.0 100.0 13 01/21/10 00:08:29 12.54 99.9 100.0 100.0 14 01/21/10 00:08:29 12.66 99.9 100.0 100.0 13 01/21/10 00:08:29 12.67 99.9 100.0 100.0 14 01/21/10 00:08:29 12.55 99.9 100.0 100.0 13 01/21/10 00:08:30 12.49 99.9 100.0 100.0 14 01/21/10 00:08:30 12.48 99.9 100.0 100.0 13 01/21/10 00:08:30 12.49 99.9 100.0 100.0 14 01/21/10 00:08:31 12.47 99.9 100.0 100.0 14 01/21/10 00:08:31 12.47 99.9 100.0 100.0 13 01/21/10 00:08:31 12.51 99.9 100.0 100.0 13 01/21/10 00:08:31 12.66 99.9 100.0 100.0 13 01/21/10 00:08:32 12.66 99.9 100.0 100.0 13 01/21/10 00:08:32 12.61 99.9 100.0 100.0 13 01/21/10 00:08:32 12.50 99.9 100.0 100.0 14 01/21/10 00:08:33 12.48 99.9 100.0 100.0 14 01/21/10 00:08:33 12.49 99.9 100.0 100.0 14 01/21/10 00:08:33 12.49 99.9 100.0 100.0 14 01/21/10 00:08:33 12.49 99.9 100.0 100.0 14 01/21/10 00:08:34 12.50 99.9 100.0 100.0 13 01/21/10 00:08:34 12.55 99.9 100.0 100.0 14 01/21/10 00:08:34 12.54 99.9 100.0 100.0 13 01/21/10 00:08:35 12.51 99.9 100.0 100.0 13 01/21/10 00:08:35 12.52 99.9 100.0 100.0 14 01/21/10 00:08:35 12.53 99.9 100.0 100.0 14 01/21/10 00:08:35 12.53 99.9 100.0 100.0 13 01/21/10 00:08:36 12.46 99.9 100.0 100.0 14 01/21/10 00:08:36 12.50 99.9 100.0 100.0 14 01/21/10 00:08:36 12.55 99.9 100.0 100.0 13 01/21/10 00:08:37 12.49 99.9 100.0 100.0 14 01/21/10 00:08:37 12.46 99.9 100.0 100.0 13 01/21/10 00:08:37 12.45 99.9 100.0 100.0 14 01/21/10 00:08:37 12.47 99.9 100.0 100.0 14 01/21/10 00:08:38 12.49 99.9 100.0 100.0 14 01/21/10 00:08:38 12.49 99.9 100.0 100.0 14 01/21/10 00:08:38 12.50 99.9 100.0 100.0 14 01/21/10 00:08:39 12.48 99.9 100.0 100.0 13 01/21/10 00:08:39 12.48 99.9 100.0 100.0 13 01/21/10 00:08:39 12.59 99.9 100.0 100.0 14 01/21/10 00:08:39 12.61 99.9 100.0 100.0 13 01/21/10 00:08:40 12.63 99.9 100.0 100.0 13 01/21/10 00:08:40 12.50 99.9 100.0 100.0 13 01/21/10 00:08:40 12.49 99.9 100.0 100.0 13 01/21/10 00:08:41 12.50 99.9 100.0 100.0 14 01/21/10 00:08:41 12.49 99.9 100.0 100.0 14 01/21/10 00:08:41 12.48 99.9 100.0 100.0 13 01/21/10 00:08:42 12.49 99.9 100.0 100.0 13 01/21/10 00:08:42 12.48 99.9 100.0 100.0 14 01/21/10 00:08:42 12.52 99.9 100.0 100.0 14 01/21/10 00:08:42 12.63 99.9 100.0 100.0 14 01/21/10 00:08:43 12.62 99.9 100.0 100.0 13 01/21/10 00:08:43 12.49 99.9 100.0 100.0 13 01/21/10 00:08:43 12.48 99.9 100.0 100.0 13 01/21/10 00:08:44 12.48 99.9 100.0 100.0 14 01/21/10 00:08:44 12.49 99.9 100.0 100.0 13 01/21/10 00:08:44 12.49 99.9 100.0 100.0 14 01/21/10 00:08:45 12.48 99.9 100.0 100.0 13 01/21/10 00:08:45 12.50 99.9 100.0 100.0 14 01/21/10 00:08:45 12.49 99.9 100.0 100.0 13 01/21/10 00:08:45 12.49 99.9 100.0 100.0 13 01/21/10 00:08:46 12.49 99.9 100.0 100.0 13 01/21/10 00:08:46 12.51 99.9 100.0 100.0 14 01/21/10 00:08:46 12.48 99.9 100.0 100.0 14 01/21/10 00:08:47 12.46 99.9 100.0 100.0 13 01/21/10 00:08:47 12.47 99.9 100.0 100.0 14 01/21/10 00:08:47 12.47 99.9 100.0 100.0 14 01/21/10 00:08:48 12.48 99.9 100.0 100.0 14 01/21/10 00:08:48 12.49 99.9 100.0 100.0 14 01/21/10 00:08:48 12.55 99.9 100.0 100.0 14 01/21/10 00:08:48 12.58 99.9 100.0 100.0 13 01/21/10 00:08:48 12.62 99.9 100.0 100.0 13 01/21/10 00:08:49 12.57 99.9 100.0 100.0 13 01/21/10 00:08:49 12.57 99.9 100.0 100.0 13 01/21/10 00:08:49 12.57 99.9 100.0 100.0 13 01/21/10 00:08:50 12.54 99.9 100.0 100.0 13 01/21/10 00:08:50 12.50 99.9 100.0 100.0 13 01/21/10 00:08:50 12.47 99.9 100.0 100.0 14 01/21/10 00:08:50 12.45 99.9 100.0 100.0 14 01/21/10 00:08:51 12.48 99.9 100.0 100.0 14 01/21/10 00:08:51 12.47 99.9 100.0 100.0 13 01/21/10 00:08:51 12.47 99.9 100.0 100.0 13 01/21/10 00:08:52 12.47 99.9 100.0 100.0 14 01/21/10 00:08:52 12.48 99.9 100.0 100.0 14 01/21/10 00:08:52 12.50 99.9 100.0 100.0 14 01/21/10 00:08:52 12.50 99.9 100.0 100.0 14 01/21/10 00:08:53 12.53 99.9 100.0 100.0 13 01/21/10 00:08:53 12.62 99.9 100.0 100.0 13 01/21/10 00:08:53 12.63 99.9 100.0 100.0 13 01/21/10 00:08:53 12.61 99.9 100.0 100.0 13 01/21/10 00:08:54 12.52 99.9 100.0 100.0 13 01/21/10 00:08:54 12.51 99.9 100.0 100.0 14 01/21/10 00:08:54 12.53 99.9 100.0 100.0 13 01/21/10 00:08:55 12.51 99.9 100.0 100.0 14 01/21/10 00:08:55 12.49 99.9 100.0 100.0 14 01/21/10 00:08:55 12.48 99.9 100.0 100.0 14 01/21/10 00:08:55 12.49 99.9 100.0 100.0 13 01/21/10 00:08:55 12.52 99.9 100.0 100.0 14 01/21/10 00:08:56 12.51 99.9 100.0 100.0 13 01/21/10 00:08:56 12.51 99.9 100.0 100.0 13 01/21/10 00:08:56 12.54 99.9 100.0 100.0 13 01/21/10 00:08:57 12.52 99.9 100.0 100.0 14 01/21/10 00:08:57 12.54 99.9 100.0 100.0 13 01/21/10 00:08:57 12.57 99.9 100.0 100.0 13 01/21/10 00:08:57 12.54 99.9 100.0 100.0 14 01/21/10 00:08:58 12.51 99.9 100.0 100.0 14 01/21/10 00:08:58 12.50 99.9 100.0 100.0 14 01/21/10 00:08:58 12.51 99.9 100.0 100.0 13 01/21/10 00:08:59 12.50 99.9 100.0 100.0 14 01/21/10 00:08:59 12.49 99.9 100.0 100.0 13 01/21/10 00:08:59 12.49 99.9 100.0 100.0 14 01/21/10 00:09:00 12.59 99.9 100.0 100.0 14 01/21/10 00:09:00 12.70 99.9 100.0 100.0 14 01/21/10 00:09:00 12.76 99.9 100.0 100.0 14 01/21/10 00:09:00 12.69 99.9 100.0 100.0 14 01/21/10 00:09:01 12.63 99.9 100.0 100.0 14 01/21/10 00:09:01 12.70 99.9 100.0 100.0 14 01/21/10 00:09:01 12.64 99.9 100.0 100.0 13 01/21/10 00:09:01 12.57 99.9 100.0 100.0 14 01/21/10 00:09:02 12.51 99.9 100.0 100.0 14 01/21/10 00:09:02 12.50 99.9 100.0 100.0 13 01/21/10 00:09:02 12.48 99.9 100.0 100.0 13 01/21/10 00:09:03 12.47 99.9 100.0 100.0 13 01/21/10 00:09:03 12.48 99.9 100.0 100.0 13 01/21/10 00:09:03 12.54 99.9 100.0 100.0 13 01/21/10 00:09:03 12.53 99.9 100.0 100.0 13 01/21/10 00:09:04 12.51 99.9 100.0 100.0 13 01/21/10 00:09:04 12.53 99.9 100.0 100.0 14 01/21/10 00:09:04 8.94 99.9 100.0 100.0 19 01/21/10 00:09:05 7.00 100.0 100.0 100.0 20 01/21/10 00:09:05 7.00 100.0 100.0 100.0 20 01/21/10 00:09:05 7.00 100.0 100.0 100.0 21 01/21/10 00:09:05 7.00 100.0 100.0 100.0 21 01/21/10 00:09:06 7.00 100.0 100.0 100.0 22 01/21/10 00:09:06 7.00 100.0 100.0 100.0 21 01/21/10 00:09:06 7.00 100.0 100.0 100.0 21 01/21/10 00:09:07 7.00 100.0 100.0 100.0 22 01/21/10 00:09:07 7.00 100.0 100.0 100.0 22 01/21/10 00:09:07 7.00 100.0 100.0 100.0 22 01/21/10 00:09:08 7.00 100.0 100.0 100.0 20 01/21/10 00:09:08 12.61 99.9 100.0 100.0 16 01/21/10 00:09:08 12.74 99.9 100.0 100.0 16 01/21/10 00:09:08 12.66 99.9 100.0 100.0 16 01/21/10 00:09:09 12.65 99.9 100.0 100.0 15 01/21/10 00:09:09 12.57 99.9 100.0 100.0 15 01/21/10 00:09:09 12.53 99.9 100.0 100.0 15 01/21/10 00:09:10 12.53 99.9 100.0 100.0 15 01/21/10 00:09:10 12.60 99.9 100.0 100.0 15 01/21/10 00:09:10 12.63 99.9 100.0 100.0 14 01/21/10 00:09:11 12.64 99.9 100.0 100.0 14 01/21/10 00:09:11 12.63 99.9 100.0 100.0 14 01/21/10 00:09:11 12.63 99.9 100.0 100.0 15 01/21/10 00:09:11 12.63 99.9 100.0 100.0 15 01/21/10 00:09:12 12.48 99.9 100.0 100.0 19 01/21/10 00:09:12 7.00 100.0 100.0 100.0 20 01/21/10 00:09:12 7.00 100.0 100.0 100.0 21 01/21/10 00:09:12 7.00 100.0 100.0 100.0 21 01/21/10 00:09:13 7.00 100.0 100.0 100.0 22 01/21/10 00:09:13 7.00 100.0 100.0 100.0 22 01/21/10 00:09:13 7.00 100.0 100.0 100.0 23 01/21/10 00:09:13 7.00 100.0 100.0 100.0 23 01/21/10 00:09:14 7.00 100.0 100.0 100.0 23 01/21/10 00:09:14 7.00 100.0 100.0 100.0 23 01/21/10 00:09:14 7.00 100.0 100.0 100.0 23 01/21/10 00:09:15 7.00 100.0 100.0 100.0 23 01/21/10 00:09:15 7.00 100.0 100.0 100.0 24
-
Spends much more time @ 7.
It does something... otherwise I wouldn't have posted ZOMG IT WORKS! at first, so... it may be a good enough band-aid for gaming purposes. I'll have to try it some more.Code:1/21/10 00:22:34 12.77 99.9 100.0 100.0 21 01/21/10 00:22:34 8.89 100.0 100.0 100.0 27 01/21/10 00:22:34 7.00 100.0 100.0 100.0 27 01/21/10 00:22:35 7.00 100.0 100.0 100.0 28 01/21/10 00:22:35 7.00 100.0 100.0 100.0 28 01/21/10 00:22:35 7.00 100.0 100.0 100.0 28 01/21/10 00:22:35 7.00 100.0 100.0 100.0 28 01/21/10 00:22:36 7.00 100.0 100.0 100.0 29 01/21/10 00:22:36 7.00 100.0 100.0 100.0 28 01/21/10 00:22:36 7.00 100.0 100.0 100.0 28 01/21/10 00:22:36 7.00 100.0 100.0 100.0 28 01/21/10 00:22:37 7.00 100.0 100.0 100.0 28 01/21/10 00:22:37 9.55 99.9 100.0 100.0 23 01/21/10 00:22:37 12.66 99.9 100.0 100.0 22 01/21/10 00:22:37 12.62 99.9 100.0 100.0 21 01/21/10 00:22:38 12.64 99.9 100.0 100.0 21 01/21/10 00:22:38 12.61 99.9 100.0 100.0 21 01/21/10 00:22:38 11.25 99.9 100.0 100.0 26 01/21/10 00:22:39 7.00 100.0 100.0 100.0 27 01/21/10 00:22:39 7.00 100.0 100.0 100.0 27 01/21/10 00:22:39 7.00 100.0 100.0 100.0 29 01/21/10 00:22:39 7.00 100.0 100.0 100.0 29 01/21/10 00:22:39 7.00 100.0 100.0 100.0 28 01/21/10 00:22:40 7.00 100.0 100.0 100.0 29 01/21/10 00:22:40 7.00 100.0 100.0 100.0 28 01/21/10 00:22:40 7.00 100.0 100.0 100.0 29 01/21/10 00:22:41 7.00 100.0 100.0 100.0 29 01/21/10 00:22:41 7.00 100.0 100.0 100.0 29 01/21/10 00:22:41 7.00 100.0 100.0 100.0 29 01/21/10 00:22:41 7.00 100.0 100.0 100.0 28 01/21/10 00:22:42 9.96 100.0 100.0 100.0 24 01/21/10 00:22:42 12.70 99.9 100.0 100.0 23 01/21/10 00:22:42 12.69 99.9 100.0 100.0 22 01/21/10 00:22:42 12.70 99.9 100.0 100.0 22 01/21/10 00:22:42 12.65 99.9 100.0 100.0 22 01/21/10 00:22:43 12.79 99.9 100.0 100.0 21 01/21/10 00:22:43 12.68 99.9 100.0 100.0 22 01/21/10 00:22:43 12.63 99.9 100.0 100.0 21 01/21/10 00:22:43 12.66 99.9 100.0 100.0 21 01/21/10 00:22:43 12.68 99.9 100.0 100.0 21 01/21/10 00:22:44 12.64 99.9 100.0 100.0 21 01/21/10 00:22:44 12.60 99.9 100.0 100.0 21 01/21/10 00:22:44 12.65 99.9 100.0 100.0 21 01/21/10 00:22:44 12.62 99.9 100.0 100.0 21 01/21/10 00:22:45 11.29 99.9 100.0 100.0 26 01/21/10 00:22:45 7.00 100.0 100.0 100.0 27 01/21/10 00:22:45 7.00 100.0 100.0 100.0 27 01/21/10 00:22:45 7.00 100.0 100.0 100.0 28 01/21/10 00:22:46 7.00 100.0 100.0 100.0 28 01/21/10 00:22:46 7.00 100.0 100.0 100.0 28 01/21/10 00:22:46 7.00 100.0 100.0 100.0 28 01/21/10 00:22:46 7.00 100.0 100.0 100.0 29 01/21/10 00:22:46 7.00 100.0 100.0 100.0 28 01/21/10 00:22:47 7.00 100.0 100.0 100.0 28 01/21/10 00:22:47 7.00 100.0 100.0 100.0 28 01/21/10 00:22:47 7.00 100.0 100.0 100.0 29 01/21/10 00:22:47 7.00 100.0 100.0 100.0 29 01/21/10 00:22:47 7.00 100.0 100.0 100.0 29 01/21/10 00:22:48 7.00 100.0 100.0 100.0 29 01/21/10 00:22:48 7.00 100.0 100.0 100.0 29 01/21/10 00:22:48 7.00 100.0 100.0 100.0 26 01/21/10 00:22:48 12.48 99.9 100.0 100.0 23 01/21/10 00:22:48 12.68 99.9 100.0 100.0 23 01/21/10 00:22:49 12.68 99.9 100.0 100.0 22 01/21/10 00:22:49 12.67 99.9 100.0 100.0 21 01/21/10 00:22:49 12.62 99.9 100.0 100.0 21 01/21/10 00:22:49 12.74 99.9 100.0 100.0 21 01/21/10 00:22:50 12.65 99.9 100.0 100.0 21 01/21/10 00:22:50 12.64 99.9 100.0 100.0 21 01/21/10 00:22:50 12.70 99.9 100.0 100.0 21 01/21/10 00:22:50 12.66 99.9 100.0 100.0 21 01/21/10 00:22:50 12.62 99.9 100.0 100.0 21 01/21/10 00:22:51 12.61 99.9 100.0 100.0 20 01/21/10 00:22:51 12.58 99.9 100.0 100.0 21 01/21/10 00:22:51 11.89 99.9 100.0 100.0 25 01/21/10 00:22:51 7.00 100.0 100.0 100.0 26 01/21/10 00:22:52 7.00 100.0 100.0 100.0 27 01/21/10 00:22:52 7.00 100.0 100.0 100.0 27 01/21/10 00:22:52 7.00 100.0 100.0 100.0 27 01/21/10 00:22:52 7.00 100.0 100.0 100.0 27 01/21/10 00:22:52 7.00 100.0 100.0 100.0 29 01/21/10 00:22:53 7.00 100.0 100.0 100.0 28 01/21/10 00:22:53 7.00 100.0 100.0 100.0 28 01/21/10 00:22:53 7.00 100.0 100.0 100.0 28 01/21/10 00:22:53 7.00 100.0 100.0 100.0 28 01/21/10 00:22:54 7.00 100.0 100.0 100.0 29 01/21/10 00:22:54 7.00 100.0 100.0 100.0 28 01/21/10 00:22:54 7.00 100.0 100.0 100.0 29 01/21/10 00:22:54 7.00 100.0 100.0 100.0 29 01/21/10 00:22:55 7.00 100.0 100.0 100.0 25 01/21/10 00:22:55 11.75 99.9 100.0 100.0 23 01/21/10 00:22:55 12.68 99.9 100.0 100.0 23 01/21/10 00:22:55 12.65 99.9 100.0 100.0 22 01/21/10 00:22:56 12.64 99.9 100.0 100.0 21 01/21/10 00:22:56 12.64 99.9 100.0 100.0 22 01/21/10 00:22:56 12.62 99.9 100.0 100.0 21 01/21/10 00:22:56 12.62 99.9 100.0 100.0 21 01/21/10 00:22:57 12.63 99.9 100.0 100.0 21 01/21/10 00:22:57 12.63 99.9 100.0 100.0 21 01/21/10 00:22:57 12.59 99.9 100.0 100.0 21 01/21/10 00:22:57 12.61 99.9 100.0 100.0 21 01/21/10 00:22:58 12.60 99.9 100.0 100.0 21 01/21/10 00:22:58 12.59 99.9 100.0 100.0 21 01/21/10 00:22:58 12.60 99.9 100.0 100.0 21 01/21/10 00:22:58 12.61 99.9 100.0 100.0 20 01/21/10 00:22:59 12.71 99.9 100.0 100.0 20 01/21/10 00:22:59 12.79 99.9 100.0 100.0 20 01/21/10 00:22:59 12.78 99.9 100.0 100.0 20 01/21/10 00:22:59 12.73 99.9 100.0 100.0 21 01/21/10 00:22:59 12.61 99.9 100.0 100.0 21 01/21/10 00:23:00 12.62 99.9 100.0 100.0 20 01/21/10 00:23:00 12.58 99.9 100.0 100.0 20 01/21/10 00:23:00 12.61 99.9 100.0 100.0 20 01/21/10 00:23:00 12.62 99.9 100.0 100.0 21 01/21/10 00:23:00 12.58 99.9 100.0 100.0 20
Edit: Any chance of source code? For teh Linux? Or a Linux port if not? I very rarely go into windows. It's mostly for stuff like this, troubleshooting the G51J.
If not I'll have to "wait" for ASUS to "fix" their BIOS. Since there are no tools leaked for it that I can find... -
-
-
The XPS 1645 is fairly easy to correct and to keep it corrected but some other laptops use much more aggressive schemes.
I have a few ideas in mind to try to improve my methods that I will be looking into during the next few weeks. If I can dream anything up, I'll send it your way for testing. I need to get one step ahead of the game so I'll be ready when Joker's M17x arrives.
How did your gaming tests go on your Asus with ThrottleStop running? It would be interesting to see two log files with and without ThrottleStop running during the same game to see if there is a noticeable difference in the throttling. -
Oh great, so now Asus throttle? Jeez, it seems CPU tech is too far advanced for Laptop chassis cooling.
-
LOL well if John B's smug answer is anything to go by the M17x-R2 should be throttle free. I guess the ultimate test will come soon enough. You know I'll PM you right away with the results.
-
-
Let us know how it goes, cause I'm not confident enough to game with Throttlestop enabled.
-
-
-
-
-
yep you are right, now it's gone
do you always disable it to avoid the performance drop? -
It still throttles after disabling frequency scaling and ACPI in Linux. I think it could be voltage or actual power distribution... thanks tho, I'll be interested to see if this works on windows.
Edit: Just tried it twice, rebooted for the second try. Makes no difference suspending the acpi.sys threads on prime95+furmark..
I'd say keep it disabled, unless you are concerned about battery life. The driver shouldn't act like that but it does, so manually disabling it before a game is another option if you don't want to always have it disabled. -
-
DCMAKER: Is that log from TMonitor?
Based on the November 2008 Intel Turbo White Paper, TMonitor does not seem to follow the method that Intel recommends to determine the multiplier on Core i7 CPUs. I'm not sure why he doesn't follow this method and I don't agree with the accuracy of the log file that it generated for you.
Give ThrottleStop a try and you will be able to see what each thread is up to based on Intel's recommended method. i7 Turbo is another program that follows the correct method.
When running a single threaded task, the Core i7/i5/i3 are designed to put as much load as possible on as few cores as possible. This lets the other cores go into the C3/C6 sleep state which allows the one active core to use the highest multiplier possible. The fewer cores in the active state, the more turbo boost the CPU is allowed to give the active core or cores. Turbo boost is changing hundreds of times a second based on load.
Edit: When posting log files try using the code html tags.
[ code]
Log File
[ /code]
Just leave out the first space before the word code or /code.
Another Edit: I asked a friend to try out TMonitor 1.02. He gave the previous version a good test and like myself, he wasn't impressed. Here's his opinion of the latest version.
![[IMG]](images/storyImages/tmonitorii.jpg)
CPU-Z and TMonitor both come from CPUID. One shows a multiplier of 23 and the other shows a multiplier of 12 at idle. They can't both be right. -
-
I just rebooted and steam updated itself. Now even after a chkdsk codmw2 will not run. That is all the headache from windows I can take for now.
Without a BIOS update is there a chance you can get throttlestop to work around this? There must be some voodoo u are doing because writing the msr alone doesn't always actually keep the multi at the value I wrote.
Edit: Also this is what I was asking about, the intel paper seems to imply power and voltage are also in the mix...
So are these "factory configured limits" in the BIOS, or are they Intel specs? I haven't been able to find that part out.
[Fixed/Workaround] Asus G51J(x) CPU throttling investigation
Discussion in 'ASUS Gaming Notebook Forum' started by thalanix, Jan 20, 2010.
