    Can PCI-E x8 cause performance problems?

    Discussion in 'ASUS Gaming Notebook Forum' started by Hellman4710, May 7, 2011.

  1. Hellman4710

    Hellman4710 Notebook Guru

    Reputations:
    4
    Messages:
    52
    Likes Received:
    0
    Trophy Points:
    15

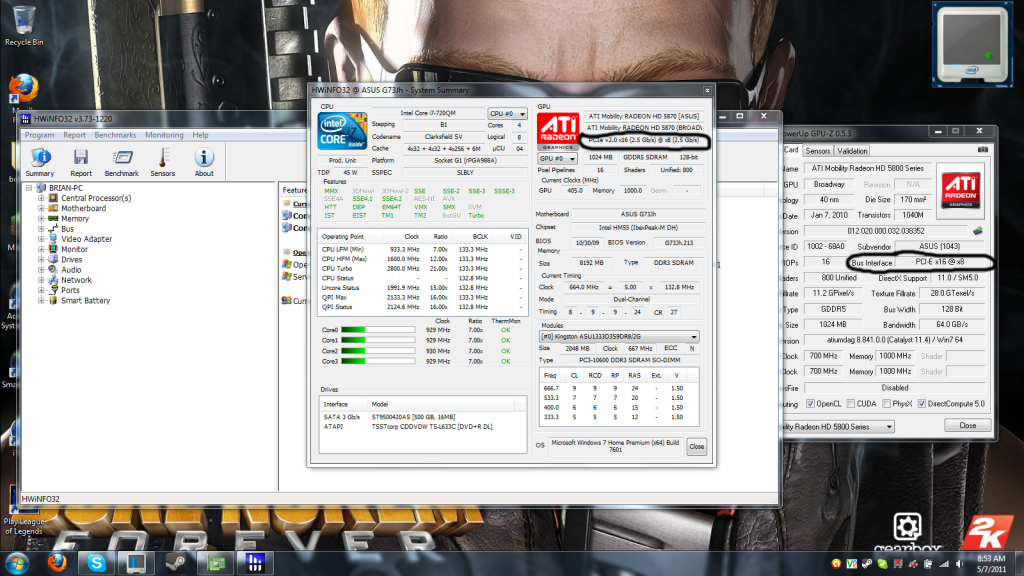

    I've noticed alot of peoples gpuz and hwinfo pictures theirs show they have x16. I hope this isn't a problem.

    [​IMG]

    Hellman4710, May 7, 2011
    #1
  2. Nakano2k1

    Nakano2k1 Notebook Consultant

    Reputations:
    18
    Messages:
    165
    Likes Received:
    0
    Trophy Points:
    30
    No, it's not a problem. My HWINFO32 shows my GTX 460m @ 16X but it's still 2.5 GB/s bandwidth like yours.

    The reason for this is because Asus decided to cheap out and use the H55 chipset which limits throughput.

    There won't be any performance issues with the bandwidth though. 2.5gb/s is more than enough for a mobile GPU.

    Nakano2k1, May 7, 2011
    #2
  3. BumbleBoner

    BumbleBoner Notebook Evangelist

    Reputations:
    42
    Messages:
    574
    Likes Received:
    0
    Trophy Points:
    30
    Mine shows x16.

    [​IMG]

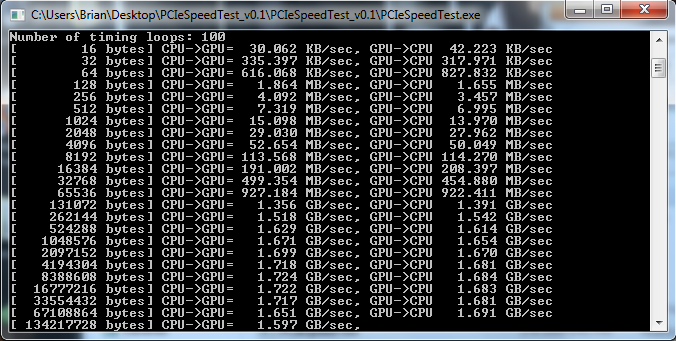

    PCIe speedtest maxes at 3GB/s
    [​IMG]

    BumbleBoner, May 7, 2011
    #3
  4. Hellman4710

    Hellman4710 Notebook Guru

    Reputations:
    4
    Messages:
    52
    Likes Received:
    0
    Trophy Points:
    15
    I think there is something wrong with my graphics card or CPU. I only get about 1.6gb/s

    Could it be my vBios? I used Garys at first then I went to chasitys and only used the updateod in the boot thing.

    [​IMG]

    Hellman4710, May 7, 2011
    #4
  5. BumbleBoner

    BumbleBoner Notebook Evangelist

    Reputations:
    42
    Messages:
    574
    Likes Received:
    0
    Trophy Points:
    30
    Make sure you're on High Performance and your CPU is at 100% min/max state.

    BumbleBoner, May 7, 2011
    #5
  6. Hellman4710

    Hellman4710 Notebook Guru

    Reputations:
    4
    Messages:
    52
    Likes Received:
    0
    Trophy Points:
    15
    Just tried that still the same results. Does your test use only "1" CPU in task manager?

    @Bumble what games do you play?

    Hellman4710, May 7, 2011
    #6
  7. BumbleBoner

    BumbleBoner Notebook Evangelist

    Reputations:
    42
    Messages:
    574
    Likes Received:
    0
    Trophy Points:
    30
    Everything except RPGs and MMORPGs.

    Nope. Varies from 12-20.

    BumbleBoner, May 7, 2011
    #7
  8. Hellman4710

    Hellman4710 Notebook Guru

    Reputations:
    4
    Messages:
    52
    Likes Received:
    0
    Trophy Points:
    15
    @Bumble ok what is your average FPS in BFBC2? And CoDBLACKOPS.

    Hellman4710, May 7, 2011
    #8
  9. BumbleBoner

    BumbleBoner Notebook Evangelist

    Reputations:
    42
    Messages:
    574
    Likes Received:
    0
    Trophy Points:
    30
    Around 30-40 for BC2 at 1080p, on med-high settings. Smooth 55-60 and above for Blackops, maxed out.

    BumbleBoner, May 7, 2011
    #9
  10. Hellman4710

    Hellman4710 Notebook Guru

    Reputations:
    4
    Messages:
    52
    Likes Received:
    0
    Trophy Points:
    15
    Hmm. In black ops do you get like terrible FPS looking at certain areas of maps?

    Hellman4710, May 7, 2011
    #10
  11. ALLurGroceries

    ALLurGroceries  Vegan Vermin Super Moderator

    Reputations:
    15,730
    Messages:
    7,146
    Likes Received:
    2,343
    Trophy Points:
    331
    ALLurGroceries, May 8, 2011
    #11
  12. laptopfan88

    laptopfan88 Notebook Consultant

    Reputations:
    54
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    0
    Yes it does matter. The 2.5 gb/s bandwidth does not. Having that bandwidth at 8x does not mean it's the same as x16 @ 2.5gb/s.

    You want it to be x16. There are a few threads on NBR with this issue and some ways to fix it. I don't remember off the top of my head. The best thing to do is this.

    Put down what your clock settings are here, your core and memory. And the drivers you are using. Bench it in some game that has a standard benchmark like Dirt 2, or Batman AA or whatever, or use a synthetic benchmark like 3DMark Vantage or 3DMark 2011.

    And then compare to x16. I believe there should be a difference.

    laptopfan88, May 8, 2011
    #12
  13. BumbleBoner

    BumbleBoner Notebook Evangelist

    Reputations:
    42
    Messages:
    574
    Likes Received:
    0
    Trophy Points:
    30
    I don't remember any softmod fixes. Only an RMA to replace the GPU/motherboard from what I've read.

    Seconding the synthetic benchmark run.

    BumbleBoner, May 8, 2011
    #13
