    Clevo 7970m in asus G73JH?

    Discussion in 'ASUS Gaming Notebook Forum' started by cdoublejj, Dec 31, 2014.

  1. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    Clevo 7970m in asus G73JH? it feels like it's been a year since i i was in this section. I wanted to be sure i remember right but, isn't the clevo 7970m compatible with the G73JH?

    cdoublejj, Dec 31, 2014
    #1
  2. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    I'm not too sure myself but I thought people were using Dell ones??

    TomJGX, Dec 31, 2014
    #2
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,186
    Likes Received:
    17,895
    Trophy Points:
    931
    It has to be the revision that supports the hm vbios.

    Meaker@Sager, Dec 31, 2014
    #3
  4. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    how would i find that out?

    cdoublejj, Jan 1, 2015
    #4
  5. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    is it possible to flash them in the G73JH?

    cdoublejj, Jan 1, 2015
    #5
  6. TomJGX

    TomJGX I HATE BGA!

    Reputations:
    1,456
    Messages:
    8,707
    Likes Received:
    3,315
    Trophy Points:
    431
    I know someone has used a Dell vBIOS 7970M for this mod.. if you want mine, I'm happy to sell.. PM me..

    TomJGX, Jan 2, 2015
    #6
  7. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,186
    Likes Received:
    17,895
    Trophy Points:
    931
    For the clevo it has to be the older version with extra capacitors on which i believe is the 2.0 PCB where as the newer 1.1 (IIRC) does not work.

    Meaker@Sager, Jan 2, 2015
    #7
  8. mrasstits

    mrasstits Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    any chance someone could shed some light on the models we can use?? I have been looking on ebay and there are a few. 09XVK3, 747M2.. I am unsure which will be best as the descriptions are pretty vague as to exactly which card these are.

    mrasstits, Jan 4, 2015
    #8
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,186
    Likes Received:
    17,895
    Trophy Points:
    931
    For the clevo cards look for ones with the additional hand soldered capacitors between the inductors, those are the first batch that should work.

    Meaker@Sager, Jan 4, 2015
    #9
  10. triturbo

    triturbo Long live 16:10 and MXM-B

    Reputations:
    1,577
    Messages:
    3,845
    Likes Received:
    1,238
    Trophy Points:
    231
    I have v1.1 and it has those bigger caps soldered. Anyone knows if it would be compatible or not. Additional info - only v1.2 works on the HM.

    triturbo, May 4, 2015
    #10
    cdoublejj likes this.
  11. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,186
    Likes Received:
    17,895
    Trophy Points:
    931
    Can you post pictures? That would be interesting.

    Meaker@Sager, May 4, 2015
    #11
    cdoublejj likes this.
  12. triturbo

    triturbo Long live 16:10 and MXM-B

    Reputations:
    1,577
    Messages:
    3,845
    Likes Received:
    1,238
    Trophy Points:
    231
    Here you are

    IMG_1119.JPG IMG_1122.JPG IMG_1124.JPG IMG_1126.JPG IMG_1127.JPG

    triturbo, May 5, 2015
    #12
    Meaker@Sager and cdoublejj like this.
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,186
    Likes Received:
    17,895
    Trophy Points:
    931
    Seems like a rare breed so it's hard to say if it would or not.

    Meaker@Sager, May 5, 2015
    #13
    cdoublejj and triturbo like this.
  14. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    hhhhmmm interesting. Triturbo always has the rare stuff.

    cdoublejj, May 6, 2015
    #14
    triturbo likes this.
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,186
    Likes Received:
    17,895
    Trophy Points:
    931
    I just create the rare stuff for myself (like a fully populated 980M MXM power card).

    Meaker@Sager, May 9, 2015
    #15
  16. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66

    [​IMG]

    cdoublejj, May 10, 2015
    #16
    TomJGX likes this.
  17. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,186
    Likes Received:
    17,895
    Trophy Points:
    931
    [​IMG]

    ;)

    Meaker@Sager, May 11, 2015
    #17
    cdoublejj, TomJGX and triturbo like this.
  18. triturbo

    triturbo Long live 16:10 and MXM-B

    Reputations:
    1,577
    Messages:
    3,845
    Likes Received:
    1,238
    Trophy Points:
    231
    Gotta love custom stuff :D Always nice to see something tinkered with :vbthumbsup:

    triturbo, May 11, 2015
    #18
    cdoublejj likes this.
  19. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66

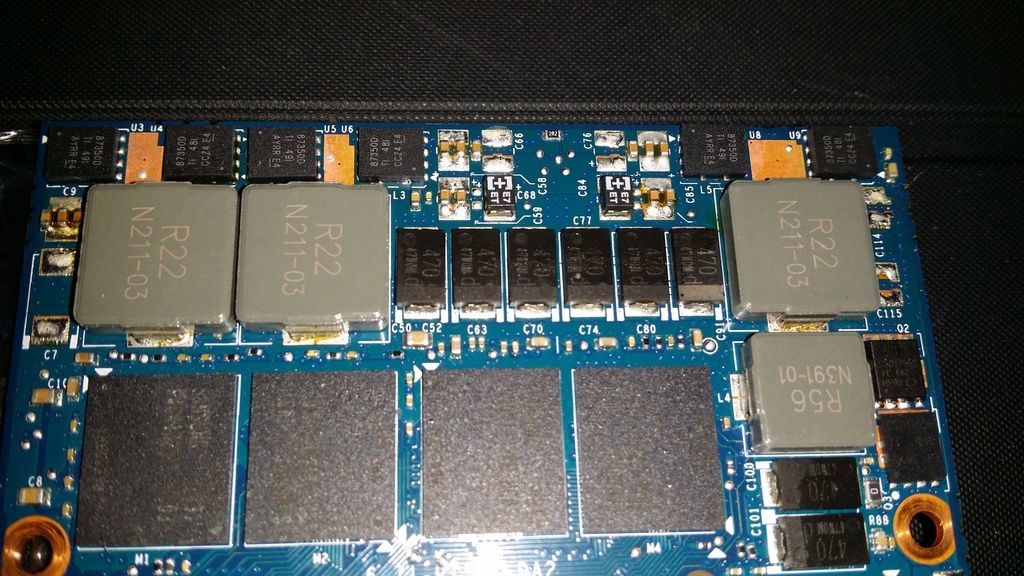

    did you add more capacitors? the solder job is good i can't tell what was added.

    cdoublejj, May 12, 2015
    #19
  20. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,186
    Likes Received:
    17,895
    Trophy Points:
    931
    I had the missing top 3 MOSFET pads populated, that missing capacitor on the left could also be added to help the extra interference placed on the memory bus. I have moved on now but someone else could give it a shot :)

    Meaker@Sager, May 13, 2015
    #20
