    G750JH Potential CPU Thermal Throttling?

    Discussion in 'ASUS Gaming Notebook Forum' started by FIGHTYARD, Aug 28, 2015.

  1. FIGHTYARD

    FIGHTYARD Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    2
    Trophy Points:
    6
    Hey guys,

    I suspect that my G750JH may be throttling itself.

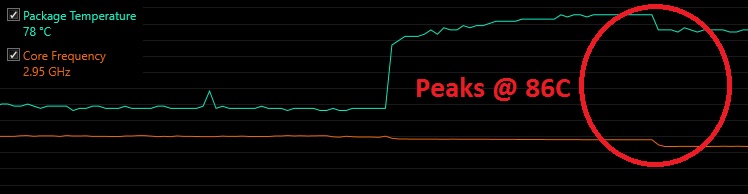

    Attached is a graph that marks out the area of concern.
    (Core i7-4700HQ)
    [​IMG]
    The clocks seem to drop when the CPU reaches 86C.
    I'm using Prime95 to stress the CPU.

    Is there any way to disable the throttling, or to increase the temperature where the CPU would throttle itself?
    Do you predict a possible repaste in my future?
    Any other tips or advice?

    Thanks!

    EDIT: I activated the "Power Throttling" graph and it looks like it's power throttling like crazy. I increased the Turbo Boost power max, and the power throttling persists. Is this normal?


    Attached Files:

    Last edited: Aug 28, 2015
    FIGHTYARD, Aug 28, 2015
    #1
  2. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,431
    Messages:
    58,186
    Likes Received:
    17,895
    Trophy Points:
    931
    Enable the TDP graph, you will see it boot beyond 47W and then return to 47W after a period of time. This is how intel have designed the chip to act.

    Meaker@Sager, Sep 2, 2015
    #2
