    Tearing down a G74SX

    Discussion in 'ASUS Gaming Notebook Forum' started by Chastity, Aug 11, 2011.

  1. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251

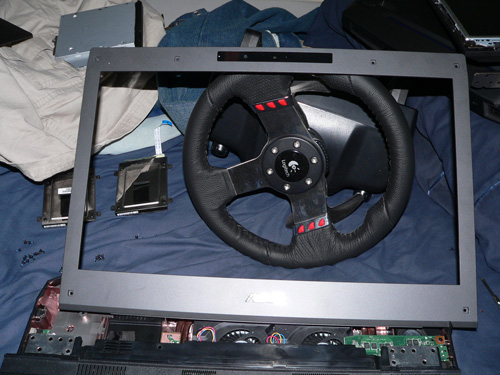

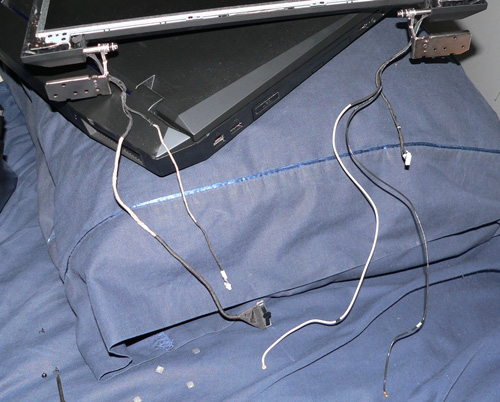

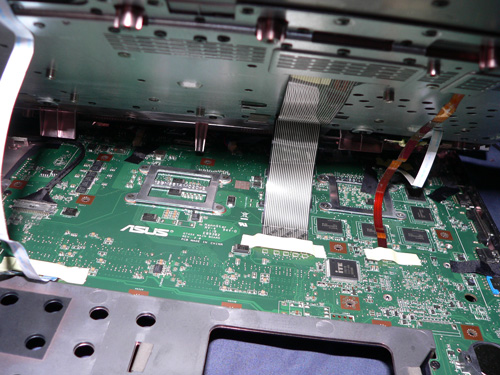

    I have to apply a fix to a G74SX (the fix that caused the 3DE to be delayed) to the unit I have, so I am in the process of tearing it down, and run a new LVCD cable. :p

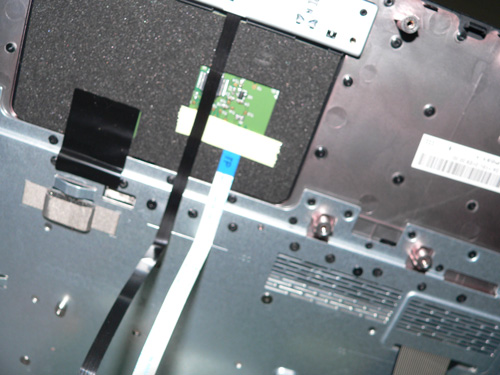

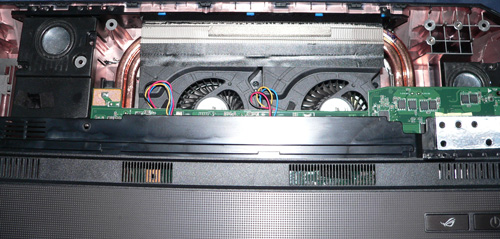

    I thought you might like to see some pics. :) Please note the much more professional installation of the trackpad. :D Oh, and the speakers are 1" drivers, so my bad earlier.

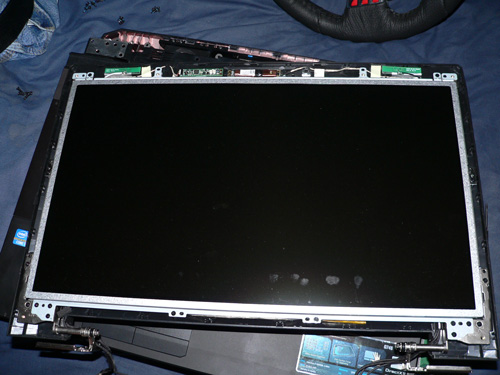

    Now I need to finish tearing down the lcd panel....

    If you have any questions, feel free to pipe up.


    Attached Files:

    Chastity, Aug 11, 2011
    #1
  2. climo

    climo Notebook Guru

    Reputations:
    10
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    Very nice, thanks for the pics!! :D Sure am glad Asus gave you a G74 for evaluation, we will learn so much from you!!
    Seeing you are now a technician...did you land the job at Asus? :)

    climo, Aug 11, 2011
    #2
  3. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251
    Yep... in Customer Care as a "Specialist" :D I'll be working out of Fremont HQ, and I'll start in Mid September. Frak! No display. Gotta tear down the panel again and check the LVCD connection. Ugh, 3:17 AM, maybe tomorrow. And I have 2 extra screws....

    Chastity, Aug 11, 2011
    #3
  4. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251
    Keyboard removal looks like fun. You need to disconnect the entire top panel, and then flip it over to unscrew it. At least it doesn't need the dreaded 2-way tape.

    Chastity, Aug 11, 2011
    #4
  5. climo

    climo Notebook Guru

    Reputations:
    10
    Messages:
    54
    Likes Received:
    0
    Trophy Points:
    15
    CONGRATULATIONS!! :D :D
    I hope the new gig works out like ya!! This requires a move to the west coast too? Wow....2 for one shot!! Congrats again on the CCS position!!

    oops....left over screws.... ;)

    climo, Aug 11, 2011
    #5
  6. jmhdj

    jmhdj Notebook Evangelist

    Reputations:
    132
    Messages:
    420
    Likes Received:
    10
    Trophy Points:
    31
    Hello and congrats. Can you post screen modell as you are at it Chastity?

    jmhdj, Aug 11, 2011
    #6
  7. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251
    Lg Lp173wf2 (tp)(b1)

    Chastity, Aug 11, 2011
    #7
  8. captaintoad1

    captaintoad1 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    congrats on the job

    captaintoad1, Aug 11, 2011
    #8
  9. DH48

    DH48 Notebook Evangelist

    Reputations:
    342
    Messages:
    610
    Likes Received:
    19
    Trophy Points:
    31
    Nice job on taking the G74 appart. Any pictures of the cooling or is that still to come?

    Would like to see if of asus added a extra copper pipe to the heatsink.

    Compared to the G73 is it easy or hard to take appart ?

    DH48, Aug 12, 2011
    #9
  10. nadcicle

    nadcicle Notebook Guru

    Reputations:
    15
    Messages:
    69
    Likes Received:
    3
    Trophy Points:
    16
    Umm... those aren't extra screws *throws them and denies the whole thing*

    Never admit to extra parts when reassembly is complete ;P lol

    nadcicle, Aug 12, 2011
    #10
  11. Dual_Everything

    Dual_Everything Notebook Guru

    Reputations:
    0
    Messages:
    67
    Likes Received:
    0
    Trophy Points:
    15
    I'll bet the 2 extra screws were the ones under the hard drives. Because this has happened to me before.

    And grats on your new job.

    Dual_Everything, Aug 12, 2011
    #11
  12. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251
    thanks everyone on the job thingy!

    I figured out where the 2 screws went. One screw for the hdd caddy uses one of the longer ones. So 2x short screws replaced 2 long ones on the lcd armatures.

    I need to tear it down AGAIN because the 120Hz output still isn't correct. :mad: I hope they sent me the correct cable replacement, and not one of the old ones.

    Chastity, Aug 13, 2011
    #12
  13. Userdude

    Userdude Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    Any chance for a Utube video ?...

    Userdude, Aug 13, 2011
    #13
  14. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251
    I'm in the middle of prepping to move to California from NY, so I wouldn't expect a vid anytime soon.. :) However, I could do a pictorial with written instructions, and lots of Arrows.

    Chastity, Aug 13, 2011
    #14
  15. Userdude

    Userdude Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    Sorry...
    I did not want to impose, just thought it might be an interesting idea.

    But good pics ,showing the innards, and how to avoid breaking something, would definitely make a good "stiky'

    Userdude, Aug 16, 2011
    #15
  16. Dual_Everything

    Dual_Everything Notebook Guru

    Reputations:
    0
    Messages:
    67
    Likes Received:
    0
    Trophy Points:
    15
    So this is a 3d panel? Could I install this on my g73sw to make it 3d?

    Dual_Everything, Aug 17, 2011
    #16
  17. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251
    Sure, if you also get the NVIDIA shutter glasses and emitter for USB.

    Chastity, Aug 17, 2011
    #17
  18. Dual_Everything

    Dual_Everything Notebook Guru

    Reputations:
    0
    Messages:
    67
    Likes Received:
    0
    Trophy Points:
    15
    Will the existing monitor cable in the g73sw work or will I have to buy a new cable?

    Dual_Everything, Aug 17, 2011
    #18
  19. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251
    You'll also need a 3D LVCD cable, thx for pointing that out

    Chastity, Aug 17, 2011
    #19
  20. jmhdj

    jmhdj Notebook Evangelist

    Reputations:
    132
    Messages:
    420
    Likes Received:
    10
    Trophy Points:
    31
    Chastity can you confirm that screen panel in g74sx is using standard 40 pin connector on back side. Or is it new 50 pin connector? I have made research and all points that all 17.3 inch 120hz capable panels use new 50 pin connector that is not compatible for older models like g73 series. It would be of great help if you could shedd some light on this matter :)

    jmhdj, Aug 20, 2011
    #20
  21. mrp4rk

    mrp4rk Notebook Enthusiast

    Reputations:
    5
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    5
    Hey chastity, i'm looking to replace the screen on my g74 and was wondering if you could walk me through the process. I've studied the G73 tutorial and was thinking it was similar, but i'd like to make sure. Thanks

    mrp4rk, Aug 20, 2011
    #21
  22. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251
    The upcoming G74SX-3DE will have 50 pin connectors.

    Chastity, Aug 21, 2011
    #22
  23. jmhdj

    jmhdj Notebook Evangelist

    Reputations:
    132
    Messages:
    420
    Likes Received:
    10
    Trophy Points:
    31
    Ok. But does it mean that present modells have standard 40 pins full hd panel at 120hz? If yes can you tell what is part nr on that screen panel please.

    jmhdj, Aug 22, 2011
    #23
  24. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251
    Guess why the laptop was delayed a month for release? :D

    Chastity, Aug 22, 2011
    #24
  25. jmhdj

    jmhdj Notebook Evangelist

    Reputations:
    132
    Messages:
    420
    Likes Received:
    10
    Trophy Points:
    31
    Ok. But I thought that 3D version of g74 is allready out in sale. Can you tell us then what is difference between old and new screen cable connector. Is it 40vs50 pin or something else?

    jmhdj, Aug 23, 2011
    #25
  26. Chastity

    Chastity Company Representative

    Reputations:
    1,295
    Messages:
    6,545
    Likes Received:
    336
    Trophy Points:
    251
    No I cannot, as I am not at HQ yet. :)

    Chastity, Aug 23, 2011
    #26
  27. jmhdj

    jmhdj Notebook Evangelist

    Reputations:
    132
    Messages:
    420
    Likes Received:
    10
    Trophy Points:
    31
    Shame it is :(

    jmhdj, Aug 23, 2011
    #27
