    This power adapter will work wit my G51J right?

    Discussion in 'ASUS Gaming Notebook Forum' started by HopelesslyFaithful, May 2, 2012.

  1. HopelesslyFaithful

    HopelesslyFaithful Notebook Virtuoso

    Reputations:
    1,552
    Messages:
    3,271
    Likes Received:
    164
    Trophy Points:
    0
    HopelesslyFaithful, May 2, 2012
    #1
  2. tijo

    tijo Sacred Blame

    Reputations:
    7,588
    Messages:
    10,023
    Likes Received:
    1,077
    Trophy Points:
    581
    I don't like the fact that this adapter has no ground but as long as the tip is the right one, it should work. I'd still try to find an adapter with a plug that also has a ground though.

    tijo, May 2, 2012
    #2
  3. HopelesslyFaithful

    HopelesslyFaithful Notebook Virtuoso

    Reputations:
    1,552
    Messages:
    3,271
    Likes Received:
    164
    Trophy Points:
    0
    ah thx...totally forgot to look for that...if i bought that I would have been pissed :)

    HopelesslyFaithful, May 2, 2012
    #3
  4. HopelesslyFaithful

    HopelesslyFaithful Notebook Virtuoso

    Reputations:
    1,552
    Messages:
    3,271
    Likes Received:
    164
    Trophy Points:
    0
    ok did a err ebay search for g51j 150w adapter and got nothing but 2 prong. Doesn't the g73 adapter work in the g51? Anyone got one to sell?

    HopelesslyFaithful, May 2, 2012
    #4
  5. tijo

    tijo Sacred Blame

    Reputations:
    7,588
    Messages:
    10,023
    Likes Received:
    1,077
    Trophy Points:
    581
    Yes, the G73 adapter will work as long as the laptop uses a L1 tip adapter. I'm pretty sure a targus APA05US would also work.

    tijo, May 2, 2012
    #5
  6. HopelesslyFaithful

    HopelesslyFaithful Notebook Virtuoso

    Reputations:
    1,552
    Messages:
    3,271
    Likes Received:
    164
    Trophy Points:
    0
    how do i tell if its L1 tip?

    HopelesslyFaithful, May 2, 2012
    #6
  7. tijo

    tijo Sacred Blame

    Reputations:
    7,588
    Messages:
    10,023
    Likes Received:
    1,077
    Trophy Points:
    581

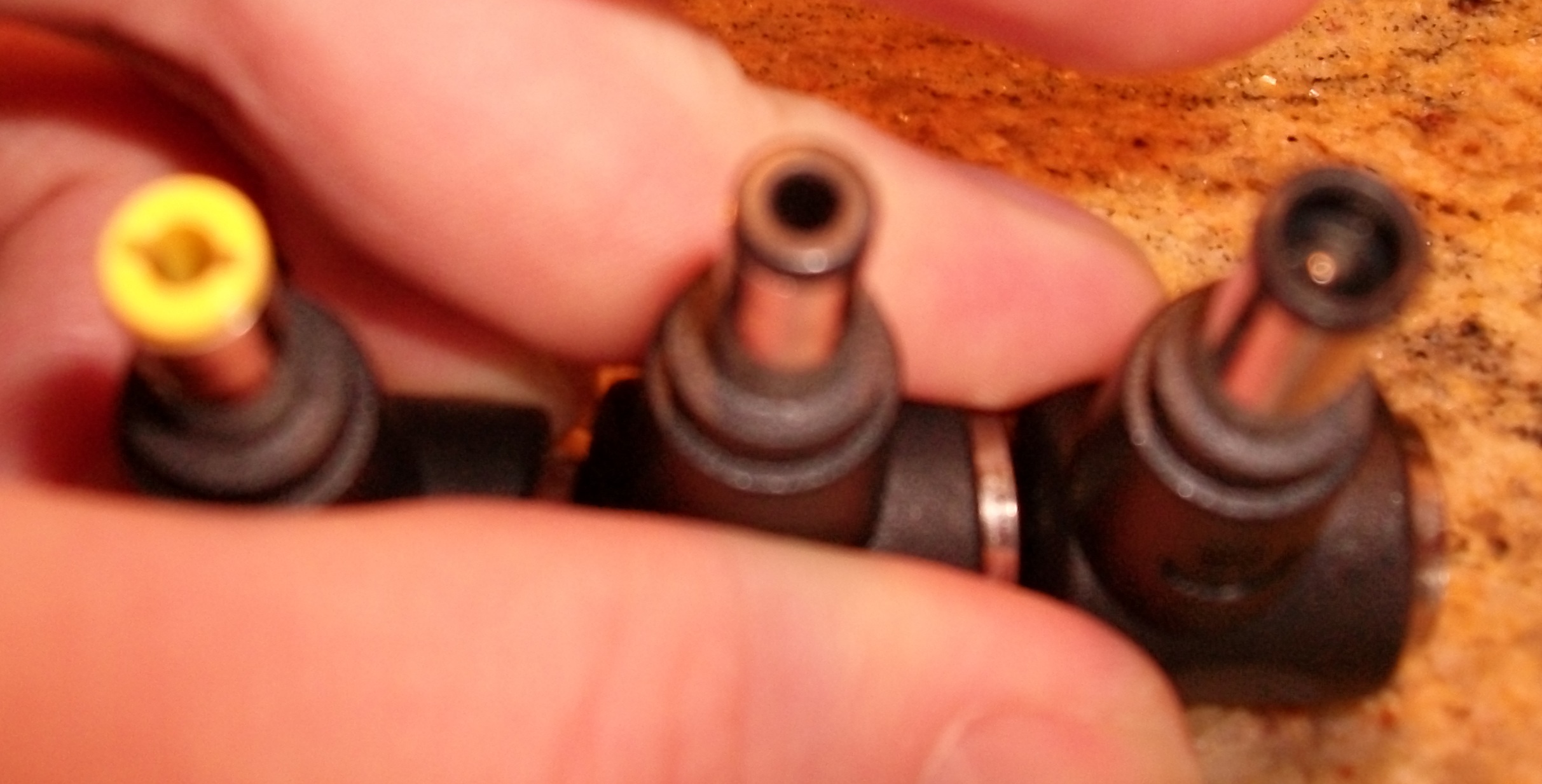

    L1 and L2 both have the pin on the laptop's power jack, L3 has the pin on the adapter's jack. L1 is completely round, while L2 has two small notches in the middle. L1 and L2 are often interchangeable.


    You cna see L2, L1, L3 from left to right in that picture.

    tijo, May 2, 2012
    #7
  8. HopelesslyFaithful

    HopelesslyFaithful Notebook Virtuoso

    Reputations:
    1,552
    Messages:
    3,271
    Likes Received:
    164
    Trophy Points:
    0
    I have L2 so the L1 should work right?

    HopelesslyFaithful, May 3, 2012
    #8
  9. HopelesslyFaithful

    HopelesslyFaithful Notebook Virtuoso

    Reputations:
    1,552
    Messages:
    3,271
    Likes Received:
    164
    Trophy Points:
    0
    tijo...that is going to work right? If so what is the exact name of the adapter i should do for a search? I just touched my AC Adapter and the heatsinks on it almost burned me....lol if i didn't ahve those heatsinks on it...it would not run lol. I would be overloading it :) I need the new adapter before i get the 920xm and start overvolting.

    HopelesslyFaithful, May 3, 2012
    #9
  10. tijo

    tijo Sacred Blame

    Reputations:
    7,588
    Messages:
    10,023
    Likes Received:
    1,077
    Trophy Points:
    581
    If you mean the name of the Asus adapter, i have absolutely no idea. The 180W is the Targus APA05US. I have been using it with my JH without any problems.

    You can get the adapter for a very high price from Asus: 150 Watt AC Adapter. You could get the APA05US from amazon though: Amazon.com: Lite-On AC Power Adapter PA-1181-08, APA05US. 19V/9.5A, 180W for Acer Aspire 1360, 1510, 1520, 1660/1670 / Acer TravelMate 2000, 2200, 2500, 2600, 2700, 3000 / Compaq Presario R3000 series / Fujitsu: N3010, N5010, N6000, N6010 / HP: ZD700. Strange, as it used to go for ~$40 before. Anyways, the APA05US comes with the 3 tips in the pic i posted earlier so it will fit any laptop. Just make sure that your G51 uses a 19V +/- 0.5V adapter.

    tijo, May 4, 2012
    #10
  11. HopelesslyFaithful

    HopelesslyFaithful Notebook Virtuoso

    Reputations:
    1,552
    Messages:
    3,271
    Likes Received:
    164
    Trophy Points:
    0
    HopelesslyFaithful, May 4, 2012
    #11
  12. tijo

    tijo Sacred Blame

    Reputations:
    7,588
    Messages:
    10,023
    Likes Received:
    1,077
    Trophy Points:
    581
    That adapter should work, i'm not familiar with the brand, so i can't comment on reliability though.

    tijo, May 5, 2012
    #12
  13. HopelesslyFaithful

    HopelesslyFaithful Notebook Virtuoso

    Reputations:
    1,552
    Messages:
    3,271
    Likes Received:
    164
    Trophy Points:
    0
    yep that PSU was crap...not good enough for the 920xm lol with overclocks....returning it because its bricking lol. I'll have to drop 80 o a stupid psu :/


    ah come on its 85 now an 94 bucks with shipping....i might as well buy a new laptop.....sigh

    EDIT: tijo i found it on ebay for like 25 bucks used but no adapters....do you know where i can find them?


    EDIT: YESSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSSS!!!!!!! I found it from that same seller with all 3 adapters for 36 bucks with shipping!!!!

    http://www.ebay.com/itm/ws/eBayISAPI.dll?ViewItem&item=360396335826&refid=store#ht_4774wt_1392

    best 10 mins ever spent shopping around!

    HopelesslyFaithful, May 24, 2012
    #13
