This guide is meant to show you how to upgrade your C90S GPU to a 9600M GT 512MB DDR3. I take absolutely NO responsibility for any damage caused by following this guide AT ALL. It is your decision to choose to follow this guide and attempt this upgrade! I am providing this guide as a helpful tool to those people who wish to finally upgrade to a decent GPU in their C90S. If you do not agree with this then DO NOT follow this guide or attempt this!

*For those of you who followed my original thread and would like to see how I got the card running at full speed and the results of my 3Dmark06 test skip to the "Bios Modification" section.*

Introduction:

Everyone who has bought a C90S has been waiting, desperately I might add, for a GPU upgrade. Well, this guide will show you how to upgrade your C90S from the extremely hot and poorly performing 8600m GT (DDR2 or DDR3 version) to the cooler running and better performing 9600m GT 512mb DDR3 card.

This upgrade can be done in two different ways, one relatively quick way that will yield less benefits, and one time consuming harder way that will yield some very impressive results. I will outline both of them, however I am not going to get that in depth with the "easy" way because I feel it is not a permanent solution and shouldn't be used for a prolonged time.

Okay, so before we get going too far there's a few things you are going to need to do this the right way. I'll break it down into the things you NEED as well as the things that would make the job much easier.

Tools/Supplies needed:

Screwdriver
Sandpaper
Saw with a "metal" blade
Drill and drill bits
A couple of very small computer screws
Thermal paste
Thermal pads (size/thickness depends on method used)
Patience and a steady hand

Things that make the job much easier:

Air compressor
Cut off wheel
Dremel or other rotary tool
Clamps

Gather up/borrow all the tools, order a pizza, grab some soda, and get ready for about 4 hours of work.

Step 1 - Buy what you need:

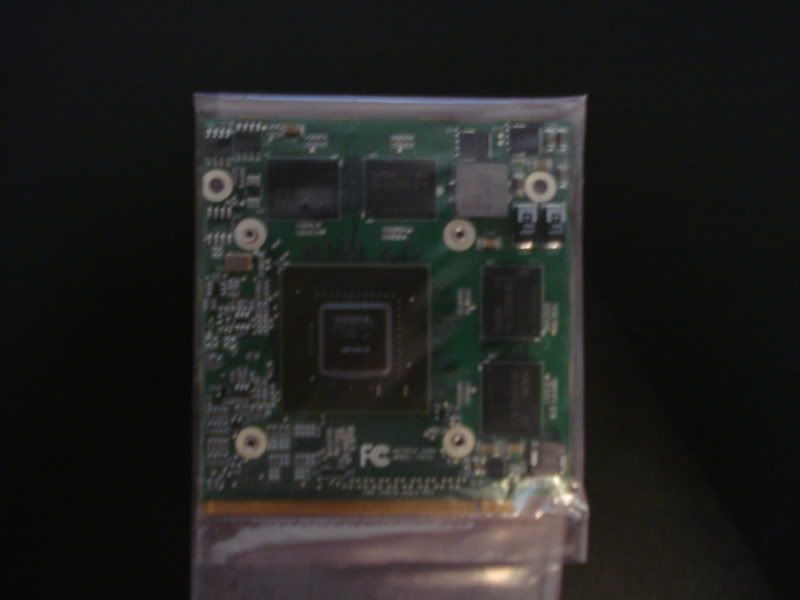

Well, first you'll need the card, it can be bought from a company named "Zepto". Here's a link: http://www.dennedusa.com/ or just search for "Zepto USA". These are the people I bought my Samsung chipped card from. They also have 9650M GT cards available that should also work. I suggest you buy some decent thermal paste and also thermal pads. You will also NEED a 120W AC adapter! Here's a picture of my card when I received it:





Step 2 - Figuring out what modifications need to be done:

As you will quickly notice upon inspection of your new card, the "heatsink mounting plate" is completely different from the one Asus uses. It uses smaller screws and it sits higher up then the Asus plate.

This will in turn make the the "heat spreader" from the 8600m GT sit higher as well and not make contact with the GPU core or memory.

Further more, the plates CAN NOT be swapped because Asus' plate is of a much thicker design and will not fit the 9600m card. So basically, we're stuck with working around this mounting plate, which isn't too bad of a thing because it seems to be the standard size plate used for most other MXM-II cards as well.

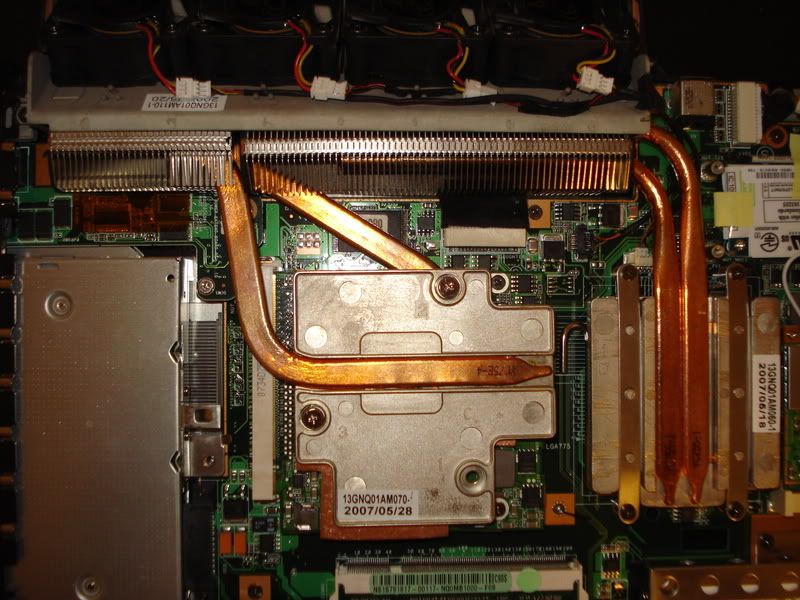

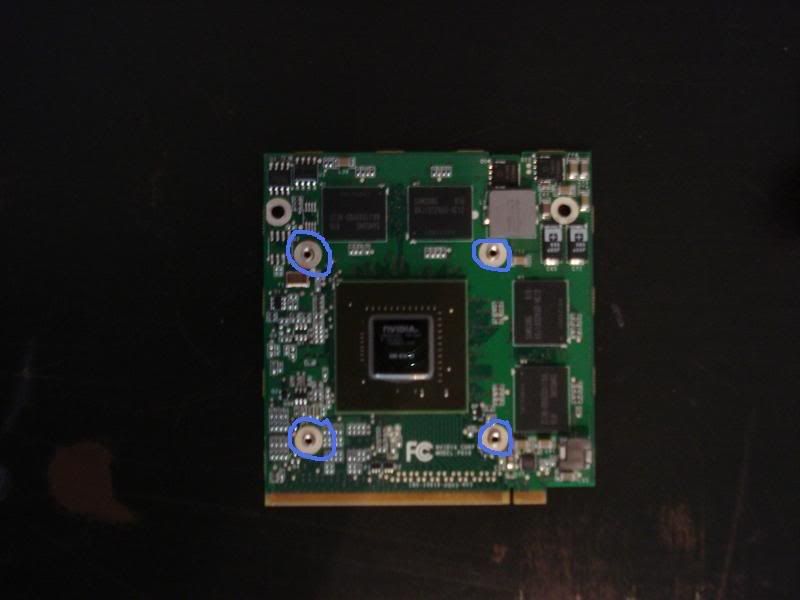

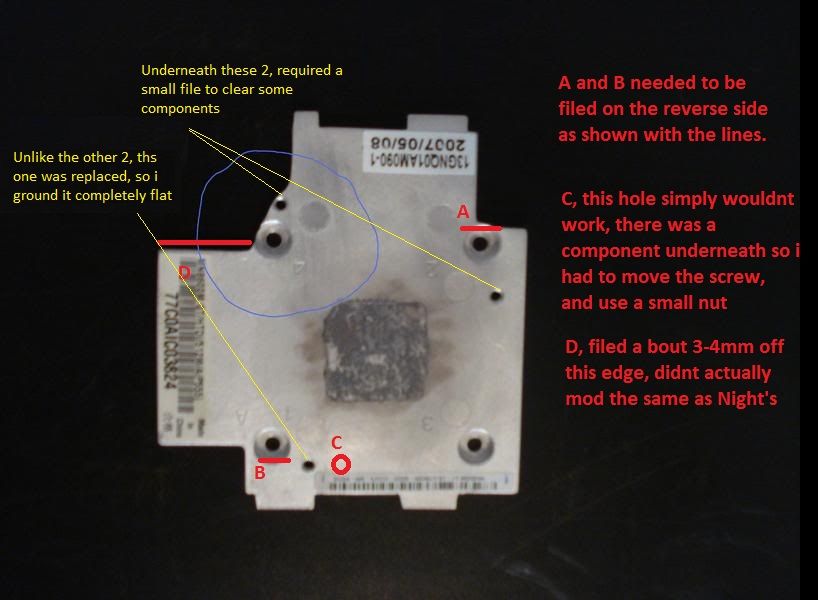

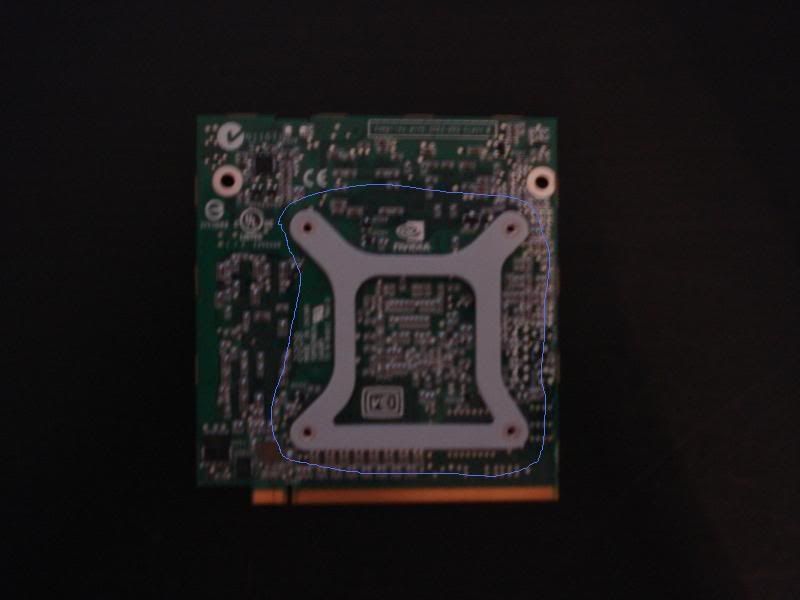

This is the plate I'm referring to, and the area that is different than the Asus plate:





There are two ways to overcome this problem both with there own set of benefits and drawbacks listed below.

Method 1: The "easy" way. NOT recommended:

Benefits:

1. The modifications necessary are easy, and should be able to be completed in under an hour.

Drawbacks:

1. Due to the memory chips being slightly closer to the core, and the heat spreader not being designed for the 9600m, only half of each memory chip will be cooled.

2. Even modified, the mounting screws for the VGA heatsink will sit dangerously close to the electrical components/circuits on the 9600m.

3. You are still using the god awful aluminum 8600m heatspread.

Now that the positives and negatives are out of the way, let's move on. As I previously stated, I'm not going to get very in depth with this method because I really don't recommend it and consider it a potential danger for short circuits if done incorrectly. However, if you are extremely impatient and don't mind risking a brand new graphics card, or you absolutely can't find a way to do the other method, here's what needs to be done..

Basically, all you need to do is grind down one corner of the heatspreader so that it clears one of the circuits on the 9600m. I didn't bother to take a picture of what the heatspreader looks like BEFORE the modification because you'll be staring at your own. However, here's what the heatspreader should look like AFTER you are done grinding:

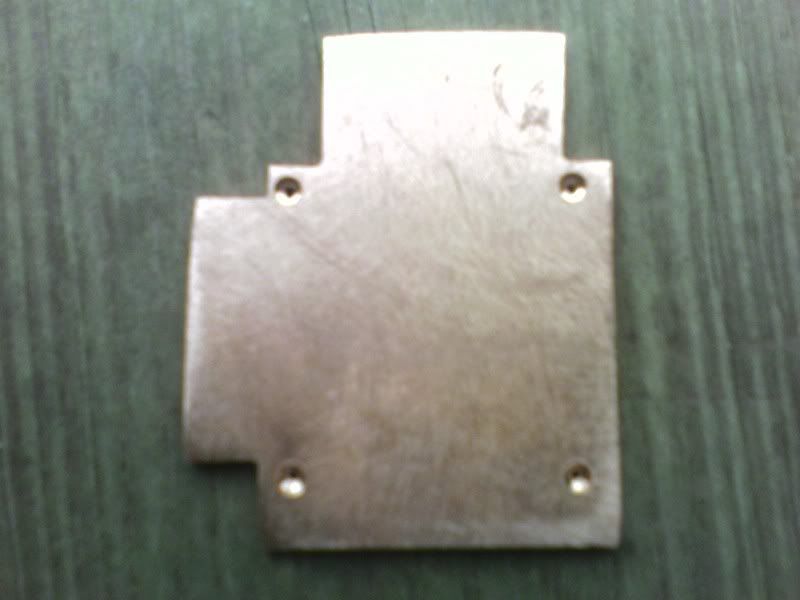

The spot highlighted shows the area we just ground down. Also, be sure to test fit the heatspreader on the 9600m multiple times and if it's making contact with ANY electrical components, remove it and grind that area down.

If everything is okay after you are done test fitting it then find some tiny screws (the stock ones will not even come close to working) and install the heatspreader onto the 9600m, while still checking for any contact with electrical components. By this point you should see what I was talking about when I said only half of each memory chip would be cooled. There isn't much you can do about this, just make sure you applied decent thermal pads before you install the heatspreader for the last time and be sure to monitor your temps.

Also, when you go to install the VGA heatsink onto the heatspreader be sure to only tighten the screws down about half way. If you tighten them down all the way they can make contact with some of the electrical components on the 9600m.

That's really all there is to this method, I never ran my system for longer than about 10 minutes with it like this so I couldn't tell you what the idle temps will be, however I'm sure they won't be that great. If you absolutely must use this method, I suggest you use it with a laptop cooler at the very least.

Method 2 - "The ultra cool, super shiny, pain in the butt method":

Benefits:

1. When you are done you will have an 1/8" thick all copper heatspreader!

2. Complete cooling solution that will be 100% plug and play with the C90S' VGA heatsink, except for one screw[/B]

3. The heatsink should be compatible with other "standard mounting plate" MXM-II cards.

4. If done correctly, you won't have to worry about short circuits or not being able to tighten screws completely.

5. Significant idle temperature drops.

6. It's shiny.

Drawbacks:

1. Time consuming.

2. Difficult to fabricate and actually make.

3. Lots of various tools needed to complete the job.

Okay, so we've gone over the benefits and drawbacks again and if you think you're up for this project here's a few pictures of what you will end up with if you do it correctly:







If you're still up for it, you'll need to start off by purchasing an 1/8" thick, 4" long, and 3" wide piece of copper. You can purchase a longer or wider piece of copper, just be sure its at least 4" long, 3" wide, and an 1/8" thick. Also, stick with an 1/8" for thickness. Any bigger and it WILL NOT fit, any smaller and you will probably have less cooling.

For reference I purchased an 8" long, 6" wide, 1/8" thick piece of copper on eBay for, if I remember correctly, about $30 shipped. This is what I worked with and it's what's pictured, but stay within the specifications given above and you should be fine.

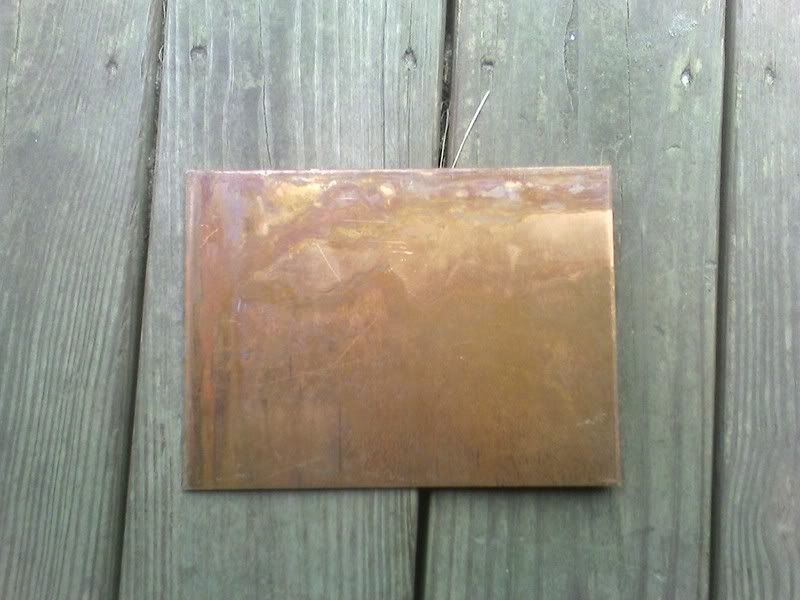

You're going to start off with this (or something similar):



You will first need to get some paper and build a "template" of what the heatsink needs to look like by tracing your 9600m and removing any areas that may come in contact with any of the 9600m's electrical components.

Since I'm such a nice guy and have already done this myself I'm going to save you about 45 minutes worth of work and let you print out the template I have already made and scanned. You can download the template image from here: http://www.geocities.com/[email protected]/Template.jpg Just be sure NOT to resize the image!

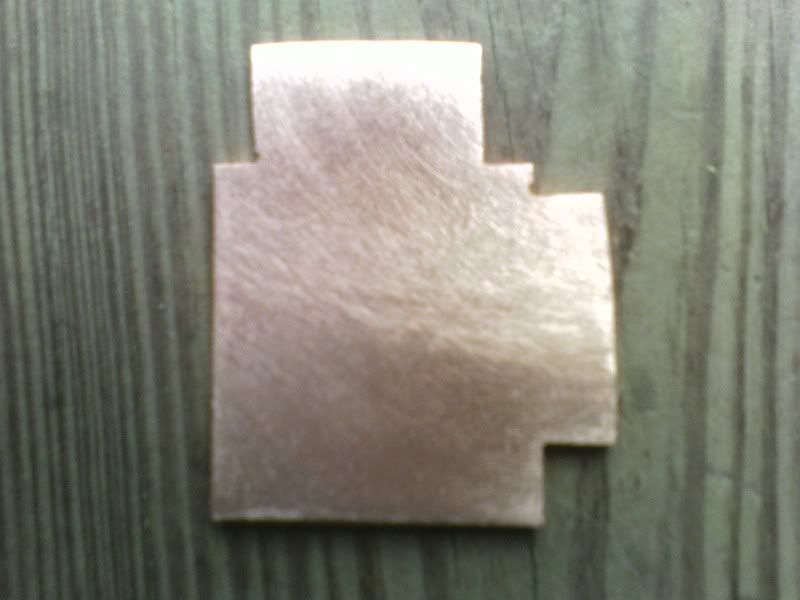

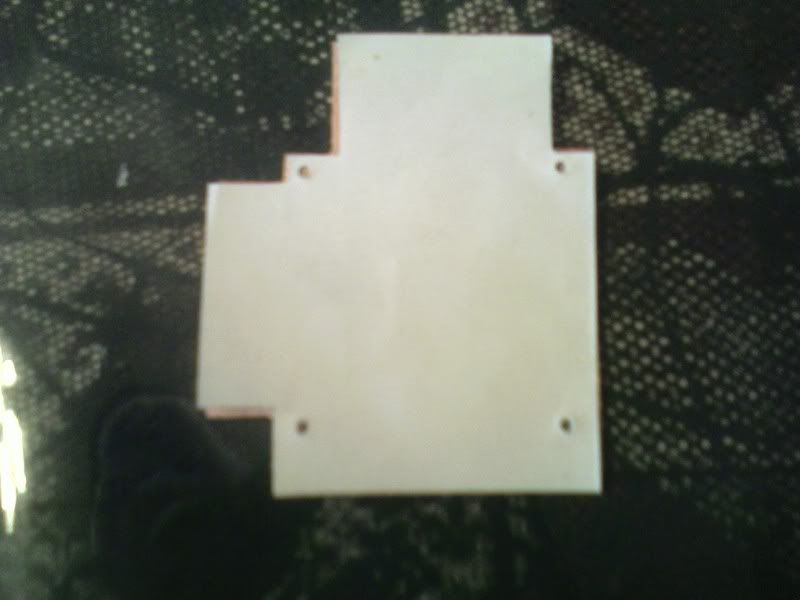

Now you should be left with a paper template that looks like this:

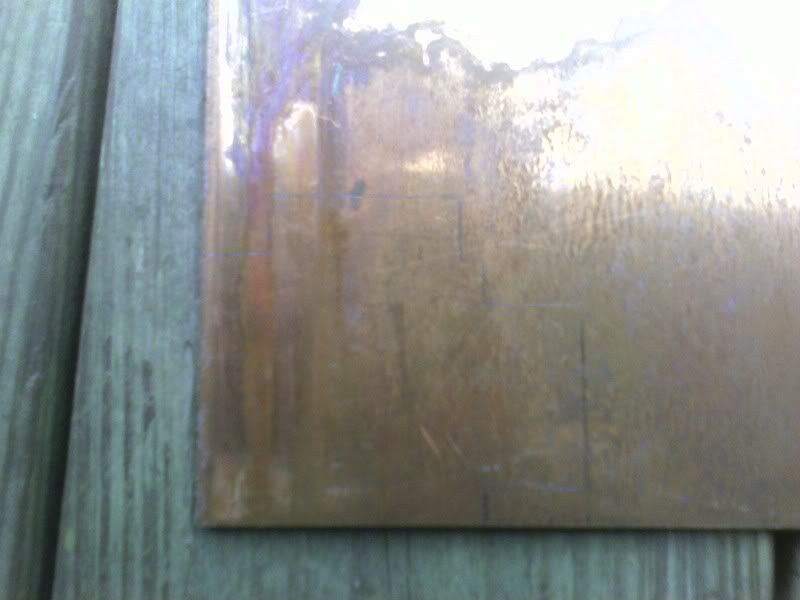

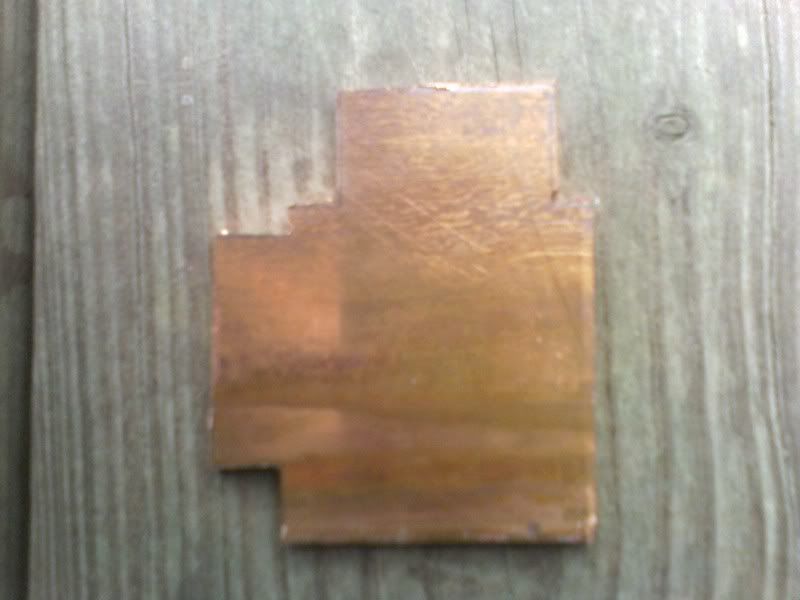

The next step is to trace the outline of the template onto the copper plate. I used a pencil for doing this and pressed down very hard to make an impression. When you get done your copper plate should look like this:



The picture isn't the best but in person the trace was more then visible. Now we have to cut the shape of our new heatspreader out from the piece of copper stock. I used a large clamp to hold the copper in place, a cut off wheel for the smaller areas that needed to be cut, and a saw with a metal cutting blade for the larger areas. You will need to rotate the copper multiple times and probably curse a half dozen times to get the job done.

When you get done cutting you should be left with a very jagged piece of copper that looks like this:



Next step is to sand down all the jagged edges and top and bottom sides of the heatspreader. I used an air compressed rotary tool with a few sanding bits to get the edges nice and smooth and an electric sander on the top and bottom sides. A dremel will work as well, and if all else fails, a piece of sand paper and some elbow grease. When you get done with this step your new heatspreader should look like this:



Now we will need to drill the necessary holes to mount the heatspreader to the 9600m. First you will need to place your paper template on top of your newly designed copper heatspreader and mark the areas that need to be drilled with a pencil like this:



This part is a little tricky, and I'll do my best to explain what needs to be done clearly. You will need to "double drill" the holes, and by that I mean you will need to drill HALFWAY through the copper with a drill bit two sizes bigger then the screws needed to secure the heatspreader to the 9600m's "mounting plate". The reason you need to do this is to give the heads of the screws an area to sit that will keep them flush with the top of the heatspreader. In other words, you are keeping the heads of the screws from protruding above the top of the heatspreader and causing the VGA heatsink not to make proper contact with it.

So, use a drill bit two sizes bigger than the screw ( bigger than the screw NOT the "head" of the screw) and drill HALFWAY through the heatspreader. Drill SLOWLY!! If you drill too fast and go straight through the heatspreader, you will have just wasted all this time and work!

When you get done drilling halfway through, you will then need to use a drill bit the same size as the screw and drill another hole completely through the heatspreader. This second hole is for actually connecting the heatspreader to the 9600m's "mounting plate". When you get done drilling your new heatspreader will almost be complete and should look like this:



Now you will need to install the heatspreader onto the 9600m, then install the 9600m into your C90S and screw it down. Now line the VGA heatsink up and you will notice right away that one screw cannot be used. This is fine however, because it's not needed and the heatsink stays secured without it.
With the VGA heatsink lined up and sitting how it would if it was screwed down, trace the two VGA screw mounting areas with a pencil onto your heatspreader.

Disassemble the heatspreader from the 9600m and drill the final two holes necessary. Be sure to use a drill bit the same size as the VGA mounting screws. Use the spare VGA mounting screw you have to make "threads" in your two newly drilled VGA mounting holes. This can be done by slowly turning the screw down into the hole. You might have to elongate the hole a little, but try not to.

After you get done threading the holes check and make sure there are no jagged edges or little pieces of copper left in the drill holes. Sand down the top and bottom sides one more time to remove any jagged copper on the top or bottom sides. Clean the entire heatspreader up and you will finally be done with the fabrication stage! Use "Lairdtech Thermal Thermagon Gap Pad Material T-flex 6200" ( http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&rd=1&item=380073829192&ssPageName=STRK:MEWA:IT&ih=025) thermal pads and cut them in half to fill the gap between the heatspreader and memory chips.

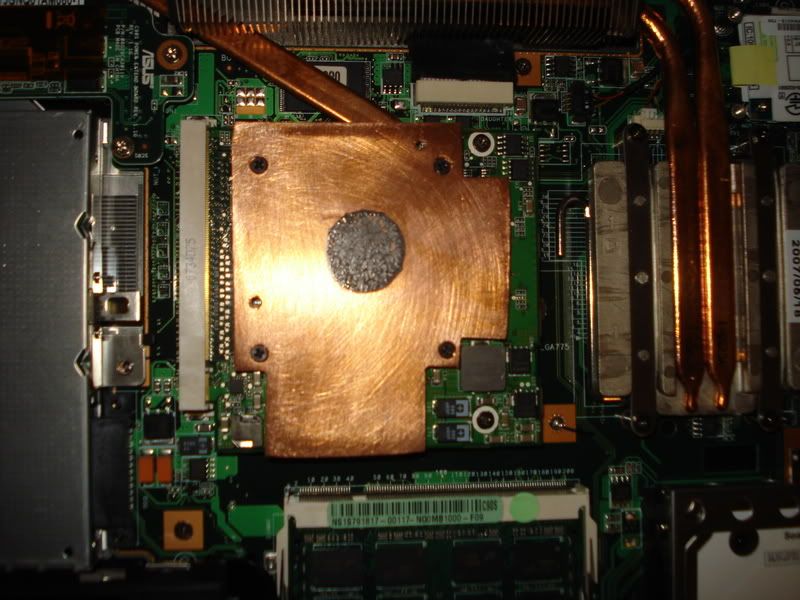

All that's left to do is install it onto the 9600m and put everything back together in your C90S. When you get done this is what you'll be left with:





If you've made it this far, pat yourself on the back, you just did a heck of a job!

Step 3 - Installing the drivers and testing everything:

This is the easy part lol, I used drivers from laptopvideo2go.com and they worked just fine. Here's a GPU-Z screen capture:



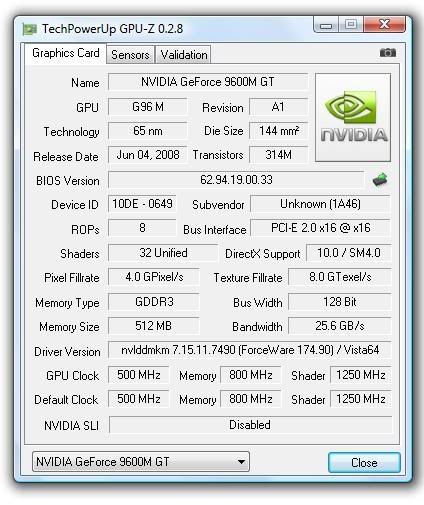

Step 4 - 9600M GT Bios Flash:

Those of you who followed my previous thread know that the 9600M GT will not operate at full speed right off the bat! It took me a total of 22 days and countless hours of research to finally figure out the necessary settings that had to be tweaked in the bios to make the card operate at full (and overclocked) speeds.

I have provided the necessary bios file to allow the 9600M GT 512MB DDR3 MXM-II card to boot at full speed on the C90S. HOWEVER, this bios file will ONLY work with the cards that I linked to in the beginning of this thread. The correct cards use "Samsung" memory chips that are placed horizontally across the card! DO NOT, I REPEAT, DO NOT USE THIS BIOS FILE WITH A DIFFERENT VERSION OF THE 9600M GT CARD!! If you do, you run a VERY high risk of bricking the card!

The only other 9600M GT cards I have seen use "quimodo" memory and have the memory chips placed vertically. If you have one of these cards send me your bios and I'll see if I can modify it to work with the C90S.

Download the the modified VGA bios file I have attached in this thread and use "nvflash" (if you don't know how to use this program Google it) to flash the modified bios file to your new 9600M GT! You will now be running at full speed!

Step 5 (optional) - Manually modify your 9600M GT's bios:

For those of you who would like to perform the modification yourselves or would just like to know what settings finally got this card running at full speed here's a quick walk through of how to manually modify the 9600M GT's bios.

Okay, so the first step is to acquire your unmodified original bios file from your 9600M GT. Use "nvflash" or GPU-Z to do this. When you've finished this, load the original bios file into Nibitor and it should look like this:

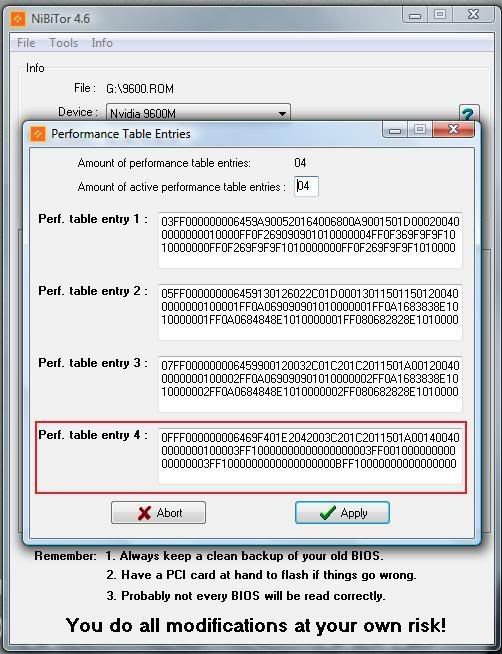

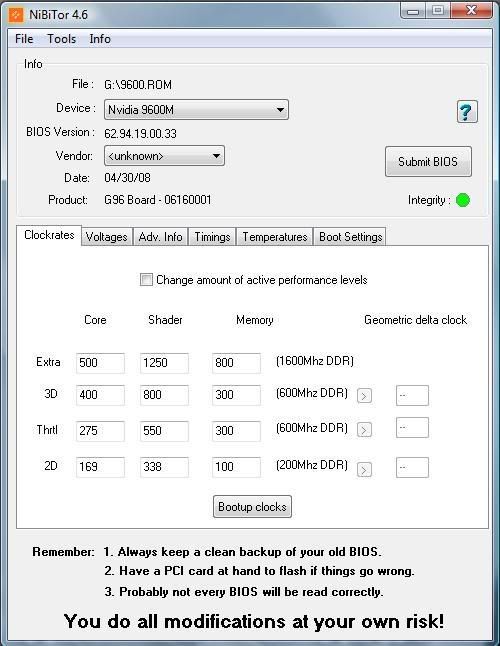

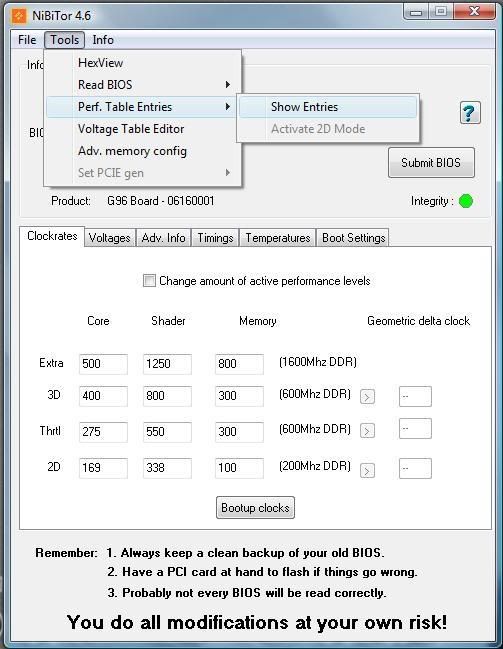

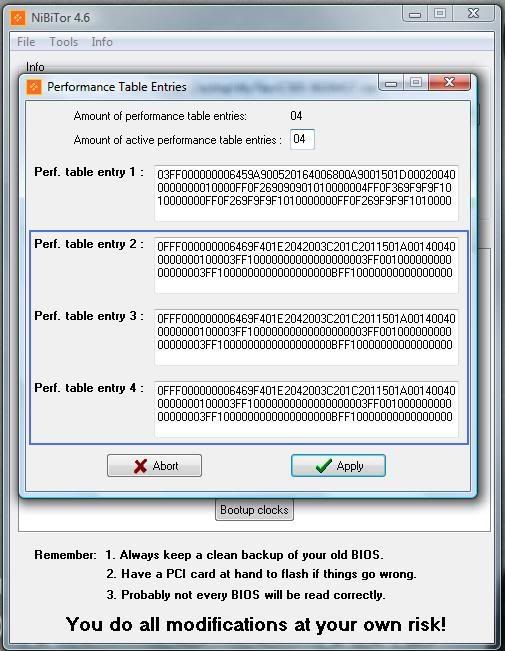

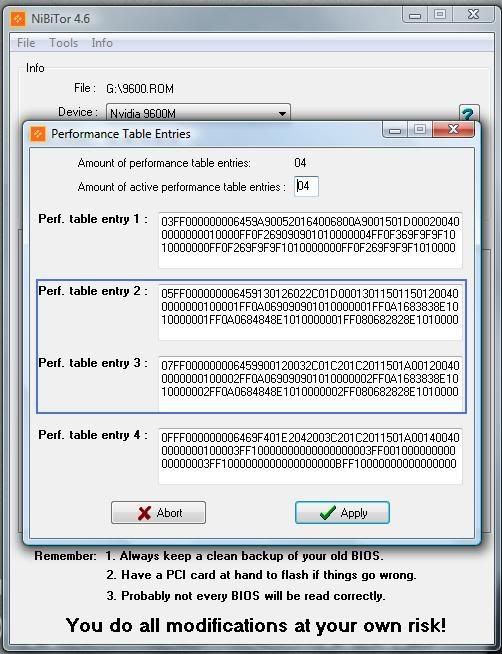

Now click on "Tools", "Perf. Table Entries", "Show Entries". Like this:



You will be presented with a screen showing a bunch of code in four separate windows labeled "Perf. entry table 1", "Perf. entry table 2", and so on. The trick to make the card operate at full speed is to rewrite the contents of "Perf. entry table 2" and "Perf. entry table 3" with the code listed in "Perf. entry table 4". So, in other words we are going to copy this entire bit of code:



And paste this code into these two tables:

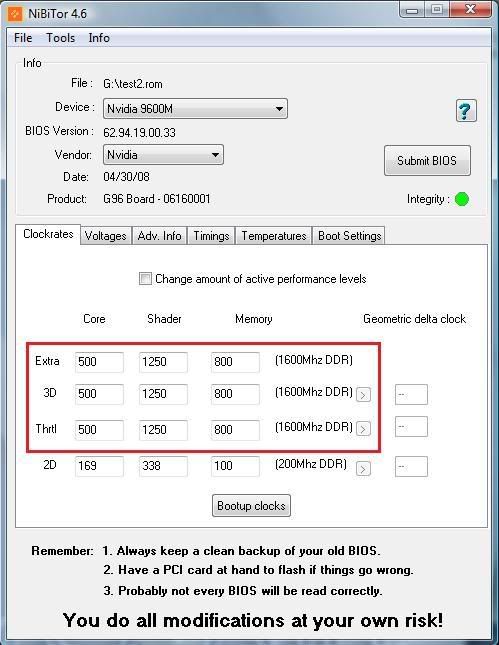

When you get done it should look like this:



You might be asking yourself why you need to do this and also why I have the same clocks for "extra", "3D, and "thrtl" modes. Well, to put it simply, the C90S for some reason or other can not "switch" into "3D" or "Extra" modes with this card. It will only work with the "thrtl" and "2D" clocks. This is why I always change all three of those clocks to whatever speed I want to run at when I'm gaming and leave "2D" mode set really low so powermizer will still downclock the card when I'm not gaming. I believe this is also the reason why software programs such as RivaTuner do not work with this card.

This isn't an issue for me because the card will run FULL power and FULL speed after you change the "Perf. Table Entries". Basically what you are doing is "tricking" the card into thinking that "thrtl mode" (the mode the C90S makes the card upclock to when you open a 3D application) is actually "extra mode". This doesn't cause any problems and since we are leaving "Perf. entry table 1" alone we can still use the "169/338/100" powermizer clocks when a 3D application isn't open.

The fact that you can't really use more then 2 modes (powermizer clocks and gaming clocks) might bother some people, but it isn't an issue for me. I have my power saving clocks and my gaming clocks which is really all I need. If anyone else figures out a way to make the other clocks work go ahead and post it but believe me, I have TRIED just about everything else, and really I'm not too concerned with the other modes being operational.

Well, that's all you need to do!

Step 5 - How to overclock this card with the C90S:

The only drawback present with using this card in the C90S is you will no longer be able to use any software programs to overclock it, at least I haven't found a way to make them work. This really isn't an issue to me because I have always just reflashed my card with the higher clocks I want to use.

You will need to change ALL of these clocks to the new speeds you would like to use:



Leave "2D" at 169/338/100 so the card will still downclock and save power/lower your temps when you are not running 3D applications. When you are done, save the file and then reflash your card with "nvflash". That's all you need to do to change the clocks.

The Results:

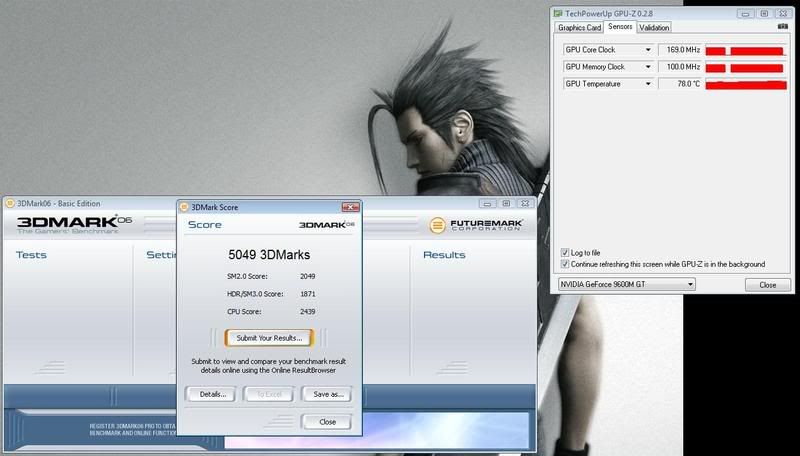

So, after all this hard work you must be wondering what the results are by now.. Well let's just say they are pretty awesome! At the stock clocks of 500/1250/800 I scored 5049 points and my max load temps were 80*.

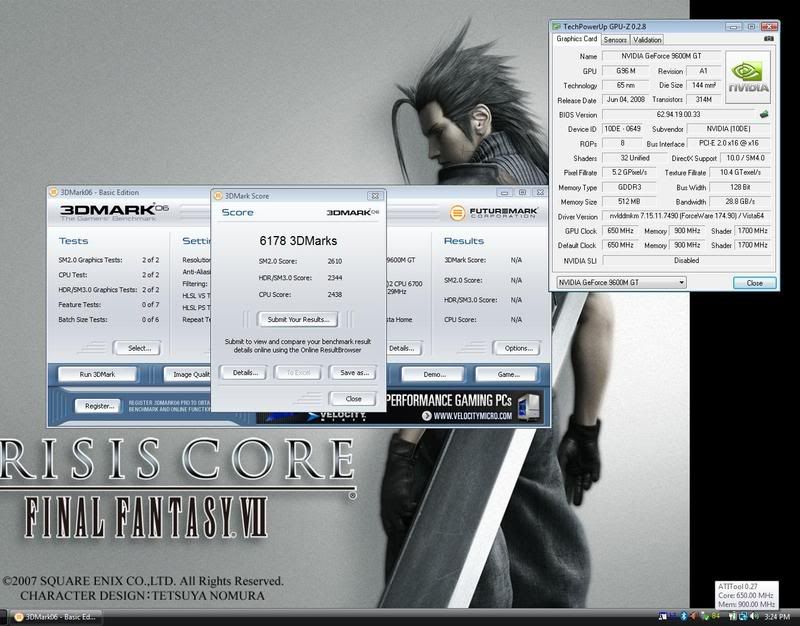

I then overclocked the card to 650/1700/900 and reached a score of 6178 points and my max load temps topped out at 86*.



These two tests were done using 174.90 drivers from laptopvideo2go.com. I haven't even tried to see just how high I can overclock this card yet because I'm already running stably at ridiculous speeds! I will continue to tweak the clocks and post new scores up!

Conclusion and final thoughts:

Well there you go, that's the guide! I am extremely happy with this card so far, now that I worked out the previous issue I was experiencing! I also hope that this puts to rest the question of if the C90S' GPU is upgradable! As you can see, it most certainly is, but to do it correctly will require a little bit of patience! Good luck guys and if anyone else uses this guide to upgrade there C90S/P please post your results here!

People who I'd like to thank:

I would like to take a moment and sincerely thank everyone who posted in my original "beta" thread and offered their help with the clock speed issues I was having! Without the support and knowledge of this community I highly doubt things like this could be done! Thanks a lot guys and I hope this guide helps some people out!

-NightWalker



can you overclock it more?



Absolutely, I haven't tried to find the limits of the card yet because I've only had it running full speed for a few hours. Right now I'm running at:

650/1700/950. I haven't ran a 3DMark test on these speeds yet because I wanted to repost the updated guide.



try to overclock it... i dunno if its worth it to update if im getting an extra 200 points you know...

i wanna see you overclock htat



Very nice. I got through your other post just a little while ago and I am very impressed. Now to find a card... ebay is cleared out of theirs, probably thanks to you!



What drivers are you using klok99ah?



btw rep++++++++++++

you really had the balls to try it... you are the man

i have to give you rep....

so this is based of the g96 chip with 256 bit memory...

you think you could break 10k? with this card?



10,000!?! Heh, no way. 8,000 maybe.. I still have to test drivers and what not but so far the performance is really nice.



Lol, I'm already running at higher clocks than a stock 9700M GT and I'm only about a 100 points off from it. http://www.notebookcheck.net/NVIDIA-GeForce-9700M-GT.9454.0.html



I really want to install this card... but i dunno if it will be worth it. Its 350 dollars... for 350 i could get a crazy desktop card.

im not sure yet... maybe you can keep testing and overclocking so i can see how far you cna push it



klok99ah,

What drivers are you using?



180.XX i dont remember on my other machine right now



see how far you can push it



That's a really good score. +1 for effort and getting it to work.



im still baffled at how big of a risk you took to do this. You are indeed the man and fully restored my faith in my c90...

again

thanks man!



Congratulations for getting it working! Will be adding this to the sticky as soon as I edit it (and it's long overdue, three weeks since I did it last...)

If you do not intend to keep the procedure secret could you explain what needed to be done in the VBIOS to get the card to work? No need to give full details.

The next step is to setup "normal" profiles 2D/std 3D/performance 3D with different clocks and get the card to change clocks according to load.



Night,
What are you settings and res in COD4 multiplayer and what kind of FPS are you getting?

D.

PS Something serious to be considered.

Bah, who needs a normal profile!



Thanks for the comments guys, I really appreciate it! I had to take a break for some food but I'm going to be testing again now.

Ranger,

I'll check my settings and report back.

E.B.E. ,

I will try to get more in depth with the necessary modifications needed to the bios shortly. I mostly just provided the bios file for simplicities sake.

Thanks again for the comments guys.

EDIT:

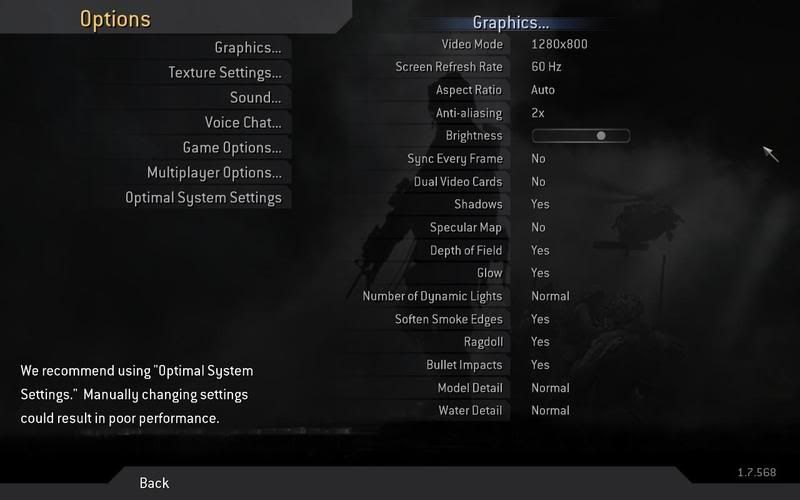

Here's my current COD4 settings:



Does anyone know what program Ken uses to do game play videos? I can do a game play clip if you guys would like.



+rep for all the work you did, Good Job.



This cards overclocking potential is really downright amazing. I'm currently running at 700/1800/975. Strange thing is my 3DMark06 scores actually dropped at these speeds. So far my best score is 6258 at 650/1700/950.

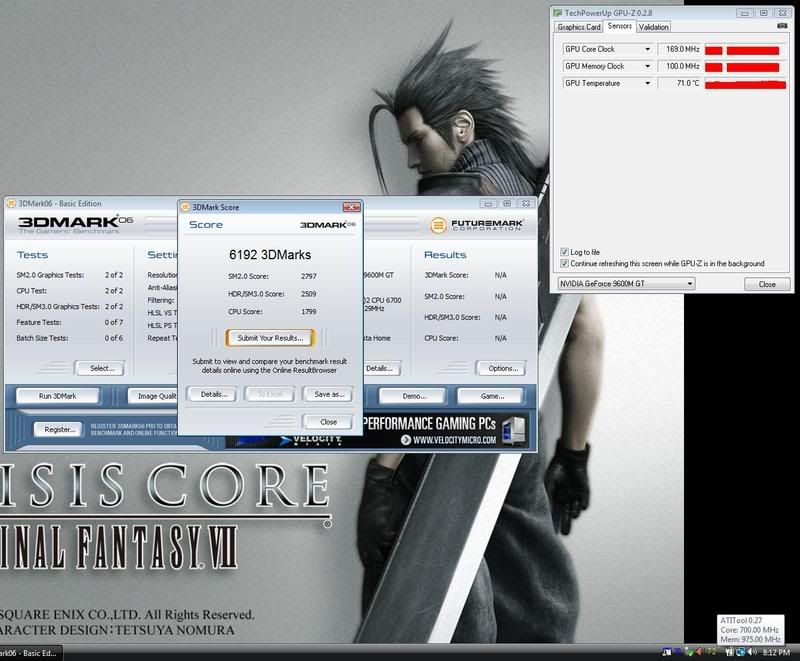

700/1800/975 scores:

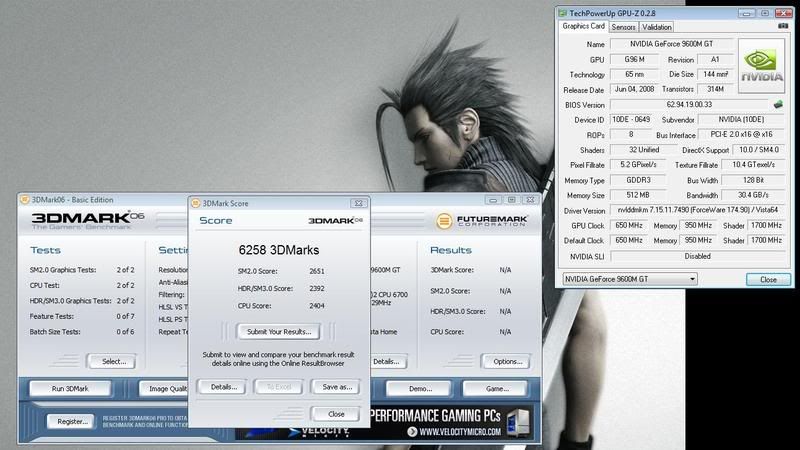

650/1700/950 scores:



I'm going to play some COD4 with the current clocks and see how it's performing.



Good work! Was really nice to follow this project and see it come to agood end.Im still stuck with 8600 -thanks alot for making those card so crappy nVidia-



Okay so the 700/1800/975 clocks caused a crash and some stuttering so I'm going to bring them down a bit.

EDIT:

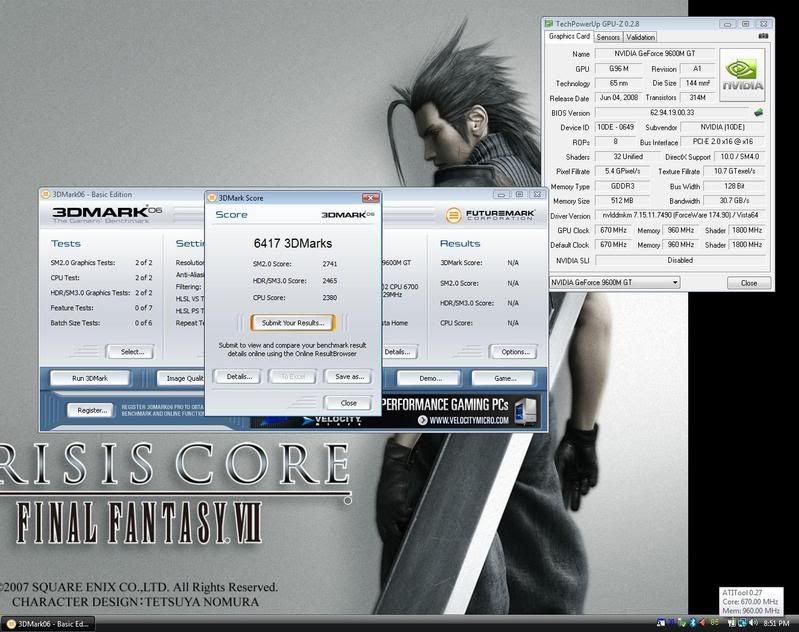

Clocks at 670/1800/960:



Best score yet! Going to see if they are stable now.

EDIT:

Scores nicely but caused another crash. I'm going to stick with the 650/1700/950 clocks for now and try some different drivers.



keep pushing higher see if you can get like 1900 shadder



650/1700/950 with 180.43 "beta" drivers:



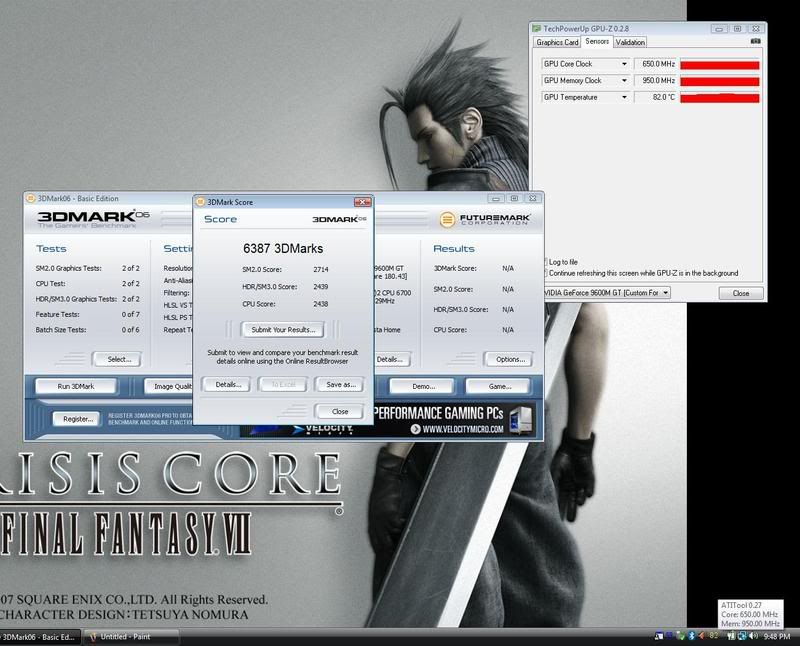

if you reach 7000 somehow then im gonna go get one



Good persistence and communication. Thanks.



That's a pretty great effort! Now where are you going to start selling prefabbed upgrade kits for those of us with bifocals?



wow great job night hmmm wonder how much you would be able to get on ebay with a custom notebook like this?



hat off to you mate. Good to see your effort comes to fruition. I bid you happy geforce 9600m gt owner

Well done~



you know, Thezoid is right!

would you be willing to sell "upgrade kits" ? and by that i mean a copper heat spreader, some pre-cut thermal pads and all the physical modifications needed?
throw in a cd with a guide for the mounting, software mods and I'm sure you could fetch up 150-200 easily, not even selling the card!
i'd buy it.

apart from that, i bow to you with respect. oh yeah! can you post the results difference between a 8600 and the 9600? in marks06, i mean.



8600GT DDR3 gets around 4500 3D06, and now he already has 6300...
The old 8600 DDR2 in C90s will have lower marks then DDR3, but not that much I think



Hey guys,

I'm about to go to work in a few minutes, but yes I've thought of possibly selling "upgrade kits". If there is real interest for them I suppose I'd seriously consider it.

My old 8600M GT 512MB DDR2 card used to max out at 3800 or so overclocked on 3DMark06. The card ran very hot though and really didn't like being overclocked so I ran it at stock speeds most the time. I haven't heard of too many people getting above 4500 or so with a DDR3 card as simonov said, except for klok99ah.

I'll be back this afternoon, thanks for all the positive comments!



Exactly what modification did you do to the BIOS? Was it the voltage? Or is it something we cant see via Nibitor?

I bought the same card as you did and am currently waiting for it to arrive. I'm using an Acer 5920g, therefore, I'd like to be prepared in case something like this happens on my laptop.

Would it be probable to flash an acer bios onto the card? Or do I have to use your modded Bios? The BIOS which you used, which vendor was it from?

On a side note, while performing the benchmarks, what was the resolution that you were running on?



Yeah, itll probably be more close to 4000



Kit Kit Kit Kit



/glee! awesome!



Wish I could give rep to you again for this - someone else do it, please!



I just edited my original post with some more detailed information about the necessary bios modifications and how to perform them. I'll be back after dinner.



Logged in just to give you +rep. Great job!



Appreciate your guide, thank you very much.



Good job!!

FYI, 9600M GT can go 685/1800/960.
And temperature may reach up to 86 degree Celsius.



count me in !


I'll happily buy one... lol. Again thanks man for all your efforts.



First of all, awesome job in upgrading your video! Thos 22 days must've been frustrating ;(

Secondly, when you tried overclocking, have you tried testing with ATITools artifact scan? 3DMark06 never really heats up my GPU as much as ATITools have done... I believe my GPU stays in the low 60's during 3dmark benching, while ATI artifact testing brings my gpu up to 79c.

Also, I'm pretty sure you'd get 7k+ if you had a faster cpu, as I heard 3DMark06 is very dependent on CPU performance. ATM, my P9500 OC'd to 3ghz with 715/1760/961 gets 6973 in 3DMark06... however, when my CPU is running at stock settings at 2.53ghz, my score drops to around 6700's, effectively reducing the score by almost 300 points.

BTW, my idle temp on a notebook cooler with no special thermal paste hovers at 45 celcius... w/o the cooler brings me up to 49c... I believe this is normal for most 9600m gt owners so you might wanna see whats up (think i read in your beta post that yours is hovering around the upper 50s).

Finally... under 715/1760/961 settings I was using xfastest 177.85 drivers... before I used 176.6 MSI manufacturer drivers and my 3Dmark06 score was about 50 points lower. Try 177.85 drivers and you should see anywhere from 40~60 pt increase in 3dmark06.



Good info! While my temps, both load and idle, are much better than with the 8600M GT, they are still hotter than I'd like them to be. However, this is due to the C90S HORRIBLE fan control script. The fans are dependent upon CPU temperature only and even then they due not turn on when you need them. I've got another mod planned shortly that will fix this however and bring my temps to where I'd like them.

Also my tests are done in "overclock" mode which bumps my E6700 up to 2.9Ghz. I'll give those drivers a shot.



? the 9600m gt is 128 bit... the desktop version is leaps and bounds better than its mobile counterpart. Nvidia is playing naming games... don't think its mobile version can get 10k without first burning down the laptop first ;x

It is possible to shoot for 7k though... which is still a huge accomplishment... 2k+ more points than stock settings, that's something to be happy about!

IMO, 8600m gt to 9600m gt is definitely recommended... runs cooler and overclocks like a beast! I'm starting to think 9600m gt is just a downclocked version of 9700m gt because technically, spec for spec its the same...

Also, nightwalker, try testing with ATITools. Often times after I OC I would run 3DMark06 flawlessly, but detect artifacts in ATITools (it really stresses the gpu to the max!) IMO, its a pretty decent way to find out what your 9600m gt is capable of.



One more thing to be aware of, you will need to use a 120W AC adapter with this card! Using a 90W adapter causes crashes and is unstable due to insufficient power. Also, recharging the battery while gaming can cause a crash as well even with the 120W AC adapter! This card sucks up a lot of power. So just be sure you have a full battery before you start gaming, or it could crash.

I had the day off today so I went ahead and hard wired my fans to receive a constant 6V of power. My CPU idle temps are now 34-37* and my GPU idle temp at the clocks listed in my signature are between 50-53*. I will be writing another guide for that in about a week or so, as I'd like to find a better switch for it.

I currently have it set up so I can switch the constant 6V on or off whenever I like. Also, even with the 6V switched on the bios is still in control of the fans if they get too hot. Meaning the bios will ramp up the voltage if needed still. I decided to use 6V instead of 12 because 6V is actually not too loud, in my opinion, where as 12V is just TOO loud to be left on for awhile. I'll report back with loads temps after some more testing.



Im happy to see you have it working now, bet that was a big relief for you. Your an official member of our hardcore modders club

Welcome to the club!



Do I smell a new line of notebooks, the NightWalkers?



No thats the power supply or the GPU you smell burning.



Does the battery drain when the battery is fully charged and you are using a 120W AC adapter during gaming?
