    A8JP SPDIF - Optical or Coax?

    Discussion in 'Asus' started by engin33r, Feb 7, 2008.

  1. engin33r

    engin33r Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Anyone know exactly how to get spdif out of the A8JP? :confused:

    I've read that it might be through a mini Toslink, or a proprietary 3.5mm connector, but no 1 seems to actually confirm.

    And, also, if anyone is actually getting SPDIF out of their A8JP, does it passthrough the AC3 directly? If i can't get 5.1, i'm not going to bother :p


    cheers,

    /m

    engin33r, Feb 7, 2008
    #1
  2. E.B.E.

    E.B.E. NBR Procrastinator

    Reputations:
    1,572
    Messages:
    8,632
    Likes Received:
    4
    Trophy Points:
    206
    Search around. The answer is in the forums.

    E.B.E., Feb 8, 2008
    #2
  3. engin33r

    engin33r Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    I did, but no one actually confirmed. Hence, this request.

    Anyone?

    engin33r, Feb 8, 2008
    #3
  4. RangerXML

    RangerXML Army of None [TRH]

    Reputations:
    211
    Messages:
    1,437
    Likes Received:
    0
    Trophy Points:
    55
    Its coax (you'll need a 3.5mm to coax adaptor), but you can get a optical converter. I got one that I used on my X-Fi card that works with my notebook from the creative site (1x Op In, 1x Op Out, 1x Coax In and 1x Coax Out all on a handy 3.5mm jack).

    RangerXML, Feb 8, 2008
    #4
  5. engin33r

    engin33r Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Is this a proprietory connector? I've never seen anything like this before, and i've seem some weird a55 adapters ;)

    Is it a 4 conductor 3.5mm plug? if so, that makes sense.

    Got a link to one mate?

    engin33r, Feb 8, 2008
    #5
  6. D3X

    D3X the robo know it all

    Reputations:
    688
    Messages:
    1,666
    Likes Received:
    6
    Trophy Points:
    56

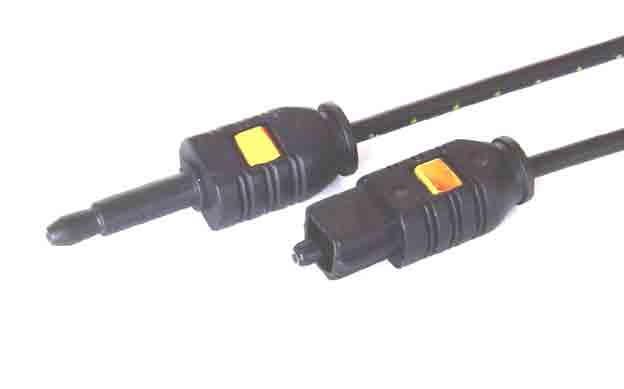

    isn't it a toslink/optical connector? My W3V has one, and you plug it exactly where the headphone jack is; it's a auto-sensing dual connection which allows the standard analog stero jack or the toslink/optical minijack like this:
    [​IMG]
    Once you have it pluged in, make sure you have digital output enabled and the jack should start glowing red once you plug it in. It's a standard connector used by most of notebooks now, and the soundcard will detect the number of speakers once this is connected to allow 5.1/7.1 etc. Of course you will then need digital 5.1 speakers.

    D3X, Feb 8, 2008
    #6
  7. RangerXML

    RangerXML Army of None [TRH]

    Reputations:
    211
    Messages:
    1,437
    Likes Received:
    0
    Trophy Points:
    55
    RangerXML, Feb 8, 2008
    #7
  8. engin33r

    engin33r Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Awesome, that's what i'm looking for.

    Do you get DTS or 6 channel at least?

    I'm using a Creative Extigy (USB) right now, and i'm about to throw it out the window because AC97 filter won't passthrough DTS properly to my amp.

    I might as well just get a PS3 ;)

    engin33r, Feb 8, 2008
    #8
