    ASUS N51 Fan Access

    Discussion in 'Asus' started by MurrayMelb, Dec 10, 2011.

  1. MurrayMelb

    MurrayMelb Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hi Guys,
    I have an Asus NV51 model notebook and it is over-heating. I believe this is due to fluff blocking the fan intake.

    So where can I find dis assembly assistance to access the fan?
    (It is NOT in warranty.)

    Any pointers appreciated.

    Murray

    MurrayMelb, Dec 10, 2011
    #1
  2. GenTechPC

    GenTechPC Company Representative

    Reputations:
    7,361
    Messages:
    4,586
    Likes Received:
    839
    Trophy Points:
    181

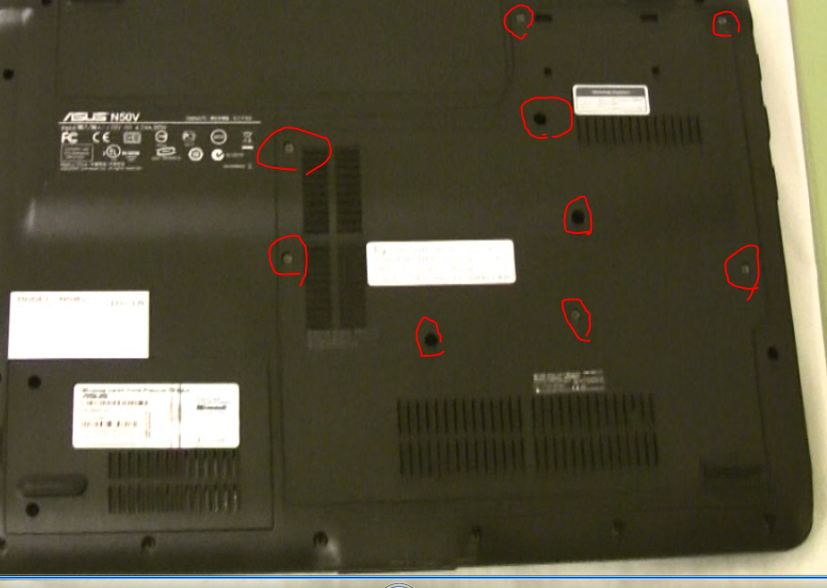

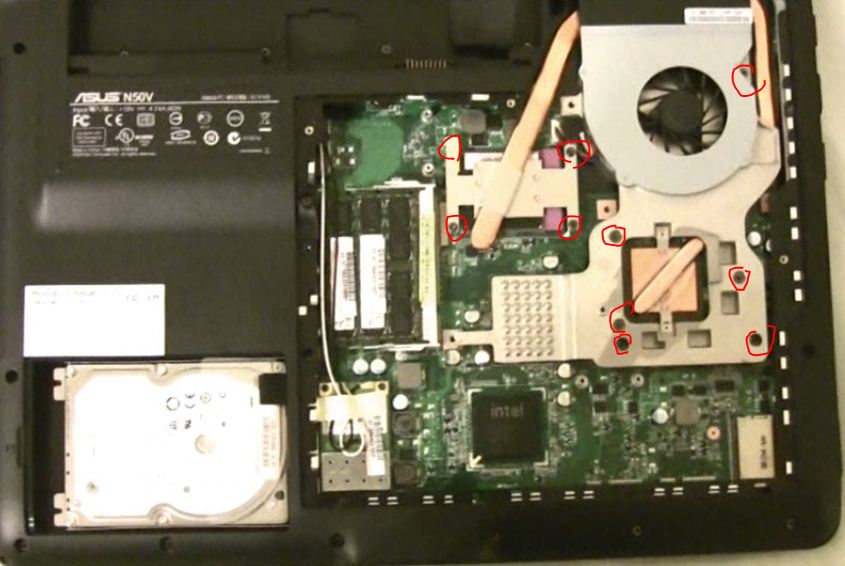

    You can access the fan from the bottom cover, remove few screws and you will see the fan with the heatsink:


    Attached Files:

    • 1.JPG
      File size:
      49.1 KB
      Views:
      187
    • 2.JPG
      File size:
      73 KB
      Views:
      172
    GenTechPC, Dec 10, 2011
    #2
  3. MurrayMelb

    MurrayMelb Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Thank you. And I take it that it is removable too from there.

    I will get on to it Monday. :)

    MurrayMelb, Dec 10, 2011
    #3
  4. GenTechPC

    GenTechPC Company Representative

    Reputations:
    7,361
    Messages:
    4,586
    Likes Received:
    839
    Trophy Points:
    181
    Yes it's removable and make sure re-apply thermal paste.

    GenTechPC, Dec 12, 2011
    #4
