ASUS Pro52L LCD replacement

hi! my father has an ASUS Pro52L and he has broken the lcd screen(15.4''). i would like to ask if screens from other asus models match.thank you in advance.



they might. The best way to know what model fits will be to physically take the screen out of the laptop and check the model # on the back of it. This way will make sure you get a direct replacement.



Yes you should be able to take out the LCD by removing the bezel. Here is an example, scroll down to 'screen disassembly': http://forum.notebookreview.com/asus/569879-asus-u80v-partial-disassembly-pics.html

Basically there should be some rubber bumpers on the display bezel, and under these are screws. After you take the screws off, then you can GENTLY! pry off the bezel using a guitar pick or discarded credit card. It doesn't take a lot of force.

After you have the bezel off, there are usually around 4 screws holding the actual LCD housing into a frame. Take those off and the LCD will partially come out, you just now have to take off the tape on the back of the screen holding on the connector(s) and then disconnect it.

Make sure your replacement LCD is the same exact hardware revision. Different hardware revisions can have different (incompatible) connector types.

Good luck!



Thank you very much for your analytical answers but i've already done that end there are a billion numbers...to be honest the laptop wich we are talking about is not i my hands, is my father's and i'm in another city! i have found some screens at ebay but not from the same model. how can i tell if it fits.



On the back of the LCD there should be a label with the part number. At the end of this number should be a hardware revision. Sometimes it says something like H/W A.0 for example.



i found some numbers "Model no. B154eW08" and "H/W : 3A"
and another thing,ok...i have the numbers,how can i see if a screen on ebay fits?i've searched and i didn't found numbers like that



I had no problem finding this model on ebay.

You can contact different resellers to ensure that their model is compatible, as long as you have the model number and hardware revision number.



for example one of this two screens are compatible?

1. 15.4 Laptop LCD Screen for ASUS Pro50 Pro50G Pro50GL | eBay

2. 15.4"LCD SCREEN ASUS X50gl X50 X50R X50RL X50SL X50V X50VL X50z WXGA 1280x800 | eBay

sorry for my continuous questions but i'm not so good at those things
and thank you for your quick answers!!!



Those are generic replacements, you'd have to get in touch with the seller to know for sure.

Sometimes even they don't really know, so make sure to buy from one with a good return policy.

That's why I recommended looking for the exact hardware revision, since it's the only way to know for sure. There should also be a number in between the model and the hardware rev you provided called like V.0 or V.1, etc.



the only numbers my father found was "Model no. B154eW08" and "H/W : 3A" "F/W : 1" "BL P/N 5915833028/C2" "CF lot no. HA48F" and between the model number and H/W there is a code "CP389012 (/ or -) 0101A" and thats it.there are no other numbers.to be honest i found screen for the laptop

NEW LCD TFT SCREEN FOR ASUS PRO52L LAPTOP 15.4" WXGA | eBay

but is too expensive.i try to find something with less money.

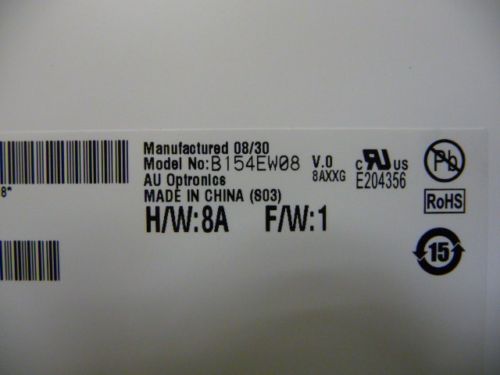

Here is an example of the label on a similar screen.

Anyway you should have enough information to find a replacement LCD, just make sure to contact the sellers of the ones you consider to make sure they are friendly and have good policies.



i send to this item's seller to part number of my screen and he reply me that:

Dear sir
thanks for your prompt reply
B154EW08 is the part number
please bid the item ,which is the correct LCD
thanks

so i ask him if the screen is 100% compatible (because i didn't understand) with my laptop but he didn't reply me back two days now...what can i do?



You could find a more responsive seller... or you can search for specsheet PDFs for the different revisions of that panel and compare the pinouts and connector types.
