    Asus V1JP Ram upgrade

    Discussion in 'Asus' started by Rekxxor, Jan 11, 2008.

  1. Rekxxor

    Rekxxor Notebook Guru

    Reputations:
    0
    Messages:
    72
    Likes Received:
    0
    Trophy Points:
    15
    hey can somebody show me on this picture where the Ram in the Asus V1Jp is located and how i can get to it? thanx in advance

    [​IMG]

    Rekxxor, Jan 11, 2008
    #1
  2. loopty

    loopty Notebook Evangelist

    Reputations:
    74
    Messages:
    527
    Likes Received:
    0
    Trophy Points:
    30

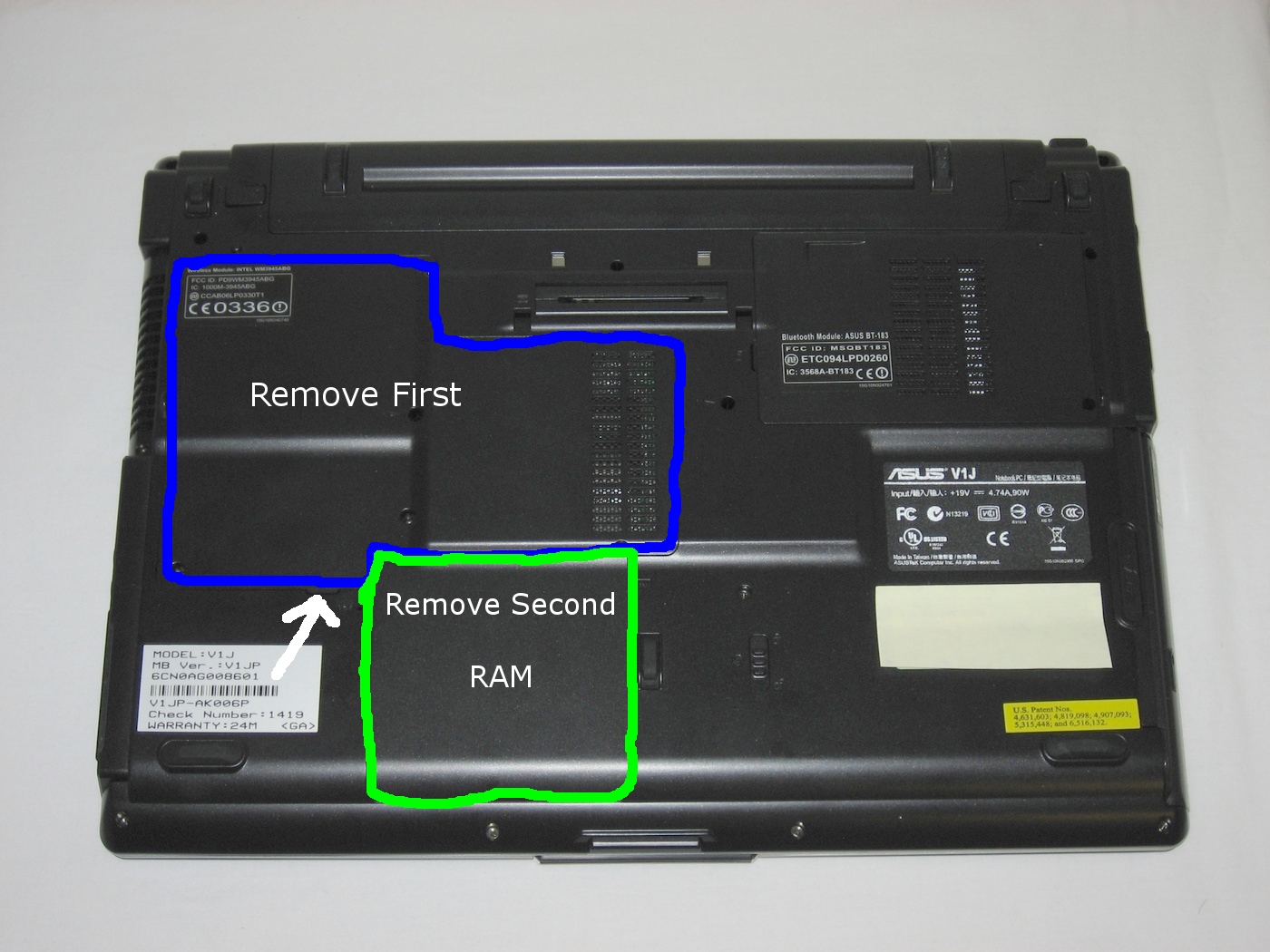

    The large piece has to be removed first. The white arrow points to where I usually start pulling up after the screws are removed. After the large piece is gone then the smaller piece can be removed.


    Attached Files:

    loopty, Jan 11, 2008
    #2
  3. Rekxxor

    Rekxxor Notebook Guru

    Reputations:
    0
    Messages:
    72
    Likes Received:
    0
    Trophy Points:
    15
    thanx, i removed the large piece before but i couldnt manage to get the smaller piece to come off, so i thought it wasnt suppose to come off. ill give it another try later


    cheers

    Rekxxor, Jan 11, 2008
    #3
  4. loopty

    loopty Notebook Evangelist

    Reputations:
    74
    Messages:
    527
    Likes Received:
    0
    Trophy Points:
    30
    It does come off. I pull it towards the opening of the large piece. It has snap tabs, too. I hate snap tabs.

    loopty, Jan 12, 2008
