    Asus V1S Disassemble Guide

    Discussion in 'Asus' started by David, Mar 20, 2009.

  1. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206

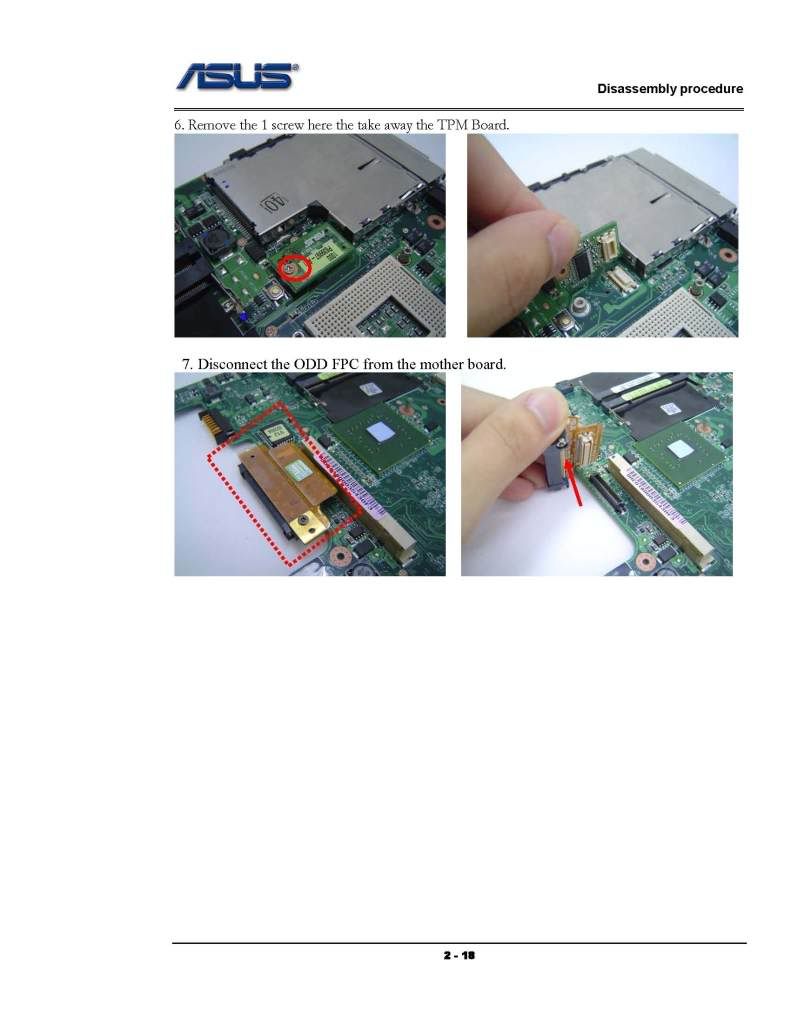

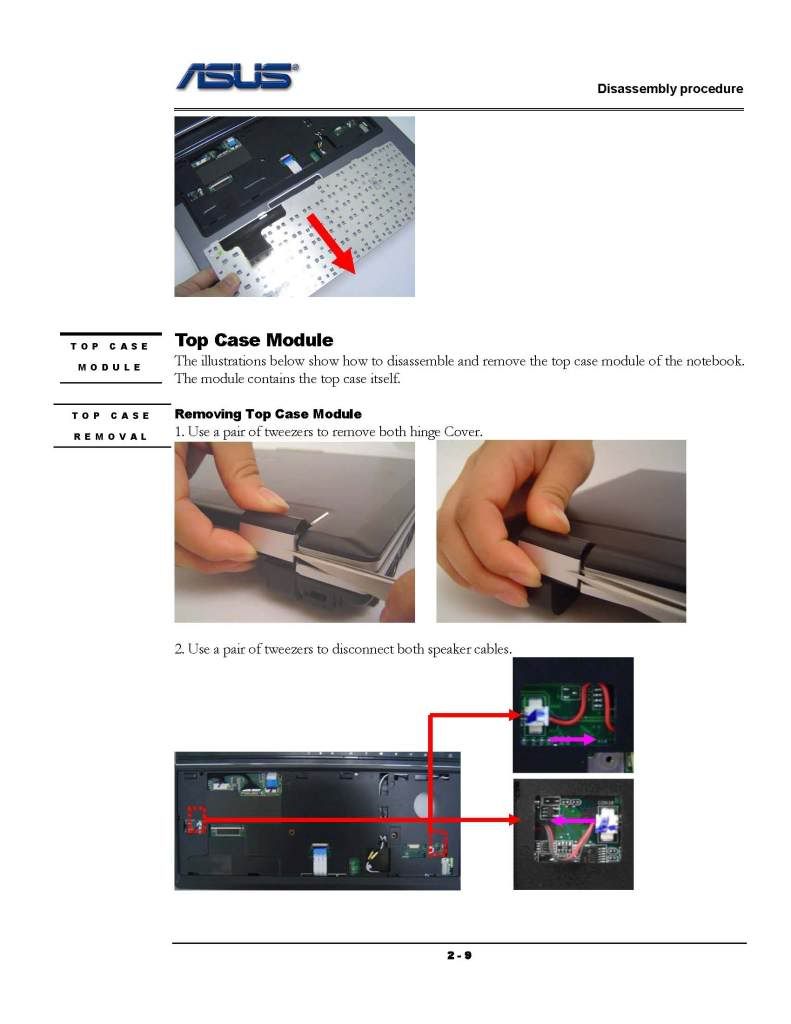

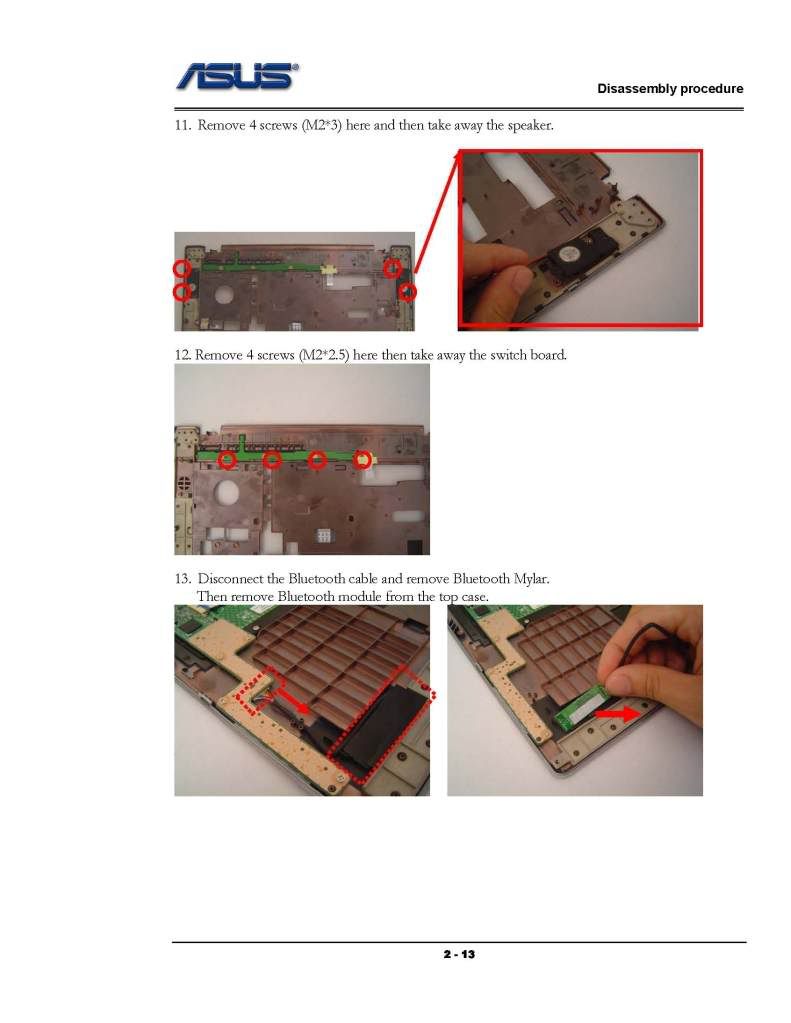

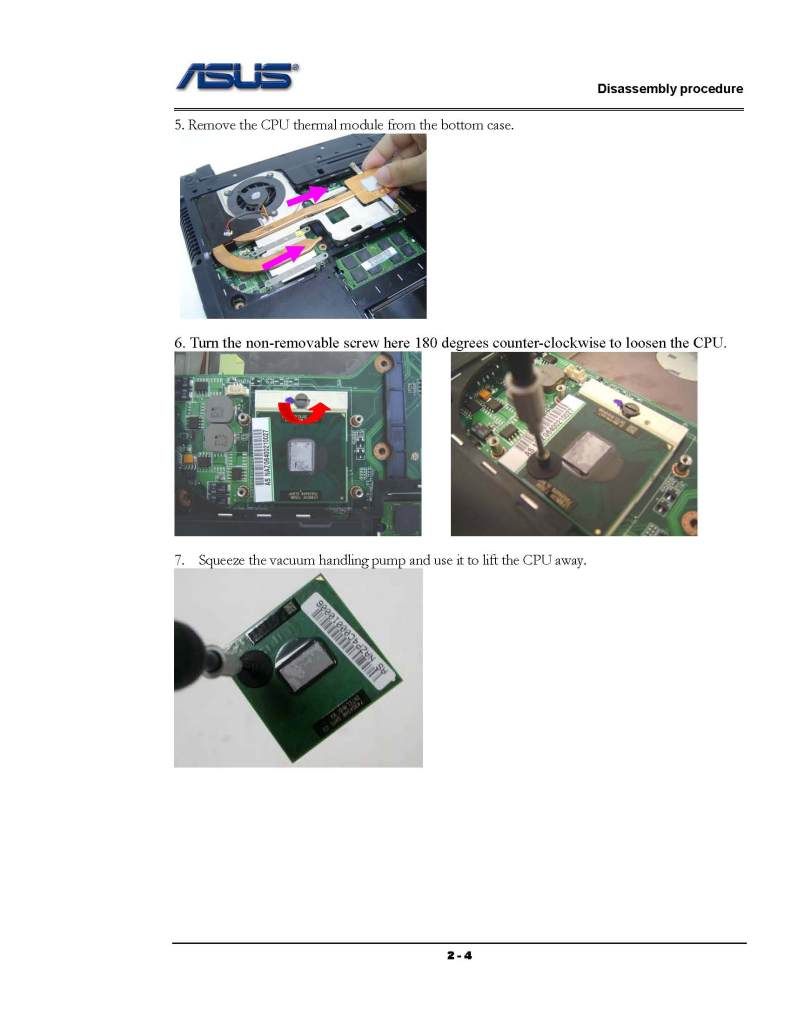

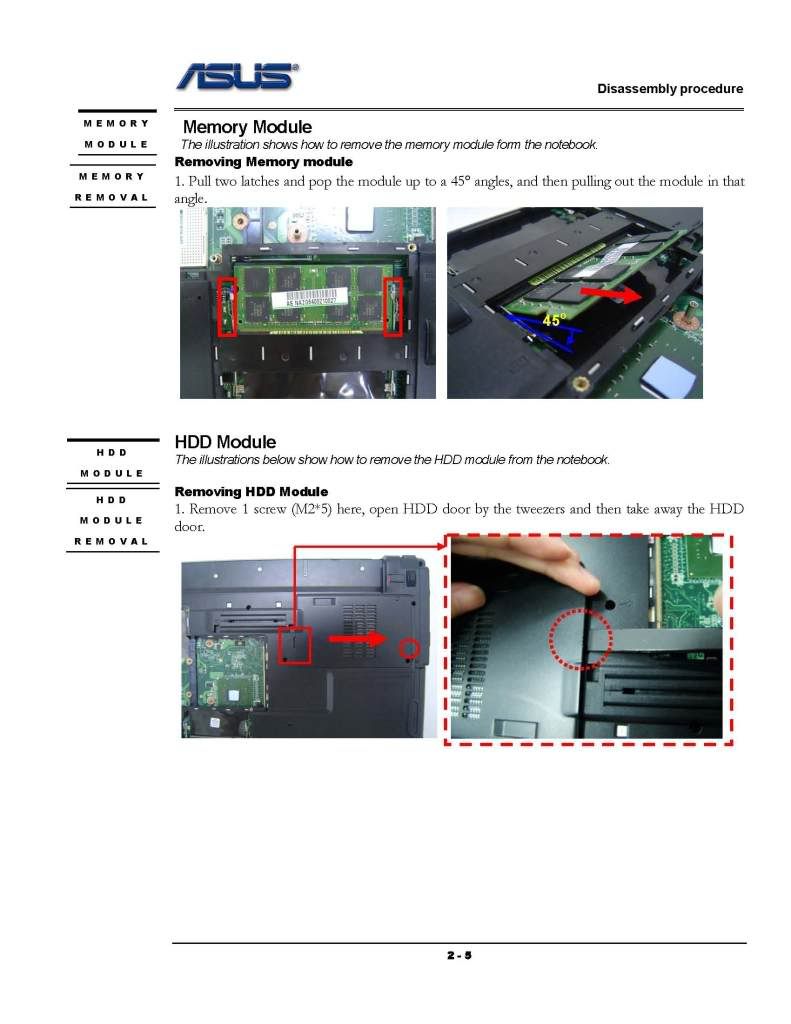

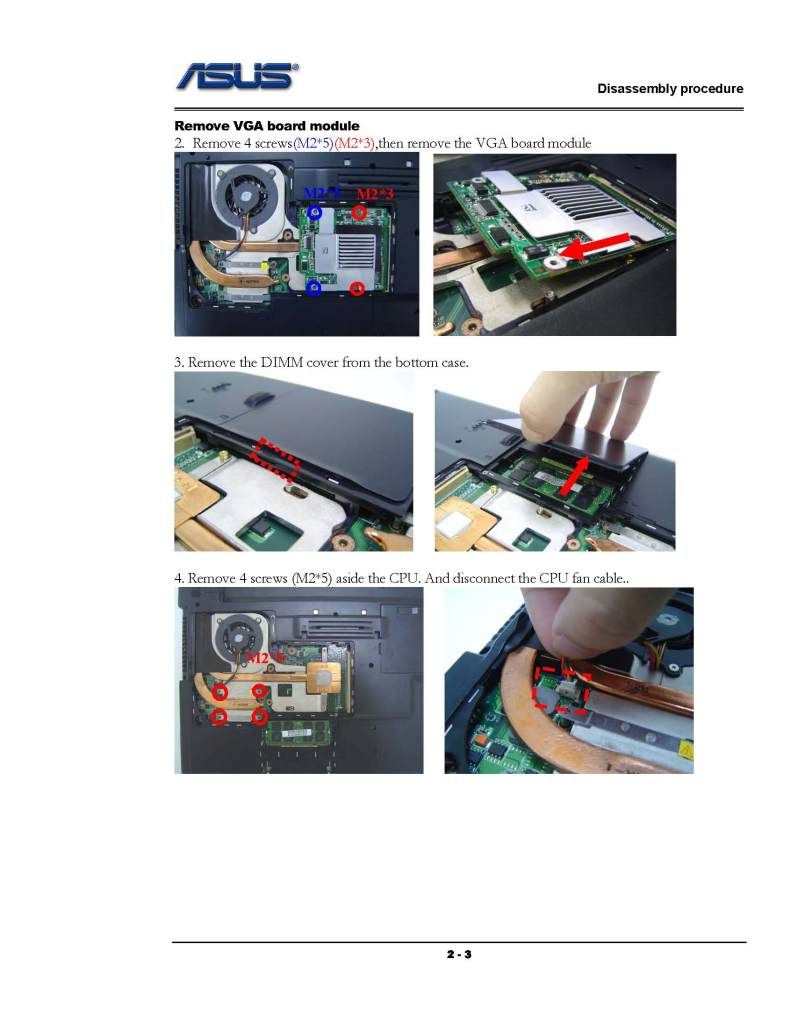

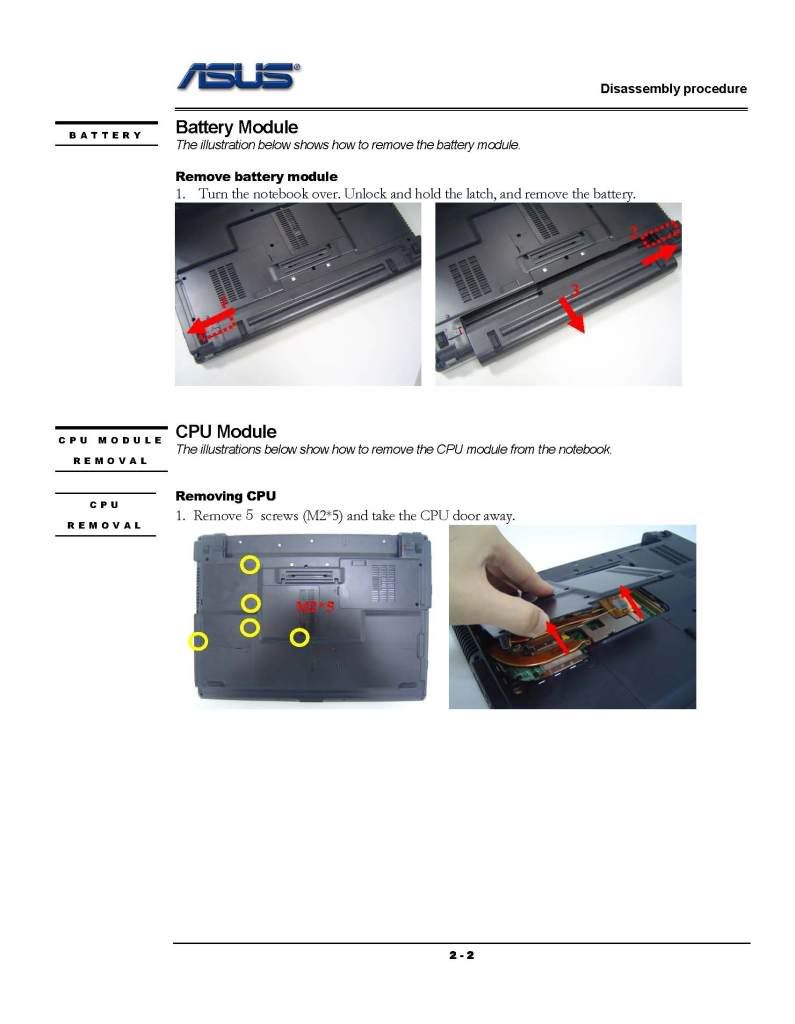

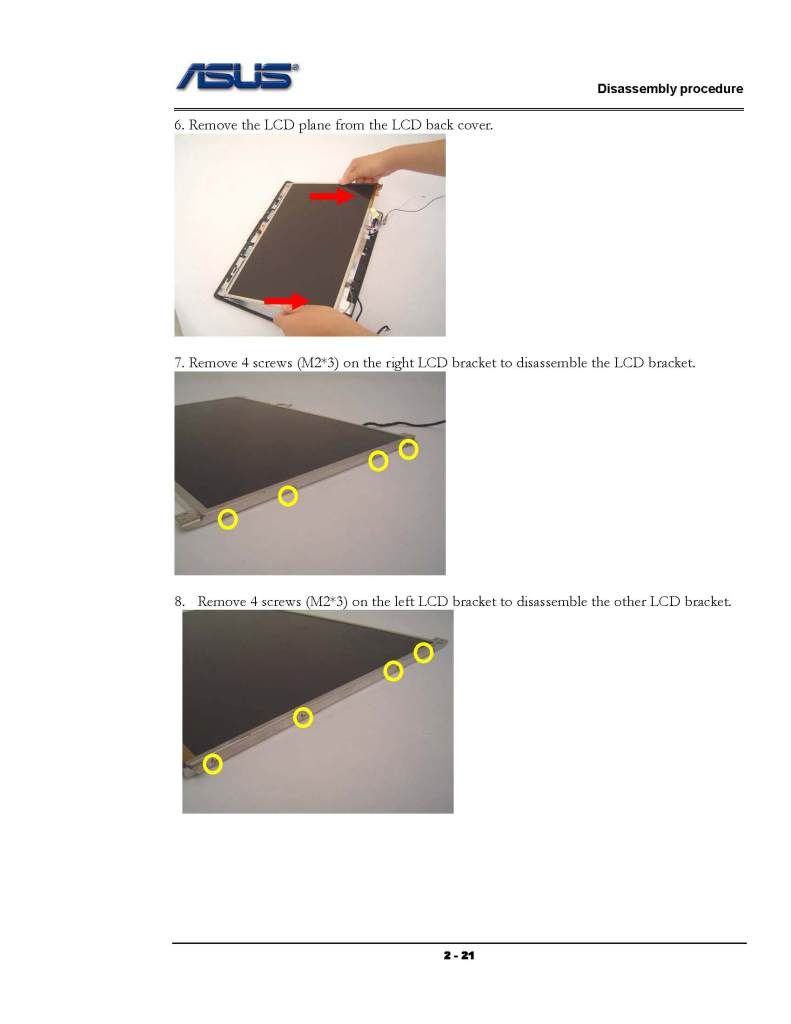

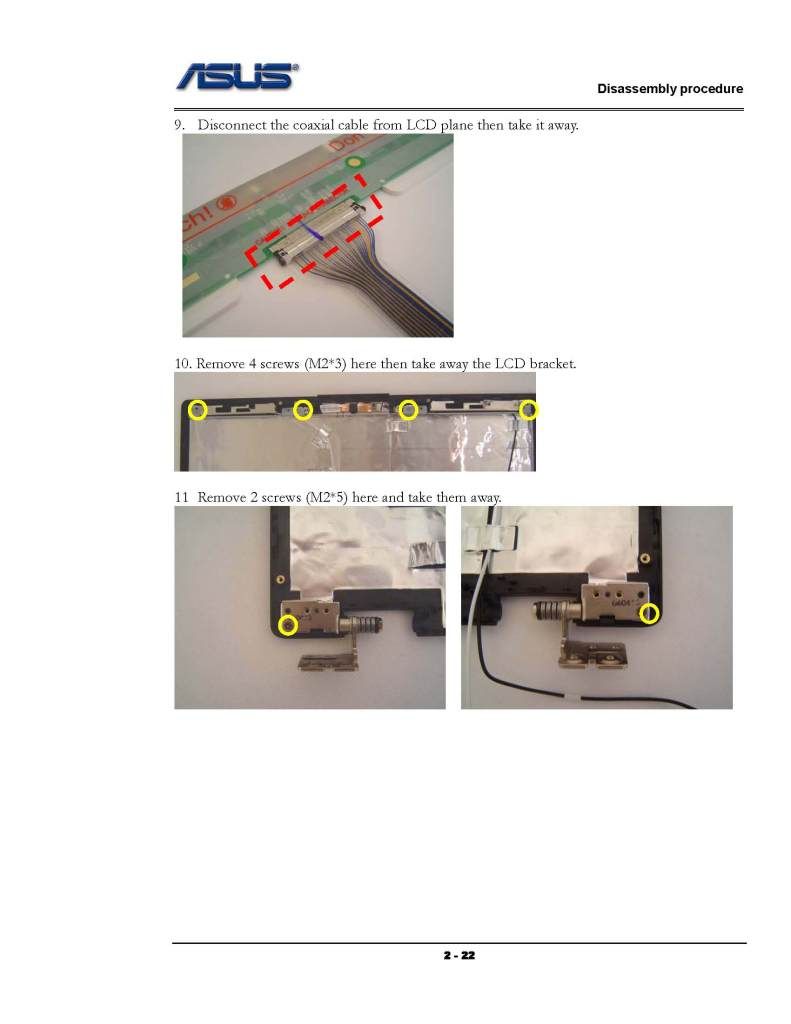

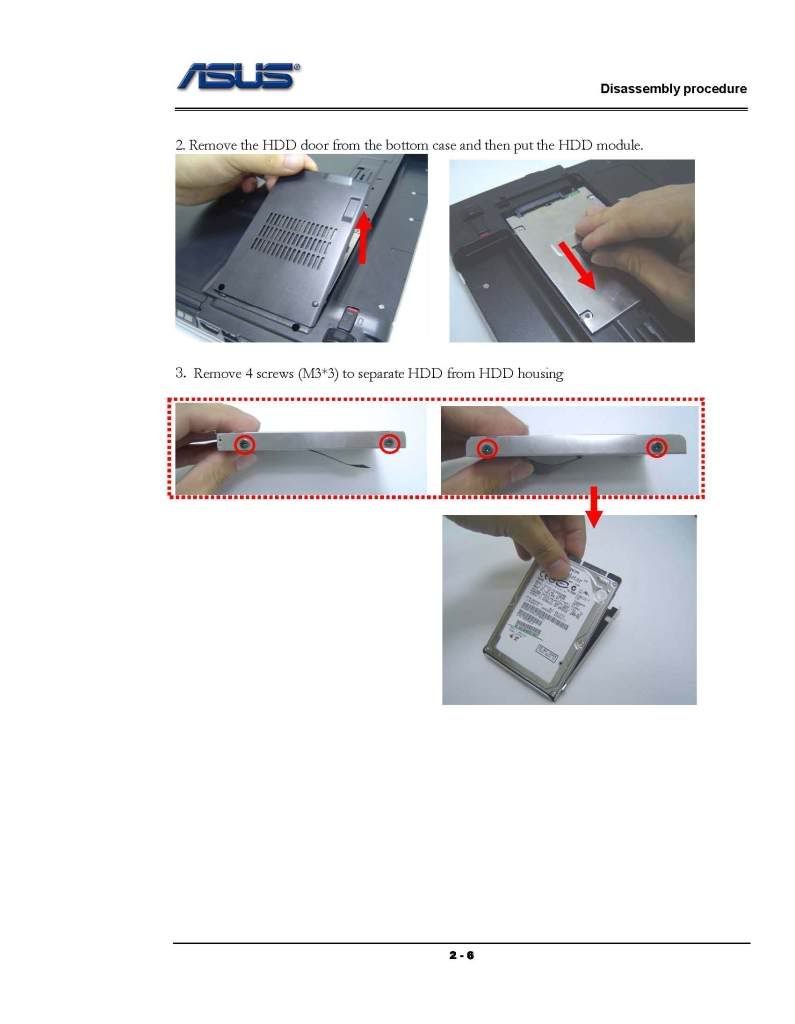

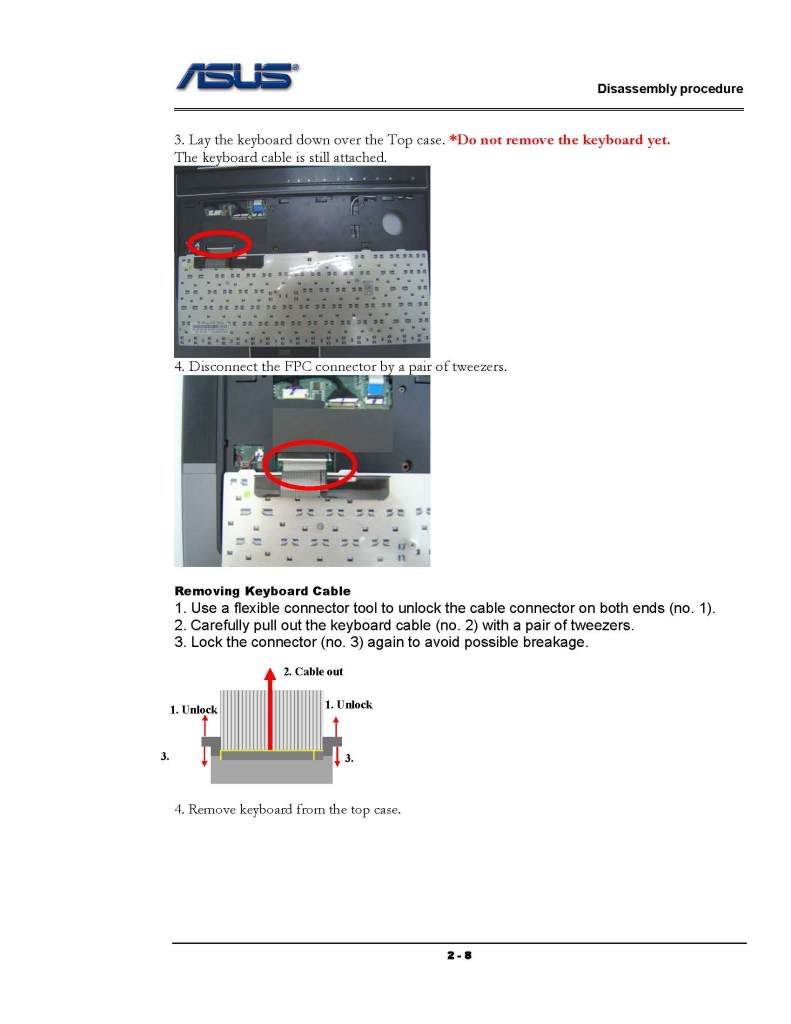

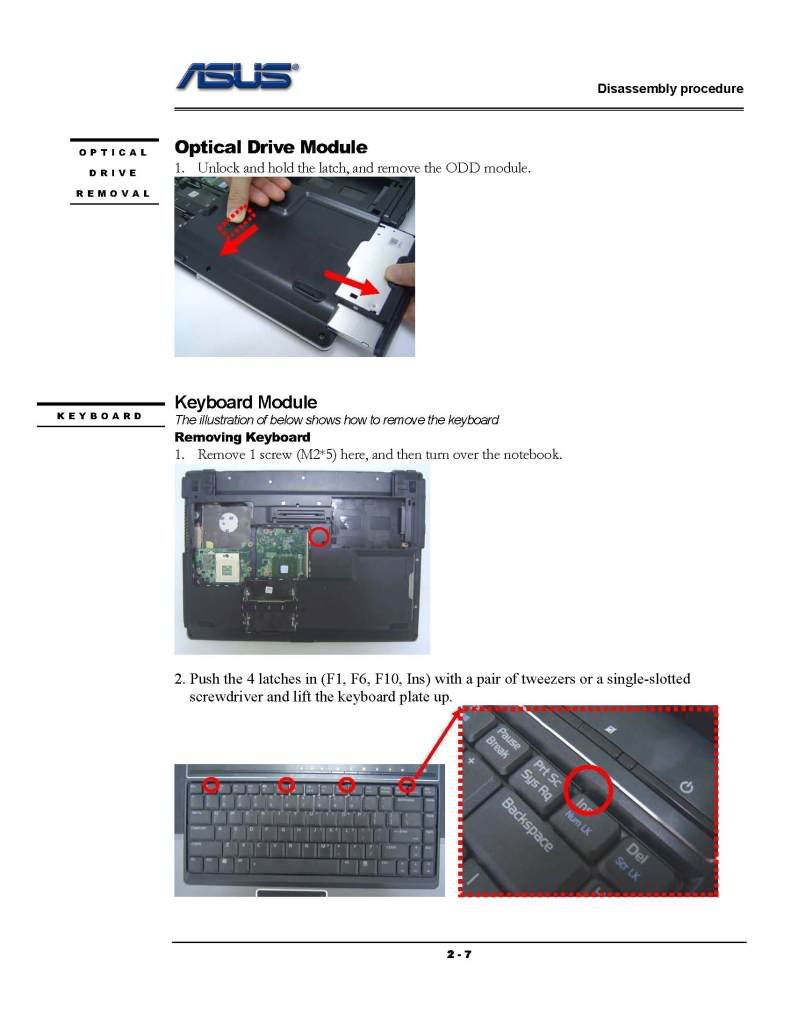

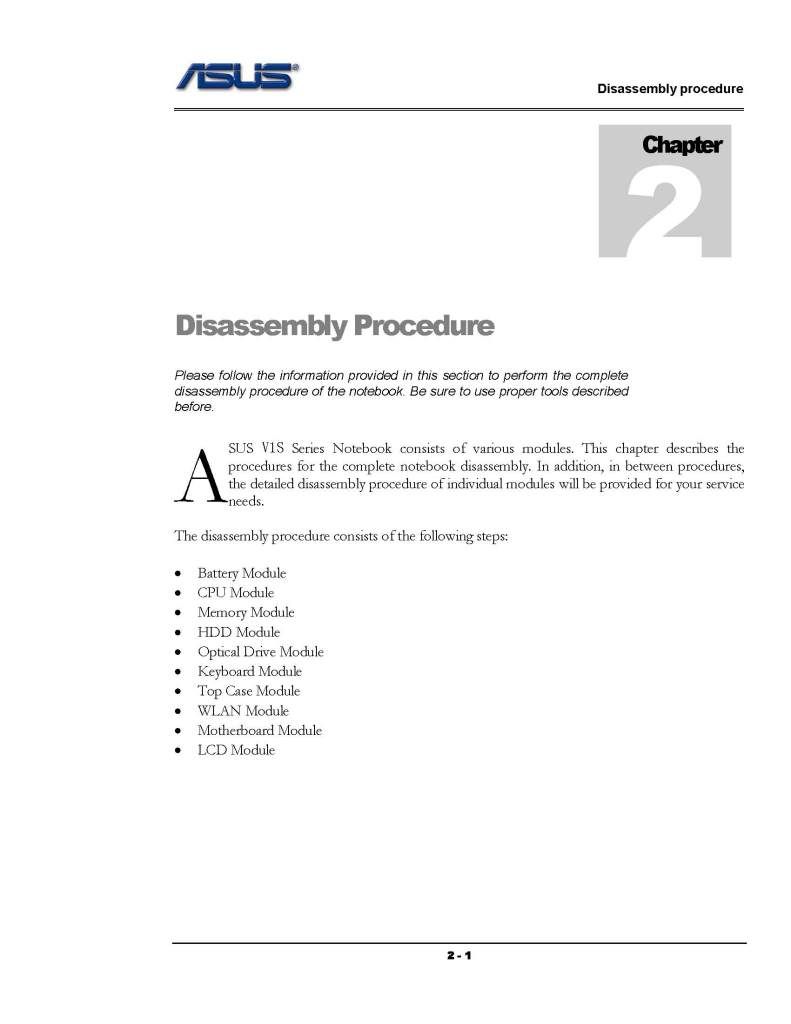

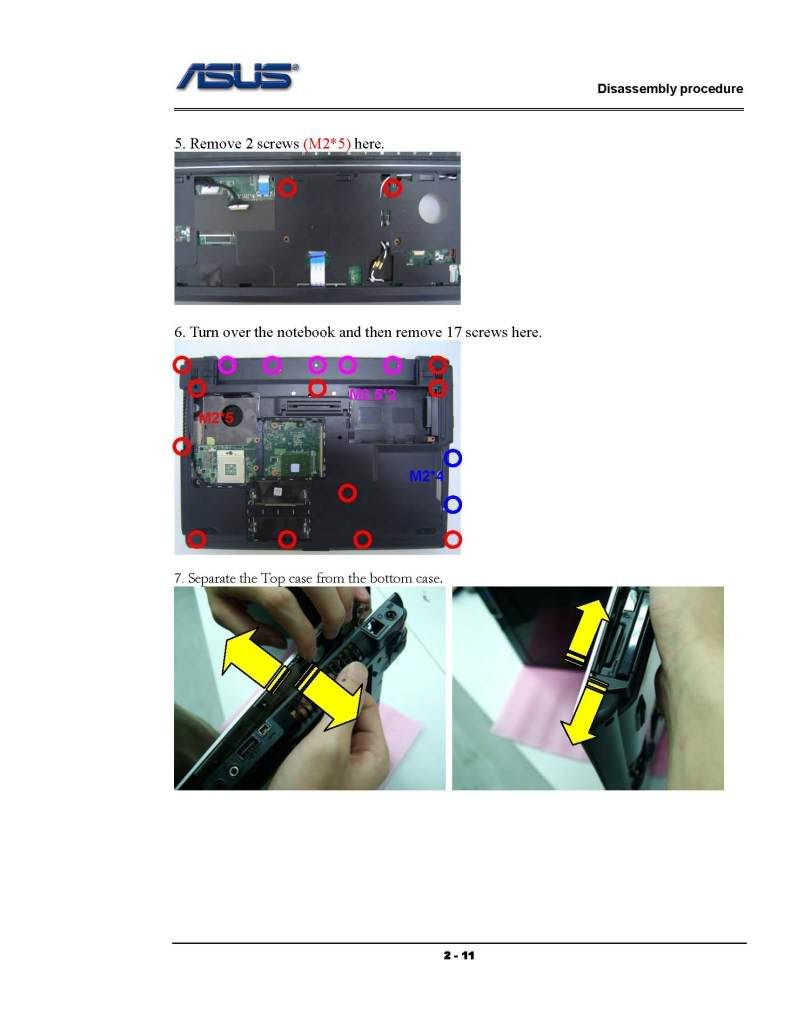

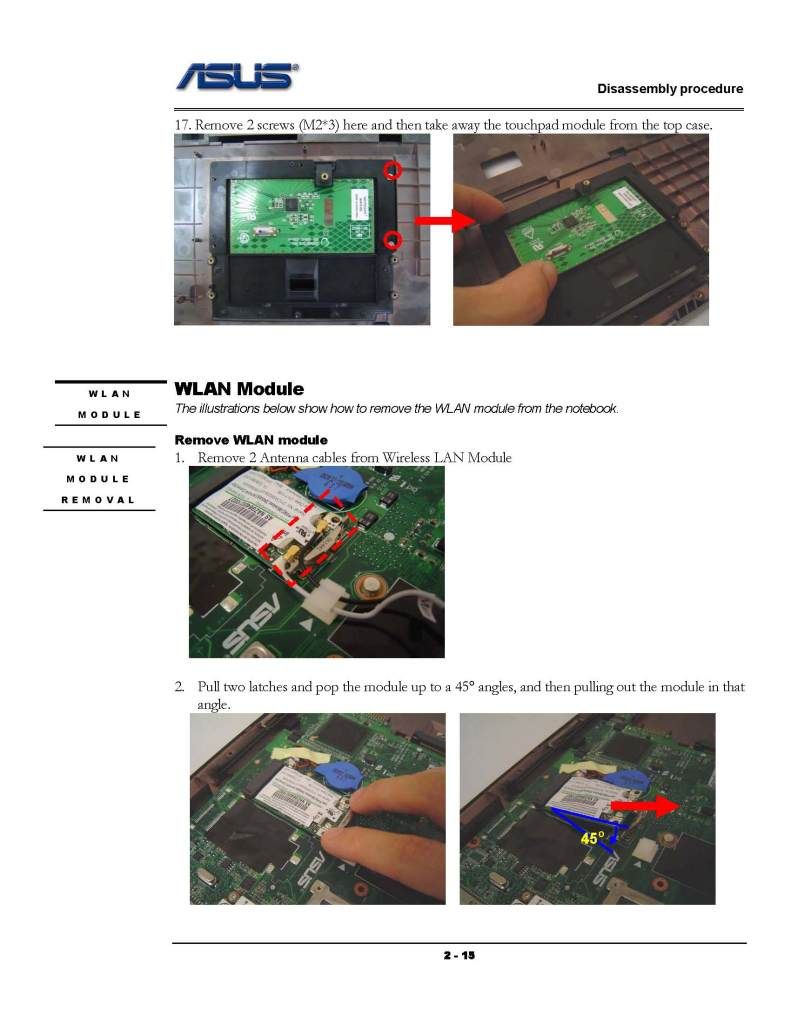

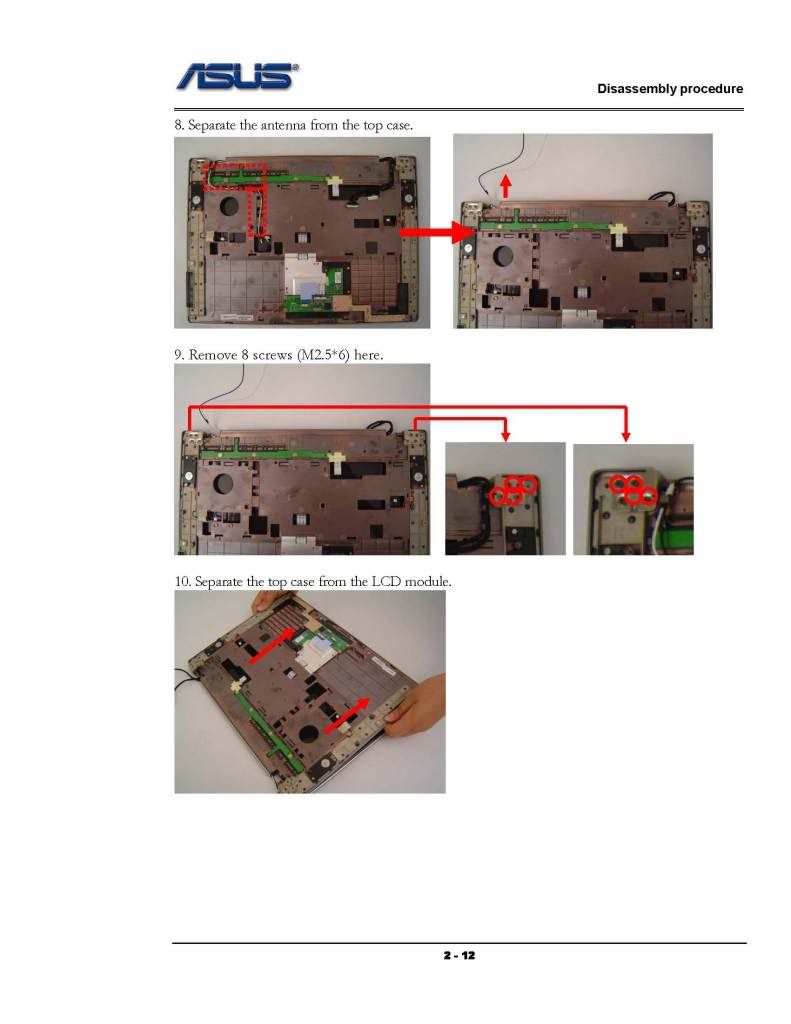

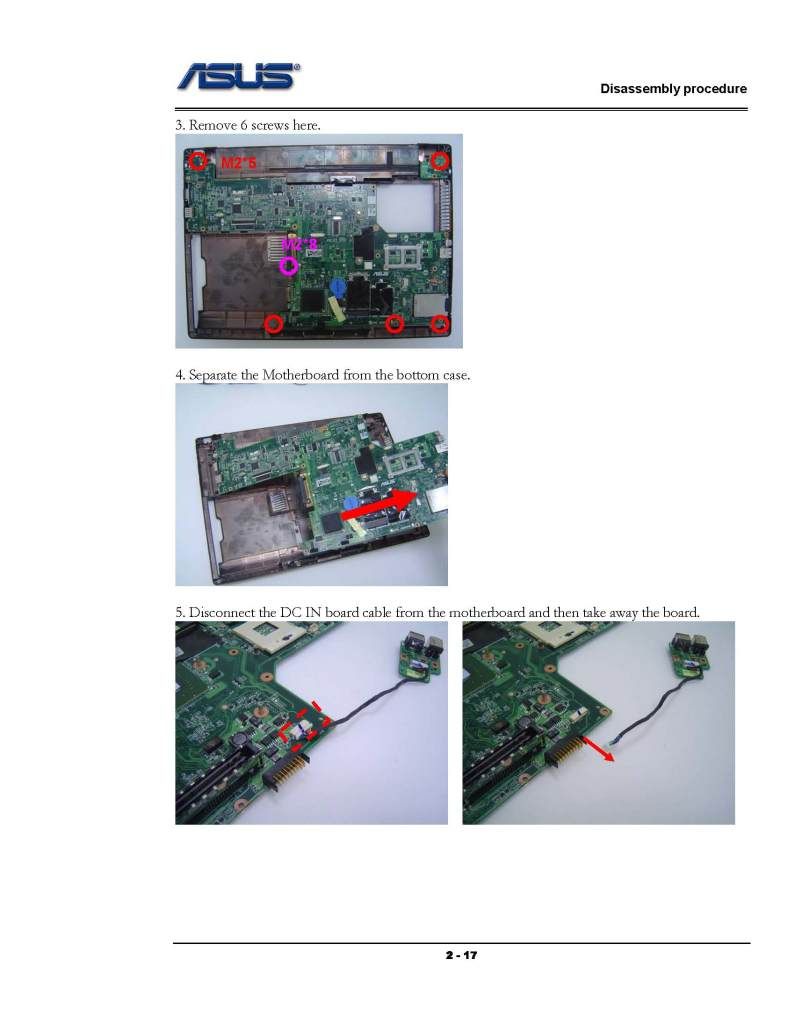

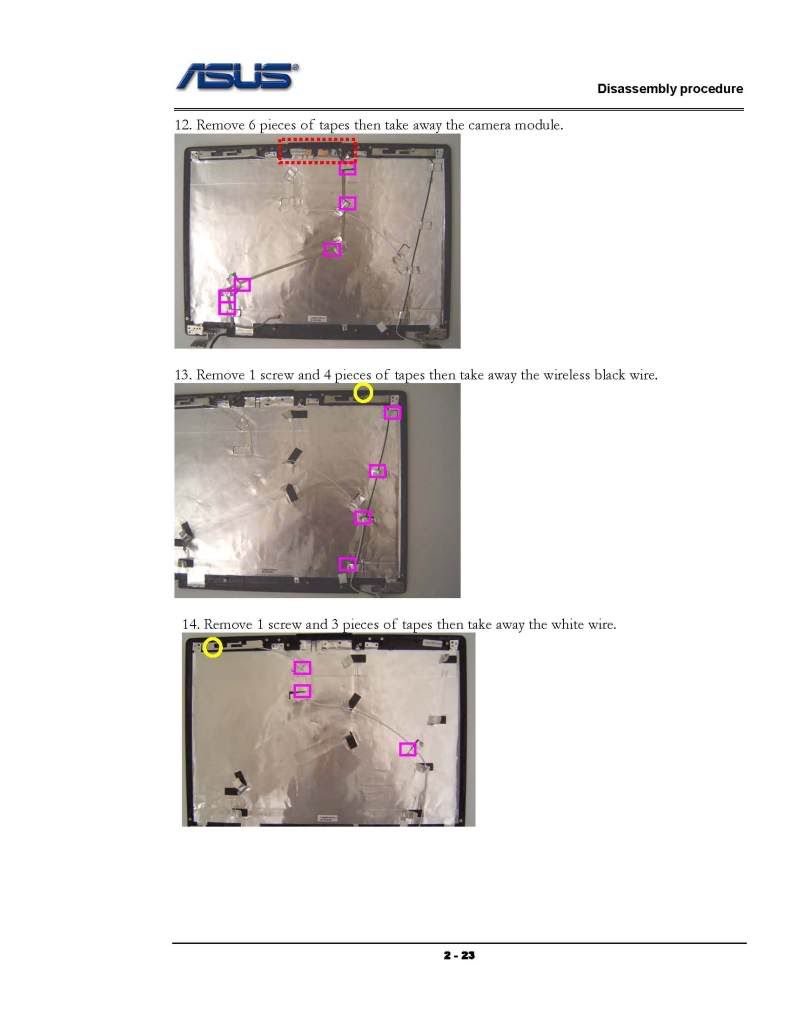

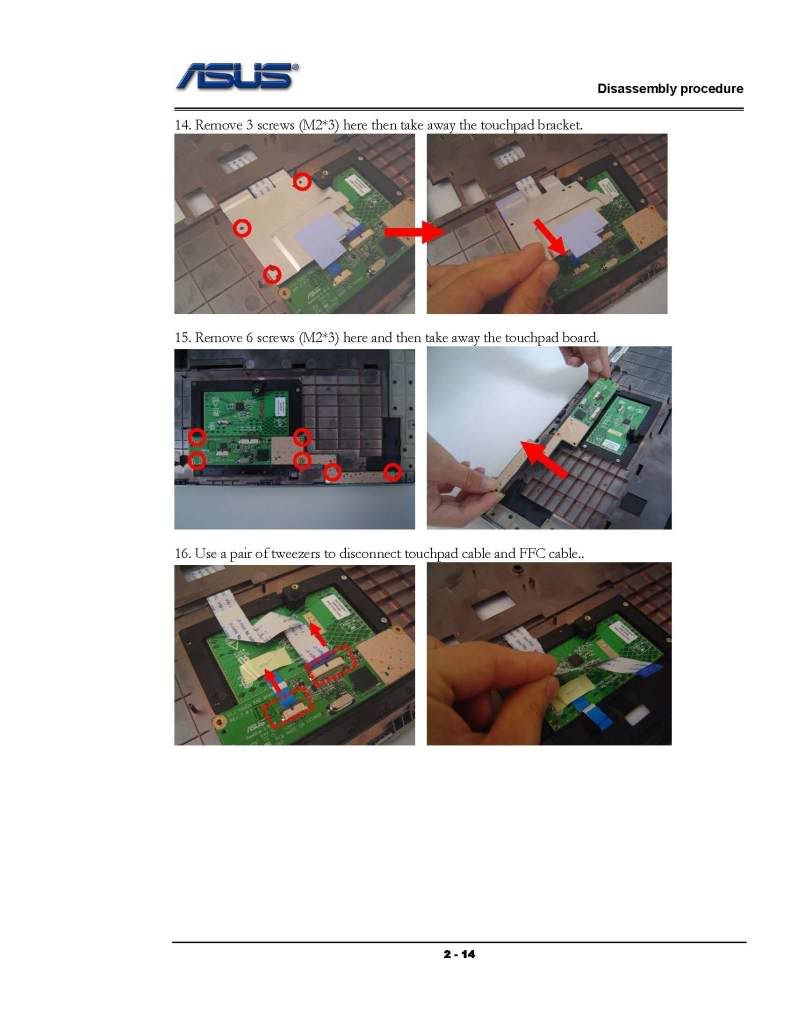

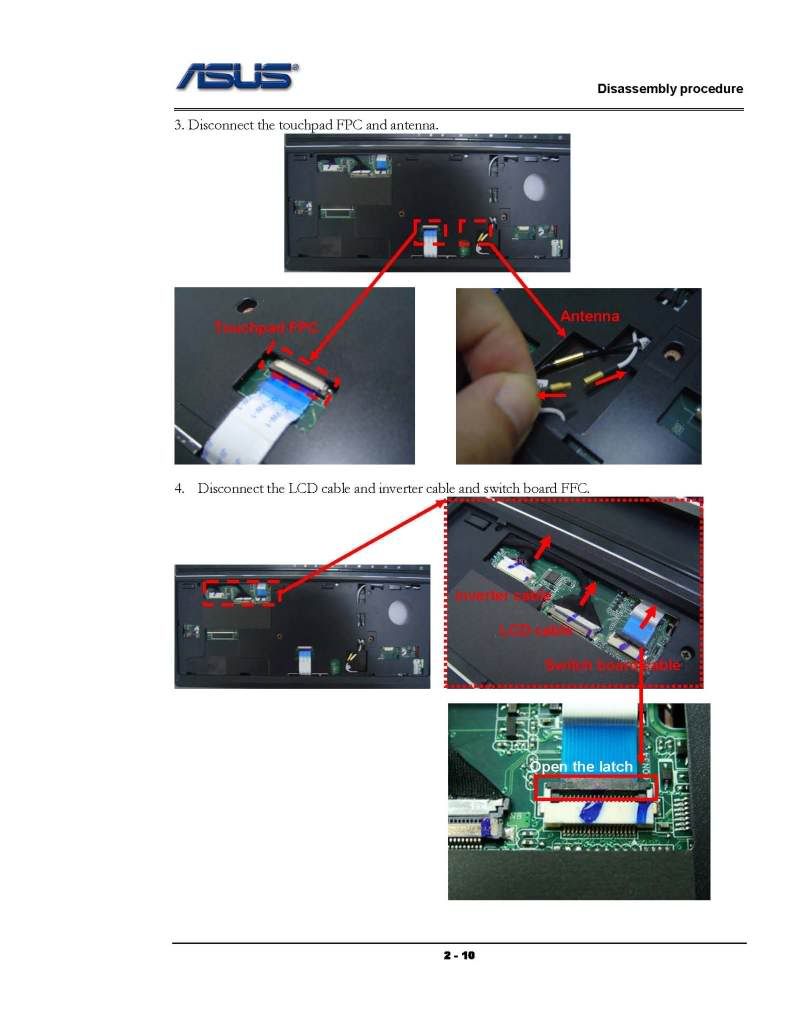

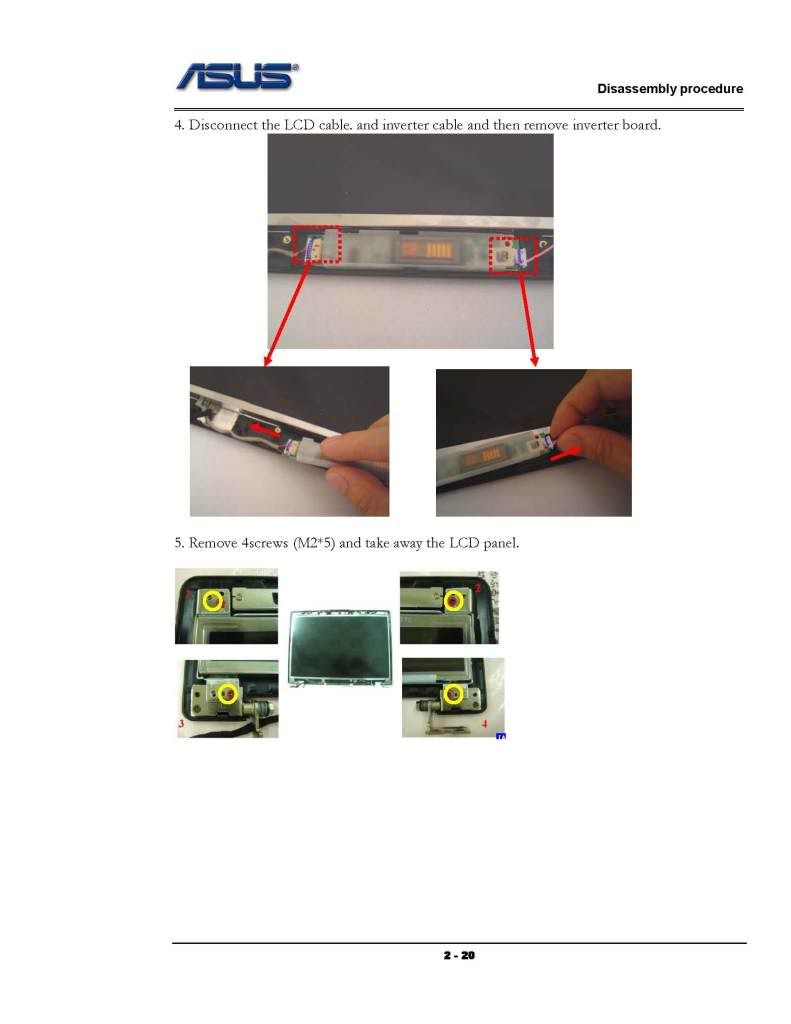

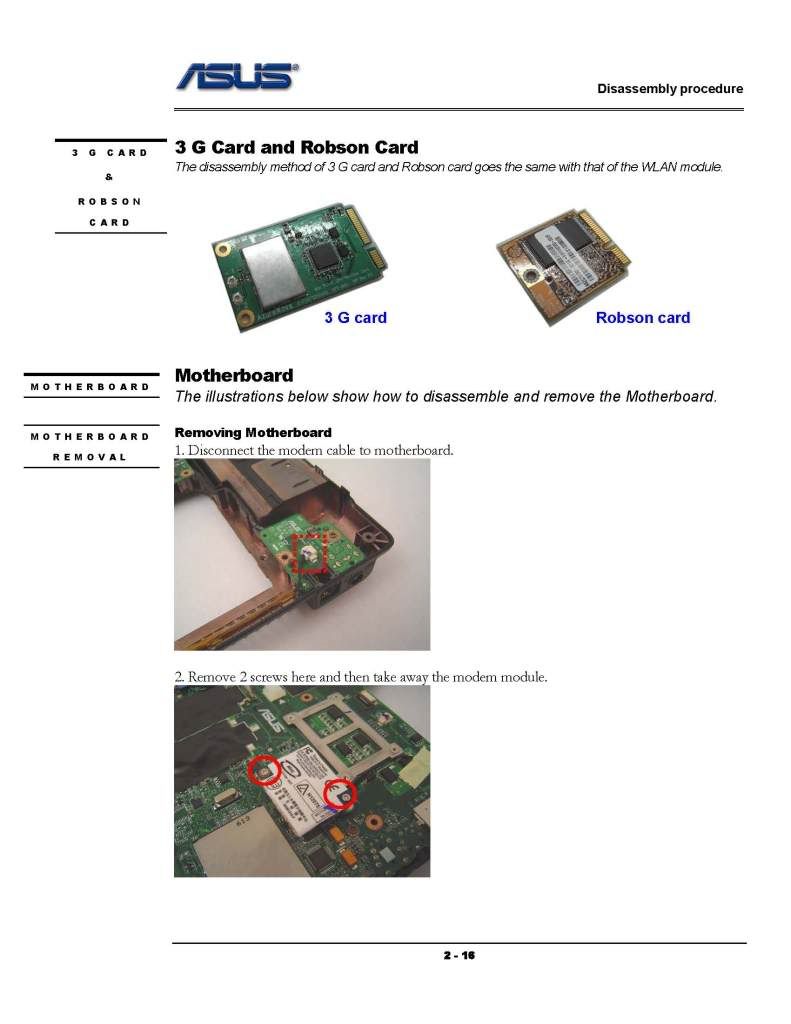

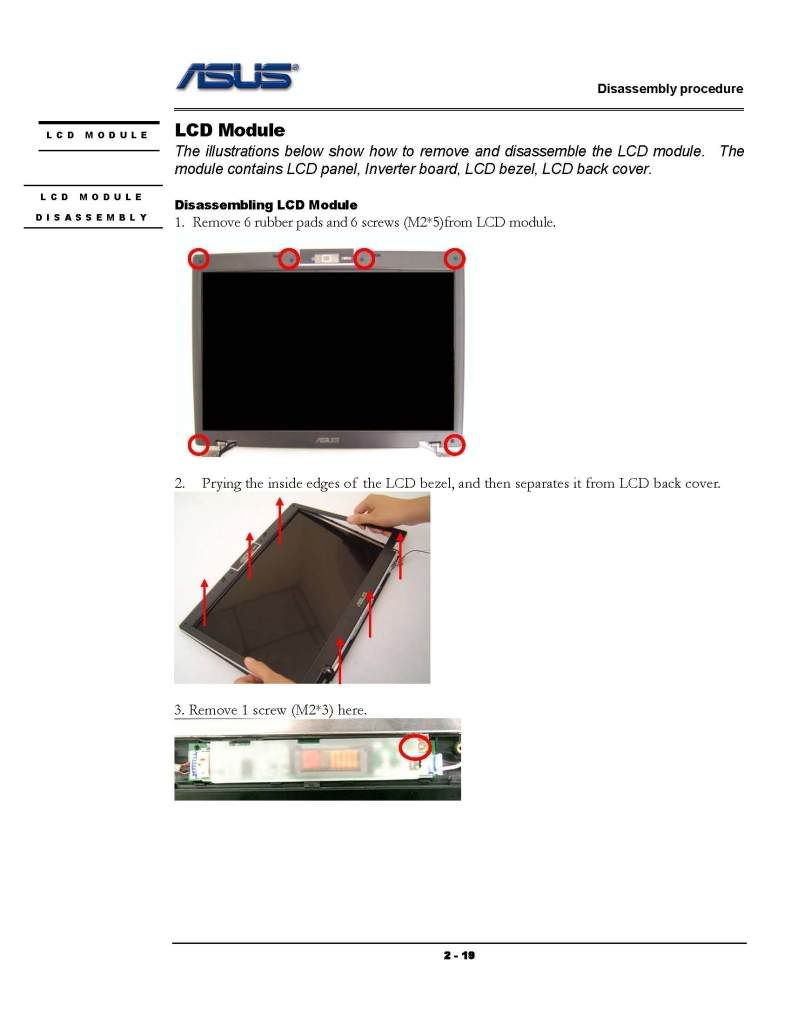

    This disassembly guide is for the Asus V1S series notebook.

    NOTE: Remember to unplug your power cord, remove your battery and ground yourself before attempting to disassemble anything. I am not responsible for any damages you do to your notebook. This guide is from Asus and simply for references only. Please also note that replacing your CPU and/or GPU will automatically void all manufacture warranties. USE WITH CAUTION!

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited by a moderator: May 8, 2015
    David, Mar 20, 2009
    #1
  2. nomanland

    nomanland Notebook Consultant

    Reputations:
    24
    Messages:
    115
    Likes Received:
    0
    Trophy Points:
    30
    Holy spokes. Thanks for the guide.

    nomanland, Mar 21, 2009
    #2
  3. ramgen

    ramgen -- Morgan Stanley --

    Reputations:
    513
    Messages:
    1,322
    Likes Received:
    1
    Trophy Points:
    55
    David,

    Do you have a similar guide for the F8Va series?

    Thanks,

    ramgen, Mar 21, 2009
    #3
  4. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206
    Unfortunately, I do not have the disassembly guide for the F8 series. You could try and contact an Asus reseller and see if they can send you one or post it on the forums.

    David, Mar 21, 2009
    #4
  5. E.B.E.

    E.B.E. NBR Procrastinator

    Reputations:
    1,572
    Messages:
    8,632
    Likes Received:
    4
    Trophy Points:
    206
    Added to Info Booth, thanks!

    E.B.E., Mar 21, 2009
    #5
  6. chonjy

    chonjy Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hi guys, i'm just wondering if you have a disassembly guide for ASUS f8sn series notebook? I'm thinking of installing a TV tuner and wondering where the slot is located inside the notebook?
    Thanks.
