    CPU Question

    Discussion in 'Asus' started by laurentiu_c_l, Apr 7, 2009.

  1. laurentiu_c_l

    laurentiu_c_l Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5

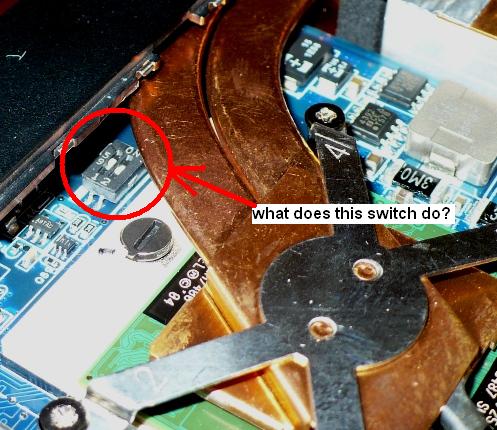

    I have an Asus A6Vc. What does the switch in the picture do. It is located near processor socket. Possible FSB switch? Thank you.


    Attached Files:

    laurentiu_c_l, Apr 7, 2009
    #1
  2. Jaguar

    Jaguar Notebook Consultant

    Reputations:
    3
    Messages:
    185
    Likes Received:
    0
    Trophy Points:
    30
    Anything cpu related would be fsb switch or multiplier unlocker or something, but doubt that's the case as its a laptop. Could be something else entirely.

    Jaguar, Apr 7, 2009
    #2
  3. laurentiu_c_l

    laurentiu_c_l Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    that's the question... i want to overclock my cpu. I read on the net that is possible on intel pentium m processors. I suppeose this is the role of that switch, but I'm not sure...

    laurentiu_c_l, Apr 8, 2009
    #3
  4. ClearSkies

    ClearSkies Well no, I'm still here..

    Reputations:
    1,059
    Messages:
    2,633
    Likes Received:
    0
    Trophy Points:
    55
    The only P-M overclock modifications that I remember back in those days (can't remember exactly who did it with a W3v, maybe D3x?) were pin-mods, basically short circuiting/hotwiring the cpu chip in the socket - I don't remember any other software or hardware discussions around here. It's been a long time, though.

    ClearSkies, Apr 8, 2009
    #4
  5. laurentiu_c_l

    laurentiu_c_l Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    I tried pin-mod( http://www.notebookreview.com/default.asp?newsID=3226 )...and it doesn't work (probably becouse of the switch). I thik that switch on the moteherboard doesn't alow to change FSB , but I am not sure. This is what I am trying to find out. I am newbie in hardware, but I know the riscks to rise motherboard FSB more then CPU support it (eg.166). The switch has 2 buttons, so 4 possible positions( 00, 10, 01, 11 ). For example it is possible to have this combination from the switch 00=66 , 10=100, 01=133, 11=166 (FSB). But AGAIN I am not sure and FSB=166 will probably burn my CPU...Best way is if someone who has an Asus notebook with Pentium M CPU (740, 750, 760 or 770) will take a picture of that switch and post it here...

    laurentiu_c_l, Apr 8, 2009
    #5
