How to disassemble the Asus N53JQ

Hello All,

I just bought an N53JQ. All the specs are great except they put a 5400 hard drive in the machine. So I want to upgrade it before even doing anything with it. Do you know how to disassemble this laptop to get to the hard drive?

This is what I have tried so far:

1. Called Asus. They have the most horrible customer service center. They dropped my call several times, connected me to another customer!, and when I got people on the phone they had zero knowledge and zero interest to help their customer. They also said they didn't have a tier 2 support and I was never connected to a supervisor.

2. On the back of the unit, the only screws are:

a. Inside the battery compartment. And a little screw inside the battery compartment allows the removal of a small door, I removed these screws and tried to dislodge the bottom, but everything was still tight.

b. Behind the small door is the small backup battery. There are two screws there. I can loosen them but not remove them. After loosening them I was still unable to dislodge anything.

3. I removed the keyboard successfully. behind it is a metal plate. I removed the screws that hold that together. but the metal plate goes underneath the plastic on the top of the laptop. I was not able to dislodge anything after removing these screws.

4. There is a clear delimited compartment on the back of the laptop on the front with the symbol of a hard drive on one end and RAM on the other. but there are no screws holding it together. Nor are there any tabs.

So how do I replace the HD?

Thanks!

Nima



Could you post here a picture of your laptop's bottom side?

I will mark it on paint and re-upload here. It will be much easier to describe it that way...


--



Flip over the laptop, remove the battery.
At the front, you'll see two rubber feet on either side. LIFT those, and remove the screws from under there, then just gently pry the front panel up.

It's not MUCH help, but GenTecPC video will help (at 6:40)


By allanvs at 2010-12-05



Thanks Allan. Thanks so much. This solves my dilema. I asked the Costco concierge people if the screws would be underneath the rubber shoes, and they said no. The Asus help desk doesn't even know what a computer is.

I really appreciate you taking the time and showing me.



nimadi - it was no problem, that's what I'm here for - to help others.
I also enjoy (sometimes) watching videos of laptop reviews.

Glad I could help! Merry Christmas!



I understand your frustration, but simply to clarify for others around here - Asus doesn't, and never has, directly provided guidance and/or manuals to end users regarding disassembly of their notebook products. This extends to every level of their tech support and customer service, and is little different from other OEM manufacturers ... if you call Dell or HP up and ask them how to take apart their notebooks for something you want to do to it, they aren't going to offer this information either. This is a liability and warranty issue for all of them.

That said, the information on any given chassis' disassembly can be found online or via sources here @ NBR Asus if you look around.



i also have an asus n53jq....thanks for explaining this... i was wondering if there are any instruction manuals that would show how to replace the Keyboard and the Wireless card... if you do replace the wireless card does that void the warranty/warranties?

thanks in advance

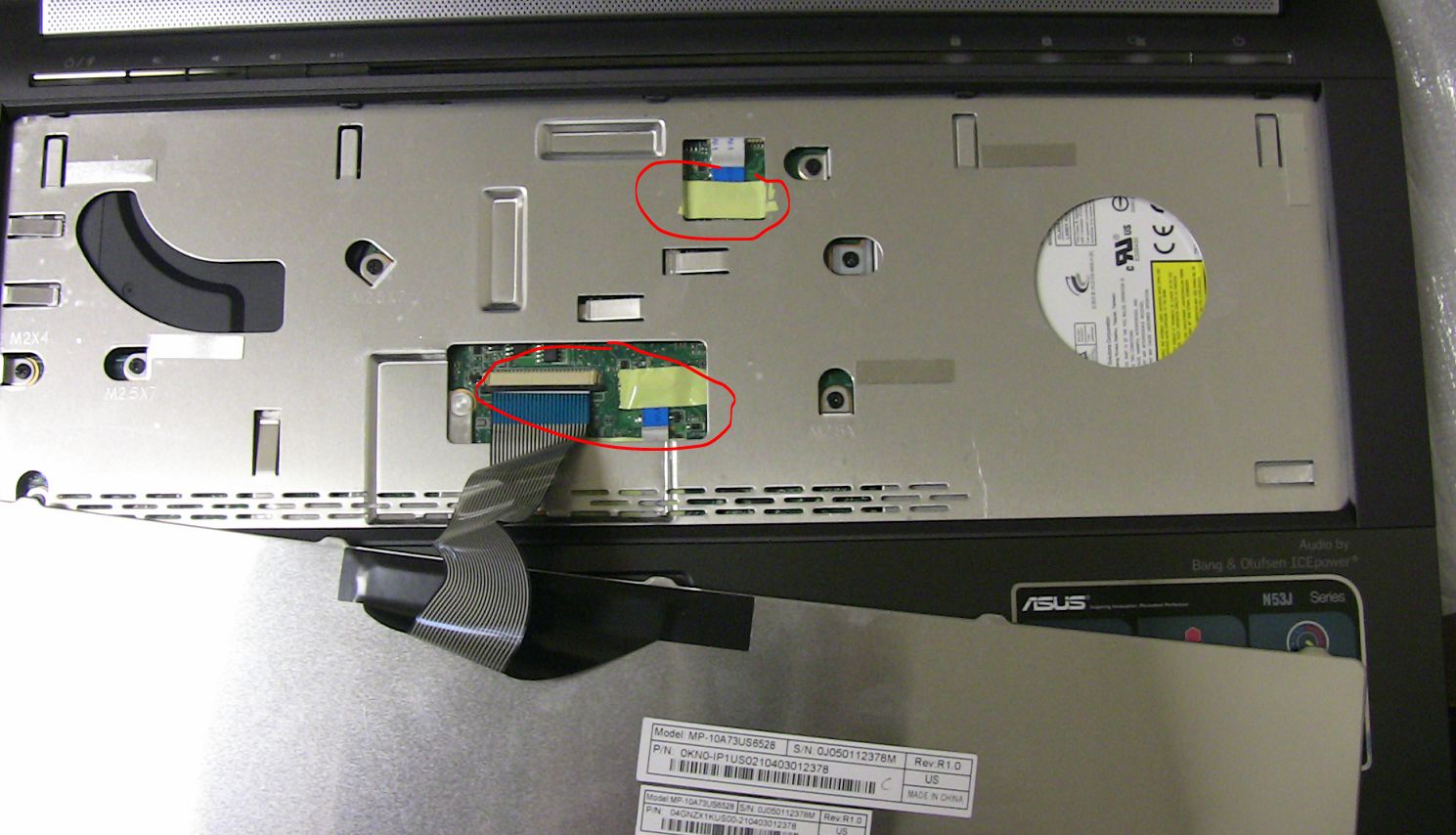

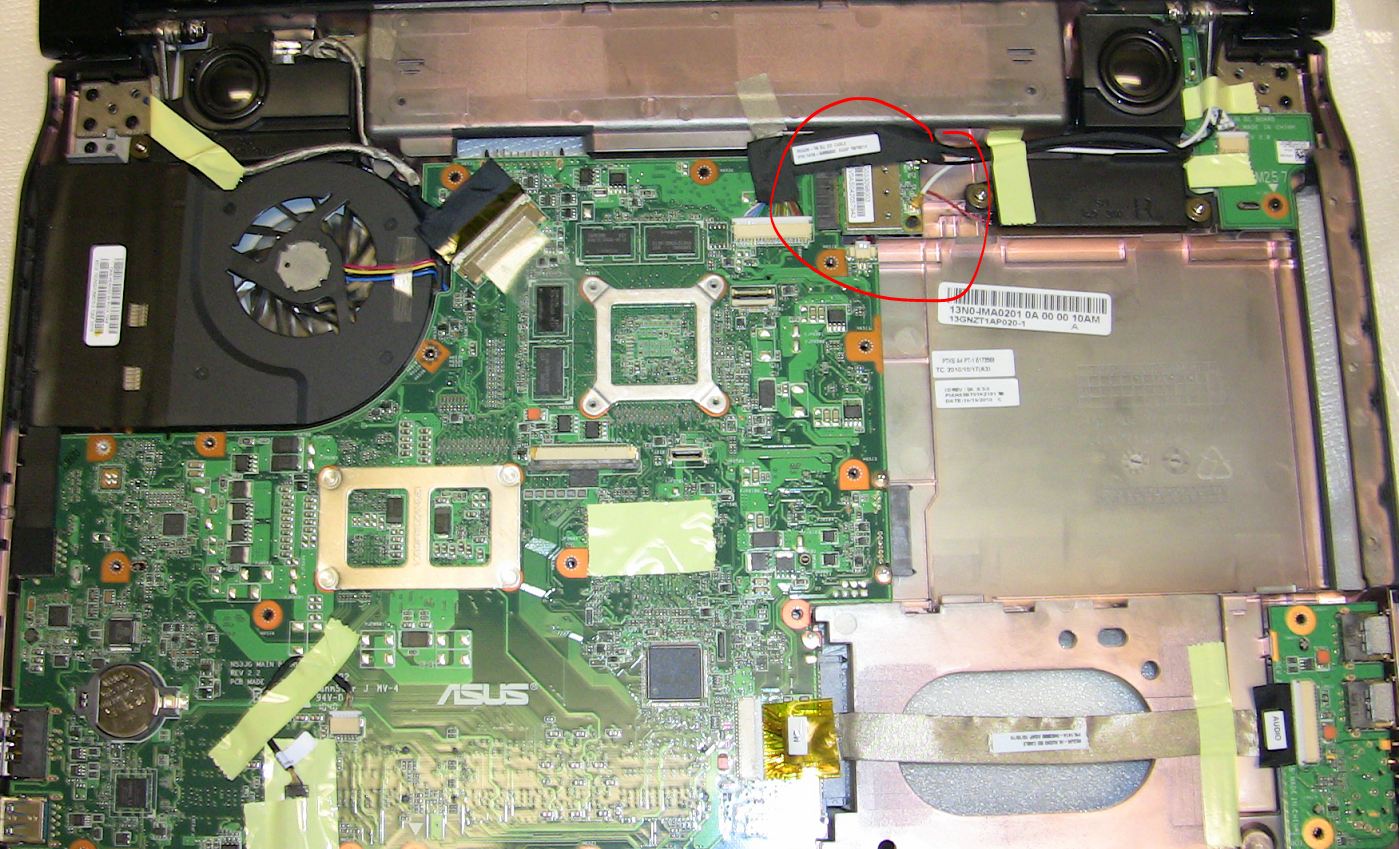

replace KB is easy but not wireless card, to replace wireless card you'll need to remove all screws at the bottom and remove KB and top case:



The only warranty void sticker is on the CPU.



Hello Guys,

Any idea how to disassemble the DVD-ROM drive on Asus N53JQ?

Please help.
Thanks

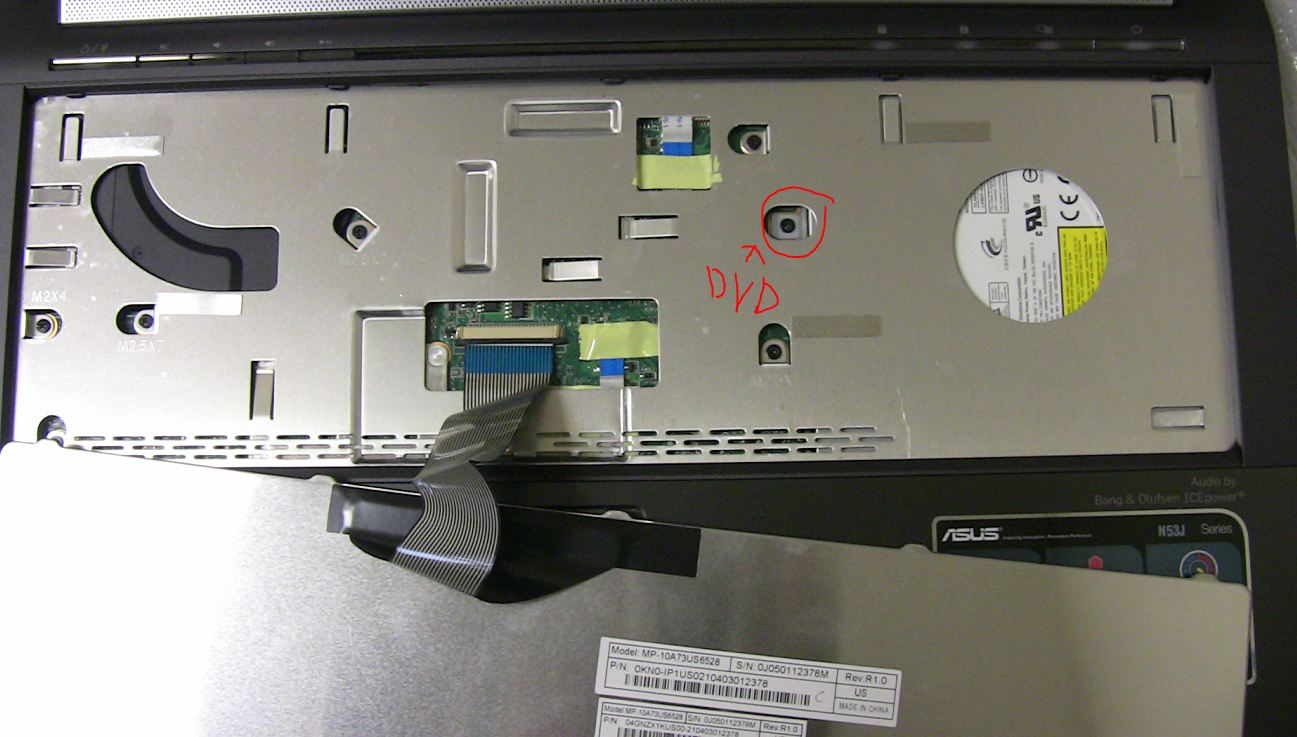

lift the keyboard and there is one screw you need to remove for DVD-ROM:



I would like to replace my DVD-ROM Drive with a DB-ray ROM Drive, anyone knows where i can get a blu-ray rom drive. i cant find any parts for my laptop (N53SV).



Any Blu-ray drive that is 12.7mm/SATA interface like this one:

Amazon.com: LG Super-Multi Slim Blu-ray Combo Drive CT21N - Bulk: Electronics



hello to all, some one knows how to change webcam inside the display pannel?

I have a good webcam taken from an acer and i would like to replace the bad webcam that is inside our n53.

Can u tell me how to do it in the right way?

thanks to all



i have a question which intel wifi dual band cards work with this model.... i see a lot of options... the newest one is the Intel Ultimate N 633ANHMW IEEE 802.11n (draft) Wi-Fi Adapter - Mini PCI Express - 450Mbps...and this one Intel Intel 5300 Ultimate N Wi-Fi Link Wireless Network Adapter - Mini PCI Express how do i know which cards will fit my laptop



It has to be a half height card, the 6300 is, the 5300 isn't if i recall correctly.

Disassembly pics here: http://forum.notebookreview.com/asus/548277-i-love-my-new-n53jf-xe1-but-i-got-bored-disassembly.html

You can see the wireless adapter in the last pic of this post: http://forum.notebookreview.com/asu...sandybridge-owner-thread-156.html#post8203475.



thanks alot for the info... in order to open the case do i have to pull out all of the drives to get to the wifi card???



I do not know for certain since i do not own one, but it does seem like quite the disassembly so i'd venture a yes as a guess. You need to get top panel removed to access the wireless adapter.



Hello,
does anyone know how many bays for hard drive are there available on an N53JQ?
Thanks



Only one .
