    Impossible to remove the KEYBOARD???

    Discussion in 'Asus' started by malteni, Feb 14, 2009.

  1. malteni

    malteni Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hi everyone,
    i'm not an english speakers, but i really need help,,,
    my A4Ga Asus have two keys stucke (they are always pressed),,,
    i've looked everywhere hoping to find a guide (like a service manual), or a forum, or what else??, that teach me how to remove my keyboard,,, but without any results,,
    IS THERE ANYONE THAT WANT TO SAVE ME????


    really thanks,

    Malteni..

    malteni, Feb 14, 2009
    #1
  2. ALLurGroceries

    ALLurGroceries  Vegan Vermin Super Moderator

    Reputations:
    15,730
    Messages:
    7,146
    Likes Received:
    2,343
    Trophy Points:
    331
    I could only find the regular manual for the A4Ga, which is here: http://dlsvr01.asus.com/pub/ASUS/nb/A4L/C1701_A4_HW.pdf

    It doesn't look like it has any info for disassembly. What you need to find out is how to take apart the top of the case, which probably involves a few screws and removing a bezel (piece of plastic). It probably isn't too hard if you're careful.

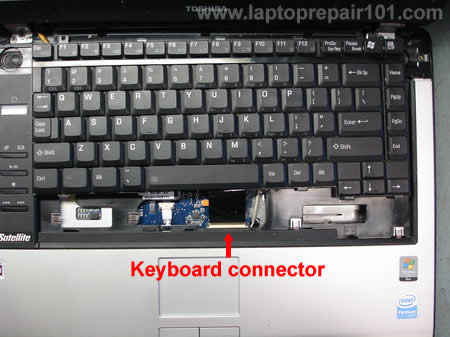

    The keyboard will be connected to the motherboard with a ribbon connector, probably looking something like this:
    [​IMG]

    Hope this helps, good luck.

    ALLurGroceries, Feb 14, 2009
    #2
  3. E.B.E.

    E.B.E. NBR Procrastinator

    Reputations:
    1,572
    Messages:
    8,632
    Likes Received:
    4
    Trophy Points:
    206
    Generic keyboard removal for ASUS.

    Look for "K>" screws on bottom. Unscrew. Turn over, and using a credit card pop the tabs along the top of the keyboard (F1-F12 row) UNDER the keyboard plate. Lift towards your self.

    ...

    PROFIT! (joking, that's a slashot reference :D)

    If you can't find the K> screws or this doesn't work for some reason, post back.

    E.B.E., Feb 15, 2009
    #3
