    New Asus heatpipe in V6va (pics)

    Discussion in 'Asus' started by DaCheese, Oct 25, 2005.

  1. DaCheese

    DaCheese Notebook Consultant NBR Reviewer

    Reputations:
    40
    Messages:
    240
    Likes Received:
    0
    Trophy Points:
    30
    This is stuff a German retailer sent me.

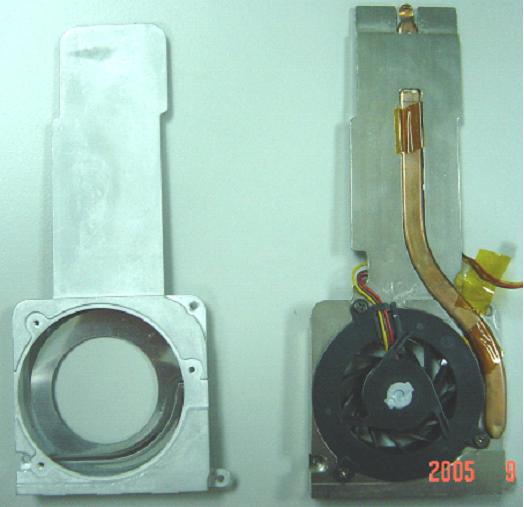

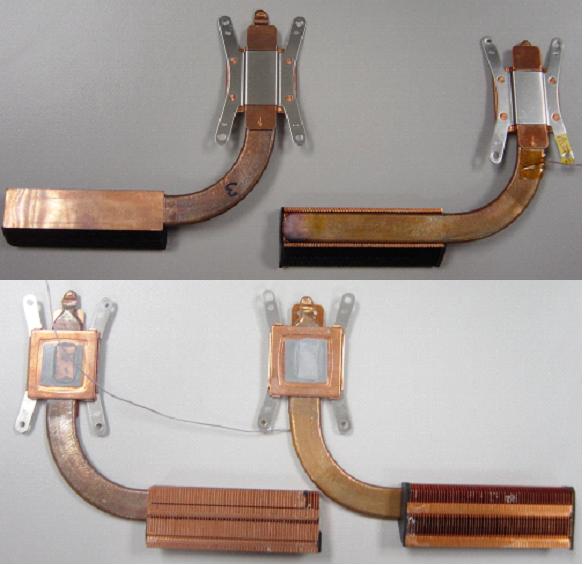

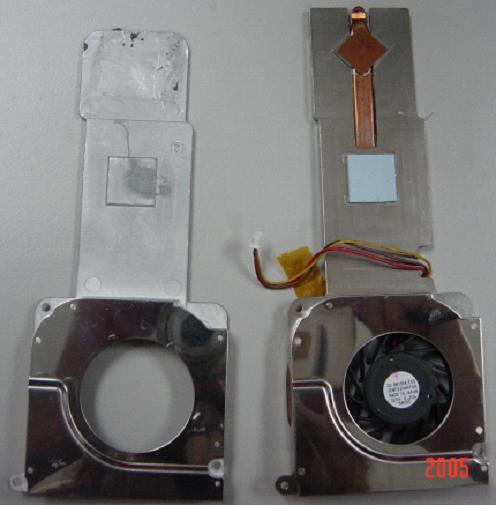

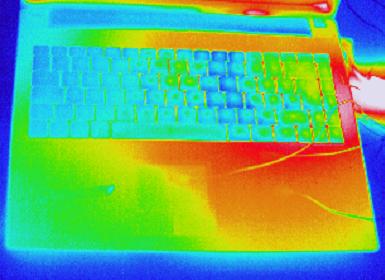

    The first picture shows the old cooling system, the second the new one. The third is their new copper heatpipe and the fourth a thermal picture of heat dissipation in the V6va.

    I didn't take these pictures so I can't comment on them or confirm their authenticity, but I wouldn't know why the retailer should give me wrong information.


    Attached Files:

    DaCheese, Oct 25, 2005
    #1
  2. Dec1mal

    Dec1mal Notebook Consultant

    Reputations:
    0
    Messages:
    212
    Likes Received:
    0
    Trophy Points:
    30
    Wow now that's hot!

    Dec1mal, Oct 26, 2005
    #2
  3. lazybum131

    lazybum131 Notebook Evangelist

    Reputations:
    203
    Messages:
    532
    Likes Received:
    0
    Trophy Points:
    30
    Seems like the new GPU HSF ain't anything special, just that the X600 in the V6v produced little enough heat that it didn't need a real heatsink and a sheet of aluminum could cool it.

    lol, the thermal pic looks as if flames are coming out of the vent at the top right.

    lazybum131, Oct 26, 2005
    #3
  4. AuroraS

    AuroraS Notebook Virtuoso

    Reputations:
    651
    Messages:
    3,497
    Likes Received:
    0
    Trophy Points:
    105
    Yeah...that right palm rest looks HOT!
    Although I guess in reality, when we're actually using it, it shouldn't be too bad...

    AuroraS, Oct 26, 2005
    #4
  5. PROPortable

    PROPortable Company Representative

    Reputations:
    418
    Messages:
    8,782
    Likes Received:
    0
    Trophy Points:
    205
    That's right, that is authentic........ the x700 needed a different cooling method and that heatpipe weights a bit more than the other one...... but it's NEEDED!

    PROPortable, Oct 26, 2005
    #5
