    RAM Question on a W3J

    Discussion in 'Asus' started by A-Lit, Mar 23, 2007.

  1. A-Lit

    A-Lit Notebook Consultant

    Reputations:
    3
    Messages:
    257
    Likes Received:
    0
    Trophy Points:
    30
    Hey all,

    Its possible I'm just burnt out from studying and missing the obvious, but...

    I have 2 X 1GB PC-5300 667 RAM in my W3J, and it's showing up in CPU-Z and PC Wizard 2007 as PC-5300 333.... Any ideas what's going on?

    Any info is greatly appreciated - thanks in advance!

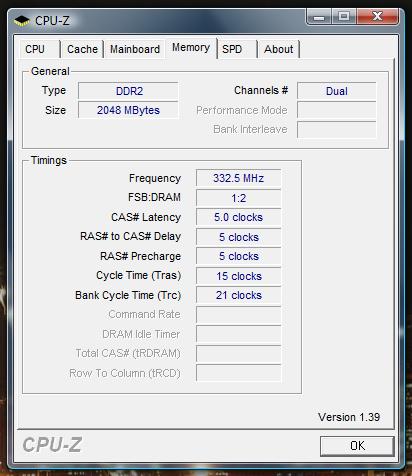

    Here's a CPUZ screenshot.


    Attached Files:

    • CPUZ.jpg
      File size:
      34.8 KB
      Views:
      114
    A-Lit, Mar 23, 2007
    #1
  2. loopty

    loopty Notebook Evangelist

    Reputations:
    74
    Messages:
    527
    Likes Received:
    0
    Trophy Points:
    30
    333Mhz is the base frequency. DDR stands for double data rate, so your effective speed is 667MHz (333.333333333*2).

    loopty, Mar 23, 2007
    #2
  3. MelchiorZ

    MelchiorZ Notebook Consultant

    Reputations:
    1
    Messages:
    137
    Likes Received:
    0
    Trophy Points:
    30
    DDR = Double Data Rate.

    CPU-Z is correct. Do A wiki :)

    MelchiorZ, Mar 23, 2007
    #3
  4. A-Lit

    A-Lit Notebook Consultant

    Reputations:
    3
    Messages:
    257
    Likes Received:
    0
    Trophy Points:
    30
    DOH! Haha, figured i was missing something stupid :eek: :eek2:

    A-Lit, Mar 23, 2007
    #4
  5. vespoli

    vespoli 402 NBR Reviewer

    Reputations:
    1,134
    Messages:
    3,401
    Likes Received:
    0
    Trophy Points:
    105
    Actually to get specific :D, DDR is double data rate--ddr333 is 2x 166sdram. Then 2x DDR is 666 MHz, thus DDR 2, or twice ddr.

    ;)

    Last edited by a moderator: Jan 29, 2015
    vespoli, Mar 23, 2007
    #5
  6. adinu

    adinu I pwn teh n00bs.

    Reputations:
    489
    Messages:
    2,842
    Likes Received:
    0
    Trophy Points:
    55
    ddr2 is not twice of ddr, it's just higher speeds, different voltage and pin layout.

    adinu, Mar 23, 2007
    #6
