    UL20A UL30A Internal Bluetooth

    Discussion in 'Asus' started by nyc11370, Apr 6, 2010.

  1. nyc11370

    nyc11370 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    US retail version of UL20 don't have Internal Bluetooth. Does anyone has instruction on installing it. You insight is appreciated.

    nyc11370, Apr 6, 2010
    #1
  2. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206

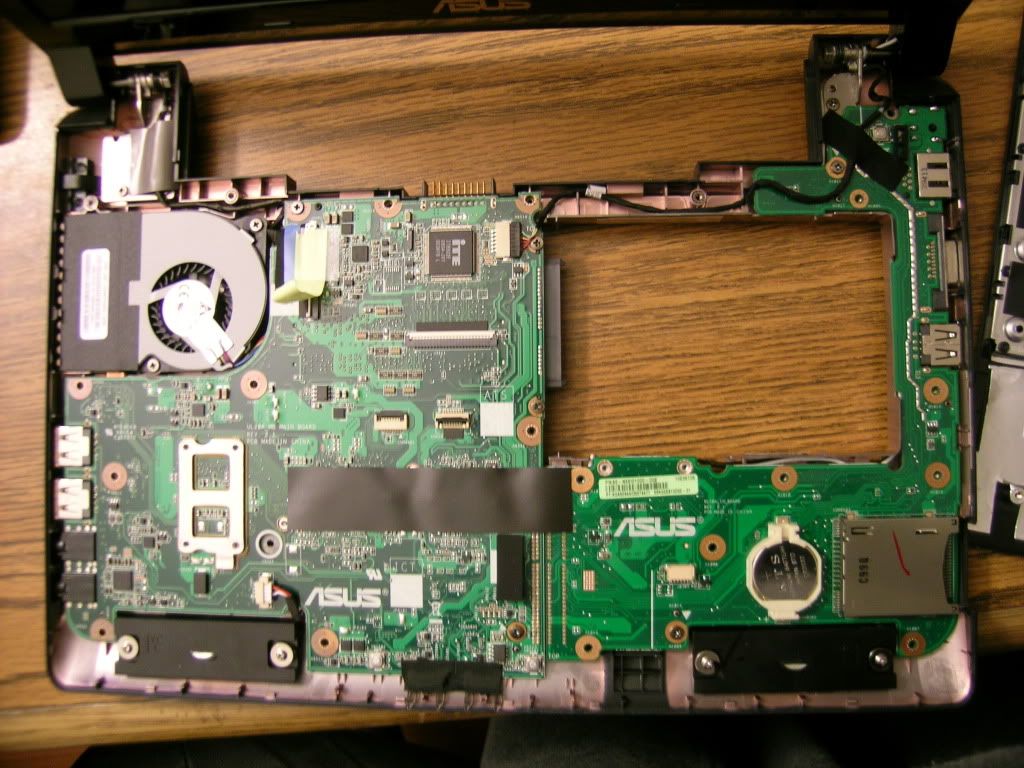

    The motherboard layout is slightly different between the UL20 and UL30 laptops. In the UL30, there's a BT connector on the motherboard next to the left speaker. However, this isn't seen on the UL20. From THIS image of the UL20 motherboard, there's a connector to the left of the BIOS battery that looks similar to a BT connector, though I'm not certain. If that is indeed for a BT, you'll need a BT module and the cable which can be purchased from the Asus estore.

    Another alternative for using BT is simply purchase a BT USB dongle for less than $2. They're much easier to install and a lot cheaper too. See link:
    http://www.dealextreme.com/details.dx/sku.11866

    David, Apr 7, 2010
    #2
