Upgrading ram question on Eee PC

1. If my Asus Eee PC 1002HA supports PC2-5300 DDR2 533Mhz or 667Mhz ram, would it be able to plug and play with PC2-6400 DDR3 800Mhz ram?

2. I tried to put my Dell XPS M1530 2GB ram (DDR2 PC-5300 667Mhz) on the Eee PC and it won't boot up. I pressed the power button, but nothing happens...black screen. Any ideas?

Thanks in advance.



Yea it's 667MHz PC2-5300. You could put faster RAM in it and it would run at 667 MHz, just not DDR3, only DDR2.

For the Dell RAM not working I'm fairly certain you can only put 1GB sticks in.



I am confused, CPU-Z says Max Bandwidth = PC2-5300 (333Mhz) on my Eee PC. From what I heard, that 333Mhz x 2 is 667Mhz.

On another note, my XPS M1530 says the same thing in CPU-Z. So is it 667Mhz?

RAM is so darn confusing.



You should be good with two 1GB PC2-5300 sticks.



@ ALLurGroceries, thanks for the help so far. I really appreciate it. This is odd, there's only one slot available. I hope I am not stuck with 1GB ram.



EDIT:

A similar thread: http://forum.eeeuser.com/viewtopic.php?id=56676

Looks like 2GB is possible, but how?



Don't know how many slots the 100x EEEs have, but if they have two, one of them may be under the keyboard.



There is only 1 slot.
you may just have ram that isn't compatible with the 1000HA.
Buffalo ram (DDR2 667 or 800 works fine) 2GB modules work perfectly fine.
Corsair also works well
you may want to update the BIOS too if it is not up to date.



This is correct. My 901 has OCZ DDR2-800, but it downclocks to 533mhz (fastest speed GMA 945 can handle). When the Atom is refreshed in the fall, it will be able to use DDR2 ram at 667mhz.



Not quite correct. The chipset can handle running the ram at DDR2-667 speeds. Memory is run at a FSB:memory ratio of 2:5 on the 1000HA (should be the same for the 901 but I am not 100% sure).

(133/2) * 5 = 333mhz.



It could be incompatible ram as someone else mentioned, but make sure the ram is properly seated in its slot. The same "nothing happens" can occur when the ram isn't seated properly.



So much misinformation in this thread...

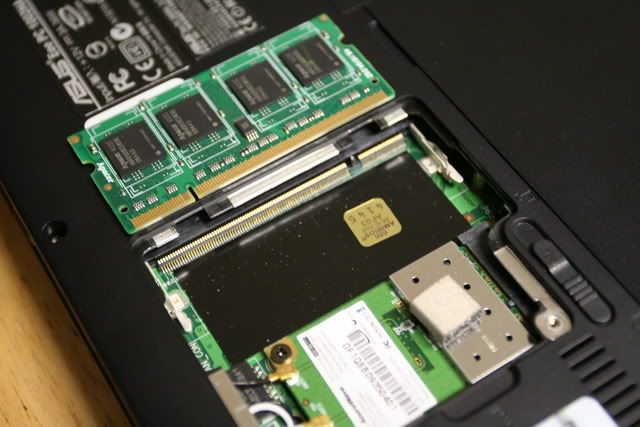

The EEE's have 1 slot. It is DDR2 ram (DDR3 ram is not the same, it uses different connections and hardware to run it)

It runs at DDR2 667max. If you place faster ram in there it will be clocked down (eg: DDR2 800mhz will run at 667)

If you put slower ram in there, it will run slower, and I do not recommend it.

If the ram did not work from your other laptop, it was not installed well or it was simply incompatible. Not all ram is the same on the inside (the IC's) also keep in mind when upgrading from 1GB of ram to 2GB of ram the number 1 thing most people forget to do is press F2 to go into your bios to re initiate the hardware and get it to notice 2gb of ram is installed. So enter the bios and save & exit.

If you skip that step you will still see only 1gb of ram in your OS even after you upgraded it to 2gb.



@ ViciousXUSMC, thanks! You summed it up all in a nutshell.

Thanks everyone. I have upgraded my bios version 205 to the latest version 403. I'll just wait until my Kingston DDR2 PC-5300 667Mhz ram arrive to install it on my Eee PC machine.



The Dell RAM is probably the wrong density.. good luck.. Thanks for clearing it up Vicious I knew I didn't have it quite right



if anyone could of helped you vicious was the one
