    W3J wont display 1920x1200 on external monitor

    Discussion in 'Asus' started by Nightrider35, Aug 23, 2007.

  1. Nightrider35

    Nightrider35 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    I am using a VGA cable to connect my laptop to a ultra sharp 2407-HC and my computer is set to 1920x1200 but the monitor says im at 1600x1200, and has 1920x1200 image at a 1600x1200 resolution (have to scroll to see whole image). Its a ASUS W3J+ and its fairly new and the video card is a ATI x1600. Any suggestion to make display the full 1920x1600 with out the side bars.

    Nightrider35, Aug 23, 2007
    #1
  2. DTX

    DTX Notebook Evangelist

    Reputations:
    105
    Messages:
    426
    Likes Received:
    0
    Trophy Points:
    30
    Have you set it up correctly? That is, do you have the latest drivers, and are you congifuring the properties correctly? I have hooked my W3J to 2407 without any problems... displays the whole thing!

    DTX, Aug 23, 2007
    #2
  3. Nightrider35

    Nightrider35 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5

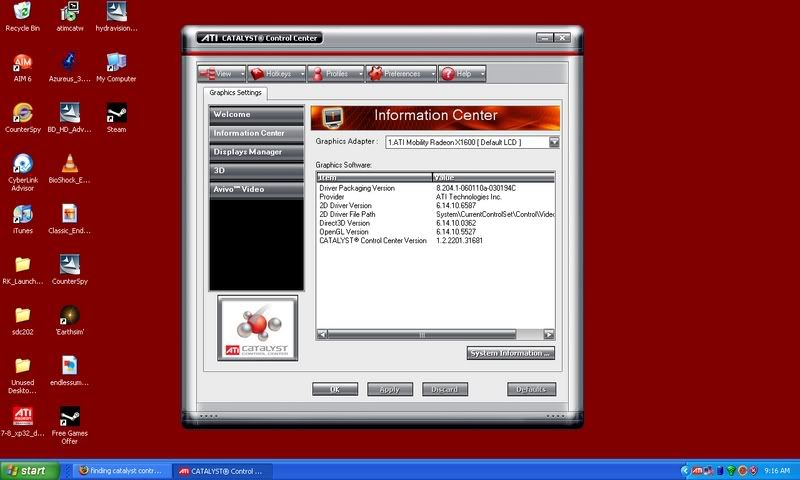

    I think it might be a driver issue. I'm not sure what driver version I have. Here is a picture of the info it gives me in catalyst control. [​IMG]

    Nightrider35, Aug 23, 2007
    #3
  4. Theros123

    Theros123 Web Designer & Developer

    Reputations:
    116
    Messages:
    1,589
    Likes Received:
    0
    Trophy Points:
    55
    wtf, the W3J can go up to that high?!?!

    Theros123, Aug 23, 2007
    #4
  5. sharpsees

    sharpsees Notebook Consultant

    Reputations:
    14
    Messages:
    193
    Likes Received:
    0
    Trophy Points:
    30
    no.. external monitor he said..

    sharpsees, Aug 23, 2007
    #5
  6. NZwaverider

    NZwaverider Notebook Deity

    Reputations:
    94
    Messages:
    861
    Likes Received:
    0
    Trophy Points:
    30
    I have the ATI Omaga drivers and the max resolution goes up to 2560x1600 I have also hooked up to a 61'' NEC plasma display, it was actually the NEC display that could not handle a resolution over 1600x1200.

    From the sounds of things it may be a limitation of your screen, its like you can set the screen res on the W3J higher than 1280x768 but it creates a virtual screen larger than the physical extents of your monitor, that you have to scroll accross to read areas behind not visible on the screen.

    I would check the max res that your screen would accept, it sounds liek yours is doing the same.

    NZwaverider, Aug 23, 2007
    #6
  7. Nightrider35

    Nightrider35 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    the 2407-hc can handle a resolution of 1920x1200 and my laptop lcd can go up to 1920x1200 but you have to scroll around. Is there a way to be able to display the full 1920x1200 with out being stuck in 1600x1200 on my external monitor, Because I set my laptop lcd to 1600x1200 and I still have to scroll around to see everything. How would 1920x1200 be any different?

    Nightrider35, Aug 23, 2007
    #7
