Who made the lcd of your asus notebook?

Hi,

I have a Z70Va that I bought about a year ago and no matter what program I use I get the MS_0000 for my display. Anyone know why that might be? Thanks.

Dave



have you tried Everest home edition?



i have the W2JC and it says its a LPL0000, bought in august and this appears different to the W2JB



W2P

LG Philips LP171WU1 17.1"

Resolution 1920x1200 (WUXGA)
Aspect Ratio 16:10
Number of Colors 262K (6 bit)
Brightness (nit) 260
Contrast Ratio 700:1
Viewing Angle (°,H / V)
Response Time (ms) 140/120
Interface LVDS 2 port
Outline Dimension (mm) 382.7 x 245.0
Thickness (mm) (typ.) 6.3
Thickness (mm) (max.) 6.6
Power Consumption (W) 6.9
Weight (g) 690



Goren,

Yes, I tried Everest Home edition and I tried the other program mentioned in this thread. So, I don't know. I heard that it was supposed to be a Samsung. Anyway, thanks for the help.

Dave



I'd like to contribute and i've downloaded Everest home edition but i dont know where i can get the data (whenever i select plug and play monitor, it gets me to display properties)



display/monitor



hehe i get

" Monitor Plug and Play Monitor "

Thats MS000 for ya. But to confirm what you figured about the 15 inch ips screens from sager.. i have a terrible "response" time such that any panning/scrolling shots from animated movies are blurry Plus, it's not much brighter than a friend's clevo 5720 (very nice screen too).

O well.. at least i have decent viewing angels.



jwb-VT,

More details please (LG)! Light leakage, brightness, color accuracy, invertor(??).

Joe Martin



JM,

Sorry it's taken me so long to get back to this....

The LG-Philips Panel that I installed is MUCH better in all the areas that you are concerned about. This is of course in comparison to the terrible AUO panel that I removed.

Light Leakage: Light Leakage is uniform (unlike the AUO) and due to the somewhat low contrast ratio (300:1 I believe) but still quite acceptable.

Brightness: The LG-P panel is slightly brighter than the AUO. The much improved, though still not perfect viewing angles make this much less of a factor. The 'sweet spot' is much larger than the AUO's.

Color Accuracy: Also much better than the AUO. This is in part due to the much less aggressive glare filter (polarizer) applied to the LG-P panel. The wider, though again not perfect viewing angles help this area as well.

Inverter: The LG-P panel has an inverter clip w/inverter tack welded to the bottom of the LCD frame. This inverter and clip needs to be removed for the panel to fit into the A8JS screen cover. (Once removed the panel is a perfect fit.) It's a simple though fairly delicate job which of course voids the waranty on the LG-P Panel. The A8JS stock inverter runs the LG-P panel perfectly.

Please feel free to send me a private message and I'll be glad to offer as much detail as you need!

JWB-VT



A8Js: first generation, purchased early November (Canada)

Screen: AUO1247

Opinion: would *LOVE* to replace this screen on a warranty/RMA.



Has anyone had their screen replaced by Asus? Specifically someone with a AUO screen. I have the AUO on my A8Js and I'm not happy with it. I have finally found somewhat of a "sweet spot" for viewing the screen (angle and distance away) but it's not very comfortable. I would like to have it replaced with the CMO but I don't want to go through all the hassle of sending it in and being without the computer only to get it back with another slightly less crappy AUO than I have now.



Just wanted to add that I own a z70va and I also have a MS_0000 screen.

But this screen is the single best laptop screen I have ever dealt with. After using notebooks made by Sony, Dell, HP, and Asus, This screen is far and above any other I've ever seen. I love it. I have absolutely no leakage at any point, whites are very clear, and blacks are very dark. Everything looks crisp and sharp, and it has excellent viewing angles, especially vertically, I can move my screen till it's almost 180 degrees and I can still see what I'm typing.There are some small things I don't like about the z70va, but the screen is definitely not one of them.



Z84j . LG philips screen. No wonder the color looks so accurate and view angles are great too. Only very small light leakage on the right corner of the screen.

I compare z84 with toshiba sattellite, the one on toshiba is much more brighter.. and white is white. Black is black. No wonder movies looks so true on this toshiba. The one on Asus is a little bit disappointed . It looks like toshiba''s screen is 250nits and Asus is 200nits bright. (just a guess).



I purchased a A8JS-4S036C from Surcouf ( www.surcouf.com) in France.

Monitor ID: CMO1416
Manufacturer: N141C1-L02

The screen seems very "grainy" to my eyes, probably because of the antireflective and glossy coating.

What is your opinion? Do you find it "grainy" too?



My G1 has a CMO1523, verified by both the device manager and Everest. Everest also give a manufacturer ID of N154Z1-L02, although this looks more like a model number to me. Also, Everest reports the manufactured date as 1990, which I'm inclined to disbelieve .



W7J-3P102C-A



Monitor Name Generic PnP Monitor [NoDB]
Monitor ID APP9C5C
Manufacturer B133EW01 V0
Model Color LCD
Manufacture Date Week 13 / 2006
Serial Number None
Max. Visible Display Size 29 cm x 18 cm (13.4")
Picture Aspect Ratio 5:3
Gamma 2.20
DPMS Mode Support None

According to this site, http://realvana.exblog.jp/3189341/, I've got a LCD made by Apple that is used for their macbooks.



I have the same numbers, is this your actual V6VA + IPS model numbers under device manager? Everest retrieve nothing more than MS_0000, I have to uninstall Omega drivers to get the display information.



F3Jp
DISPLAY\AUO2174\



Mine says Generic PnP Monitor



^^^ this better have been a joke..if not:
read the original post once again (perhaps more carefully)



To contribute:

F3Sv B1 - CMO 1523. picture perfect it is.



im using cmo



choose the "Device Instance Path" under Details Property

this is my

DISPLAY\CMO1541\5&14F9283$0$UID272



z63a

AUO



f3sc
SEC -> Samsung



W7S

Chi Mei Optoelectronics N133I1-L01



F8Sa

AUO


.



Auo 2277.

Ouch.



C90s:

Cmo1523



CMO1523

Same here on my C90s



Monitor\sec3346



A8Js

AOU B141PW01



Anyone with the MS_0000 screen ever take their laptop apart and find out the name of the manufacturer? Is it always an off-brand screen or can it be a well-known manufacturer?



F8Sn

CMO1425



Hi, I have an F8 that I would like to replace with the LG-Philips LP141WP. The F8 is virtually identical to your A8JS, however when I pulled the old CMO panel out and placed the new one, the screen colours were all dark and distorted. My F8SN originally had the 1280x768 WSXGA screen, do you know if the cable has to be upgraded as well? On the cable on my F8Sn, it says LVDS Cable 30P. Any ideas?



F8Va-C1

CMO1431



It sounds like you forgot to attach the screen inverter.



Nope, the backlight works fine. I can adjust the brightness levels etc. It's actually the picture, the screen flickers and some colors are wrong. However the connector at the back is perfect and identical to the other connector on the CMO panel. I'm wondering if it's the cable? Doesn't seem right to me...



What I do know is that when I replaced my M6BNe coax cable, I saw they have different versions of the coax cable on the eStore for each and every different LCD manufacturer for the M6 (there are many types of M6 LCD). So it's quite possible that the cable has to be matched with the LCD. That being said, I have no idea where you could get a cable for an LCD which is not supported by ASUS for that model, or even how to find out what type of cable you need...



Well the A8 is pretty much the same, so I think the A8 cable may work? jwb-TX and a few other members on here got an LG-Philips panel working on their A8Js. Or perhaps the F8Sn-c1 with the 1440x900 res panel cable would work? Of course this is all speculations, not sure either, I called ASUS and waiting for someone to get back to me.

Weird part about this is that when the LG-Philips Panel is connected NVidia Display Control identifies the LCD screen resolution correctly as well as the Driver Hardware ID labels it as a LPXXXX. So I don't know why it's all screwy like this.

But all this said and done, it could be the panel itself that is faulty. But there is no other way I can test it.



Ordering a cable is certainly an easy and cheap way to check Just make sure that the connector on the MB is the same, if you plan to order a cable for a different type of notebook.



Chungwa Picture Tubes
CPT1465



Auo8174



F3F
auo1974, 200 nits.



G50V AS020K

LCD: Chi Mei N154Z1-L02 [15.4" LCD]



CMO1523 on my G50V-A1.

Looks excellent but a bit reddish. Don't know if it's normal on LCD displays or if I'm just used to look at CRT monitors. This is my first LCD display.



My Asus M50VM-B2 hardware ID lists my screen as MONITOR\AUO1B7B, so I guess that means my screen is a AU Optronics (which looks magnificent BTW).



Hi there. I checked my screen and I have:

AUO2277

I have problems with it though. I think I have a bad LCD. It looks washed out and the screen bleed down the bottom is very noticeable. Here are some photo's, give me your opinion:

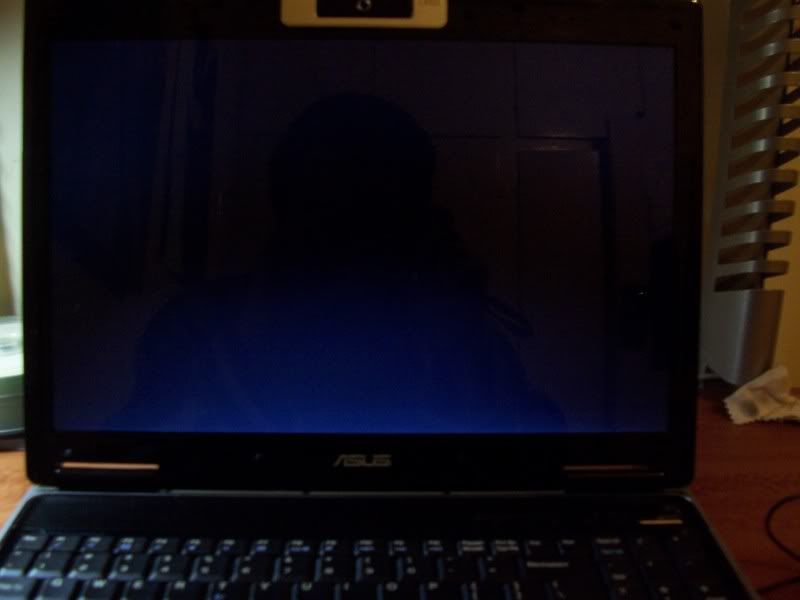

Completely black screen.

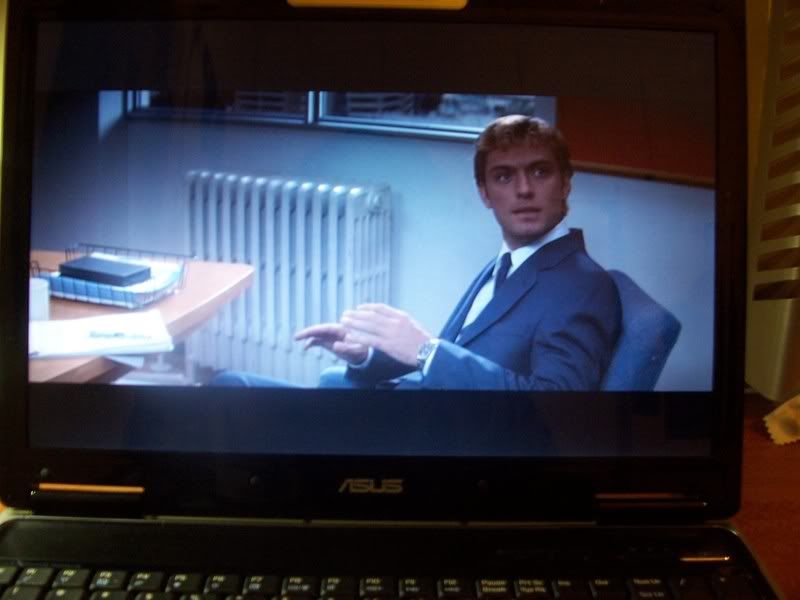

Watching a DVD

I contacted Asus. My message was:

Hello there.

I was hoping you would be able to help me. I love my new laptop, but I have a persistent problem I need addressed. I have an issue with my LCD screen. It is a 15.4" WXGA+. The most significant issue is the back light bleed down the bottom of the screen and decreased viewing angle. The colours look washed-out and pale, and it appears slightly grainy. It very noticeable during movie playback, game playback etc. I noticed this upon buying but wasn't sure it was actually an issue. After trying to watch films and gaming though I'm very concerned as it distracted significantly and detracted from my experience. Also, I've been scouting PC stores to see what their screens compare like, and I'm positive that my monitor is faulty. I thought maybe it was the settings, but I altered these and the issues are still very visible. Furthermore, no damage has befallen my notebook. I'm very, very careful with it. I checked the device manager and my monitor is listed as MONITOR\AUO2277. I have some photo's I have taken for proof of the problem, but there is no option to attach them. In future correspondence I will be able to attach these through my email. I would like to have the monitor replaced if possible. The outlined functions (movies, games) it affects are what I primarily use the laptop for. The problem hampered my viewing and I've resigned myself to no gaming as I can't
see in darker areas. It is not what I paid for. If you could help me that would be very much appreciated.

Yours Sincerely, James Sxxxxx

The reply I got was less than satisfactory. I received:

Good Morning

Please be advised it is unfortunate but there is nothing wrong with the monitor attached to your notebook.

Here is the new panel that is in the machine

V-Cut LCD Technology for better viewing
With the use of V-Cut Technology in its LCD panels, the M51 improves quality of viewing. The V-Cut technology increases luminance by 30%, as well as reduces the weight of the panel and also improving on power saving. In combination with ASUS Colour shine glare-type and Crystal shine high brightness, helps to present images in their true vibrant colours

Thank you

I'm very annoyed at this. Can anybody help me? What should the next step be? I wish I had an Asus Repair Center in my state so I could show them. I problem is really irritating and not worth the money I paid.
