    asus z71v monitor problems...

    Discussion in 'Asus' started by antok86, Mar 31, 2009.

  1. antok86

    antok86 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5

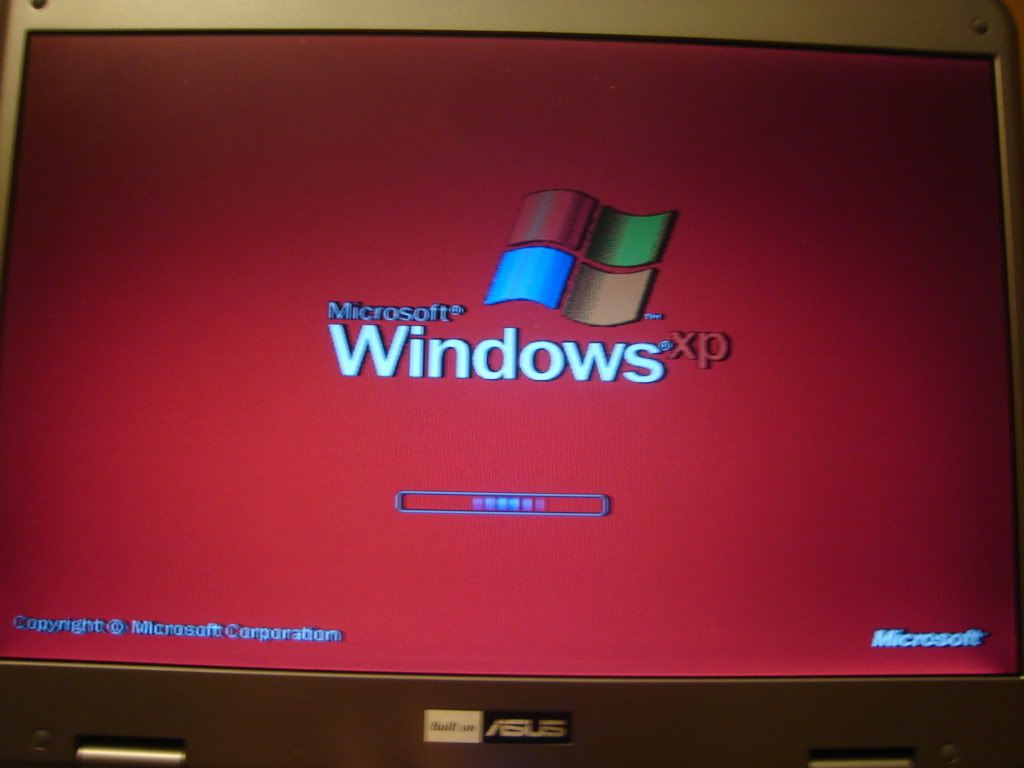

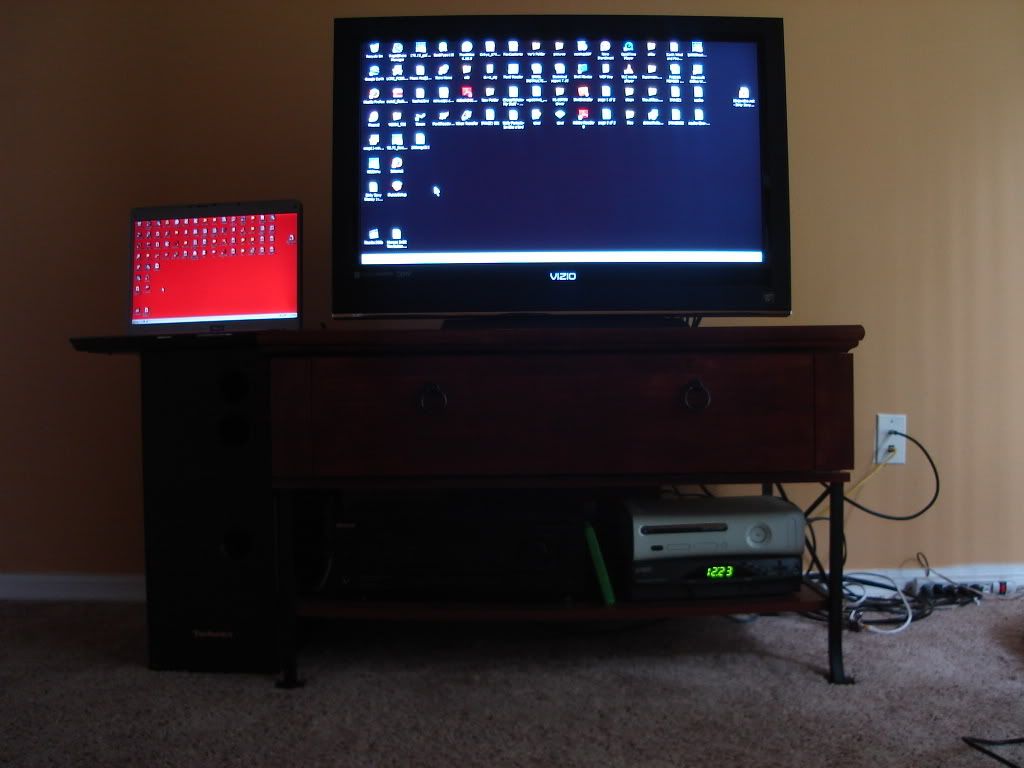

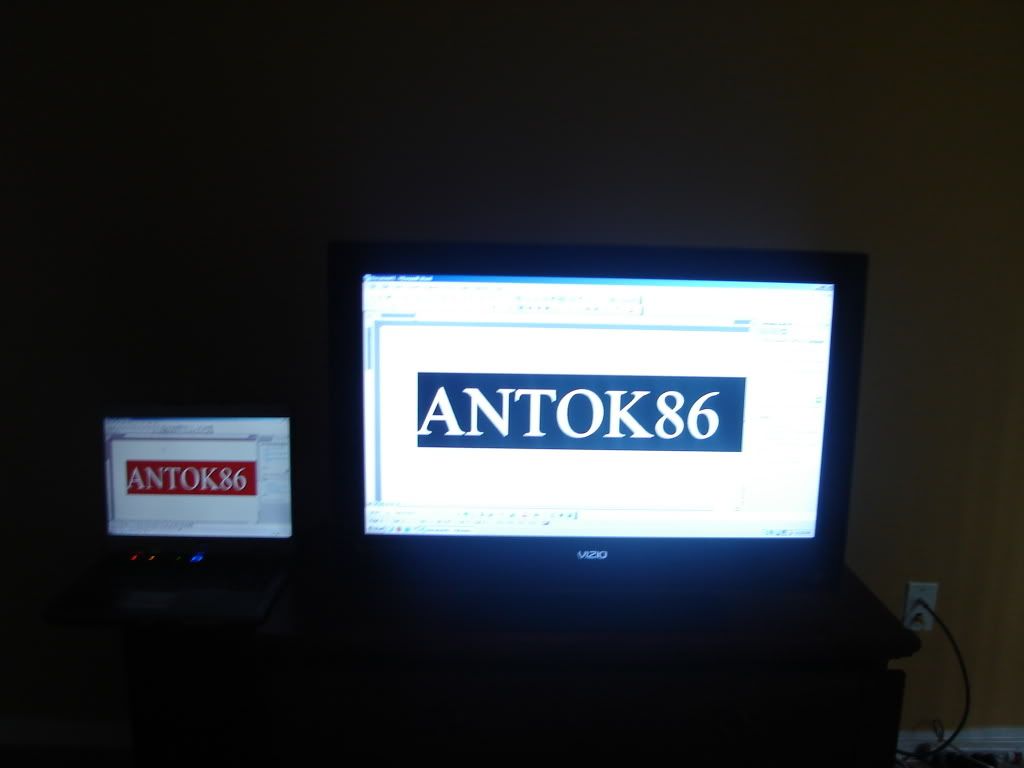

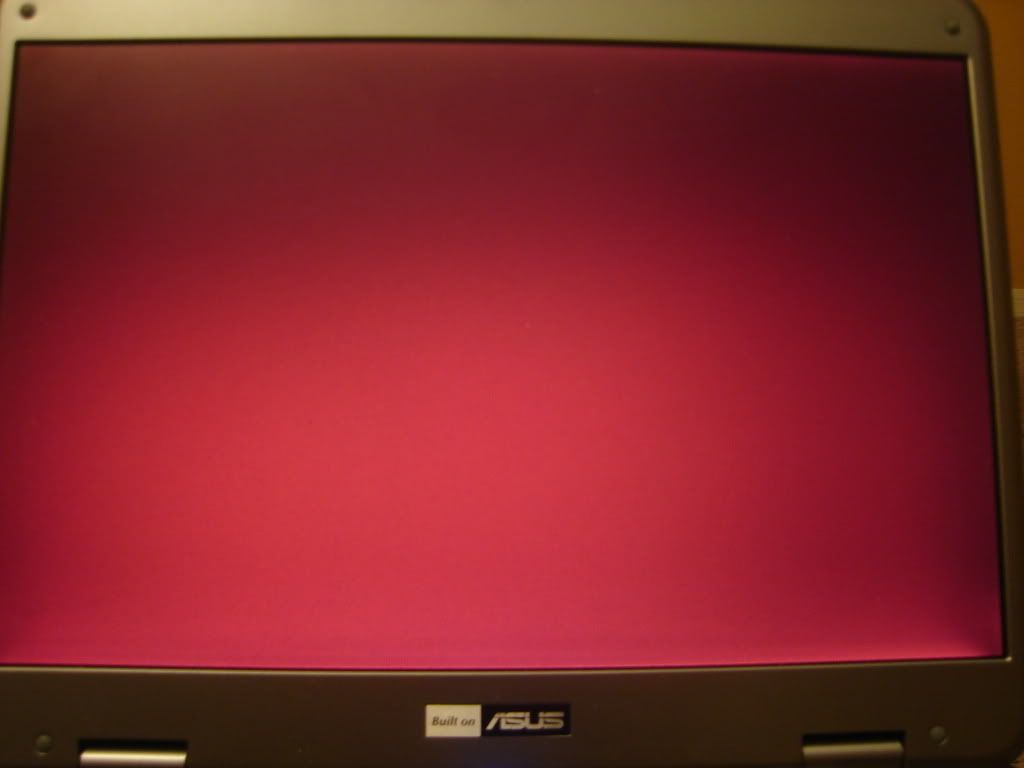

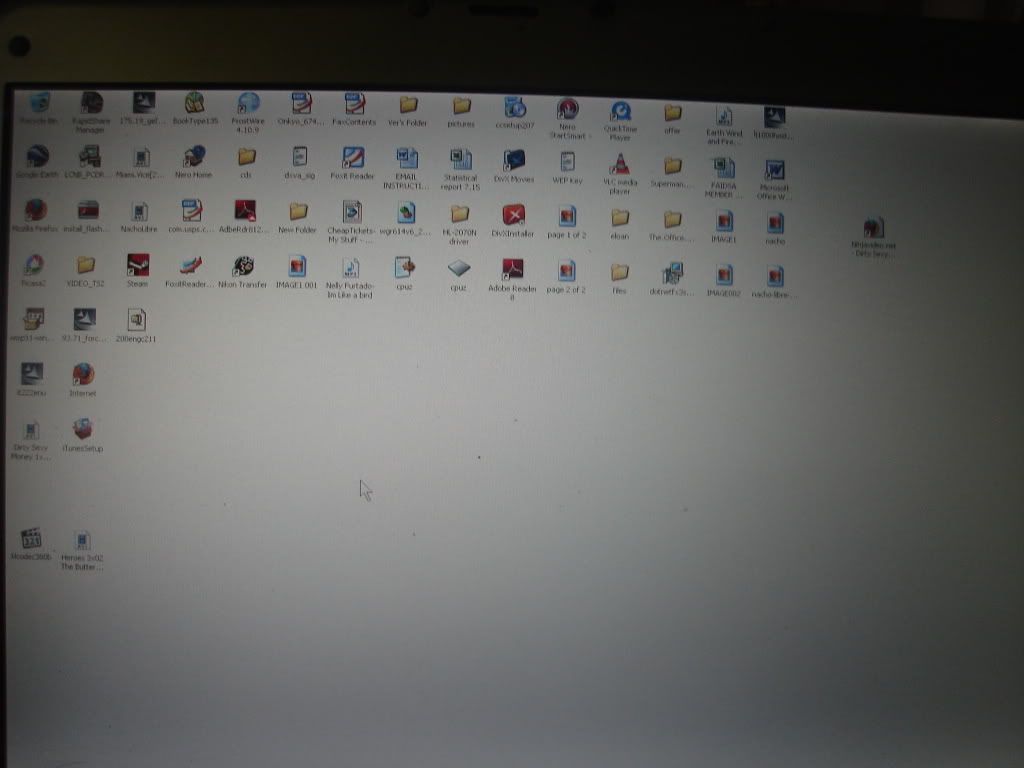

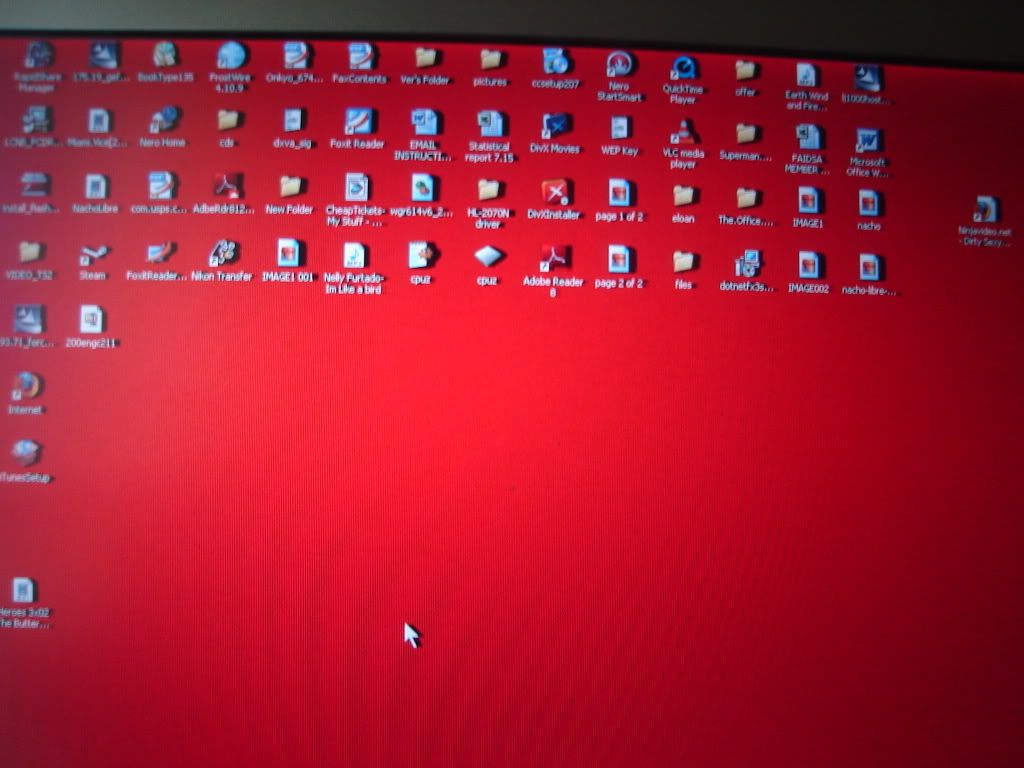

    has anybody ever experiience this? trying to sell it but if i can fix it maybe i can get a better/quicker sale out of it being fixed. i dont think its a video card since when its hooked up to my lcd tv the colors are fine

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    antok86, Mar 31, 2009
    #1
  2. Geared2play.com

    Geared2play.com Company Representative

    Reputations:
    691
    Messages:
    4,770
    Likes Received:
    0
    Trophy Points:
    105
    As far as i remember that is a dying / dead vga card. One way to tell is to run 3d mark. it will either fail or artifact througout

    Geared2play.com, Mar 31, 2009
    #2
  3. antok86

    antok86 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    how come its not affected when hooked up in an external monitor?

    antok86, Mar 31, 2009
    #3
  4. Geared2play.com

    Geared2play.com Company Representative

    Reputations:
    691
    Messages:
    4,770
    Likes Received:
    0
    Trophy Points:
    105
    it actually should be
    can you try reseating the lcd data ribbon and inverter?

    Geared2play.com, Mar 31, 2009
    #4
  5. Geared2play.com

    Geared2play.com Company Representative

    Reputations:
    691
    Messages:
    4,770
    Likes Received:
    0
    Trophy Points:
    105
    are there any other artifacts besides the red?

    Geared2play.com, Mar 31, 2009
    #5
  6. antok86

    antok86 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    no just red..and it affects black

    antok86, Mar 31, 2009
    #6
  7. Geared2play.com

    Geared2play.com Company Representative

    Reputations:
    691
    Messages:
    4,770
    Likes Received:
    0
    Trophy Points:
    105
    Ah sorry i missed that. well that is good. these things have an inherent ability to fry the vga card. main problem is the thermal pads dry up and need to be replaced. you have to replace for .5mm pads not arctic silver paste.

    Geared2play.com, Mar 31, 2009
    #7
  8. antok86

    antok86 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    also its not like artifacting..its just like the colors are replaced

    antok86, Mar 31, 2009
    #8
  9. Geared2play.com

    Geared2play.com Company Representative

    Reputations:
    691
    Messages:
    4,770
    Likes Received:
    0
    Trophy Points:
    105
    try reseating the data ribbon on both ends. also try reseating the inverter. inverter should not cause the issue here but do it anyways just in case.

    Geared2play.com, Mar 31, 2009
    #9
  10. antok86

    antok86 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    i would think paste is better

    antok86, Mar 31, 2009
