    667FSB to 800FSB pinmod for M1330/M1530

    Discussion in 'Dell XPS and Studio XPS' started by ghost_recon88, Jan 15, 2010.

  1. ghost_recon88

    ghost_recon88 Notebook Geek

    Reputations:
    0
    Messages:
    96
    Likes Received:
    2
    Trophy Points:
    16
    Does anyone know if a pinmod exists to force a 667MHz FSB CPU to run at 800MHz? The chipset supports both 667/800MHz FSB CPUs so I would think it's possible.

    ghost_recon88, Jan 15, 2010
    #1
  2. Commander Wolf

    Commander Wolf can i haz broadwell?

    Reputations:
    2,962
    Messages:
    8,231
    Likes Received:
    63
    Trophy Points:
    216
    Commander Wolf, Jan 15, 2010
    #2
  3. Unreasnbl

    Unreasnbl Notebook Guru

    Reputations:
    9
    Messages:
    56
    Likes Received:
    0
    Trophy Points:
    15
    That page says that the FSB pin mod probably will not work with the Intel chipset.

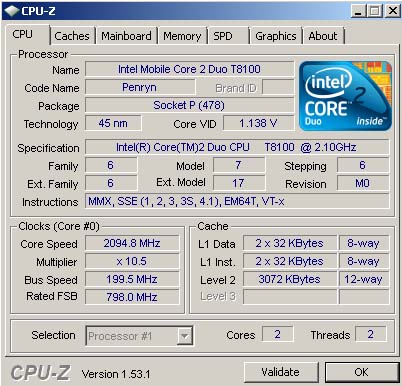

    Perhaps I am confused, but it looks to me like my M1530 already runs the FSB at 800 Mhz.


    Attached Files:

    Unreasnbl, Jan 15, 2010
    #3
  4. SomeFormOFhuman

    SomeFormOFhuman has the dumbest username.

    Reputations:
    1,037
    Messages:
    1,012
    Likes Received:
    0
    Trophy Points:
    55
    Unreasnbl, you have a 2.1GHz T8100 processor, which already has a rated FSB @ 800Mhz.

    SomeFormOFhuman, Jan 15, 2010
    #4
  5. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    moral hazard, Jan 15, 2010
    #5
  6. Unreasnbl

    Unreasnbl Notebook Guru

    Reputations:
    9
    Messages:
    56
    Likes Received:
    0
    Trophy Points:
    15
    Do you mean this one?

    Fiddly work indeed! I don't know if I really want to attempt something this delicate.

    Or ... am I way off base?

    Last edited by a moderator: May 8, 2015
    Unreasnbl, Jan 16, 2010
    #6
  7. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    You're right, it is fiddly work.

    I think it can be easy sometimes if you get lucky. For example, all I had to do was move a resistor. That's it, nothing else, just move it from one place to another.

    I don't know if I would have tried it if I had to cut a track with a blade :eek:

    moral hazard, Jan 16, 2010
