ATTENTION! Potential Flaw with ALL XPS 15 9560 - GPU Throttling!

Hi All,

I've been doing a lot more analysis on my XPS 15 the last few days and have been running many tests both before and after a LM Conductonaut repaste.

Temps for the CPU (as mentioned by @iunlock ) are pretty good but I've noticed an issue in game also potentially noticed by Doug from ultrabookreview here:

http://www.ultrabookreview.com/14875-fix-throttling-xps-15/

The issue is when gaming on a particularly demanding game. Theres no doubt the GTX 1050 can handle BF1 at high settings on 1080 no problem at 50+ FPS consistently and for the first 5 - 10 mins of playing you will notice just that.

HOWEVER, after a period of time (so long as you have CPU temps cool enough) I noticed that my FPS in game would suddenly drop from 50's to low 30's! After much annoyance and investigation I think I've found some evidence to suggest whats going on.



If you look closely you can see many things for the XPS:

• The CPU clock is rock stable on all four cores at 3.4GHz suggesting that the CPU is working well and is being sufficiently cooled and powered to maintain those clock speeds.
• The GPU clock seems to be cycling around values from 1900 down to 1000/1200 then back to 1900 again

I can confirm that in game when the clock speed is 1900 I get a nice stable 50+ FPS in game but when the clock speed is 1000 to 1200 (I.e. being throttled), the FPS drops to low 30's FPS.

Conclusion? It's related to the ambient temps and NOT the GPU temperature because as you can see from the graphs, Whenever the Ambient sensor hits 98C the GPU throttles (to 1000 to 1200) and whenever it drops to 78C the GPU clock is enabled to go full speed again (1900). So therefore I conclude that this must be one of the VRMs / MOSFETs from iunlocks diagram.... But which one?



Now begins the fun task to figure it out and to stack 6w/mK pads on it until the correct one is cooled. I already started this to begin with:



But now I will stack each one to the metal chassis until it can be cooled (as per the advice from Douglas from ultrabookreview)

I'll keep you all posted with the results!



Don't bother with those grey squares, it's not worth cooling them. Focus on the black rectangular chips (VRM/mosfet package).



Great stuff... yea those darn VRM's....

Oh and careful not to block the air flow. If you pay attention to the PCH temps, it will run a few degrees hotter if the rear area is blocked / restricted....total catch 22 right? We're kinda screwed both ways, but.... I have an idea, a very wild one that may just work.....

TBA...



Most of the vrm heat comes from the mosfets. The silver chokes don't create much heat here.

However...iUnlock's photo shows the chokes are quite warm. What I think is happening is the mosfets use the motherboard for some passive cooling, via the solider joints, with the chokes becoming perverse heat sinks (with no place to displace heat).

That is supported by two 9550 gamers who resolved gaming throttling via low W/mk thermal pads to the chokes.

A secondary issue is that the case bottom has little capacity as a heatsink. So a few
weak pads seemed not to saturate the case bottom.

For the 9560, I would ignore the CPU chokes and just try
4 W/mk thermal pads on the 3 GPU vrm chokes.



I tried to repeat your experiment with the game I'm playing now (Torment: Tides of Numenera), but the behavior of my card is completely different with multiple stages. Per the GPU-Z log:
1) It very briefly hits 1733.5 MHz (3 seconds or so). Transition temperature: 50C
2) Also briefly, 1721.0 (10 seconds or so). Transition temperature: 54C
3) 1708.5 for roughly 30 seconds. Transition temperature: 60C
4) 1695.5 for a much longer period of time (22.5 minutes). Transition temperature: 70C
5) 1683.0 for another 11 minutes. Transition temperature: 74C
6) 1670.5 for 18 minutes. Transition temperature: 70C
7) Then back to 1683.0 for a minute or so after which point I turned the game off.

I'm a bit puzzled by these numbers because Nvidia says that the boost clock of the 1050 is only supposed to be 1493 MHz and I did not tweak the GPU at all beyond installing Nvidia's latest drivers, but, except for that 260 MHz offset, mine is kind of behaving the way one would expect: it starts at some maximum boost and gradually decreases to a clock for which the temperature is tolerable. Yours appears to be stuck at some maximum boost value (I don't believe it is 1900 anymore than I believe mine is around 1700; I suspect there is a different offset) which causes it keep generating heat until something else on the motherboard complains.

Wait... could it be that by repasting your GPU, you have confused the natural downclocking process? After all, the transitions seem to be based on the temperature of the GPU itself, but your repaste will have driven that lower. Unlike undervolting, repasting doesn't actually decrease the amount of heat being generated -- it simply makes the diversion of the heat from the two main sources more efficient. It could be that this is heating up whatever is near the heat sink and fans faster than it was intended to be heated and, at the same time, the GPU does not know to when to slow down anymore so instead of the gradual decrease intended by the manufacturer, you get a sharp emergency drop initiated by something on the motherboard that is about to fry.



@Pete Light are you getting "power" throttling as reported by GPU-Z? I believe that occurs after a long period of thermal throttling. Take a look at the GPU-Z sensors and let me know.



Hey guys just noticed something crazy...

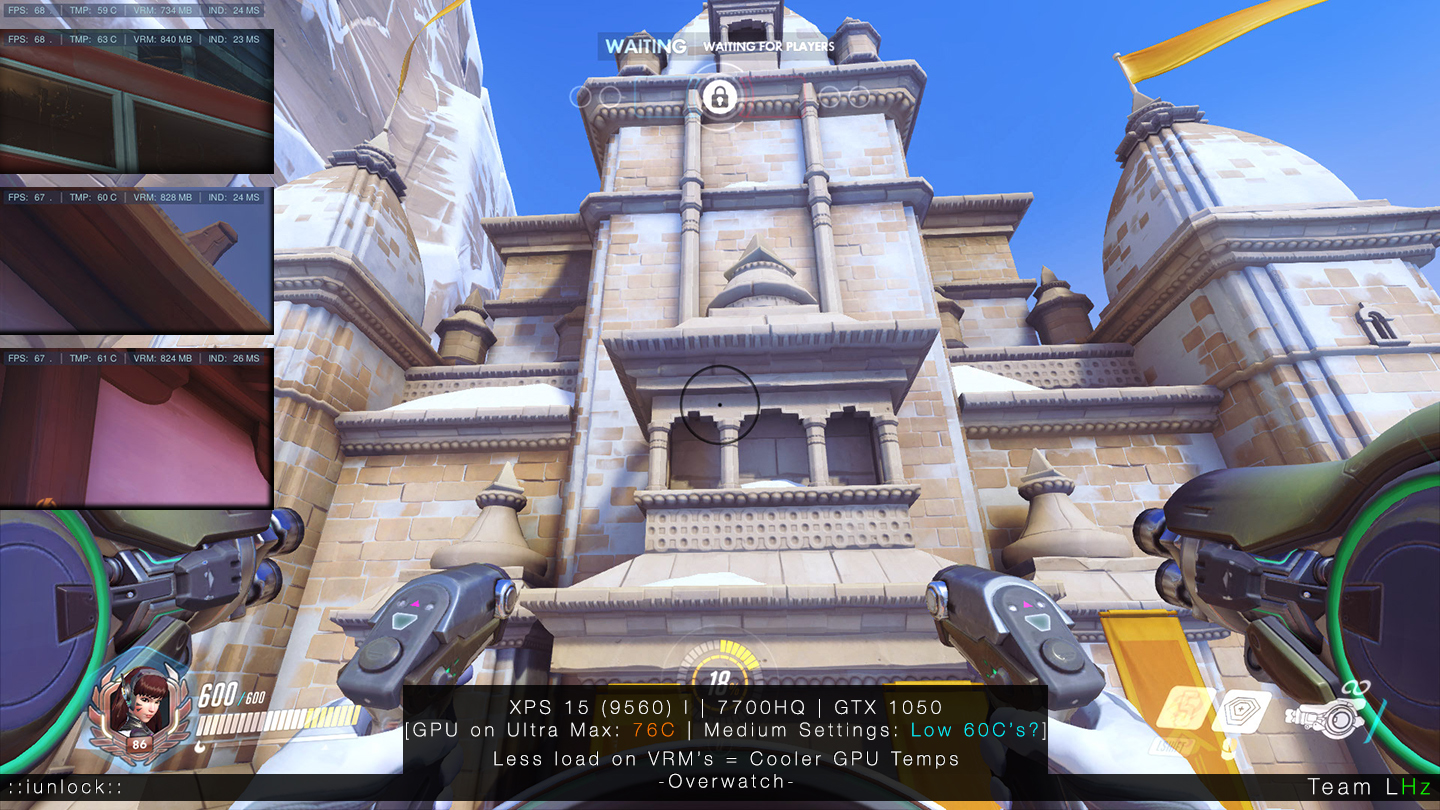

So on Overwatch I usually play on Ultra Maxed out settings (Not Epic, but second to highest) and the GPU temps before maxed out at 76C.

Well, I decided to turn it down to Medium for giggles and it seems like with the VRM's carrying less of a load, the GPU temps were in the low 60C's?

Can those of you with OW test this and see if it decreases your overall GPU temps on Medium settings? I'm really curious now...

(For a game like OW it looks great on the 4K screen even at Medium)



At medium settings there are a lot less load on the VRM's so in this particular scenario, there is obviously a link there. The temps won't just magically go down LOL so this has me pretty curious and the only thing I did different was turn down the graphics settings. Hmmm....

Yes, I'm scratching my head too.....



Great @pressing thanks I'll try all that later and take some pictures for ya too

Sent from my SM-G935F using Tapatalk



Ding this now, results soon

Sent from my SM-G935F using Tapatalk



Here you go, looks like GPU-Z also picks up the throttling. The two colours it uses are "Pwr" and "Util":



Obviously you'll notice I enabled my GPU OC during that test and that seemed to have a big impact on getting that VRM/Ambient sensor to 98C triggering the capping again! Therefore I'm going to run some tests underclocking the GPU to see if I can get to stay below the cap!

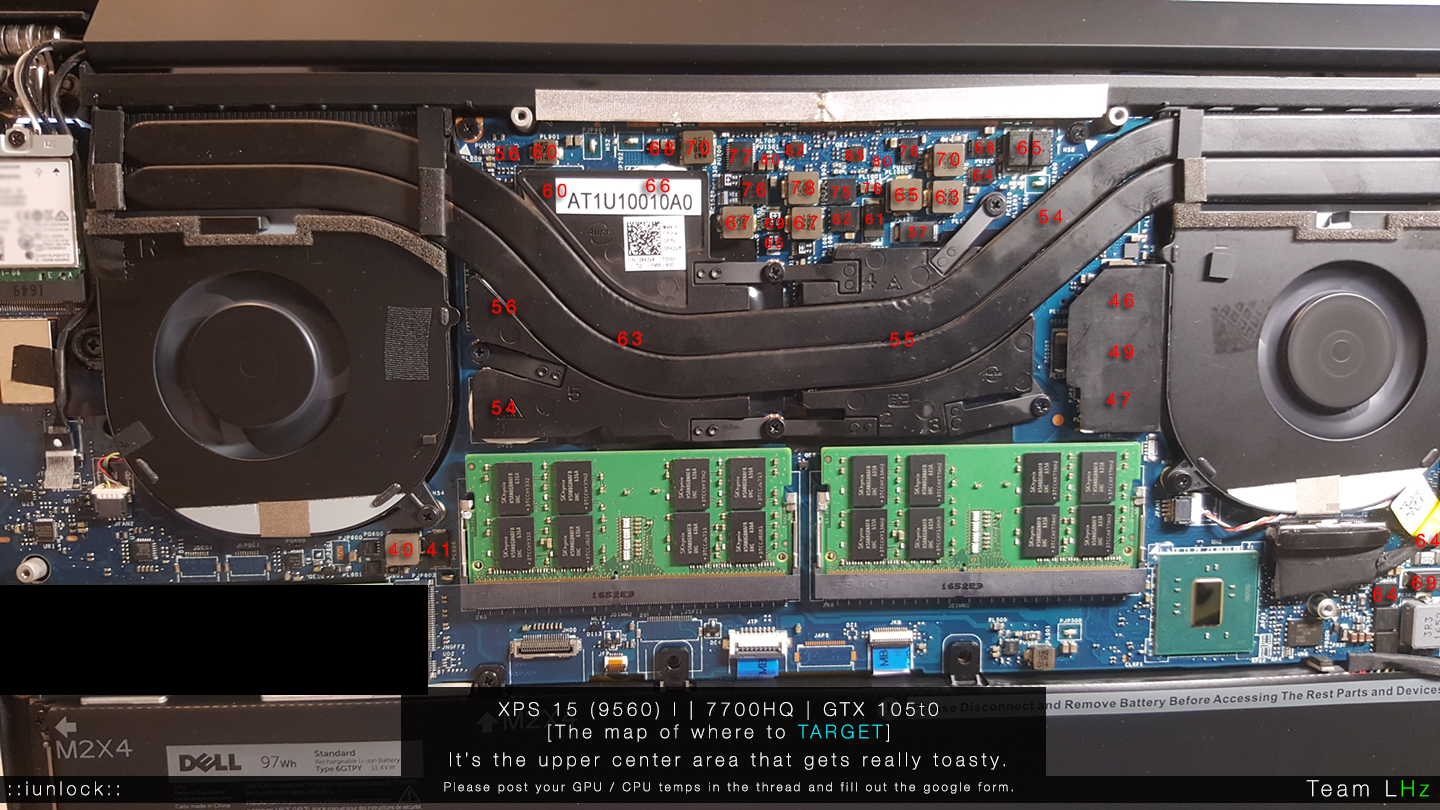

Can someone circle all the VRMs for me on iunlocks diagram? There are loads on small "black ones" as well as larger and some of the small ones have the biggest temps! ...

Thanks!



I don't have any GPU throttling or VRM throttling anymore...check out my flickr album
https://www.flickr.com/photos/30149337@N04/albums/72157680615207736

Combination of large thermal pads over the entire area and thermal paste reduced my VRM temps...



Hey guys, btw it seems that this GPU throttle also effects the CPU!!

Check below, once the GPU throttle occurred the CPU also throttled from a steady 3.4GHz to 2.7ish!



Do Alienware laptops do this, or just the xps models?



Just the XPS for the GPU (and subsequent CPU) throttling. Alienware has has just CPU throttling issues stock paste if you overclock

Sent from my SM-G935F using Tapatalk



I guess what you're seeing is not particular news, except perhaps that even Conductonaut can't do miracles.
Surely you should try padding the VRMs to the chassis, and perhaps using a laptop cooler to get the heat away.
I'd also try removing that part of the tape which seals the gap between the fan and the heatpipe, leaving just that between the heatpipe and the case edge. I assume a bit of leakage of the cooling air towards the VRM area might be helpful.



Pete---

I am suggesting you try weak fluffy thermal pads on only 3 GPU chokes to focus maximum impact on the trouble area only (and ignore less problematic areas).

The 3 GPU chokes are the tall silver squares clustered in a sidewards "L" shape with temps marked 67*, 67* and 78* in iunlock's photo below.

Note the case bottom will flex in a bit and the components are delicately attached to the motherboard, so you don't want tight fitting or dense thermal pads...



Cheers buddy will do. I've got loads of 1mm thick Arctic 6W/mK. Should do the trick?

Sent from my SM-G935F using Tapatalk



As long as the pads are fluffy and the case bottom does not compress them much, I think they should be fine.

I tried 17 W/mk pads on all 6 chokes of my 9550 and they superheated the case bottom and keyboard in less than 5 minutes. The keyboard was uncomfortable.

*** GoNz0 suggested that a hot case bottom will pre-heat air to fan intakes, killing radiator efficiency. I found that to be true based on CPU and GPU readings.

The key is a delicate balance. Transferring just a enough heat to the case bottom to prevent the GPU vrm section from exceeding ~77*C. But not enough heat to saturate the case bottom...



Spot on makes perfect sense will try that. I'd be happy with a max VRM temp of 77 under load!

Sent from my SM-G935F using Tapatalk



If possible! I don't think anyone has got this balance correct on an i7 yeat



Nooooo, come on folks, we must have some genius' here to figure this out and save the day!

Sent from my SM-G935F using Tapatalk



Sounds like just a wrong tool for the job to me. The XPS was never touted as a gamer...more of a professional photo, video graphics creation.....the alienware line is the GAMERs. I think they would outperform the XPS (which is a KILLER machine BTW), in gaming.



Precisely.

No worries, we'll figure it out. Getting close...

The i5 gives a nice indication of what it "could do," and that's the goal we're after here.

::iunlock::



would getting a good laptop cooler fix the underclocking problem?



hard to say. My vote is no because the area in question just doesn't get enough airflow. It may delay it from happening but we're only talking a few minutes at best



Normally no, because a cooler doesn't do anything about a poor CPU & GPU paste job and because the heat isn't conducted to the chassis bottom. Lifting the rear (but so that the exhaust air can't easily get below the laptop) helps improve a little bit.
Might help if you lead the VRM heat to the case bottom. But if you do it too efficiently, the cooling will get even less efficient without a cooler, which might not be a good idea.



this is the worst excuse to cover up a flawed thermal design on a device


no, just no



Does it over heat when NOT gaming????? Does it over heat while editing photos, videos, doing graphics creation? If no....THEN WRONG TOOL FOR THE JOB. Nothing more.



no, just no

Sent from my SM-G935F using Tapatalk



right so, can someone please run OCCT for 15 or 30 mins (ideal) on their 9560 with -120 or -130mV undervolt and post hwinfo for temps, clocks and voltages please?

I need a comparison to check my LM repaste. Its better if you've done a repaste and the clocks always stay at 3.4 GHz



what do you mean Pete? Does it over heat when doing video or graphic design?



Can I ask what program you are using for monitoring? I used vanilla GPU-Z but I'd like better graphs.

I'm getting GPU throttling at 77 Celsius. Playing ME: Andromeda - that heat/cool cycle loops every 8-10 minutes.

Spoiler

2017-03-20 18:18:06 , 1645.0 , 1752.0 , 77.0 , 94 , 41 , 0 , 4 , 1797 , 329 , 2 , 0.9810 ,
2017-03-20 18:18:07 , 1670.5 , 1752.0 , 77.0 , 90 , 36 , 0 , 4 , 1797 , 329 , 16 , 1.0000 ,
2017-03-20 18:18:08 , 1708.5 , 1752.0 , 77.0 , 89 , 34 , 0 , 3 , 1805 , 330 , 16 , 1.0430 ,
2017-03-20 18:18:09 , 1657.5 , 1752.0 , 77.0 , 97 , 42 , 0 , 4 , 1798 , 329 , 16 , 0.9930 ,
2017-03-20 18:18:10 , 1657.5 , 1752.0 , 77.0 , 92 , 40 , 0 , 3 , 1797 , 331 , 16 , 0.9930 ,
2017-03-20 18:18:11 , 1657.5 , 1752.0 , 77.0 , 96 , 40 , 0 , 4 , 1800 , 329 , 2 , 0.9930 ,
2017-03-20 18:18:12 , 1645.0 , 1752.0 , 77.0 , 99 , 41 , 0 , 4 , 1800 , 329 , 2 , 0.9810 ,
2017-03-20 18:18:13 , 1645.0 , 1752.0 , 77.0 , 98 , 39 , 0 , 4 , 1793 , 333 , 2 , 0.9810 ,
2017-03-20 18:18:14 , 1670.5 , 1752.0 , 77.0 , 97 , 36 , 0 , 3 , 1805 , 329 , 16 , 1.0000 ,
2017-03-20 18:18:15 , 1670.5 , 1752.0 , 77.0 , 96 , 35 , 0 , 3 , 1799 , 330 , 2 , 1.0000 ,
2017-03-20 18:18:16 , 1683.0 , 1752.0 , 77.0 , 96 , 35 , 0 , 3 , 1799 , 329 , 2 , 1.0250 ,
2017-03-20 18:18:17 , 1670.5 , 1752.0 , 77.0 , 96 , 36 , 0 , 3 , 1801 , 329 , 2 , 1.0000 ,
2017-03-20 18:18:18 , 1670.5 , 1752.0 , 77.0 , 97 , 37 , 0 , 3 , 1800 , 330 , 2 , 1.0000 ,
2017-03-20 18:18:19 , 1670.5 , 1752.0 , 77.0 , 93 , 36 , 0 , 3 , 1800 , 330 , 16 , 1.0000 ,
2017-03-20 18:18:20 , 1645.0 , 1752.0 , 77.0 , 98 , 46 , 0 , 4 , 1792 , 330 , 2 , 0.9810 ,
2017-03-20 18:18:21 , 1670.5 , 1752.0 , 77.0 , 92 , 43 , 0 , 4 , 1792 , 329 , 2 , 1.0000 ,
2017-03-20 18:18:22 , 1645.0 , 1752.0 , 77.0 , 96 , 46 , 0 , 4 , 1796 , 330 , 16 , 0.9810 ,
2017-03-20 18:18:23 , 1645.0 , 1752.0 , 77.0 , 99 , 43 , 0 , 4 , 1796 , 330 , 2 , 0.9810 ,
2017-03-20 18:18:24 , 1645.0 , 1752.0 , 77.0 , 99 , 42 , 0 , 3 , 1798 , 329 , 2 , 0.9810 ,
2017-03-20 18:18:25 , 1645.0 , 1752.0 , 77.0 , 99 , 39 , 0 , 3 , 1796 , 329 , 2 , 0.9810 ,
2017-03-20 18:18:26 , 1645.0 , 1752.0 , 77.0 , 99 , 39 , 0 , 4 , 1796 , 329 , 2 , 0.9810 ,
2017-03-20 18:18:27 , 1645.0 , 1752.0 , 77.0 , 99 , 40 , 0 , 4 , 1796 , 330 , 2 , 0.9810 ,
2017-03-20 18:18:28 , 1657.5 , 1752.0 , 77.0 , 98 , 38 , 0 , 4 , 1802 , 332 , 2 , 0.9930 ,
2017-03-20 18:18:29 , 1645.0 , 1752.0 , 77.0 , 99 , 39 , 0 , 3 , 1797 , 330 , 2 , 0.9810 ,
2017-03-20 18:18:30 , 1645.0 , 1752.0 , 77.0 , 99 , 41 , 0 , 4 , 1797 , 330 , 2 , 0.9810 ,
2017-03-20 18:18:31 , 1645.0 , 1752.0 , 77.0 , 99 , 40 , 0 , 4 , 1797 , 330 , 2 , 0.9810 ,
2017-03-20 18:18:32 , 1657.5 , 1752.0 , 77.0 , 95 , 38 , 0 , 4 , 1797 , 329 , 16 , 1.0000 ,
2017-03-20 18:18:33 , 1645.0 , 1752.0 , 77.0 , 95 , 38 , 0 , 4 , 1800 , 330 , 16 , 0.9810 ,
2017-03-20 18:18:34 , 1645.0 , 1752.0 , 77.0 , 99 , 40 , 0 , 4 , 1797 , 330 , 2 , 0.9810 ,
2017-03-20 18:18:35 , 1645.0 , 1752.0 , 77.0 , 98 , 40 , 0 , 4 , 1797 , 330 , 2 , 0.9810 ,
2017-03-20 18:18:36 , 1607.0 , 1752.0 , 77.0 , 89 , 35 , 0 , 4 , 1798 , 330 , 16 , 0.9500 ,
2017-03-20 18:18:37 , 1683.0 , 1752.0 , 78.0 , 86 , 39 , 0 , 4 , 1798 , 330 , 2 , 1.0250 ,
2017-03-20 18:18:38 , 1569.0 , 1752.0 , 77.0 , 85 , 38 , 0 , 4 , 1798 , 330 , 16 , 0.9310 ,
2017-03-20 18:18:39 , 1556.5 , 1752.0 , 77.0 , 86 , 38 , 0 , 3 , 1796 , 330 , 16 , 0.9250 ,
2017-03-20 18:18:40 , 1620.0 , 1752.0 , 77.0 , 78 , 34 , 0 , 3 , 1803 , 330 , 2 , 0.9620 ,
2017-03-20 18:18:41 , 1695.5 , 1752.0 , 77.0 , 86 , 43 , 0 , 4 , 1807 , 329 , 2 , 1.0310 ,
2017-03-20 18:18:42 , 1708.5 , 1752.0 , 77.0 , 78 , 37 , 0 , 4 , 1806 , 330 , 2 , 1.0430 ,
2017-03-20 18:18:43 , 1695.5 , 1752.0 , 77.0 , 80 , 38 , 0 , 4 , 1807 , 330 , 2 , 1.0310 ,
2017-03-20 18:18:44 , 1670.5 , 1752.0 , 77.0 , 81 , 36 , 0 , 4 , 1806 , 329 , 16 , 1.0000 ,
2017-03-20 18:18:45 , 1695.5 , 1752.0 , 77.0 , 82 , 35 , 0 , 3 , 1802 , 330 , 16 , 1.0310 ,
2017-03-20 18:18:46 , 1645.0 , 1752.0 , 77.0 , 86 , 38 , 0 , 4 , 1810 , 330 , 16 , 0.9810 ,
2017-03-20 18:18:47 , 1632.5 , 1752.0 , 77.0 , 84 , 36 , 0 , 3 , 1808 , 330 , 16 , 0.9750 ,
2017-03-20 18:18:48 , 1670.5 , 1752.0 , 77.0 , 76 , 37 , 0 , 4 , 1790 , 317 , 16 , 1.0000 ,
2017-03-20 18:18:49 , 1632.5 , 1752.0 , 77.0 , 71 , 31 , 0 , 3 , 1809 , 316 , 2 , 0.9750 ,
2017-03-20 18:18:50 , 1721.0 , 1752.0 , 77.0 , 69 , 30 , 0 , 2 , 1804 , 322 , 4 , 1.0620 ,
2017-03-20 18:18:51 , 1632.5 , 1752.0 , 77.0 , 89 , 39 , 0 , 4 , 1804 , 322 , 16 , 0.9750 ,
2017-03-20 18:18:52 , 1645.0 , 1752.0 , 77.0 , 90 , 40 , 0 , 4 , 1804 , 322 , 16 , 0.9810 ,
2017-03-20 18:18:53 , 1708.5 , 1752.0 , 77.0 , 75 , 36 , 0 , 4 , 1804 , 322 , 16 , 0.9750 ,
2017-03-20 18:18:54 , 1657.5 , 1752.0 , 77.0 , 79 , 36 , 0 , 4 , 1805 , 322 , 16 , 0.9930 ,
2017-03-20 18:18:55 , 1708.5 , 1752.0 , 77.0 , 77 , 36 , 0 , 4 , 1805 , 322 , 16 , 1.0430 ,
2017-03-20 18:18:56 , 1620.0 , 1752.0 , 77.0 , 77 , 35 , 0 , 4 , 1805 , 322 , 16 , 0.9620 ,
2017-03-20 18:18:57 , 1721.0 , 1752.0 , 77.0 , 88 , 38 , 0 , 4 , 1805 , 326 , 4 , 1.0620 ,
2017-03-20 18:18:58 , 1670.5 , 1752.0 , 77.0 , 81 , 35 , 0 , 4 , 1807 , 327 , 2 , 1.0000 ,
2017-03-20 18:18:59 , 1670.5 , 1752.0 , 77.0 , 83 , 36 , 0 , 4 , 1807 , 326 , 2 , 1.0000 ,
2017-03-20 18:19:00 , 1607.0 , 1752.0 , 77.0 , 98 , 41 , 0 , 4 , 1807 , 326 , 2 , 0.9500 ,
2017-03-20 18:19:01 , 1683.0 , 1752.0 , 77.0 , 93 , 38 , 0 , 4 , 1807 , 326 , 2 , 1.0250 ,
2017-03-20 18:19:02 , 1683.0 , 1752.0 , 77.0 , 93 , 39 , 0 , 4 , 1807 , 326 , 16 , 1.0250 ,
2017-03-20 18:19:03 , 1683.0 , 1752.0 , 77.0 , 92 , 40 , 0 , 4 , 1807 , 326 , 16 , 1.0250 ,
2017-03-20 18:19:04 , 1657.5 , 1752.0 , 77.0 , 97 , 43 , 0 , 4 , 1807 , 326 , 2 , 0.9930 ,
2017-03-20 18:19:05 , 1683.0 , 1752.0 , 77.0 , 92 , 41 , 0 , 4 , 1807 , 326 , 2 , 1.0250 ,
2017-03-20 18:19:06 , 1657.5 , 1752.0 , 77.0 , 97 , 42 , 0 , 4 , 1807 , 327 , 2 , 0.9930 ,
2017-03-20 18:19:07 , 1670.5 , 1752.0 , 77.0 , 95 , 42 , 0 , 4 , 1785 , 326 , 2 , 1.0000 ,
2017-03-20 18:19:08 , 1657.5 , 1752.0 , 77.0 , 96 , 43 , 0 , 4 , 1785 , 326 , 2 , 0.9930 ,
2017-03-20 18:19:09 , 1683.0 , 1752.0 , 77.0 , 76 , 36 , 0 , 4 , 1785 , 326 , 16 , 1.0250 ,
2017-03-20 18:19:10 , 1721.0 , 1752.0 , 77.0 , 80 , 35 , 0 , 3 , 1793 , 327 , 4 , 1.0620 ,
2017-03-20 18:19:11 , 1645.0 , 1752.0 , 77.0 , 98 , 43 , 0 , 4 , 1794 , 326 , 2 , 0.9810 ,
2017-03-20 18:19:12 , 1657.5 , 1752.0 , 77.0 , 92 , 40 , 0 , 4 , 1797 , 327 , 16 , 0.9930 ,
2017-03-20 18:19:13 , 1657.5 , 1752.0 , 77.0 , 92 , 40 , 0 , 3 , 1793 , 327 , 16 , 0.9930 ,
2017-03-20 18:19:14 , 1645.0 , 1752.0 , 77.0 , 97 , 43 , 0 , 4 , 1795 , 326 , 16 , 0.9810 ,
2017-03-20 18:19:15 , 1657.5 , 1752.0 , 77.0 , 96 , 41 , 0 , 4 , 1794 , 326 , 16 , 0.9930 ,
2017-03-20 18:19:16 , 1670.5 , 1752.0 , 77.0 , 97 , 42 , 0 , 4 , 1790 , 327 , 16 , 1.0000 ,
2017-03-20 18:19:17 , 1670.5 , 1752.0 , 77.0 , 92 , 38 , 0 , 3 , 1794 , 328 , 16 , 1.0000 ,
2017-03-20 18:19:18 , 1683.0 , 1752.0 , 77.0 , 90 , 38 , 0 , 3 , 1796 , 328 , 16 , 1.0250 ,
2017-03-20 18:19:19 , 1721.0 , 1752.0 , 77.0 , 81 , 33 , 0 , 3 , 1803 , 328 , 4 , 1.0620 ,
2017-03-20 18:19:20 , 1683.0 , 1752.0 , 77.0 , 82 , 34 , 0 , 3 , 1795 , 328 , 16 , 1.0250 ,
2017-03-20 18:19:21 , 1708.5 , 1752.0 , 77.0 , 72 , 30 , 0 , 3 , 1804 , 335 , 2 , 1.0430 ,
2017-03-20 18:19:22 , 1620.0 , 1752.0 , 77.0 , 92 , 37 , 0 , 3 , 1794 , 332 , 16 , 0.9620 ,
2017-03-20 18:19:23 , 1721.0 , 1752.0 , 77.0 , 73 , 30 , 0 , 2 , 1797 , 332 , 4 , 1.0620 ,
2017-03-20 18:19:24 , 1657.5 , 1752.0 , 77.0 , 83 , 35 , 0 , 3 , 1793 , 332 , 2 , 0.9930 ,
2017-03-20 18:19:25 , 1645.0 , 1752.0 , 77.0 , 97 , 39 , 0 , 3 , 1794 , 332 , 16 , 0.9810 ,
2017-03-20 18:19:26 , 1657.5 , 1752.0 , 77.0 , 91 , 37 , 0 , 3 , 1794 , 332 , 2 , 0.9930 ,
2017-03-20 18:19:27 , 1645.0 , 1752.0 , 77.0 , 99 , 40 , 0 , 3 , 1794 , 332 , 2 , 0.9930 ,
2017-03-20 18:19:28 , 1645.0 , 1752.0 , 77.0 , 95 , 41 , 0 , 3 , 1794 , 332 , 16 , 0.9810 ,
2017-03-20 18:19:29 , 1645.0 , 1752.0 , 77.0 , 97 , 43 , 0 , 3 , 1794 , 332 , 16 , 0.9810 ,
2017-03-20 18:19:30 , 1645.0 , 1752.0 , 77.0 , 90 , 40 , 0 , 3 , 1794 , 332 , 16 , 0.9810 ,
2017-03-20 18:19:31 , 1645.0 , 1752.0 , 77.0 , 92 , 40 , 0 , 3 , 1792 , 332 , 16 , 0.9810 ,
2017-03-20 18:19:32 , 1670.5 , 1752.0 , 77.0 , 89 , 38 , 0 , 3 , 1798 , 334 , 2 , 1.0000 ,
2017-03-20 18:19:33 , 1670.5 , 1752.0 , 77.0 , 90 , 40 , 0 , 3 , 1798 , 332 , 16 , 1.0000 ,
2017-03-20 18:19:34 , 1708.5 , 1752.0 , 77.0 , 68 , 29 , 0 , 3 , 1797 , 340 , 16 , 1.0430 ,
2017-03-20 18:19:35 , 1620.0 , 1752.0 , 77.0 , 88 , 35 , 0 , 3 , 1784 , 333 , 2 , 0.9620 ,
2017-03-20 18:19:36 , 1670.5 , 1752.0 , 77.0 , 88 , 36 , 0 , 3 , 1784 , 333 , 16 , 1.0000 ,
2017-03-20 18:19:37 , 1683.0 , 1752.0 , 77.0 , 89 , 36 , 0 , 3 , 1785 , 333 , 16 , 1.0250 ,
2017-03-20 18:19:38 , 1695.5 , 1752.0 , 77.0 , 81 , 33 , 0 , 3 , 1785 , 333 , 16 , 1.0310 ,
2017-03-20 18:19:39 , 1695.5 , 1752.0 , 78.0 , 86 , 36 , 0 , 3 , 1785 , 332 , 2 , 1.0310 ,
2017-03-20 18:19:40 , 1556.5 , 1752.0 , 77.0 , 90 , 35 , 0 , 3 , 1785 , 333 , 2 , 0.9250 ,
2017-03-20 18:19:41 , 1582.0 , 1752.0 , 76.0 , 92 , 39 , 0 , 3 , 1785 , 333 , 16 , 0.9430 ,
2017-03-20 18:19:42 , 1632.5 , 1752.0 , 77.0 , 98 , 41 , 0 , 3 , 1785 , 333 , 2 , 0.9750 ,
2017-03-20 18:19:43 , 1645.0 , 1752.0 , 77.0 , 94 , 40 , 0 , 3 , 1787 , 333 , 2 , 0.9810 ,
2017-03-20 18:19:44 , 1620.0 , 1752.0 , 77.0 , 99 , 41 , 0 , 3 , 1793 , 333 , 2 , 0.9620 ,
2017-03-20 18:19:45 , 1657.5 , 1752.0 , 77.0 , 94 , 38 , 0 , 3 , 1793 , 333 , 2 , 0.9810 ,
2017-03-20 18:19:46 , 1645.0 , 1752.0 , 77.0 , 91 , 36 , 0 , 3 , 1793 , 332 , 16 , 0.9810 ,
2017-03-20 18:19:47 , 1657.5 , 1752.0 , 77.0 , 94 , 40 , 0 , 4 , 1793 , 332 , 2 , 0.9930 ,
2017-03-20 18:19:48 , 1632.5 , 1752.0 , 77.0 , 95 , 40 , 0 , 4 , 1793 , 332 , 16 , 0.9750 ,
2017-03-20 18:19:49 , 1657.5 , 1752.0 , 77.0 , 92 , 37 , 0 , 3 , 1793 , 332 , 16 , 0.9930 ,
2017-03-20 18:19:50 , 1645.0 , 1752.0 , 77.0 , 97 , 40 , 0 , 3 , 1799 , 332 , 16 , 0.9810 ,
2017-03-20 18:19:51 , 1670.5 , 1752.0 , 77.0 , 91 , 37 , 0 , 3 , 1791 , 333 , 2 , 1.0000 ,
2017-03-20 18:19:52 , 1632.5 , 1752.0 , 77.0 , 99 , 40 , 0 , 3 , 1791 , 332 , 2 , 0.9750 ,
2017-03-20 18:19:53 , 1657.5 , 1752.0 , 77.0 , 92 , 38 , 0 , 4 , 1791 , 333 , 16 , 0.9930 ,
2017-03-20 18:19:54 , 1632.5 , 1752.0 , 77.0 , 97 , 38 , 0 , 4 , 1793 , 333 , 16 , 0.9750 ,
2017-03-20 18:19:55 , 1645.0 , 1752.0 , 77.0 , 91 , 40 , 0 , 4 , 1795 , 332 , 16 , 0.9810 ,
2017-03-20 18:19:56 , 1645.0 , 1752.0 , 77.0 , 94 , 40 , 0 , 4 , 1788 , 333 , 16 , 0.9810 ,
2017-03-20 18:19:57 , 1683.0 , 1752.0 , 77.0 , 83 , 34 , 0 , 3 , 1811 , 334 , 16 , 1.0250 ,
2017-03-20 18:19:58 , 1721.0 , 1752.0 , 77.0 , 61 , 27 , 0 , 3 , 1795 , 334 , 4 , 1.0620 ,
2017-03-20 18:19:59 , 1695.5 , 1752.0 , 77.0 , 80 , 39 , 0 , 3 , 1784 , 333 , 16 , 1.0310 ,
2017-03-20 18:20:00 , 1721.0 , 1752.0 , 77.0 , 72 , 34 , 0 , 3 , 1784 , 337 , 4 , 1.0620 ,
2017-03-20 18:20:01 , 1721.0 , 1752.0 , 77.0 , 71 , 35 , 0 , 3 , 1784 , 336 , 4 , 1.0620 ,
2017-03-20 18:20:02 , 1721.0 , 1752.0 , 77.0 , 67 , 34 , 0 , 3 , 1784 , 336 , 4 , 1.0620 ,
2017-03-20 18:20:03 , 1531.0 , 1752.0 , 76.0 , 69 , 33 , 0 , 4 , 1784 , 336 , 16 , 0.9120 ,
2017-03-20 18:20:04 , 1569.0 , 1752.0 , 76.0 , 67 , 32 , 0 , 3 , 1784 , 336 , 16 , 0.9310 ,
2017-03-20 18:20:05 , 1404.5 , 1752.0 , 75.0 , 60 , 27 , 0 , 3 , 1784 , 336 , 16 , 0.8430 ,
2017-03-20 18:20:06 , 1341.5 , 1752.0 , 74.0 , 68 , 29 , 0 , 3 , 1785 , 336 , 16 , 0.8250 ,
2017-03-20 18:20:07 , 1430.0 , 1752.0 , 74.0 , 71 , 33 , 0 , 4 , 1786 , 337 , 16 , 0.8500 ,
2017-03-20 18:20:08 , 1316.0 , 1752.0 , 74.0 , 65 , 27 , 0 , 3 , 1790 , 336 , 16 , 0.8120 ,
2017-03-20 18:20:09 , 1404.5 , 1752.0 , 73.0 , 74 , 33 , 0 , 3 , 1792 , 336 , 16 , 0.8430 ,
2017-03-20 18:20:10 , 1442.5 , 1752.0 , 73.0 , 76 , 34 , 0 , 4 , 1792 , 336 , 16 , 0.8620 ,
2017-03-20 18:20:11 , 1404.5 , 1752.0 , 73.0 , 61 , 26 , 0 , 3 , 1784 , 339 , 16 , 0.8430 ,
2017-03-20 18:20:12 , 1442.5 , 1752.0 , 73.0 , 77 , 33 , 0 , 4 , 1790 , 337 , 16 , 0.8620 ,
2017-03-20 18:20:13 , 1645.0 , 1752.0 , 74.0 , 57 , 26 , 0 , 3 , 1797 , 336 , 4 , 0.9810 ,
2017-03-20 18:20:14 , 1354.0 , 1752.0 , 72.0 , 64 , 22 , 0 , 3 , 1791 , 336 , 16 , 0.8250 ,
2017-03-20 18:20:15 , 1556.5 , 1752.0 , 72.0 , 55 , 23 , 0 , 3 , 1795 , 337 , 16 , 0.9250 ,
2017-03-20 18:20:16 , 1379.5 , 1752.0 , 72.0 , 59 , 24 , 0 , 3 , 1798 , 337 , 16 , 0.8310 ,
2017-03-20 18:20:17 , 1442.5 , 1752.0 , 72.0 , 74 , 33 , 0 , 3 , 1798 , 337 , 16 , 0.8620 ,
2017-03-20 18:20:18 , 1480.5 , 1752.0 , 72.0 , 71 , 32 , 0 , 4 , 1798 , 337 , 16 , 0.8810 ,
2017-03-20 18:20:19 , 1392.0 , 1752.0 , 71.0 , 60 , 27 , 0 , 3 , 1798 , 336 , 16 , 0.8430 ,
2017-03-20 18:20:20 , 1531.0 , 1752.0 , 71.0 , 41 , 19 , 0 , 2 , 1798 , 337 , 16 , 0.9120 ,
2017-03-20 18:20:21 , 1670.5 , 1752.0 , 71.0 , 50 , 25 , 0 , 2 , 1798 , 337 , 16 , 1.0000 ,
2017-03-20 18:20:22 , 1620.0 , 1752.0 , 73.0 , 46 , 22 , 0 , 2 , 1805 , 337 , 4 , 0.9620 ,
2017-03-20 18:20:23 , 1544.0 , 1752.0 , 71.0 , 53 , 25 , 0 , 3 , 1804 , 337 , 16 , 0.9120 ,
2017-03-20 18:20:24 , 1670.5 , 1752.0 , 72.0 , 54 , 26 , 0 , 2 , 1804 , 337 , 16 , 1.0000 ,
2017-03-20 18:20:25 , 1670.5 , 1752.0 , 72.0 , 50 , 24 , 0 , 2 , 1804 , 337 , 16 , 1.0000 ,
2017-03-20 18:20:26 , 1582.0 , 1752.0 , 72.0 , 52 , 23 , 0 , 2 , 1806 , 337 , 16 , 0.9430 ,
2017-03-20 18:20:27 , 1544.0 , 1752.0 , 71.0 , 54 , 25 , 0 , 3 , 1796 , 336 , 16 , 0.9120 ,
2017-03-20 18:20:28 , 1569.0 , 1752.0 , 71.0 , 41 , 18 , 0 , 2 , 1806 , 336 , 16 , 0.9310 ,
2017-03-20 18:20:29 , 1632.5 , 1752.0 , 71.0 , 41 , 18 , 0 , 2 , 1805 , 337 , 16 , 0.9750 ,
2017-03-20 18:20:30 , 1695.5 , 1752.0 , 71.0 , 40 , 17 , 0 , 2 , 1806 , 337 , 16 , 1.0310 ,
2017-03-20 18:20:31 , 1721.0 , 1752.0 , 72.0 , 44 , 20 , 0 , 2 , 1808 , 336 , 4 , 1.0620 ,
2017-03-20 18:20:32 , 1721.0 , 1752.0 , 72.0 , 51 , 23 , 0 , 2 , 1808 , 337 , 4 , 1.0620 ,
2017-03-20 18:20:33 , 1721.0 , 1752.0 , 72.0 , 40 , 17 , 0 , 2 , 1807 , 336 , 4 , 1.0620 ,
2017-03-20 18:20:34 , 1721.0 , 1752.0 , 72.0 , 51 , 22 , 0 , 2 , 1807 , 337 , 4 , 1.0620 ,
2017-03-20 18:20:35 , 1721.0 , 1752.0 , 72.0 , 48 , 21 , 0 , 2 , 1807 , 337 , 4 , 1.0620 ,
2017-03-20 18:20:36 , 1721.0 , 1752.0 , 72.0 , 59 , 22 , 0 , 2 , 1814 , 338 , 4 , 1.0620 ,
2017-03-20 18:20:37 , 1721.0 , 1752.0 , 72.0 , 22 , 10 , 0 , 1 , 1819 , 342 , 4 , 1.0620 ,
2017-03-20 18:20:38 , 1721.0 , 1752.0 , 72.0 , 27 , 12 , 0 , 1 , 1782 , 337 , 4 , 1.0620 ,
2017-03-20 18:20:39 , 1721.0 , 1752.0 , 73.0 , 65 , 31 , 0 , 3 , 1794 , 337 , 4 , 1.0620 ,
2017-03-20 18:20:40 , 1721.0 , 1752.0 , 73.0 , 58 , 27 , 0 , 2 , 1794 , 337 , 4 , 1.0620 ,
2017-03-20 18:20:41 , 1721.0 , 1752.0 , 73.0 , 67 , 28 , 0 , 3 , 1809 , 337 , 4 , 1.0620 ,
2017-03-20 18:20:42 , 1721.0 , 1752.0 , 74.0 , 77 , 35 , 0 , 3 , 1804 , 337 , 4 , 1.0620 ,
2017-03-20 18:20:43 , 1721.0 , 1752.0 , 73.0 , 59 , 24 , 0 , 2 , 1801 , 336 , 4 , 1.0620 ,
2017-03-20 18:20:44 , 1721.0 , 1752.0 , 73.0 , 73 , 31 , 0 , 3 , 1788 , 337 , 4 , 1.0620 ,
2017-03-20 18:20:45 , 1721.0 , 1752.0 , 74.0 , 71 , 32 , 0 , 3 , 1795 , 338 , 4 , 1.0620 ,
2017-03-20 18:20:46 , 1531.0 , 1752.0 , 73.0 , 64 , 29 , 0 , 3 , 1819 , 340 , 16 , 0.9120 ,
2017-03-20 18:20:47 , 1594.5 , 1752.0 , 73.0 , 81 , 40 , 0 , 4 , 1809 , 337 , 16 , 0.9500 ,
2017-03-20 18:20:48 , 1670.5 , 1752.0 , 73.0 , 88 , 44 , 0 , 4 , 1800 , 332 , 16 , 1.0000 ,
2017-03-20 18:20:49 , 1544.0 , 1752.0 , 73.0 , 62 , 30 , 0 , 3 , 1806 , 335 , 16 , 0.9120 ,
2017-03-20 18:20:50 , 1620.0 , 1752.0 , 73.0 , 63 , 31 , 0 , 3 , 1806 , 335 , 16 , 0.9620 ,
2017-03-20 18:20:51 , 1721.0 , 1752.0 , 74.0 , 82 , 39 , 0 , 4 , 1800 , 332 , 4 , 1.0620 ,
2017-03-20 18:20:52 , 1721.0 , 1752.0 , 74.0 , 70 , 36 , 0 , 3 , 1813 , 333 , 4 , 1.0620 ,
2017-03-20 18:20:53 , 1721.0 , 1752.0 , 74.0 , 62 , 31 , 0 , 3 , 1807 , 336 , 4 , 1.0620 ,
2017-03-20 18:20:54 , 1721.0 , 1752.0 , 74.0 , 68 , 31 , 0 , 3 , 1812 , 334 , 4 , 1.0620 ,
2017-03-20 18:20:55 , 1721.0 , 1752.0 , 74.0 , 71 , 31 , 0 , 3 , 1811 , 333 , 4 , 1.0620 ,
2017-03-20 18:20:56 , 1721.0 , 1752.0 , 75.0 , 94 , 40 , 0 , 3 , 1805 , 333 , 4 , 1.0620 ,
2017-03-20 18:20:57 , 1721.0 , 1752.0 , 75.0 , 89 , 42 , 0 , 4 , 1805 , 332 , 4 , 1.0620 ,
2017-03-20 18:20:58 , 1721.0 , 1752.0 , 75.0 , 81 , 37 , 0 , 4 , 1805 , 332 , 4 , 1.0620 ,
2017-03-20 18:20:59 , 1721.0 , 1752.0 , 76.0 , 92 , 39 , 0 , 4 , 1805 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:00 , 1721.0 , 1752.0 , 76.0 , 80 , 36 , 0 , 4 , 1805 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:01 , 1632.5 , 1752.0 , 76.0 , 77 , 34 , 0 , 4 , 1804 , 333 , 4 , 0.9750 ,
2017-03-20 18:21:02 , 1455.0 , 1752.0 , 74.0 , 78 , 35 , 0 , 4 , 1799 , 332 , 16 , 0.8750 ,
2017-03-20 18:21:03 , 1721.0 , 1752.0 , 75.0 , 82 , 40 , 0 , 4 , 1800 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:04 , 1721.0 , 1752.0 , 75.0 , 77 , 31 , 0 , 3 , 1800 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:05 , 1721.0 , 1752.0 , 76.0 , 98 , 44 , 0 , 4 , 1803 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:06 , 1721.0 , 1752.0 , 76.0 , 94 , 39 , 0 , 3 , 1803 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:07 , 1721.0 , 1752.0 , 77.0 , 98 , 42 , 0 , 4 , 1803 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:08 , 1721.0 , 1752.0 , 77.0 , 99 , 42 , 0 , 4 , 1803 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:09 , 1721.0 , 1752.0 , 77.0 , 89 , 36 , 0 , 3 , 1803 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:10 , 1354.0 , 1752.0 , 74.0 , 98 , 35 , 0 , 3 , 1798 , 333 , 16 , 0.8250 ,
2017-03-20 18:21:11 , 1721.0 , 1752.0 , 76.0 , 79 , 39 , 0 , 4 , 1799 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:12 , 1721.0 , 1752.0 , 77.0 , 91 , 40 , 0 , 4 , 1799 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:13 , 1721.0 , 1752.0 , 77.0 , 99 , 42 , 0 , 4 , 1800 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:14 , 1721.0 , 1752.0 , 77.0 , 98 , 40 , 0 , 3 , 1800 , 333 , 4 , 1.0620 ,
2017-03-20 18:21:15 , 1721.0 , 1752.0 , 77.0 , 98 , 40 , 0 , 3 , 1800 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:16 , 1721.0 , 1752.0 , 77.0 , 96 , 39 , 0 , 3 , 1800 , 332 , 4 , 1.0620 ,
2017-03-20 18:21:17 , 1670.5 , 1752.0 , 77.0 , 99 , 39 , 0 , 4 , 1800 , 332 , 2 , 1.0000 ,
2017-03-20 18:21:18 , 1670.5 , 1752.0 , 77.0 , 99 , 39 , 0 , 4 , 1800 , 332 , 2 , 1.0000 ,
2017-03-20 18:21:19 , 1670.5 , 1752.0 , 77.0 , 97 , 39 , 0 , 3 , 1800 , 332 , 2 , 1.0000 ,
2017-03-20 18:21:20 , 1683.0 , 1752.0 , 77.0 , 96 , 40 , 0 , 3 , 1802 , 334 , 2 , 1.0250 ,
2017-03-20 18:21:21 , 1683.0 , 1752.0 , 77.0 , 97 , 40 , 0 , 4 , 1802 , 333 , 16 , 1.0250 ,
2017-03-20 18:21:22 , 1695.5 , 1752.0 , 77.0 , 90 , 40 , 0 , 3 , 1802 , 333 , 2 , 1.0310 ,
2017-03-20 18:21:23 , 1670.5 , 1752.0 , 77.0 , 92 , 40 , 0 , 4 , 1804 , 332 , 2 , 1.0000 ,
2017-03-20 18:21:24 , 1695.5 , 1752.0 , 77.0 , 88 , 38 , 0 , 4 , 1803 , 333 , 2 , 1.0310 ,
2017-03-20 18:21:25 , 1695.5 , 1752.0 , 77.0 , 84 , 36 , 0 , 4 , 1807 , 332 , 16 , 1.0310 ,
2017-03-20 18:21:26 , 1670.5 , 1752.0 , 77.0 , 99 , 42 , 0 , 4 , 1804 , 333 , 2 , 1.0000 ,
2017-03-20 18:21:27 , 1695.5 , 1752.0 , 77.0 , 91 , 40 , 0 , 4 , 1804 , 332 , 2 , 1.0310 ,
2017-03-20 18:21:28 , 1670.5 , 1752.0 , 77.0 , 99 , 42 , 0 , 4 , 1804 , 332 , 2 , 1.0000 ,
2017-03-20 18:21:29 , 1670.5 , 1752.0 , 77.0 , 99 , 42 , 0 , 4 , 1807 , 332 , 2 , 1.0000 ,
2017-03-20 18:21:30 , 1670.5 , 1752.0 , 77.0 , 99 , 41 , 0 , 3 , 1807 , 332 , 2 , 1.0000 ,
2017-03-20 18:21:31 , 1670.5 , 1752.0 , 77.0 , 99 , 42 , 0 , 4 , 1807 , 332 , 2 , 1.0000 ,
2017-03-20 18:21:32 , 1670.5 , 1752.0 , 77.0 , 99 , 42 , 0 , 4 , 1803 , 332 , 2 , 1.0000 ,
2017-03-20 18:21:33 , 1670.5 , 1752.0 , 77.0 , 99 , 43 , 0 , 4 , 1806 , 333 , 2 , 1.0000 ,
2017-03-20 18:21:34 , 1670.5 , 1752.0 , 77.0 , 96 , 41 , 0 , 4 , 1806 , 333 , 2 , 1.0000 ,
2017-03-20 18:21:35 , 1695.5 , 1752.0 , 77.0 , 87 , 39 , 0 , 4 , 1806 , 332 , 2 , 1.0310 ,
2017-03-20 18:21:36 , 1632.5 , 1752.0 , 77.0 , 89 , 39 , 0 , 4 , 1806 , 332 , 16 , 0.9750 ,
2017-03-20 18:21:37 , 1594.5 , 1752.0 , 77.0 , 99 , 43 , 0 , 4 , 1799 , 333 , 16 , 0.9500 ,
2017-03-20 18:21:38 , 1607.0 , 1752.0 , 76.0 , 97 , 41 , 0 , 4 , 1801 , 333 , 2 , 0.9500 ,
2017-03-20 18:21:39 , 1670.5 , 1752.0 , 77.0 , 90 , 40 , 0 , 4 , 1799 , 333 , 2 , 1.0000 ,
2017-03-20 18:21:40 , 1620.0 , 1752.0 , 77.0 , 99 , 44 , 0 , 4 , 1801 , 332 , 16 , 0.9620 ,
2017-03-20 18:21:41 , 1670.5 , 1752.0 , 77.0 , 89 , 38 , 0 , 4 , 1801 , 333 , 2 , 1.0000 ,
2017-03-20 18:21:42 , 1683.0 , 1752.0 , 77.0 , 82 , 34 , 0 , 3 , 1808 , 337 , 2 , 1.0250 ,
2017-03-20 18:21:43 , 1645.0 , 1752.0 , 77.0 , 92 , 38 , 0 , 3 , 1798 , 333 , 16 , 0.9810 ,
2017-03-20 18:21:44 , 1645.0 , 1752.0 , 77.0 , 98 , 40 , 0 , 4 , 1798 , 333 , 2 , 0.9810 ,
2017-03-20 18:21:45 , 1645.0 , 1752.0 , 77.0 , 99 , 41 , 0 , 4 , 1800 , 332 , 2 , 0.9810 ,
2017-03-20 18:21:46 , 1695.5 , 1752.0 , 77.0 , 82 , 37 , 0 , 4 , 1800 , 332 , 16 , 1.0310 ,
2017-03-20 18:21:47 , 1695.5 , 1752.0 , 78.0 , 81 , 37 , 0 , 4 , 1799 , 332 , 2 , 1.0310 ,
2017-03-20 18:21:48 , 1721.0 , 1752.0 , 78.0 , 76 , 36 , 0 , 4 , 1800 , 328 , 2 , 1.0430 ,
2017-03-20 18:21:49 , 1607.0 , 1752.0 , 77.0 , 99 , 41 , 0 , 3 , 1800 , 328 , 2 , 0.9500 ,
2017-03-20 18:21:50 , 1607.0 , 1752.0 , 77.0 , 96 , 40 , 0 , 4 , 1800 , 328 , 2 , 0.9500 ,
2017-03-20 18:21:51 , 1607.0 , 1752.0 , 77.0 , 99 , 40 , 0 , 4 , 1800 , 328 , 2 , 0.9500 ,
2017-03-20 18:21:52 , 1607.0 , 1752.0 , 76.0 , 96 , 39 , 0 , 4 , 1799 , 328 , 16 , 0.9500 ,
2017-03-20 18:21:53 , 1594.5 , 1752.0 , 77.0 , 94 , 37 , 0 , 4 , 1799 , 328 , 16 , 0.9500 ,
2017-03-20 18:21:54 , 1632.5 , 1752.0 , 77.0 , 93 , 36 , 0 , 4 , 1799 , 328 , 2 , 0.9750 ,
2017-03-20 18:21:55 , 1670.5 , 1752.0 , 77.0 , 93 , 37 , 0 , 4 , 1802 , 327 , 16 , 1.0000 ,
2017-03-20 18:21:56 , 1670.5 , 1752.0 , 77.0 , 97 , 39 , 0 , 3 , 1801 , 328 , 2 , 1.0000 ,
2017-03-20 18:21:57 , 1670.5 , 1752.0 , 77.0 , 98 , 39 , 0 , 4 , 1802 , 328 , 2 , 1.0000 ,
2017-03-20 18:21:58 , 1670.5 , 1752.0 , 77.0 , 98 , 38 , 0 , 3 , 1802 , 328 , 16 , 1.0000 ,
2017-03-20 18:21:59 , 1670.5 , 1752.0 , 77.0 , 98 , 40 , 0 , 4 , 1802 , 328 , 2 , 1.0000 ,
2017-03-20 18:22:00 , 1670.5 , 1752.0 , 77.0 , 93 , 38 , 0 , 4 , 1802 , 332 , 2 , 1.0000 ,
2017-03-20 18:22:01 , 1683.0 , 1752.0 , 77.0 , 96 , 43 , 0 , 4 , 1803 , 332 , 16 , 1.0250 ,
2017-03-20 18:22:02 , 1569.0 , 1752.0 , 76.0 , 94 , 37 , 0 , 3 , 1803 , 332 , 16 , 0.9310 ,
2017-03-20 18:22:03 , 1657.5 , 1752.0 , 77.0 , 88 , 34 , 0 , 3 , 1805 , 333 , 16 , 0.9930 ,
2017-03-20 18:22:04 , 1632.5 , 1752.0 , 77.0 , 89 , 36 , 0 , 3 , 1803 , 332 , 16 , 0.9750 ,
2017-03-20 18:22:05 , 1683.0 , 1752.0 , 77.0 , 71 , 31 , 0 , 4 , 1804 , 332 , 16 , 1.0250 ,
2017-03-20 18:22:06 , 1721.0 , 1752.0 , 77.0 , 64 , 29 , 0 , 3 , 1802 , 331 , 4 , 1.0620 ,
2017-03-20 18:22:07 , 1721.0 , 1752.0 , 77.0 , 74 , 32 , 0 , 3 , 1802 , 331 , 4 , 1.0620 ,
2017-03-20 18:22:08 , 1721.0 , 1752.0 , 77.0 , 71 , 33 , 0 , 3 , 1802 , 332 , 4 , 1.0620 ,
2017-03-20 18:22:09 , 1544.0 , 1752.0 , 76.0 , 60 , 27 , 0 , 3 , 1805 , 331 , 16 , 0.9120 ,
2017-03-20 18:22:10 , 1569.0 , 1752.0 , 75.0 , 64 , 29 , 0 , 3 , 1798 , 332 , 16 , 0.9310 ,
2017-03-20 18:22:11 , 1607.0 , 1752.0 , 75.0 , 73 , 35 , 0 , 4 , 1804 , 332 , 4 , 0.9500 ,
2017-03-20 18:22:12 , 1607.0 , 1752.0 , 76.0 , 81 , 39 , 0 , 4 , 1803 , 332 , 4 , 0.9500 ,
2017-03-20 18:22:13 , 1607.0 , 1752.0 , 75.0 , 77 , 37 , 0 , 4 , 1803 , 332 , 4 , 0.9500 ,
2017-03-20 18:22:14 , 1607.0 , 1752.0 , 75.0 , 84 , 39 , 0 , 4 , 1803 , 332 , 4 , 0.9500 ,
2017-03-20 18:22:15 , 1607.0 , 1752.0 , 75.0 , 77 , 36 , 0 , 4 , 1803 , 332 , 4 , 0.9500 ,
2017-03-20 18:22:16 , 1531.0 , 1752.0 , 75.0 , 76 , 36 , 0 , 3 , 1803 , 332 , 16 , 0.9120 ,
2017-03-20 18:22:17 , 1531.0 , 1752.0 , 75.0 , 80 , 37 , 0 , 4 , 1803 , 332 , 16 , 0.9120 ,
2017-03-20 18:22:18 , 1531.0 , 1752.0 , 75.0 , 77 , 36 , 0 , 4 , 1803 , 332 , 16 , 0.9120 ,
2017-03-20 18:22:19 , 1531.0 , 1752.0 , 74.0 , 76 , 36 , 0 , 4 , 1803 , 332 , 16 , 0.9120 ,
2017-03-20 18:22:20 , 1531.0 , 1752.0 , 74.0 , 77 , 37 , 0 , 4 , 1803 , 332 , 16 , 0.9120 ,
2017-03-20 18:22:21 , 974.5 , 1752.0 , 73.0 , 23 , 8 , 0 , 1 , 1869 , 331 , 16 , 0.6930 ,
2017-03-20 18:22:22 , 898.5 , 1752.0 , 72.0 , 67 , 15 , 0 , 4 , 1822 , 336 , 16 , 0.6620 ,
2017-03-20 18:22:23 , 721.0 , 1252.5 , 71.0 , 78 , 19 , 0 , 4 , 1819 , 332 , 16 , 0.6250 ,
2017-03-20 18:22:24 , 746.5 , 1252.5 , 70.0 , 79 , 21 , 0 , 4 , 1819 , 332 , 16 , 0.6250 ,
2017-03-20 18:22:25 , 759.0 , 1252.5 , 70.0 , 76 , 20 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:26 , 759.0 , 1252.5 , 69.0 , 77 , 20 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:27 , 759.0 , 1252.5 , 69.0 , 76 , 20 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:28 , 759.0 , 1252.5 , 69.0 , 76 , 20 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:29 , 759.0 , 1252.5 , 68.0 , 76 , 21 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:30 , 759.0 , 1252.5 , 68.0 , 78 , 22 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:31 , 759.0 , 1252.5 , 68.0 , 78 , 22 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:32 , 759.0 , 1252.5 , 67.0 , 78 , 22 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:33 , 759.0 , 1252.5 , 67.0 , 78 , 22 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:34 , 759.0 , 1252.5 , 67.0 , 77 , 22 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:35 , 759.0 , 1252.5 , 66.0 , 78 , 22 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:36 , 759.0 , 1252.5 , 66.0 , 77 , 21 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:37 , 759.0 , 1252.5 , 66.0 , 77 , 21 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:38 , 759.0 , 1252.5 , 66.0 , 77 , 21 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:39 , 759.0 , 1252.5 , 65.0 , 77 , 21 , 0 , 4 , 1819 , 332 , 16 , 0.6310 ,
2017-03-20 18:22:40 , 759.0 , 1252.5 , 65.0 , 77 , 21 , 0 , 4 , 1819 , 333 , 16 , 0.6310 ,
2017-03-20 18:22:41 , 696.0 , 1252.5 , 65.0 , 72 , 18 , 0 , 4 , 1819 , 333 , 16 , 0.6180 ,
2017-03-20 18:22:42 , 1354.0 , 1752.0 , 65.0 , 88 , 33 , 0 , 1 , 1781 , 334 , 16 , 0.8250 ,
2017-03-20 18:22:43 , 1733.5 , 1752.0 , 68.0 , 59 , 28 , 0 , 3 , 1788 , 333 , 4 , 1.0620 ,
2017-03-20 18:22:44 , 1733.5 , 1752.0 , 69.0 , 61 , 26 , 0 , 3 , 1786 , 334 , 4 , 1.0620 ,
2017-03-20 18:22:45 , 1733.5 , 1752.0 , 69.0 , 61 , 27 , 0 , 3 , 1785 , 333 , 4 , 1.0620 ,
2017-03-20 18:22:46 , 1733.5 , 1752.0 , 69.0 , 62 , 27 , 0 , 3 , 1785 , 332 , 4 , 1.0620 ,
2017-03-20 18:22:47 , 1733.5 , 1752.0 , 70.0 , 72 , 31 , 0 , 3 , 1776 , 332 , 4 , 1.0620 ,
2017-03-20 18:22:48 , 1632.5 , 1752.0 , 69.0 , 70 , 32 , 0 , 3 , 1780 , 333 , 16 , 0.9750 ,
2017-03-20 18:22:49 , 1733.5 , 1752.0 , 69.0 , 52 , 23 , 0 , 2 , 1776 , 333 , 4 , 1.0620 ,
2017-03-20 18:22:50 , 1733.5 , 1752.0 , 70.0 , 54 , 22 , 0 , 2 , 1790 , 335 , 4 , 1.0620 ,
2017-03-20 18:22:51 , 1721.0 , 1752.0 , 70.0 , 77 , 35 , 0 , 3 , 1787 , 334 , 4 , 1.0500 ,
2017-03-20 18:22:52 , 1721.0 , 1752.0 , 71.0 , 86 , 38 , 0 , 3 , 1784 , 333 , 4 , 1.0500 ,
2017-03-20 18:22:53 , 1721.0 , 1752.0 , 71.0 , 78 , 34 , 0 , 3 , 1786 , 335 , 4 , 1.0500 ,
2017-03-20 18:22:54 , 1721.0 , 1752.0 , 72.0 , 86 , 40 , 0 , 3 , 1780 , 333 , 4 , 1.0500 ,
2017-03-20 18:22:55 , 1721.0 , 1752.0 , 72.0 , 81 , 40 , 0 , 4 , 1776 , 333 , 4 , 1.0500 ,
2017-03-20 18:22:56 , 1721.0 , 1752.0 , 72.0 , 85 , 41 , 0 , 4 , 1780 , 332 , 4 , 1.0500 ,
2017-03-20 18:22:57 , 1721.0 , 1752.0 , 72.0 , 64 , 31 , 0 , 3 , 1780 , 332 , 4 , 1.0500 ,
2017-03-20 18:22:58 , 1721.0 , 1752.0 , 73.0 , 79 , 39 , 0 , 4 , 1780 , 333 , 4 , 1.0500 ,
2017-03-20 18:22:59 , 1721.0 , 1752.0 , 72.0 , 73 , 34 , 0 , 3 , 1778 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:00 , 1721.0 , 1752.0 , 73.0 , 76 , 36 , 0 , 3 , 1778 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:01 , 1721.0 , 1752.0 , 73.0 , 86 , 40 , 0 , 4 , 1778 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:02 , 1721.0 , 1752.0 , 74.0 , 90 , 42 , 0 , 4 , 1779 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:03 , 1721.0 , 1752.0 , 73.0 , 80 , 39 , 0 , 4 , 1779 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:04 , 1721.0 , 1752.0 , 74.0 , 74 , 37 , 0 , 4 , 1778 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:05 , 1721.0 , 1752.0 , 73.0 , 74 , 34 , 0 , 4 , 1778 , 334 , 4 , 1.0500 ,
2017-03-20 18:23:06 , 1721.0 , 1752.0 , 74.0 , 72 , 32 , 0 , 3 , 1778 , 334 , 4 , 1.0500 ,
2017-03-20 18:23:07 , 1721.0 , 1752.0 , 74.0 , 68 , 30 , 0 , 3 , 1778 , 338 , 4 , 1.0500 ,
2017-03-20 18:23:08 , 1721.0 , 1752.0 , 74.0 , 72 , 28 , 0 , 3 , 1775 , 335 , 4 , 1.0500 ,
2017-03-20 18:23:09 , 1721.0 , 1752.0 , 74.0 , 73 , 34 , 0 , 3 , 1757 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:10 , 1632.5 , 1752.0 , 73.0 , 85 , 39 , 0 , 4 , 1757 , 334 , 4 , 0.9750 ,
2017-03-20 18:23:11 , 1670.5 , 1752.0 , 73.0 , 75 , 35 , 0 , 3 , 1757 , 333 , 16 , 1.0000 ,
2017-03-20 18:23:12 , 1544.0 , 1752.0 , 73.0 , 75 , 33 , 0 , 4 , 1757 , 333 , 16 , 0.9120 ,
2017-03-20 18:23:13 , 1657.5 , 1752.0 , 73.0 , 80 , 36 , 0 , 4 , 1757 , 333 , 16 , 0.9930 ,
2017-03-20 18:23:14 , 1721.0 , 1752.0 , 74.0 , 79 , 35 , 0 , 3 , 1757 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:15 , 1721.0 , 1752.0 , 74.0 , 77 , 37 , 0 , 4 , 1757 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:16 , 1721.0 , 1752.0 , 74.0 , 81 , 40 , 0 , 4 , 1757 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:17 , 1721.0 , 1752.0 , 75.0 , 80 , 40 , 0 , 4 , 1758 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:18 , 1544.0 , 1752.0 , 74.0 , 76 , 34 , 0 , 4 , 1761 , 333 , 16 , 0.9120 ,
2017-03-20 18:23:19 , 1468.0 , 1752.0 , 73.0 , 77 , 33 , 0 , 4 , 1760 , 333 , 16 , 0.8750 ,
2017-03-20 18:23:20 , 1480.5 , 1752.0 , 72.0 , 80 , 36 , 0 , 4 , 1760 , 333 , 16 , 0.8810 ,
2017-03-20 18:23:21 , 1544.0 , 1752.0 , 72.0 , 76 , 36 , 0 , 4 , 1760 , 333 , 16 , 0.9120 ,
2017-03-20 18:23:22 , 1632.5 , 1752.0 , 73.0 , 76 , 38 , 0 , 3 , 1760 , 333 , 16 , 0.9750 ,
2017-03-20 18:23:23 , 1683.0 , 1752.0 , 73.0 , 72 , 36 , 0 , 3 , 1760 , 333 , 16 , 1.0120 ,
2017-03-20 18:23:24 , 1645.0 , 1752.0 , 73.0 , 70 , 33 , 0 , 3 , 1760 , 333 , 16 , 0.9810 ,
2017-03-20 18:23:25 , 1721.0 , 1752.0 , 74.0 , 75 , 35 , 0 , 3 , 1760 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:26 , 1721.0 , 1752.0 , 74.0 , 68 , 32 , 0 , 3 , 1760 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:27 , 1620.0 , 1752.0 , 73.0 , 77 , 37 , 0 , 3 , 1761 , 333 , 4 , 0.9620 ,
2017-03-20 18:23:28 , 1645.0 , 1752.0 , 74.0 , 77 , 37 , 0 , 4 , 1761 , 333 , 16 , 0.9810 ,
2017-03-20 18:23:29 , 1645.0 , 1752.0 , 73.0 , 72 , 34 , 0 , 4 , 1761 , 333 , 16 , 0.9810 ,
2017-03-20 18:23:30 , 1721.0 , 1752.0 , 74.0 , 80 , 36 , 0 , 3 , 1761 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:31 , 1721.0 , 1752.0 , 74.0 , 70 , 34 , 0 , 3 , 1761 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:32 , 1721.0 , 1752.0 , 74.0 , 66 , 32 , 0 , 3 , 1761 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:33 , 1721.0 , 1752.0 , 74.0 , 65 , 29 , 0 , 3 , 1761 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:34 , 1721.0 , 1752.0 , 75.0 , 76 , 35 , 0 , 4 , 1761 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:35 , 1632.5 , 1752.0 , 74.0 , 76 , 35 , 0 , 4 , 1761 , 333 , 4 , 0.9750 ,
2017-03-20 18:23:36 , 1721.0 , 1752.0 , 75.0 , 70 , 33 , 0 , 3 , 1761 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:37 , 1721.0 , 1752.0 , 74.0 , 63 , 31 , 0 , 3 , 1761 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:38 , 1721.0 , 1752.0 , 74.0 , 69 , 33 , 0 , 3 , 1772 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:39 , 1721.0 , 1752.0 , 74.0 , 67 , 30 , 0 , 3 , 1772 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:40 , 1721.0 , 1752.0 , 75.0 , 70 , 29 , 0 , 3 , 1772 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:41 , 1721.0 , 1752.0 , 75.0 , 86 , 35 , 0 , 3 , 1772 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:42 , 1721.0 , 1752.0 , 75.0 , 74 , 32 , 0 , 3 , 1772 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:43 , 1721.0 , 1752.0 , 74.0 , 54 , 24 , 0 , 2 , 1772 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:44 , 1721.0 , 1752.0 , 74.0 , 43 , 21 , 0 , 2 , 1772 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:45 , 1721.0 , 1752.0 , 74.0 , 52 , 25 , 0 , 2 , 1772 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:46 , 1721.0 , 1752.0 , 74.0 , 47 , 23 , 0 , 2 , 1772 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:47 , 1721.0 , 1752.0 , 74.0 , 53 , 23 , 0 , 2 , 1772 , 337 , 4 , 1.0500 ,
2017-03-20 18:23:48 , 1721.0 , 1752.0 , 74.0 , 56 , 26 , 0 , 3 , 1778 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:49 , 1721.0 , 1752.0 , 74.0 , 54 , 25 , 0 , 2 , 1778 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:50 , 1721.0 , 1752.0 , 74.0 , 46 , 21 , 0 , 2 , 1784 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:51 , 1721.0 , 1752.0 , 74.0 , 59 , 29 , 0 , 3 , 1784 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:52 , 1721.0 , 1752.0 , 74.0 , 61 , 30 , 0 , 3 , 1784 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:53 , 1721.0 , 1752.0 , 74.0 , 43 , 20 , 0 , 2 , 1784 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:54 , 1721.0 , 1752.0 , 74.0 , 59 , 28 , 0 , 3 , 1794 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:55 , 1721.0 , 1752.0 , 74.0 , 64 , 26 , 0 , 2 , 1787 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:56 , 1721.0 , 1752.0 , 74.0 , 67 , 28 , 0 , 3 , 1787 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:57 , 1721.0 , 1752.0 , 74.0 , 68 , 29 , 0 , 3 , 1787 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:58 , 1721.0 , 1752.0 , 75.0 , 72 , 32 , 0 , 3 , 1787 , 333 , 4 , 1.0500 ,
2017-03-20 18:23:59 , 1721.0 , 1752.0 , 75.0 , 65 , 31 , 0 , 3 , 1788 , 333 , 4 , 1.0500 ,
2017-03-20 18:24:00 , 1721.0 , 1752.0 , 74.0 , 50 , 23 , 0 , 2 , 1788 , 337 , 4 , 1.0500 ,
2017-03-20 18:24:01 , 1721.0 , 1752.0 , 74.0 , 49 , 22 , 0 , 2 , 1785 , 333 , 4 , 1.0500 ,
2017-03-20 18:24:02 , 1721.0 , 1752.0 , 74.0 , 59 , 27 , 0 , 3 , 1788 , 333 , 4 , 1.0500 ,
2017-03-20 18:24:03 , 1721.0 , 1752.0 , 74.0 , 57 , 26 , 0 , 3 , 1788 , 333 , 4 , 1.0500 ,
2017-03-20 18:24:04 , 1721.0 , 1752.0 , 74.0 , 51 , 24 , 0 , 2 , 1788 , 334 , 4 , 1.0500 ,
2017-03-20 18:24:05 , 1721.0 , 1752.0 , 74.0 , 57 , 27 , 0 , 3 , 1788 , 334 , 4 , 1.0500 ,
2017-03-20 18:24:06 , 1721.0 , 1752.0 , 74.0 , 58 , 27 , 0 , 3 , 1782 , 333 , 4 , 1.0500 ,
2017-03-20 18:24:07 , 1721.0 , 1752.0 , 74.0 , 62 , 29 , 0 , 3 , 1782 , 333 , 4 , 1.0500 ,
2017-03-20 18:24:08 , 1721.0 , 1752.0 , 75.0 , 64 , 31 , 0 , 3 , 1784 , 333 , 4 , 1.0500 ,
2017-03-20 18:24:09 , 1721.0 , 1752.0 , 75.0 , 72 , 34 , 0 , 3 , 1784 , 333 , 4 , 1.0500 ,
2017-03-20 18:24:10 , 1721.0 , 1752.0 , 75.0 , 73 , 35 , 0 , 3 , 1784 , 333 , 4 , 1.0500 ,
2017-03-20 18:24:11 , 1721.0 , 1752.0 , 75.0 , 74 , 35 , 0 , 4 , 1784 , 334 , 4 , 1.0620 ,
2017-03-20 18:24:12 , 1556.5 , 1752.0 , 74.0 , 62 , 29 , 0 , 3 , 1786 , 333 , 16 , 0.9250 ,
2017-03-20 18:24:13 , 1594.5 , 1752.0 , 73.0 , 70 , 33 , 0 , 3 , 1786 , 332 , 16 , 0.9500 ,
2017-03-20 18:24:14 , 1594.5 , 1752.0 , 74.0 , 71 , 34 , 0 , 4 , 1786 , 332 , 16 , 0.9500 ,
2017-03-20 18:24:15 , 1632.5 , 1752.0 , 74.0 , 75 , 35 , 0 , 4 , 1786 , 333 , 16 , 0.9750 ,
2017-03-20 18:24:16 , 1695.5 , 1752.0 , 74.0 , 58 , 27 , 0 , 3 , 1786 , 334 , 16 , 1.0310 ,
2017-03-20 18:24:17 , 1721.0 , 1752.0 , 75.0 , 63 , 30 , 0 , 3 , 1786 , 334 , 4 , 1.0620 ,
2017-03-20 18:24:18 , 1721.0 , 1752.0 , 75.0 , 64 , 30 , 0 , 3 , 1786 , 334 , 4 , 1.0620 ,
2017-03-20 18:24:19 , 1721.0 , 1752.0 , 75.0 , 64 , 29 , 0 , 3 , 1786 , 334 , 4 , 1.0620 ,
2017-03-20 18:24:20 , 1721.0 , 1752.0 , 75.0 , 67 , 30 , 0 , 3 , 1786 , 334 , 4 , 1.0620 ,
2017-03-20 18:24:21 , 1721.0 , 1752.0 , 75.0 , 67 , 30 , 0 , 3 , 1786 , 334 , 4 , 1.0620 ,
2017-03-20 18:24:22 , 1721.0 , 1752.0 , 75.0 , 74 , 33 , 0 , 3 , 1786 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:23 , 1721.0 , 1752.0 , 75.0 , 69 , 30 , 0 , 3 , 1786 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:24 , 1721.0 , 1752.0 , 76.0 , 72 , 32 , 0 , 3 , 1786 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:25 , 1721.0 , 1752.0 , 76.0 , 70 , 32 , 0 , 3 , 1786 , 334 , 4 , 1.0620 ,
2017-03-20 18:24:26 , 1721.0 , 1752.0 , 75.0 , 62 , 29 , 0 , 3 , 1791 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:27 , 1721.0 , 1752.0 , 76.0 , 75 , 37 , 0 , 3 , 1788 , 332 , 4 , 1.0620 ,
2017-03-20 18:24:28 , 1721.0 , 1752.0 , 76.0 , 76 , 37 , 0 , 3 , 1788 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:29 , 1721.0 , 1752.0 , 76.0 , 73 , 36 , 0 , 3 , 1788 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:30 , 1721.0 , 1752.0 , 76.0 , 72 , 36 , 0 , 3 , 1782 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:31 , 1721.0 , 1752.0 , 76.0 , 66 , 32 , 0 , 3 , 1782 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:32 , 1632.5 , 1752.0 , 75.0 , 66 , 32 , 0 , 3 , 1784 , 333 , 4 , 0.9750 ,
2017-03-20 18:24:33 , 1607.0 , 1752.0 , 75.0 , 66 , 32 , 0 , 3 , 1784 , 333 , 16 , 0.9500 ,
2017-03-20 18:24:34 , 1607.0 , 1752.0 , 75.0 , 71 , 34 , 0 , 3 , 1785 , 333 , 16 , 0.9500 ,
2017-03-20 18:24:35 , 1657.5 , 1752.0 , 75.0 , 70 , 33 , 0 , 3 , 1787 , 333 , 16 , 0.9930 ,
2017-03-20 18:24:36 , 1721.0 , 1752.0 , 76.0 , 65 , 29 , 0 , 3 , 1787 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:37 , 1721.0 , 1752.0 , 76.0 , 87 , 39 , 0 , 4 , 1778 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:38 , 1721.0 , 1752.0 , 76.0 , 76 , 34 , 0 , 3 , 1781 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:39 , 1721.0 , 1752.0 , 76.0 , 71 , 33 , 0 , 3 , 1780 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:40 , 1721.0 , 1752.0 , 76.0 , 70 , 33 , 0 , 3 , 1780 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:41 , 1721.0 , 1752.0 , 76.0 , 73 , 32 , 0 , 3 , 1780 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:42 , 1721.0 , 1752.0 , 76.0 , 55 , 25 , 0 , 2 , 1780 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:43 , 1721.0 , 1752.0 , 76.0 , 61 , 28 , 0 , 3 , 1780 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:44 , 1721.0 , 1752.0 , 76.0 , 66 , 30 , 0 , 3 , 1780 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:45 , 1721.0 , 1752.0 , 76.0 , 64 , 32 , 0 , 3 , 1780 , 333 , 4 , 1.0620 ,
2017-03-20 18:24:46 , 1620.0 , 1752.0 , 75.0 , 66 , 32 , 0 , 3 , 1783 , 333 , 4 , 0.9620 ,
2017-03-20 18:24:47 , 1620.0 , 1752.0 , 75.0 , 72 , 34 , 0 , 4 , 1770 , 333 , 16 , 0.9620 ,
2017-03-20 18:24:48 , 1632.5 , 1752.0 , 75.0 , 74 , 36 , 0 , 4 , 1770 , 278 , 16 , 0.9750 ,
2017-03-20 18:24:49 , 1721.0 , 1752.0 , 76.0 , 78 , 37 , 0 , 3 , 1770 , 278 , 4 , 1.0620 ,
2017-03-20 18:24:50 , 1430.0 , 1752.0 , 75.0 , 73 , 29 , 0 , 4 , 1770 , 278 , 16 , 0.8500 ,
2017-03-20 18:24:51 , 1468.0 , 1752.0 , 74.0 , 74 , 34 , 0 , 3 , 1770 , 278 , 16 , 0.8750 ,
2017-03-20 18:24:52 , 1594.5 , 1752.0 , 75.0 , 77 , 37 , 0 , 4 , 1756 , 278 , 16 , 0.9500 ,
2017-03-20 18:24:53 , 1506.0 , 1752.0 , 74.0 , 76 , 35 , 0 , 4 , 1751 , 280 , 16 , 0.8930 ,
2017-03-20 18:24:54 , 1506.0 , 1752.0 , 74.0 , 79 , 36 , 0 , 4 , 1751 , 279 , 16 , 0.8930 ,
2017-03-20 18:24:55 , 1506.0 , 1752.0 , 74.0 , 78 , 36 , 0 , 4 , 1751 , 279 , 16 , 0.8930 ,
2017-03-20 18:24:56 , 1506.0 , 1752.0 , 74.0 , 76 , 36 , 0 , 4 , 1751 , 279 , 16 , 0.8930 ,
2017-03-20 18:24:57 , 1506.0 , 1752.0 , 74.0 , 78 , 36 , 0 , 4 , 1751 , 279 , 16 , 0.8930 ,
2017-03-20 18:24:58 , 1506.0 , 1752.0 , 73.0 , 77 , 35 , 0 , 4 , 1752 , 279 , 16 , 0.8930 ,
2017-03-20 18:24:59 , 1518.5 , 1752.0 , 73.0 , 71 , 33 , 0 , 3 , 1752 , 279 , 16 , 0.9000 ,
2017-03-20 18:25:00 , 1518.5 , 1752.0 , 73.0 , 78 , 36 , 0 , 4 , 1749 , 279 , 16 , 0.9000 ,
2017-03-20 18:25:01 , 1620.0 , 1752.0 , 74.0 , 75 , 36 , 0 , 4 , 1749 , 278 , 16 , 0.9620 ,
2017-03-20 18:25:02 , 1645.0 , 1752.0 , 74.0 , 78 , 38 , 0 , 4 , 1749 , 278 , 16 , 0.9810 ,
2017-03-20 18:25:03 , 1708.5 , 1752.0 , 74.0 , 84 , 39 , 0 , 4 , 1749 , 279 , 16 , 1.0500 ,
2017-03-20 18:25:04 , 1721.0 , 1752.0 , 75.0 , 80 , 35 , 0 , 3 , 1749 , 279 , 4 , 1.0620 ,
2017-03-20 18:25:05 , 1721.0 , 1752.0 , 76.0 , 98 , 42 , 0 , 3 , 1749 , 279 , 4 , 1.0620 ,
2017-03-20 18:25:06 , 1721.0 , 1752.0 , 76.0 , 96 , 42 , 0 , 4 , 1751 , 278 , 4 , 1.0620 ,
2017-03-20 18:25:07 , 1721.0 , 1752.0 , 76.0 , 84 , 35 , 0 , 3 , 1751 , 279 , 4 , 1.0620 ,
2017-03-20 18:25:08 , 1721.0 , 1752.0 , 76.0 , 88 , 35 , 0 , 3 , 1751 , 279 , 4 , 1.0620 ,
2017-03-20 18:25:09 , 1721.0 , 1752.0 , 77.0 , 86 , 37 , 0 , 4 , 1754 , 279 , 4 , 1.0620 ,
2017-03-20 18:25:10 , 1721.0 , 1752.0 , 77.0 , 93 , 40 , 0 , 4 , 1754 , 279 , 4 , 1.0620 ,
2017-03-20 18:25:11 , 1721.0 , 1752.0 , 77.0 , 84 , 40 , 0 , 4 , 1754 , 279 , 4 , 1.0620 ,
2017-03-20 18:25:12 , 1721.0 , 1752.0 , 77.0 , 93 , 41 , 0 , 4 , 1754 , 279 , 4 , 1.0620 ,
2017-03-20 18:25:13 , 1670.5 , 1752.0 , 77.0 , 96 , 39 , 0 , 3 , 1754 , 279 , 16 , 1.0000 ,
2017-03-20 18:25:14 , 1670.5 , 1752.0 , 77.0 , 98 , 41 , 0 , 4 , 1754 , 279 , 2 , 1.0000 ,
2017-03-20 18:25:15 , 1708.5 , 1752.0 , 77.0 , 88 , 39 , 0 , 3 , 1751 , 279 , 16 , 1.0500 ,
2017-03-20 18:25:16 , 1695.5 , 1752.0 , 77.0 , 89 , 37 , 0 , 3 , 1751 , 279 , 2 , 1.0310 ,
2017-03-20 18:25:17 , 1683.0 , 1752.0 , 77.0 , 95 , 37 , 0 , 4 , 1751 , 279 , 16 , 1.0250 ,
2017-03-20 18:25:18 , 1632.5 , 1752.0 , 77.0 , 89 , 34 , 0 , 3 , 1740 , 279 , 2 , 0.9620 ,
2017-03-20 18:25:19 , 1594.5 , 1752.0 , 77.0 , 99 , 39 , 0 , 3 , 1738 , 279 , 2 , 0.9500 ,
2017-03-20 18:25:20 , 1645.0 , 1752.0 , 77.0 , 99 , 40 , 0 , 4 , 1738 , 279 , 16 , 0.9810 ,
2017-03-20 18:25:21 , 1683.0 , 1752.0 , 77.0 , 83 , 37 , 0 , 3 , 1738 , 280 , 2 , 1.0250 ,
2017-03-20 18:25:22 , 1708.5 , 1752.0 , 77.0 , 76 , 37 , 0 , 3 , 1738 , 279 , 2 , 1.0500 ,
2017-03-20 18:25:23 , 1695.5 , 1752.0 , 77.0 , 79 , 39 , 0 , 4 , 1739 , 279 , 16 , 1.0310 ,
2017-03-20 18:25:24 , 1632.5 , 1752.0 , 77.0 , 70 , 33 , 0 , 3 , 1743 , 281 , 16 , 0.9750 ,
2017-03-20 18:25:25 , 1721.0 , 1752.0 , 77.0 , 53 , 24 , 0 , 2 , 1744 , 280 , 4 , 1.0620 ,
2017-03-20 18:25:26 , 1721.0 , 1752.0 , 77.0 , 67 , 30 , 0 , 3 , 1746 , 280 , 4 , 1.0620 ,
2017-03-20 18:25:27 , 1620.0 , 1752.0 , 77.0 , 94 , 36 , 0 , 3 , 1739 , 280 , 2 , 0.9620 ,
2017-03-20 18:25:28 , 1620.0 , 1752.0 , 77.0 , 99 , 37 , 0 , 3 , 1739 , 280 , 2 , 0.9620 ,
2017-03-20 18:25:29 , 1607.0 , 1752.0 , 77.0 , 99 , 40 , 0 , 4 , 1739 , 280 , 2 , 0.9500 ,
2017-03-20 18:25:30 , 1607.0 , 1752.0 , 77.0 , 99 , 40 , 0 , 4 , 1739 , 279 , 2 , 0.9500 ,
2017-03-20 18:25:31 , 1620.0 , 1752.0 , 77.0 , 96 , 39 , 0 , 3 , 1739 , 279 , 16 , 0.9620 ,
2017-03-20 18:25:32 , 1670.5 , 1752.0 , 77.0 , 96 , 38 , 0 , 3 , 1745 , 283 , 2 , 1.0000 ,
2017-03-20 18:25:33 , 1670.5 , 1752.0 , 77.0 , 85 , 34 , 0 , 3 , 1750 , 283 , 2 , 1.0000 ,
2017-03-20 18:25:34 , 1607.0 , 1752.0 , 77.0 , 96 , 37 , 0 , 3 , 1754 , 284 , 2 , 0.9500 ,
2017-03-20 18:25:35 , 1620.0 , 1752.0 , 77.0 , 95 , 37 , 0 , 3 , 1754 , 284 , 2 , 0.9620 ,
2017-03-20 18:25:36 , 1670.5 , 1752.0 , 77.0 , 83 , 37 , 0 , 3 , 1754 , 284 , 2 , 1.0000 ,
2017-03-20 18:25:37 , 1683.0 , 1752.0 , 77.0 , 77 , 36 , 0 , 3 , 1754 , 283 , 16 , 1.0250 ,
2017-03-20 18:25:38 , 1657.5 , 1752.0 , 77.0 , 84 , 37 , 0 , 4 , 1754 , 283 , 2 , 0.9930 ,
2017-03-20 18:25:39 , 1657.5 , 1752.0 , 77.0 , 84 , 36 , 0 , 4 , 1754 , 283 , 2 , 0.9930 ,
2017-03-20 18:25:40 , 1607.0 , 1752.0 , 77.0 , 98 , 40 , 0 , 4 , 1754 , 283 , 2 , 0.9500 ,
2017-03-20 18:25:41 , 1607.0 , 1752.0 , 77.0 , 99 , 38 , 0 , 3 , 1754 , 283 , 2 , 0.9500 ,
2017-03-20 18:25:42 , 1657.5 , 1752.0 , 77.0 , 98 , 40 , 0 , 4 , 1754 , 284 , 2 , 0.9930 ,
2017-03-20 18:25:43 , 1670.5 , 1752.0 , 77.0 , 92 , 41 , 0 , 3 , 1755 , 283 , 16 , 1.0000 ,
2017-03-20 18:25:44 , 1695.5 , 1752.0 , 78.0 , 87 , 39 , 0 , 4 , 1756 , 283 , 16 , 1.0310 ,
2017-03-20 18:25:45 , 1708.5 , 1752.0 , 77.0 , 78 , 35 , 0 , 3 , 1760 , 284 , 2 , 1.0500 ,
2017-03-20 18:25:46 , 1569.0 , 1752.0 , 77.0 , 95 , 35 , 0 , 3 , 1763 , 283 , 2 , 0.9310 ,
2017-03-20 18:25:47 , 1582.0 , 1752.0 , 77.0 , 86 , 36 , 0 , 3 , 1764 , 283 , 16 , 0.9810 ,
2017-03-20 18:25:48 , 1569.0 , 1752.0 , 77.0 , 85 , 32 , 0 , 3 , 1776 , 283 , 2 , 0.9310 ,
2017-03-20 18:25:49 , 1645.0 , 1752.0 , 77.0 , 98 , 40 , 0 , 4 , 1776 , 284 , 2 , 0.9810 ,
2017-03-20 18:25:50 , 1683.0 , 1752.0 , 77.0 , 83 , 38 , 0 , 4 , 1777 , 283 , 16 , 1.0250 ,
2017-03-20 18:25:51 , 1683.0 , 1752.0 , 77.0 , 90 , 40 , 0 , 3 , 1777 , 283 , 2 , 1.0250 ,
2017-03-20 18:25:52 , 1632.5 , 1752.0 , 77.0 , 93 , 39 , 0 , 4 , 1777 , 284 , 2 , 0.9750 ,
2017-03-20 18:25:53 , 1670.5 , 1752.0 , 77.0 , 91 , 37 , 0 , 3 , 1777 , 284 , 16 , 1.0000 ,
2017-03-20 18:25:54 , 1721.0 , 1752.0 , 77.0 , 74 , 32 , 0 , 3 , 1777 , 284 , 4 , 1.0620 ,
2017-03-20 18:25:55 , 1721.0 , 1752.0 , 78.0 , 75 , 35 , 0 , 3 , 1777 , 284 , 6 , 1.0620 ,
2017-03-20 18:25:56 , 1721.0 , 1752.0 , 77.0 , 68 , 32 , 0 , 3 , 1777 , 284 , 4 , 1.0620 ,
2017-03-20 18:25:57 , 1620.0 , 1752.0 , 77.0 , 77 , 37 , 0 , 4 , 1777 , 284 , 16 , 0.9620 ,
2017-03-20 18:25:58 , 1620.0 , 1752.0 , 77.0 , 73 , 34 , 0 , 3 , 1777 , 284 , 16 , 0.9620 ,
2017-03-20 18:25:59 , 1708.5 , 1752.0 , 77.0 , 66 , 33 , 0 , 3 , 1777 , 284 , 2 , 1.0500 ,
2017-03-20 18:26:00 , 1607.0 , 1752.0 , 76.0 , 64 , 30 , 0 , 3 , 1785 , 284 , 16 , 0.9500 ,
2017-03-20 18:26:01 , 1607.0 , 1752.0 , 76.0 , 76 , 36 , 0 , 3 , 1783 , 284 , 16 , 0.9500 ,
2017-03-20 18:26:02 , 1632.5 , 1752.0 , 76.0 , 73 , 34 , 0 , 3 , 1783 , 284 , 16 , 0.9750 ,
2017-03-20 18:26:03 , 1632.5 , 1752.0 , 76.0 , 77 , 35 , 0 , 4 , 1784 , 284 , 4 , 0.9750 ,
2017-03-20 18:26:04 , 1721.0 , 1752.0 , 77.0 , 64 , 31 , 0 , 3 , 1784 , 284 , 4 , 1.0620 ,
2017-03-20 18:26:05 , 1721.0 , 1752.0 , 77.0 , 75 , 35 , 0 , 4 , 1784 , 284 , 4 , 1.0620 ,
2017-03-20 18:26:06 , 1721.0 , 1752.0 , 77.0 , 61 , 29 , 0 , 3 , 1786 , 284 , 4 , 1.0620 ,
2017-03-20 18:26:07 , 1721.0 , 1752.0 , 77.0 , 78 , 40 , 0 , 4 , 1764 , 284 , 4 , 1.0620 ,
2017-03-20 18:26:08 , 1632.5 , 1752.0 , 77.0 , 76 , 39 , 0 , 3 , 1765 , 284 , 4 , 0.9750 ,
2017-03-20 18:26:09 , 1721.0 , 1752.0 , 77.0 , 77 , 39 , 0 , 4 , 1767 , 284 , 4 , 1.0620 ,
2017-03-20 18:26:10 , 1721.0 , 1752.0 , 77.0 , 79 , 39 , 0 , 3 , 1767 , 284 , 4 , 1.0620 ,
2017-03-20 18:26:11 , 1721.0 , 1752.0 , 77.0 , 72 , 35 , 0 , 3 , 1767 , 284 , 4 , 1.0620 ,
2017-03-20 18:26:12 , 1657.5 , 1752.0 , 77.0 , 83 , 39 , 0 , 3 , 1767 , 284 , 16 , 0.9930 ,
2017-03-20 18:26:13 , 1695.5 , 1752.0 , 77.0 , 70 , 32 , 0 , 3 , 1776 , 285 , 16 , 1.0310 ,
2017-03-20 18:26:14 , 1632.5 , 1752.0 , 77.0 , 77 , 36 , 0 , 3 , 1775 , 284 , 16 , 0.9750 ,
2017-03-20 18:26:15 , 1708.5 , 1752.0 , 77.0 , 75 , 36 , 0 , 4 , 1775 , 284 , 2 , 1.0310 ,
2017-03-20 18:26:16 , 1683.0 , 1752.0 , 77.0 , 88 , 41 , 0 , 4 , 1775 , 284 , 2 , 1.0250 ,
2017-03-20 18:26:17 , 1708.5 , 1752.0 , 77.0 , 82 , 37 , 0 , 3 , 1775 , 284 , 2 , 1.0500 ,
2017-03-20 18:26:18 , 1721.0 , 1752.0 , 77.0 , 70 , 32 , 0 , 3 , 1775 , 284 , 6 , 1.0620 ,
2017-03-20 18:26:19 , 1695.5 , 1752.0 , 77.0 , 75 , 37 , 0 , 4 , 1776 , 284 , 16 , 1.0310 ,
2017-03-20 18:26:20 , 1721.0 , 1752.0 , 77.0 , 61 , 30 , 0 , 3 , 1778 , 283 , 4 , 1.0620 ,
2017-03-20 18:26:21 , 1683.0 , 1752.0 , 77.0 , 86 , 41 , 0 , 4 , 1773 , 284 , 16 , 1.0250 ,
2017-03-20 18:26:22 , 1695.5 , 1752.0 , 77.0 , 73 , 33 , 0 , 3 , 1773 , 284 , 2 , 1.0310 ,
2017-03-20 18:26:23 , 1645.0 , 1752.0 , 77.0 , 94 , 40 , 0 , 4 , 1773 , 284 , 16 , 0.9810 ,
2017-03-20 18:26:24 , 1683.0 , 1752.0 , 77.0 , 82 , 35 , 0 , 3 , 1773 , 284 , 16 , 1.0250 ,
2017-03-20 18:26:25 , 1683.0 , 1752.0 , 77.0 , 84 , 37 , 0 , 3 , 1774 , 285 , 2 , 1.0250 ,
2017-03-20 18:26:26 , 1683.0 , 1752.0 , 77.0 , 84 , 39 , 0 , 3 , 1774 , 284 , 2 , 1.0000 ,
2017-03-20 18:26:27 , 1607.0 , 1752.0 , 77.0 , 98 , 43 , 0 , 4 , 1774 , 284 , 2 , 0.9500 ,
2017-03-20 18:26:28 , 1645.0 , 1752.0 , 77.0 , 93 , 42 , 0 , 4 , 1774 , 284 , 16 , 0.9810 ,
2017-03-20 18:26:29 , 1645.0 , 1752.0 , 77.0 , 91 , 40 , 0 , 4 , 1774 , 284 , 16 , 0.9810 ,
2017-03-20 18:26:30 , 1632.5 , 1752.0 , 77.0 , 94 , 41 , 0 , 4 , 1774 , 284 , 2 , 0.9750 ,
2017-03-20 18:26:31 , 1620.0 , 1752.0 , 77.0 , 96 , 42 , 0 , 4 , 1774 , 284 , 2 , 0.9620 ,
2017-03-20 18:26:32 , 1620.0 , 1752.0 , 77.0 , 94 , 41 , 0 , 4 , 1774 , 284 , 16 , 0.9620 ,
2017-03-20 18:26:33 , 1645.0 , 1752.0 , 77.0 , 93 , 41 , 0 , 4 , 1774 , 284 , 16 , 0.9810 ,
2017-03-20 18:26:34 , 1645.0 , 1752.0 , 77.0 , 91 , 40 , 0 , 4 , 1774 , 284 , 2 , 0.9810 ,
2017-03-20 18:26:35 , 1721.0 , 1752.0 , 76.0 , 61 , 28 , 0 , 3 , 1825 , 287 , 4 , 1.0620 ,
2017-03-20 18:26:36 , 1012.5 , 1752.0 , 74.0 , 76 , 26 , 0 , 4 , 1820 , 293 , 16 , 0.7000 ,
2017-03-20 18:26:37 , 784.5 , 1252.5 , 73.0 , 79 , 21 , 0 , 4 , 1820 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:38 , 784.5 , 1252.5 , 72.0 , 76 , 22 , 0 , 4 , 1821 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:39 , 784.5 , 1252.5 , 71.0 , 77 , 22 , 0 , 4 , 1821 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:40 , 784.5 , 1252.5 , 71.0 , 76 , 22 , 0 , 4 , 1821 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:41 , 784.5 , 1252.5 , 70.0 , 77 , 22 , 0 , 4 , 1821 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:42 , 784.5 , 1252.5 , 70.0 , 77 , 22 , 0 , 4 , 1821 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:43 , 784.5 , 1252.5 , 69.0 , 77 , 22 , 0 , 4 , 1821 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:44 , 784.5 , 1252.5 , 69.0 , 78 , 22 , 0 , 4 , 1821 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:45 , 784.5 , 1252.5 , 69.0 , 78 , 22 , 0 , 4 , 1821 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:46 , 784.5 , 1252.5 , 68.0 , 77 , 22 , 0 , 4 , 1821 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:47 , 784.5 , 1252.5 , 68.0 , 77 , 22 , 0 , 4 , 1821 , 293 , 16 , 0.6310 ,
2017-03-20 18:26:48 , 784.5 , 1252.5 , 68.0 , 76 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6310 ,
2017-03-20 18:26:49 , 797.0 , 1252.5 , 68.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:26:50 , 797.0 , 1252.5 , 67.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:26:51 , 797.0 , 1252.5 , 67.0 , 76 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:26:52 , 797.0 , 1252.5 , 67.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:26:53 , 797.0 , 1252.5 , 66.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:26:54 , 797.0 , 1252.5 , 66.0 , 76 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:26:55 , 797.0 , 1252.5 , 66.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:26:56 , 797.0 , 1252.5 , 66.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:26:57 , 797.0 , 1252.5 , 66.0 , 78 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:26:58 , 797.0 , 1252.5 , 65.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:26:59 , 797.0 , 1252.5 , 65.0 , 76 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:00 , 797.0 , 1252.5 , 65.0 , 76 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:01 , 797.0 , 1252.5 , 65.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:02 , 797.0 , 1252.5 , 65.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:03 , 797.0 , 1252.5 , 64.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:04 , 797.0 , 1252.5 , 64.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:05 , 797.0 , 1252.5 , 64.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:06 , 797.0 , 1252.5 , 64.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:07 , 797.0 , 1252.5 , 64.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:08 , 797.0 , 1252.5 , 64.0 , 75 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:09 , 797.0 , 1252.5 , 63.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:10 , 797.0 , 1252.5 , 63.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:11 , 797.0 , 1252.5 , 63.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:12 , 797.0 , 1252.5 , 63.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:13 , 797.0 , 1252.5 , 63.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:14 , 797.0 , 1252.5 , 63.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:15 , 797.0 , 1252.5 , 63.0 , 78 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:16 , 797.0 , 1252.5 , 62.0 , 81 , 23 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:17 , 797.0 , 1252.5 , 62.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:18 , 797.0 , 1252.5 , 62.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:19 , 797.0 , 1252.5 , 62.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:20 , 797.0 , 1252.5 , 62.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:21 , 797.0 , 1252.5 , 62.0 , 76 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:22 , 797.0 , 1252.5 , 62.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:23 , 797.0 , 1252.5 , 62.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:24 , 797.0 , 1252.5 , 62.0 , 78 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:25 , 797.0 , 1252.5 , 62.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:26 , 797.0 , 1252.5 , 61.0 , 84 , 24 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:27 , 797.0 , 1252.5 , 61.0 , 78 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:28 , 797.0 , 1252.5 , 61.0 , 79 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:29 , 810.0 , 1252.5 , 61.0 , 78 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:30 , 810.0 , 1252.5 , 61.0 , 77 , 22 , 0 , 3 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:31 , 810.0 , 1252.5 , 61.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:32 , 810.0 , 1252.5 , 61.0 , 77 , 22 , 0 , 4 , 1821 , 280 , 16 , 0.6430 ,
2017-03-20 18:27:33 , 696.0 , 1252.5 , 61.0 , 74 , 18 , 0 , 4 , 1821 , 280 , 16 , 0.6180 ,
2017-03-20 18:27:34 , 696.0 , 405.0 , 60.0 , 61 , 25 , 0 , 7 , 1752 , 280 , 16 , 0.6180 ,
2017-03-20 18:27:35 , 1733.5 , 1752.0 , 64.0 , 90 , 38 , 0 , 3 , 1777 , 281 , 4 , 1.0620 ,



No definitely not, this is only under extreme CPU and GPU load running the most demanding games currently available. I've made significant progress on this now, it's all but fixed actually! Will update soon with details

Sent from my SM-G935F using Tapatalk



Lol that's not to helpful buddy, use hwinfo and double click to see the graphs it will help us loads. Reorder the fields like I have in my images. A pictures paints a thousand words



Sent from my SM-G935F using Tapatalk



Ok,

SO....with that being said, it truly is the wrong tool for the job. the xps is / was never touted as a gaming rig. its a professional system for graphics/photo/video editing and performance consumer notebook for people like myself who does lots of photo/video editing. Extreme gaming is handled by the alienware systems available from dell. So really...this, in the same way overclocking is, is not an issue for users who use the notebook for it's intended purpose.

Also, Just so you know, I am not questioning your findings etc. Just making a statement for those people who maybe looking at the xps15 as their new system. That NO, there is no overheating problem when using the machine as dell intended for you to do.



No point in pursuing discussions like this. Laptops are general-purpose machines. Many folks buy the 9550/9560 for this and that work and also a bit of gaming, because it has powerful specs and is relatively convenient for carrying around. Even you may happen to get some new software for photo/video editing which will be coded more efficiently than what you've got currently and will be CPU and GPU-intensive at once. Why complain if some guys and gals are trying hard to make these run unthrottled at stock & advertised frequencies? Nowhere in the specs I've seen a disclaimer that the buyers must expect a downclock under this and that serious load, have you?



NO.....I am just making the point for potential buyers that this "issue" is not really an issue if your not hardcore gaming with it. Why buy it if you KNOW your going to game, just get the alienware.



Hardware not running to spec is an issue regardless of why. Thankfully the apple community shares your belief and that's how they are able to keep selling their products. It is true that the XPS isn't a "gaming" laptop, but playing games at a lower detail level should be entirely possible and an option. Just because you wouldn't use the full capabilities of the laptop doesn't mean everyone else shouldn't.



If you're pushing this hypothesis like this, I can't agree with it. I admit for myself, I bought the 9550 knowing it wouldn't take max load without throttling but hoping it could be fixed a little bit easier than what it turns out. But I believe most buyers don't realise this, because it is not listed in the specifications and because they are not aware that the cooling is not capable enough. They just see the i7 and GTX 960M/1050, they read their nominal clocks, and perhaps see some benchmark results measured in conditions which don't involve long-term load.
I think with the continuing trend of laptops getting thinner and lighter, not specifying the thermal capabilities is plain wrong.
I don't game, I use it for work and carry around a lot, but I occasionally benchmark code performance, which will likely involve CPU+GPU intensive code with CUDA. Photo/video processing software is increasingly turning towards making good use of the GPU for speeding up certain operations. Alienware is not for me, and it is very difficult to find a laptop with decent-gamut panel these days.



So here come my results I ran OCCT for about 15min with maximum performance setting. CPU stays at 3,4Ghz. Ambient is around 22°C. I repasted with CLU so I´m really interested in your temps, too I undervolted by -120mV CPU/Cache and -100mV iGPU and padded my mosfets (not the chokes) if it matters.
In the end the CPU is at 71°C (funny thing is that the fans ran at 3000rpm for 10min w/ 74°C CPU and started to kick in to get temps down to steady 71°C). VRM is at a steady 64°C in the end. These temps were stable for the last 5min. No throttling. I didn´t change any Settings in OCCT, just installed and let it run.

Let us know your results!



And there is no major overheating issue preventing you from extreme gaming with a little work under the hood!

Sent from my SM-G935F using Tapatalk



Agreed and to add to that. 45-60FPS in BF1 at ultra settings in 1080p isn't too low or shabby!

Sent from my SM-G935F using Tapatalk



Because the Alienware is huge, heavy and, like almost every other machine with a GTX 10X0, comes with the "gaming" style. The XPS is one of very few laptops that has a GTX 10X0, a nice display and also looks professional.



Yep that's why I have one so I can game on both and do work! Good options!

Sent from my SM-G935F using Tapatalk



Thanks and very good job! I ran OCCT for 30 mins, max perf and CPU was rock solid at 3.4GHz and I have evidence (see below ). Ambient is also 22C and I repasted with Grizzly Conductonaut and used Fujipoly Extreme 14w/mK on the GPU VRAMs. My undervolt is -130mV on CPU/cache using XTU and graphics is -70mV. I repadded the 6 Chokes (2x1.5mm Arctic 6w/mK pads) nearest to the CPU as well as slight bending of HS arms and 2x1.5mm Arctic 6w/mK pads on top of the CPU and GPU HS (more pressure pushing down when case is screwed down but pads are nice a squishy also).
In the end the CPU is 72C (Max fans are only <4kRPM COME ON DELL WE NEED FULL CONTROL OF THESE) and VRM max Ambient was 65C.

I'd be interested to see evidence of your 0 throttling (I.e. OCCT CPU Frequency #0 will do or HWINFO showing 4GHz average with minimum value on all cores of 4GHz like mine below), here's mine:



and heres w'hat I mean by the chokes (only 3 out of 6 done in this picture):



What's your max BF1 game temps on CPU and CPU? Whats your Firestrike score and max temps on GPU for that?



Interesting, you just padded the chokes not the mosfets, right? I made the experience that padding both raises my temps so I decided to put the pads off the chokes. Our temps seem to be quite similar.
I just thought of taking a screenshot after shuting down the benchmark and replying to the forum But I´ll do later.
Sorry for BF1 as I don´t own/have it. I put my Firestrike scores in the spreadsheet of Philaphlous...wait a moment...back: 5887 with CPU/GPU at 64/67°C.



Yep again pretty comparable. Nice work. Just working on best FS score

Sent from my SM-G935F using Tapatalk



O.K. I ran the test again and took a screenshot. Still no throttling. I set the PL1 Limit to 50W w/ XTU as a little tweak and wanted to test.



Another funny thing is, that I played Watch Dogs 2 yesterday w/ GPU +200Mhz and Memory +240 Mhz for testing purpose. It throttled quite fast before (PL1 limit) but was still playable. After about 20min I checked and saw no throttling, CPU at 70°C GPU 70°C and VRM 90°C!!! Before it stayed quite a while around 88-89°C. It didn´t throttle. I took quite a lot screenshots to Show but have to put them together when I got the time. I´m quite happy right now, because it seems to work to overclock (which I will reset) and to avoid throttling by tweaking a little bit



Ok thanks this is much more informative. I can see from your core averages and minimums that there is actually quite a lot of throttling and all the way down to 800MHz on all four cores which is actually a very heavy throttle! Which is of course why your temperatures are so low (they are never given the chance to work at maximum clock for long enough)

But so long as your happy it doesn't matter!

Sent from my SM-G935F using Tapatalk
