Another new Dell Win7 Mobility Radeon driver is here!

This one has a newer CCC and display driver than the last. Download is up at: ftp://ftp.dell.com/video/R258233.exe

Display driver is only slightly newer. 8.683.2.1 is the version number. Originally released for "Studio Laptop - 1458" with Radeon 5430 and 5450 graphics. Supports:

[ATI.Mfg.NTamd64.6.1]
"ATI Mobility Radeon HD 3450" = ati2mtag_M72, PCI\VEN_1002&DEV_95C4&SUBSYS_025A1028
"ATI Mobility Radeon HD 3450 " = ati2mtag_M72, PCI\VEN_1002&DEV_95C4&SUBSYS_02541028
"ATI Mobility Radeon HD 3450 " = ati2mtag_M72, PCI\VEN_1002&DEV_95C4&SUBSYS_029F1028
"ATI Mobility Radeon HD 3650" = ati2mtag_M76, PCI\VEN_1002&DEV_9591&SUBSYS_02561028
"ATI Mobility Radeon HD 3650 " = ati2mtag_M76, PCI\VEN_1002&DEV_9591&SUBSYS_02A01028
"ATI Mobility Radeon HD 3670" = ati2mtag_M76, PCI\VEN_1002&DEV_9593&SUBSYS_02721028
"ATI Mobility Radeon HD 4300 Series" = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_041E1028
"ATI Mobility Radeon HD 4330" = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_02CF1028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_04031028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_02F21028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_02AA1028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_04061028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_02AA1028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_04061028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_02CF1028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_04151028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_04161028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_04341028
"ATI Mobility Radeon HD 4330 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9552&SUBSYS_04351028
"ATI Mobility Radeon HD 4530" = ati2mtag_M9x, PCI\VEN_1002&DEV_9553&SUBSYS_02E81028
"ATI Mobility Radeon HD 4530 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9553&SUBSYS_04041028
"ATI Mobility Radeon HD 4530 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9553&SUBSYS_04141028
"ATI Mobility Radeon HD 4570" = ati2mtag_M9x, PCI\VEN_1002&DEV_9553&SUBSYS_02BE1028
"ATI Mobility Radeon HD 4570 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9553&SUBSYS_02EA1028
"ATI Mobility Radeon HD 4570 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9553&SUBSYS_02BD1028
"ATI Mobility Radeon HD 4570 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9553&SUBSYS_04131028
"ATI Mobility Radeon HD 4570 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9553&SUBSYS_04171028
"ATI Mobility Radeon HD 4650" = ati2mtag_M9x, PCI\VEN_1002&DEV_9480&SUBSYS_02EA1028
"ATI Mobility Radeon HD 4650 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9480&SUBSYS_02EB1028
"ATI Mobility Radeon HD 4670" = ati2mtag_M9x, PCI\VEN_1002&DEV_9488&SUBSYS_02721028
"ATI Mobility Radeon HD 4670 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9488&SUBSYS_02FE1028
"ATI Mobility Radeon HD 4670 " = ati2mtag_M9x, PCI\VEN_1002&DEV_9488&SUBSYS_04191028
"ATI Mobility Radeon HD 5450" = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68E0&SUBSYS_04041028
"ATI Mobility Radeon HD 5450 " = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68E0&SUBSYS_04141028
"ATI Mobility Radeon HD 5450 Series" = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68E0&SUBSYS_04341028
"ATI Mobility Radeon HD 5470" = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68E0&SUBSYS_02BD1028
"ATI Mobility Radeon HD 5470 " = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68E0&SUBSYS_04131028
"ATI Mobility Radeon HD 5470 " = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68E0&SUBSYS_04551028
"ATI Mobility Radeon HD 5470 " = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68E0&SUBSYS_04561028
"ATI Mobility Radeon HD 5470 " = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68E0&SUBSYS_04571028
"ATI Mobility Radeon HD 5470 " = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68E0&SUBSYS_014C1028
"ATI Mobility Radeon HD 5470 " = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68E0&SUBSYS_04471028
"ATI Mobility Radeon HD 5650" = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68C1&SUBSYS_04561028
"ATI Mobility Radeon HD 5650 " = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68C1&SUBSYS_04571028
"ATI Mobility Radeon HD 5650 " = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68C1&SUBSYS_041B1028
"ATI Mobility Radeon HD 5650 " = ati2mtag_Manhattan, PCI\VEN_1002&DEV_68C1&SUBSYS_04471028




[Fixed Bugs]
(1)DF352283: [H902]Resolution changes to 1024x768 when close lid then open with DVD playing.
(2)DF362121: [H902]ST EMI test failed.
(3)DF365998: [H902]HDMI Audio can't switch automatically when connecting HDMI monitor.



That is exactly what I needed

Thanks
Nikolay



Is this some sort of Dell equivalent of beta software? It doesn't show up on my personalized driver page on dell.com, but yet it seems to support my GPU. Odd.

How did you find the ftp address?

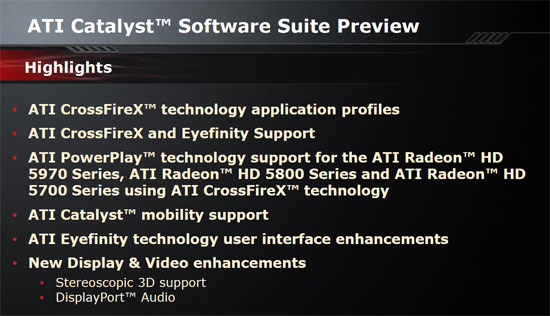

Strange. While loading the CCC I noticed these options, which got hidden once the software fully loaded:



Seems like features for future version, which are hidden now.

Nikolay



(3)DF365998: [H902]HDMI Audio can't switch automatically when connecting HDMI monitor.


im still having issue with that audio switching



Dell doesn't make software drivers for a specific machine, they are generic builds that support all their systems. The part Dell doesn't do is release them to all the systems, instead focus only on an as-needed basis for most systems. If you want the latest and great version of the software and drivers, you have to keep track of releases for other machines.



those are legacy settings for WinNT 5.x - Windows Vista and 7 have them exposed in the OS's main power management control panel.



So. just to be sure, these will work on a 1645?
Is it worth it to upgrade?



yes and yes.



this messed up my machine. CCC took 5-10 minutes to load, it was buggy and super sluggish. Couldn't even move the window across the screen. Wouldn't detect any of my external displays or setting. Rolled back to the previous driver from 1/25. Everything back to normal.

Boo on this.



Working fine for me.



here's the latest driver i found yet:
http://www.station-drivers.com/forum/viewtopic.php?p=9529#9529
works without modder.



awesome find - for ref that is 8.700 WHQL. soon to be posted on strags.com



whats the new goods and fix?



So the 8.700 should be the best one out now? I still have 8.683.2. Does it need any modification?



Interesting find ... will this update work on a Studio 1537 with ATI 3450 graphics?



It should work. Try to upgrade it...



Has anyone loaded the new ATI mobile graphics drivers that are available now?

http://www.tomshardware.com/reviews/catalyst-eyefinity-radeon,2559.html

http://www.legitreviews.com/article/1216/



I am using Catalyst 10.3 Beta. Driver version 8.710.3.0.

YouTube videos seem to run smoother. I also noticed that the 2D desktop performance was enhanced.



I also am using the Driver Version 8.710.3.0 and it is working just fine on the SXPS 1645, no problems at all.



After upgrading to the 10.3 my CCC doesnt want to open anymore



First Uninstall ATi Driver from Its install manager in Programs and Features.
Restart the Computer.
Run Driver Sweeper and remove remaining ATI files.
Then install the Beta 10.3 driver.

Its works flawlessly for me.

AND ITS MY 100th POST ON THIS FORUM. I AM SO HAPPPY



Dear Bipul, can you tell me what is driver sweeper and how to execute it.

Thanks and regards



Khurram, you may wish to try the link found at the very first post. This driver is very new and good enough for your purposes. If it works and powerdvd and others work, then you can do the more 'complicated stuff' with the other newer drivers.



Hey,

Now here it goes, Even after you Uninstall any driver like of Nvidia or Geforce GPU some basic necessary files are left out and it may conflict with the Installation of a new driver so Driver sweeper helps you to Remove all the traces of the current driver.

First Unistall ATi Driver using ATi Install Manager in Programs and Features then restart the computer. Download and install Driver sweeper. When you run that program it has an option of ATi - Display. Check the box and click Analyse. It will find all its files and registry settings and they are auto checked. Just click on Clean and restart the computer when prompted. Then you can go ahead and Install the ATi Catalyst Driver.



Here is the updated 10.3 version for both Windows Vista 32-Bit Edition and Windows 7 32-Bit Edition

http://support.amd.com/us/gpudownload/windows/Pages/radeonmob_win7-32.aspx
