    Change your Dell xps 15 L502x Backlit keyboard color!

    Discussion in 'Dell XPS and Studio XPS' started by limanochet, Jul 24, 2012.

  1. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Hi guys ,this thread is to show how to change the lights on your keyboard of the dell xps 15 L502x, i think it should be aplicable to L702x as well.

    Try this as your own risk!
    OK first off the tools you need:-
    Colored film (transparent)
    A screwdriver
    Courage!LOL!

    1) ok first off flip your laptop and remove battery
    Then remove the screw using a screwdriver! D: sry i didnt have one

    [​IMG]

    Now,push the 2 clips/holders or watever..

    [​IMG]

    This will raise the plamrest..now with something flat or with ur fingers ,gently pull up from left to right..

    [​IMG]
    Gently now..

    [​IMG]

    Okay,so after ur one with that, be really careful lift the palmrest and keep it in the position like in the one below

    [​IMG]

    Now to detach keyboard ,push the two clipers as highlighted

    [​IMG]
    After that, Keep the keyboard in this position

    [​IMG]

    And disconnect cables (careful) aslo the backlit cable
    [​IMG]

    Remove/pull the cover at the back (not completely!!!)
    Just a little on the side so you can open the one inside

    [​IMG]

    Then remove the second layer ..yes there are dots on it (the leds)
    be carefull not to break it or dont bend it too much..

    [​IMG]

    Use some colored transparent film

    [​IMG]

    Place them on ,below the second layer ,like this :)
    U can have them as the way u like :)

    [​IMG]

    Place it back..place everthing back it place ..

    [​IMG]

    And this is the final result !!

    [​IMG]

    This is a video of it
    Dell xps 15 Backlit Customised :3 - YouTube
    If you like it Thumbs up! if u dont Thumbs Up!

  2. PocketSmiley

    PocketSmiley Notebook Geek

    Reputations:
    26
    Messages:
    79
    Likes Received:
    2
    Trophy Points:
    16
    OMG THANK YOU!!! Yes!

  3. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    :D glad to help you!

  4. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Do post some pictures of the final result :D

  5. PocketSmiley

    PocketSmiley Notebook Geek

    Reputations:
    26
    Messages:
    79
    Likes Received:
    2
    Trophy Points:
    16
    At first I thought it was a huge meh if you simply did it yourself and you did do it yourself but it turned out to be impressive! And creative too!

  6. NeoMesal

    NeoMesal Notebook Consultant

    Reputations:
    59
    Messages:
    271
    Likes Received:
    1
    Trophy Points:
    31
    Nice mod! Creative too! - You could probably do the same for the power button, not so sure about the touch sensitive buttons.

    But I can't see the pictures EDIT: some

  7. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Thx .. and yes u can do it for the touch sensitive buttons as well and for the power button :) although i like it white :p :cool:
    but m not too sure if those arts get really hot it could melt or discolor the film (power button n touch sensitive )

  8. dorekk

    dorekk Notebook Consultant

    Reputations:
    6
    Messages:
    149
    Likes Received:
    0
    Trophy Points:
    30
    This looks really dope. I might do this when I get a backlit keyboard.

  9. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Thanks :) well..Goodluck!!

  10. toronto

    toronto Notebook Deity

    Reputations:
    128
    Messages:
    727
    Likes Received:
    8
    Trophy Points:
    31
    I applaud your creativity !

  11. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Thanks man! :eek:

  12. tha_azn_devil

    tha_azn_devil Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    I would imagine that this would apply to the L702X too. I've been wanting to clean my backlit keyboard but I never got around to messing with the film and layers.

    Edit: I skimmed through your post and did not see the "applicable" part, apologies! I was quite enthusiastic about replying to this thread =)

  13. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Yeah the keyboard part will be the same thing but i u suggest u look at dell's site on how to open ur keyboard :) other than that probly the same method for the keyboard! GL! would love to see some pics of the xps 17 :D

  14. 80sGuy

    80sGuy Notebook Consultant

    Reputations:
    36
    Messages:
    220
    Likes Received:
    0
    Trophy Points:
    31
    Very nice and unique, but a bit too colorful for me. Hats off, and great job!

  15. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Thanks man ..Haha u can make it less colorful :p

  16. tha_azn_devil

    tha_azn_devil Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    I thoroughly enjoyed the finish to my backlit keyboard, for the xps 17 users beware that the right side of the bevel is held together by screws, I forgot about this and faced 30 minutes of frustration and ended up bending part of my bezel, however it is not too noticeable.

    XPS 17 Colored Backlit Keyboard - Imgur

  17. RixK

    RixK Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    15
    Any pics? XPS 17 here and find the white very boring...

  18. tha_azn_devil

    tha_azn_devil Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    Look at my post right above yours...

  19. letmeknov

    letmeknov Notebook Consultant

    Reputations:
    27
    Messages:
    241
    Likes Received:
    0
    Trophy Points:
    30
    Looks really nice! Big up! ;)

  20. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    thx for the pics :D it looks similar to mine haha @ the_azn_devil!

  21. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    oh yea 1 more thing ... there's a flexable metal stript behind the keyboard which gets pretty hot and can literary wipe / discolor your plastic flim ...try putting some paper behind it :O :"D

  22. capitankasar

    capitankasar Notebook Deity

    Reputations:
    231
    Messages:
    1,663
    Likes Received:
    117
    Trophy Points:
    81
    awesome mod! :)
    loving it ^^

    I wish I had a backlit keyboard to try this, but I cant find any online store with spanish backlit keyboard for my l502x, the ones I found have no stock :(

  23. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    hmm m not sure abt spannish stores but here is a nice place to buy one :-http://www.laptopskeyboard.com/dell-xps-keyboard/4963-replacement-for-dell-xps-15-l502x-keyboard-backlight.html i bought mine here too :D and its dosnt cost too much ..n they ship international

    :D GL

  24. capitankasar

    capitankasar Notebook Deity

    Reputations:
    231
    Messages:
    1,663
    Likes Received:
    117
    Trophy Points:
    81
    thanks for the link limanochet :)

    well, I dont care if it is a spanish store or not, I can buy on any place, I dont mind if it is a asian site or whatever.

    I just want the Ñ at the keyboard :D

    I noticed the keyboard from that site is an US keyboard.

    I will keep looking for it.

    thanks anyway ^^

    and again, loving your mod ^^

  25. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    ah u wanted the spanish one D: sry abt it .. and m glad u love it :D

  26. NeoMesal

    NeoMesal Notebook Consultant

    Reputations:
    59
    Messages:
    271
    Likes Received:
    1
    Trophy Points:
    31
    I sense another possible mod!: :D

    It might be possible to use the back-lighting components from a standard US-EN keyboard and place them in your Spanish keyboard.
    So long as the letterings on your keys are laser etched and aren't stickers or painted on.

    EDIT:

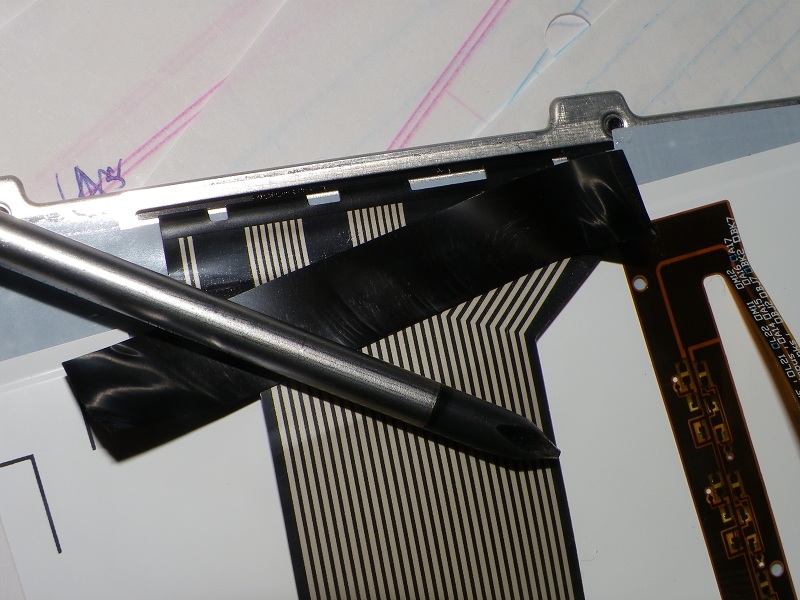

    The white back cover which contains the LED backlights (as seen being partially removed in the first post) can be replaced entirely.

    You just need to remove the black tape holding the data cable - then carefully unpeel the data cable from the white back cover.

    I found it easier to do if you heated the data cable and the glue holding it under a lightbulb for about 5 seconds.

    However this all depends on that your keys are semi-transparent and the non-backlit keyboard is configured in a similar manner! :confused:

    [​IMG]


    Attached Files:

  27. capitankasar

    capitankasar Notebook Deity

    Reputations:
    231
    Messages:
    1,663
    Likes Received:
    117
    Trophy Points:
    81
    that is the problem, the non backlite spanish keyboard I am using at the moment doesnt have transparent keys, some people complained about the backlit keyboard was not visible on day whith lights off for that reason.

    here you also have a pic comparing both keyboards (normal top, backlit bot)

    [​IMG]

    the image is from a spanish topic talking about keyboard replacement

    Manual: Montar teclado retroiluminado (backlit) en tu dell XPS 15 (L502x)

    I checked the whole topic, but the links of the guide had no keyboads stock.

  28. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    @ capitankasar .. True the non backlit version ,keys arent transparent so the light wont pass through them..also i thk there is a white layer in the backlit version to hold the LED sheet :eek: --Why not try callign dell?

  29. capitankasar

    capitankasar Notebook Deity

    Reputations:
    231
    Messages:
    1,663
    Likes Received:
    117
    Trophy Points:
    81
    @limanochet
    yeah, that is the point.

    well, I will call dell, however I doubt it will be cheap, since they will send a technician to take appart my laptop (and I preffer to save the money and do it by myself), I just need the keyboard.
    I will ask them anyway.

    if I got the backlit keyboard I think I will try a mod like yours, but different.

    similar to alienware laptops.

    for example, the whole laptop keys will be red color.
    except:

    w s a d keys will be blue (as gamer I will love that :D)

    escape,space,intro shift, del, shift and tab will be green.
    and F1 to F12 will be yellow ^^

  30. capitankasar

    capitankasar Notebook Deity

    Reputations:
    231
    Messages:
    1,663
    Likes Received:
    117
    Trophy Points:
    81
    ok, I called dell today, and they told me it is not posible to updgreade a normal keyboard to a backlit keyboard using their services.

    so the only chance I have to get a backlit keyboard is using online stores >.<

  31. NeoMesal

    NeoMesal Notebook Consultant

    Reputations:
    59
    Messages:
    271
    Likes Received:
    1
    Trophy Points:
    31
    Sorry to here the mod won't work :(

    But it does make sence, because turning off the backlight can make the laser-etched keys difficult to see

    Dell be damned!


    PS I like your idea for the Alienware themed lighting

  32. capitankasar

    capitankasar Notebook Deity

    Reputations:
    231
    Messages:
    1,663
    Likes Received:
    117
    Trophy Points:
    81
    yeah, I may have to get a US keyboard if the spanish ones still no stock >.<

    hehe glad you liked my idea :D

  33. capitankasar

    capitankasar Notebook Deity

    Reputations:
    231
    Messages:
    1,663
    Likes Received:
    117
    Trophy Points:
    81
    ok, update, dell called me today.

    it was the same person who talked with me the another day.

    she said she talked with the tch guys and that is posible to upgreade to the backlit keyboard.

    it was interesting since she gave me two options:

    * part + installation by a technician (200€ ;)
    * part only (74,14€ ;)

    the bad news is that it seems that they have ONLY the US keyboard avalible.

    it seems like it is imposible to get a spanish backlit keyboard, all of them seemed to be sold out, and I also cant find them via online stores.

    so I have two options, try getting the spanish keyboard used, or try getting the US keyboard.


    I am more about getting the US one.

    relating your link, I noticed the total cost is $50.78 ( 39.03€ ;)

    and 39.03€ is way better than the one dell offer to me 74,14€.

    I think Ill use your link then :)

    cant wait to customize the keyboard with the gamming style modding I mentionated before :D

  34. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Sry u couldnt get the spanish version and OMG 74euros is alot fo that o_O
    Nwys i guse u decide to get the us backlit bersion :p

  35. LMH

    LMH Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Is it safe to put paper in there?

  36. limanochet

    limanochet Notebook Enthusiast

    Reputations:
    7
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    well.. basically its not paper but plastic flims and so far my lappy seems fine ,its dosnt melt or anything :)

  37. hatigold

    hatigold Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    awesome work :D

  38. d12bn

    d12bn Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Nice job. I dont have the backlit keyboard. I'm getting one ,can you post a pic of the backlit cable and where it plugs in? Thanks
