Dell SXPS 1340 Thermal Paste Replacement Guide

Replacing Dell's default thermal paste in the Dell Studio XPS 1340 can lower your cpu, gpu and ambient temperatures by as much as 15C/60F.

When I first received my SXPS 1340 from Dell, my temperatures were:
THRM-57C, CPU-52C, GPU-62C.
For me, these temperatures were O.K., but I knew I could lower them by replacing the thermal paste.
My temperatures after replacing the thermal paste were:
THRM-48C, CPU-34C, GPU-50C. Note that after a month or two of having the MX-2 inside your computer, the cooler it will become as it settles


This guide is for people who want to perform the procedure of replacing the default thermal paste in the Studio XPS 1340 with Arctic Cooling MX-2 thermal paste. Note that you can also use Arctic Silver 5 and get the same results.

What you need: Philips screw driver +, MX-2/AS5, Alcahol/or other cleaner, cleaning cloths/tissues.
Before beginning this procedure, unplug the laptop and remove the battery!
Step 1. Remove Bottom Cover.

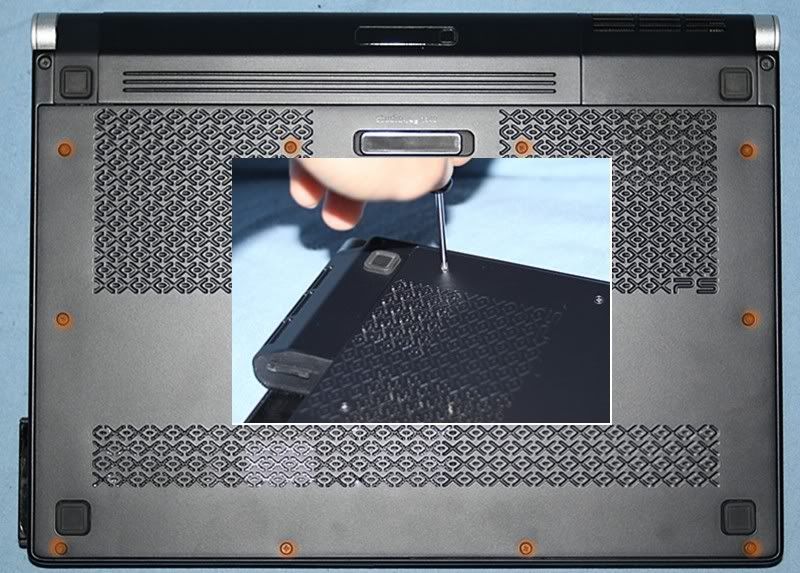

Flip the laptop upside-down and unscrew the 10 screws on the bottom cover.


Step 2. Remove Top Right Air Vent.

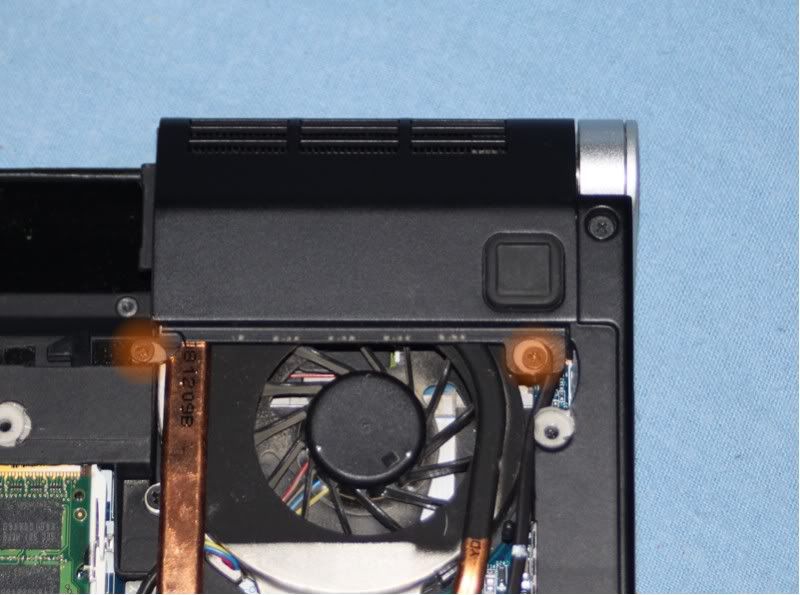

Un-screw the 2 screws which secure the air vent to the chassis.


Step 3. Remove CPU and GPU Heatsinks.

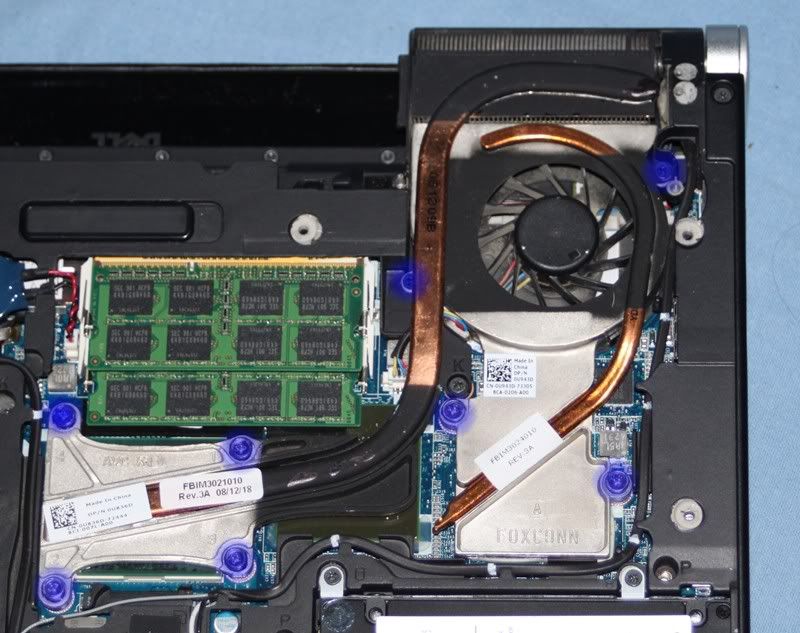

Unscrew the 8 screws which secure the CPU and GPU heatsinks to the motherboard, then carefully remove the heatsinks.


Step 4. Clean the CPU and GPU's Dies.
Use your cleaning cloths/tissues and alcohol/or other cleaner to remove the thermal paste on the 3 dies.

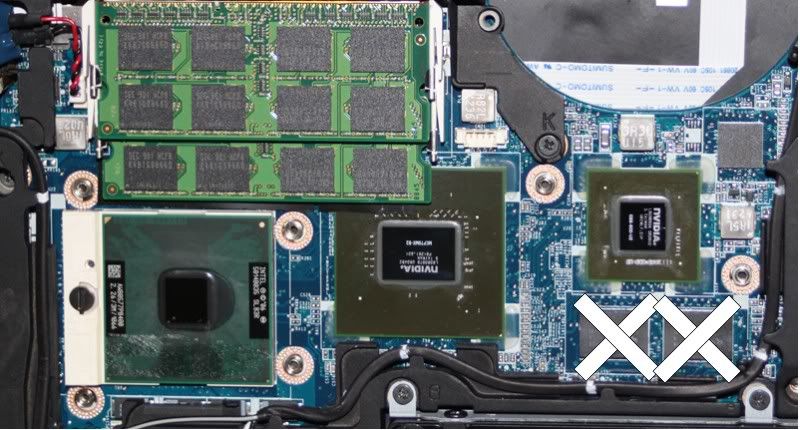

Before-

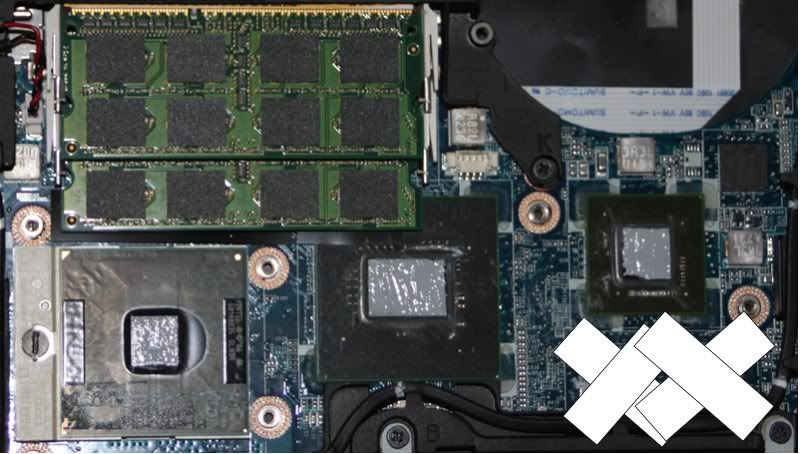

After-

Step 5. Clean the CPU and GPU Heatsinks.
Clean the heatsinks using your cleaning cloths and alcohol/or other cleaner

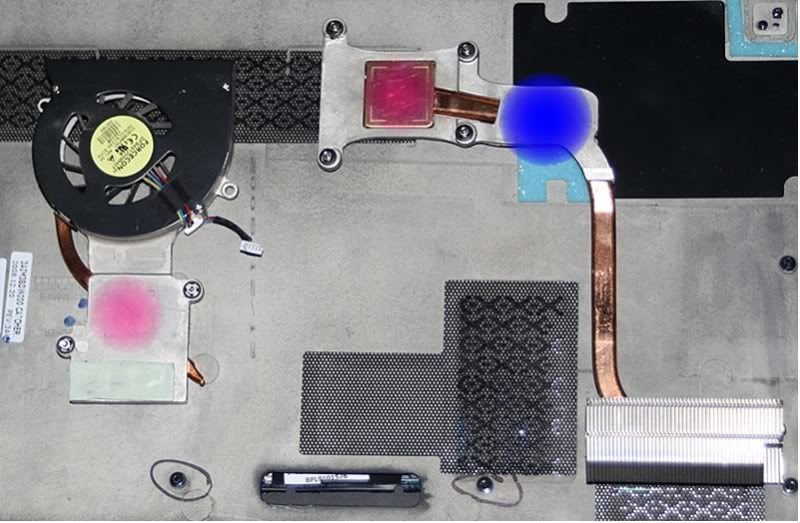

In the picture below, the blue dot on the right is where a thermal pad for the GPU will be, on the heatsink. Leave it alone, if you remove it and replace it with thermal paste, there will still be a gap between the heatstink and GPU die and cause it to overheat.

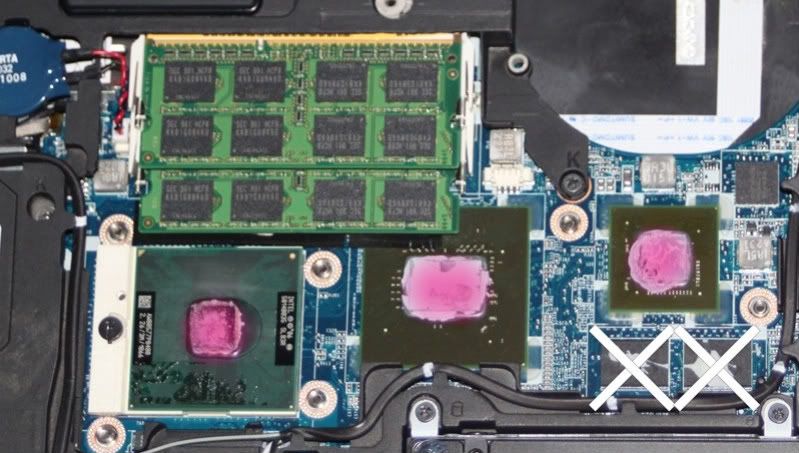

Step 6. Apply AS5/MX-2 onto the CPU and GPU Dies.
Be very careful because all thermal paste tubes are junky. It is very easy to accidentally spurt out to much thermal paste, if this does happen use a piece of paper remove the excess thermal paste.
Use the flat edge of a piece of paper to smooth out the thermal paste over the CPU die.


Step 7. Re-install the Heatsinks, Airvent, and Bottom Cover
Don't forget to plug in the heatsink fan.

You can use HWMonitor to check your temperatures. Remember, your temperatures will go down a few more degrees as time goes by and the thermal paste settles in.
