    Dell XPS 14 Ultrabook L421x hard drive height requirement compatibility

    Discussion in 'Dell XPS and Studio XPS' started by funkmasterta, May 25, 2013.

  1. funkmasterta

    funkmasterta Notebook Evangelist

    Reputations:
    209
    Messages:
    509
    Likes Received:
    6
    Trophy Points:
    31
    Does anyone know the Dell XPS 14 Ultrabook L421x hard drive height requirement compatibility?

    Will it accept the 9.5mm or 12.5mm height models?

    Or will only the 7mm height models fit in this?

    funkmasterta, May 25, 2013
    #1
  2. funkmasterta

    funkmasterta Notebook Evangelist

    Reputations:
    209
    Messages:
    509
    Likes Received:
    6
    Trophy Points:
    31

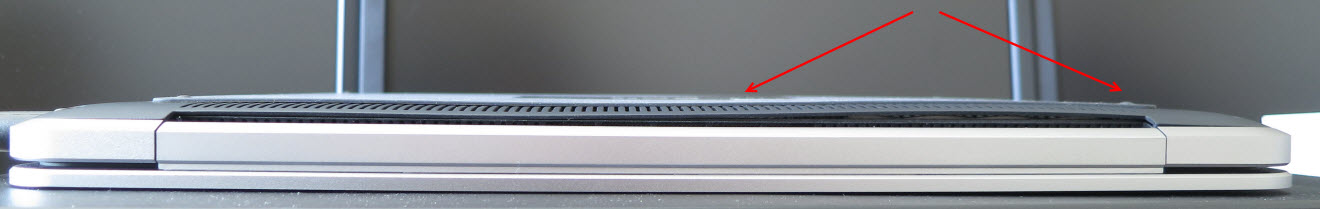

    You CAN fit a standard height laptop hard drive into the XPS 14 Ultrabook L421x!!

    The hard drive bracket screw hole tabs sits about 1/8" above the screw mounting posts, but you can still securely screw it down, just don't screw it down all the way. It will bend the tab slightly.

    The bottom plastic cover will no longer be flush, but it's hardly noticeable.

    [​IMG]


    Attached Files:

    funkmasterta, Jun 2, 2013
    #2
