Disassembling the XPS M1330 display module [56K warning]

Alright, a few people were wondering how to go about swapping displays on the M1330, and I watched the tech do this for the two M1330s I was in possession of. It's a relatively simple procedure, so I thought I'd outline it. It also has the added benefit of potentially reducing the keyboard bulge, so read on.

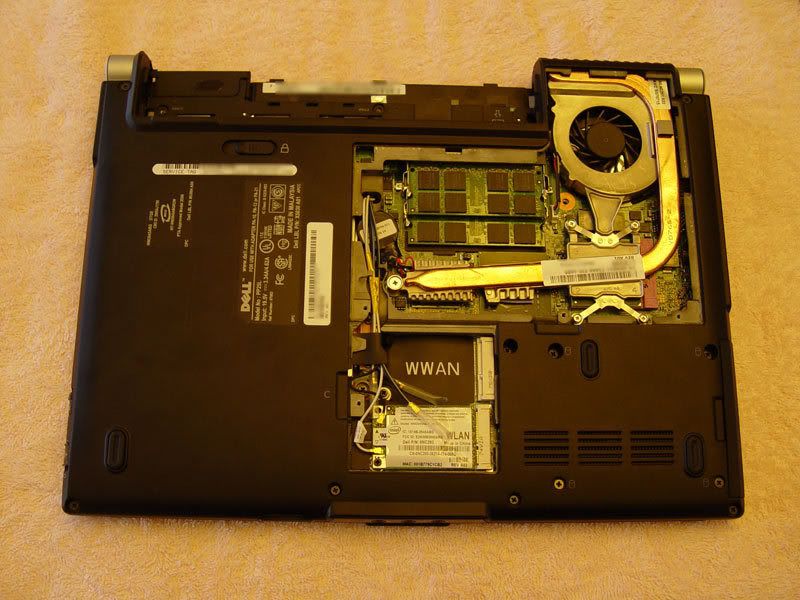

1. The first step is to remove the battery as well as the bottom panel covers.

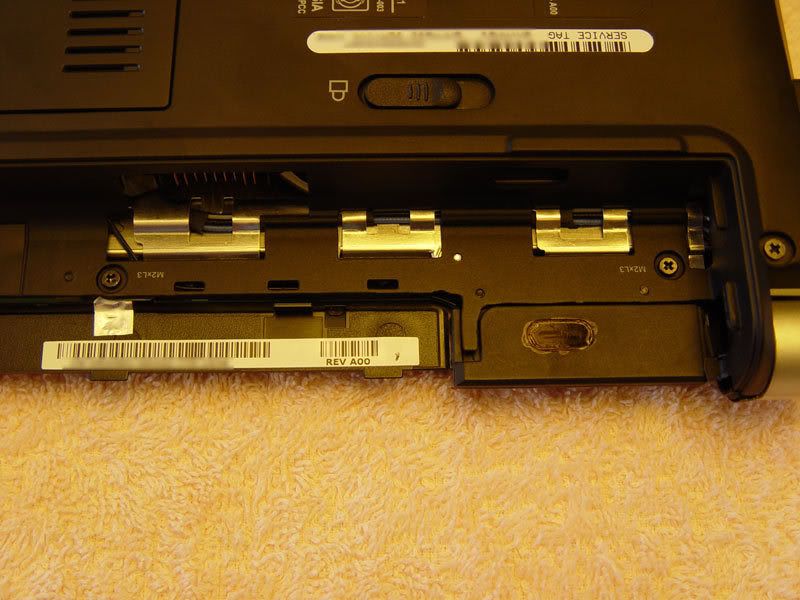

2. Once you've removed the battery, you'll notice that there are two screws there. These hold down the media key bar, which you will have to remove.



3. Turn the laptop over and remove the two hinge covers. The easiest way to do this is to slide your thumbnail into the crack between the cover and the media key bar, then pull outwards. They should come off without too much trouble.

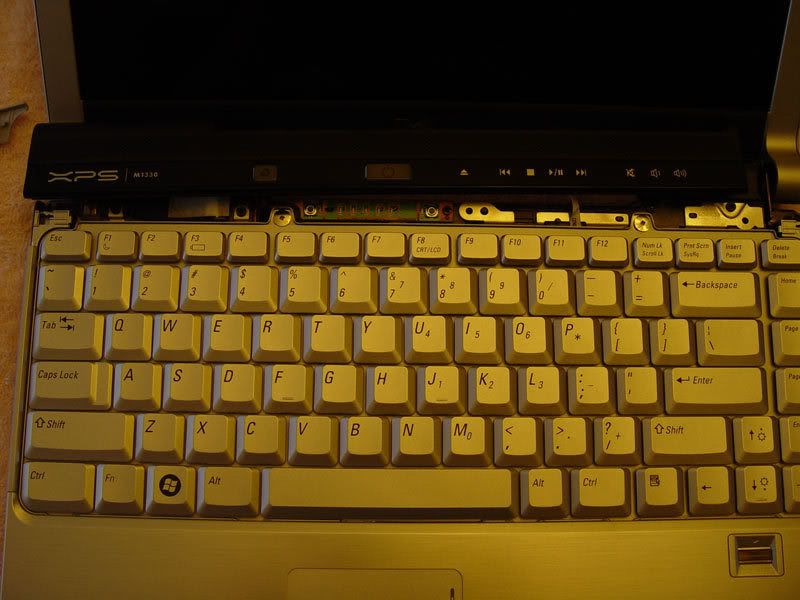

Now, remove the media key bar. This may be slightly difficult as there are quite a few clips holding it down. It's fairly flexible, so you can afford to put a bit of force into it, but don't crack the thing! Don't pull upwards too forcefully as there is a fragile ribbon cable attaching it to the mainboard. Once you've removed the bar, you'll see the two screws holding down the keyboard. Remove those.

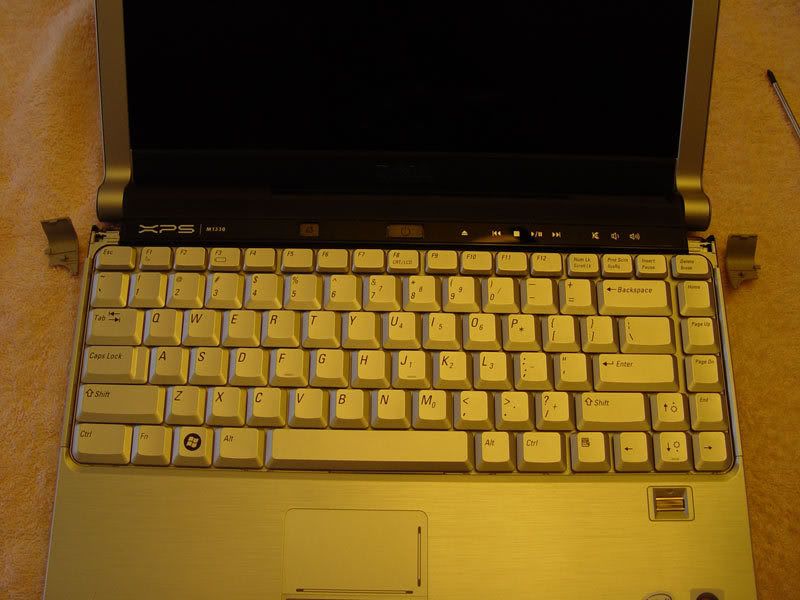

The keyboard can now be opened up. There's a catch on the top left corner and tabs that hold it in at the bottom. Slide the keyboard upwards and away from the laptop. There's another ribbon cable here, attaching the keyboard to the motherboard. You'll also notice the 'spill-proof' design. There's a plastic sheet underneath the keyboard that prevents liquid from seeping through the key joints.

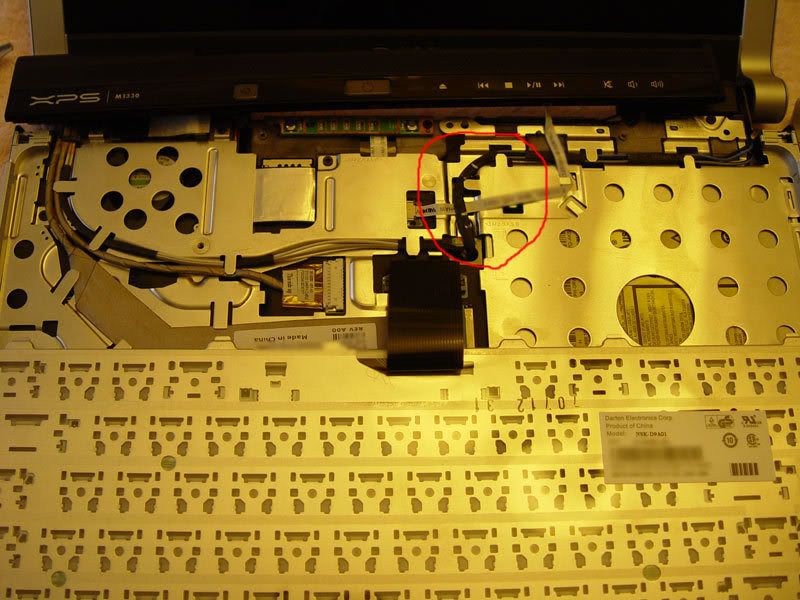

Also, the cause of any keyboard bulge may be found here. There are wires coming from the display module, and include some wireless antenna from the right side. This set of wires makes several turns across the metal shielding (circled in red) and it's at these turns that they may bundle up as opposed to lying flat on the surface of the shield. It took me quite a while to rejig the wires so that they lay flat, but it definitely reduced the bulge in the keyboard.

There are also other wireless antenna coming from the left side of the display module, as well as power and the output connector. You'll need to remove the power and output from the mainboard.

Detach the wireless antenna from the wireless card(s) and then feed them through the channels where they cross to the underside of the laptop.

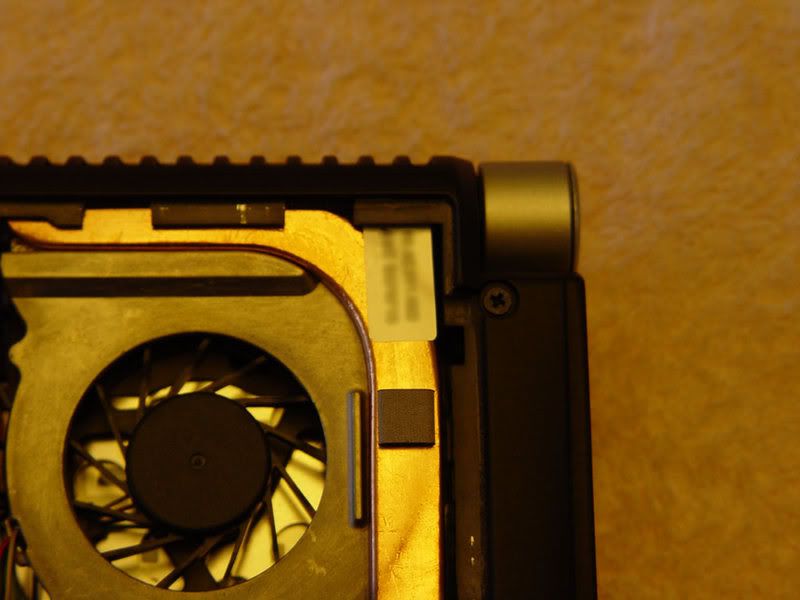

Turn the laptop around and you'll notice two screws holding the display, one on either side of the laptop. Unscrew these, turn the laptop back around and you'll be able to remove the display module.



Have fun, and remember, don't blame me if you break something.
