    Installed ED screen on M1530

    Discussion in 'Dell XPS and Studio XPS' started by merlin_72032, Nov 8, 2008.

  1. merlin_72032

    merlin_72032 Notebook Evangelist

    Reputations:
    117
    Messages:
    523
    Likes Received:
    0
    Trophy Points:
    30
    Okay, this board is going to be my last resource. I alreadt talked to Dell tech support, and they could not answer anything. I am a little frustrated right now. I have Dell XPS M1530 with CCFL screen. I got Dell LED upgrade kit from Dell.

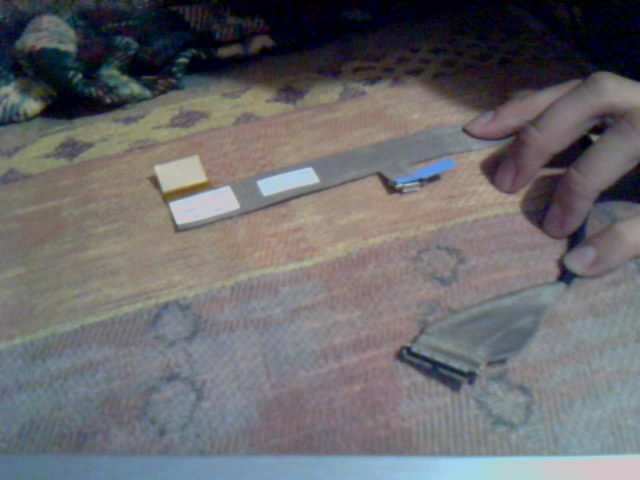

    As you know that CCFL screen has built-in inverter, LED screen doesn't. I have no problem put in LED screen, but I have problem with the cable. Please look at the picture. There is 3 connections on the cable. I know the one with white label connected to the LED screen itself, and another end connect to its motherboard. Where do I connect the one with blue ribbon?

    In CCFL screen, the blue part would have to connect to the inverter, but LED has no inverter. I can't find where the blue ribborn connection is supposed to.

    Thanks for your help.


    Attached Files:

    merlin_72032, Nov 8, 2008
    #1
  2. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    This may not be the best answer, but what happens when you plug it all in ignoring the cable with the blue ribbon that is supposed to connect to the inverter that is not there?

    So didn't the LED screen didn't come with a new cable? (I'm not sure if it's supposed to, just asking.)

    namaiki, Nov 8, 2008
    #2
  3. merlin_72032

    merlin_72032 Notebook Evangelist

    Reputations:
    117
    Messages:
    523
    Likes Received:
    0
    Trophy Points:
    30
    That is the cable for LED. The P/N is N849D. If I ignored the blue ribbon, the screen would not power up. It will have just a black screen.

    LED screen doesn't have inverter like CCFL. Should it has an inverter?

    merlin_72032, Nov 8, 2008
    #3
  4. rljo

    rljo Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    I have the same problem. Is there supposed to be a new inverter for the led screen? Does anyone know the p/n?

    rljo, Feb 26, 2009
    #4
  5. bogdi1988

    bogdi1988 Notebook Guru

    Reputations:
    20
    Messages:
    72
    Likes Received:
    0
    Trophy Points:
    15
    there is an inverter for the screen. got mine replaced. the inverter does not connect to the screen so it is just placed under the screen in the bezel. you should have gotten an inverter with the screen. call dell

    bogdi1988, Mar 3, 2009
    #5
  6. rljo

    rljo Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Did your inverter come separate from the screen? If so, is there a part number on your paperwork? I bought a led lcd screen elsewhere, so it doesn't have this board with it. I called dell, and the rep can't seem to find that it is available separately.
    thanks,
    Bob

    rljo, Mar 3, 2009
    #6
  7. StudioXPS16

    StudioXPS16 Notebook Consultant

    Reputations:
    1
    Messages:
    226
    Likes Received:
    0
    Trophy Points:
    30
    I am surprised the service manual is no help figuring out what you need and how to hook them up.

    StudioXPS16, Mar 3, 2009
