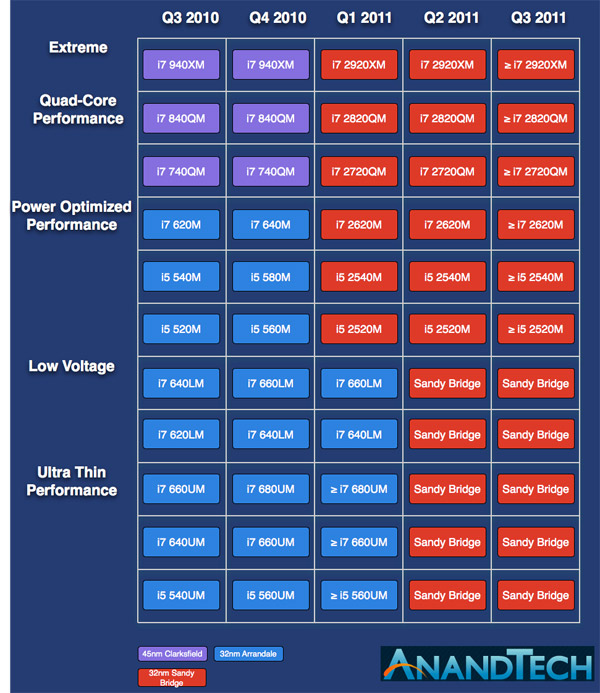

    Intel Sandy Bridge Mobile CPU Roadmap

    Discussion in 'Dell XPS and Studio XPS' started by tenknics, Aug 30, 2010.

  1. tenknics

    tenknics Notebook Evangelist

    Reputations:
    25
    Messages:
    557
    Likes Received:
    0
    Trophy Points:
    30
    [​IMG]



    i7 2920XM 2.5GHz 8MB 4 / 8 3.5GHz DDR3-1600 12 650 / 1300MHz 55W
    i7 2820QM 2.3GHz 8MB 4 / 8 3.4GHz DDR3-1600 12 650 / 1300MHz 45W
    i7 2720QM 2.2GHz 6MB 4 / 8 3.3GHz DDR3-1600 12 650 / 1300MHz 45W
    i7 2620M 2.7GHz 4MB 2 / 4 3.4GHz DDR3-1600 12 650 / 1300MHz 35W
    i5 2540M 2.6GHz 3MB 2 / 4 3.3GHz DDR3-1333 12 650 / 1150MHz 35W
    i5 2520M 2.5GHz 3MB 2 / 4 3.2GHz DDR3-1333 12 650 / 1150MHz 35W


    Specs from left to right: Base core clock. L3 cache. Cores/Threads. Turbo Max. Memory type. IGP core clock/IGP turbo TDP

    Also note the "12". That refers to the amount of EUs, Intel's version of Nvidia's "cuda cores". 6 EU's = 1 GPU. Notice all the mobile sandy bridge parts have 12. 2 gpus!!


    Source

    tenknics, Aug 30, 2010
    #1
