    L702x Mini Display Port to VGA

    Discussion in 'Dell XPS and Studio XPS' started by madmattd, May 10, 2012.

  1. madmattd

    madmattd Notebook Deity

    Reputations:
    367
    Messages:
    1,138
    Likes Received:
    0
    Trophy Points:
    55
    Anyone know if the so-called Mac-only mDP -> VGA converters work on our l702x? I would guess they do, but one never knows sometimes. Looking at the cheapest option on Newegg: Newegg.com - Mini Display Port to VGA Female Adapter for Mac.

    Alternatively, I could get a mDP -> DVI and use one of the several HDMI->VGA adapters I have from my desktop video cards. Might give me the best flexibility? http://www.newegg.com/Product/Product.aspx?Item=N82E16812816156

    Doing a presentation for a school class next week so need to sort this out.

    madmattd, May 10, 2012
    #1
  2. RoninB

    RoninB Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5

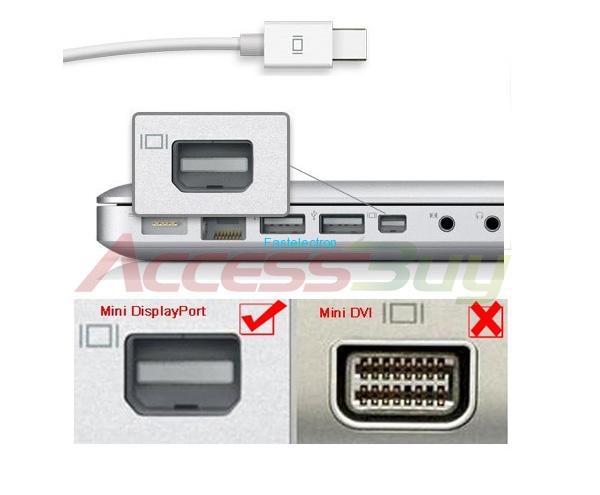

    The XS L702x is a Mini DisplayPort but the item N82E16812816156 from newegg.com is a Mini-DVI there is a difference. be careful which one you buy.

    see attached pic.


    Attached Files:

    RoninB, Dec 11, 2012
    #2
  3. Vipervlv

    Vipervlv Notebook Enthusiast

    Reputations:
    18
    Messages:
    39
    Likes Received:
    2
    Trophy Points:
    16
    I tested the method with the DP to DVI to VGA - its a no go - the digital signal can't be transformed to analog over these. I have all sorts of DVI-I // DVI-A adapters. The only one could work (I think) can be the apple one - direct link from mDP to VGA.

    Vipervlv, Dec 12, 2012
    #3
