    L702x Modded GPU BIOS

    Discussion in 'Dell XPS and Studio XPS' started by Sharadeos, Jan 28, 2012.

  1. WesleyNL

    WesleyNL Notebook Consultant

    Reputations:
    14
    Messages:
    151
    Likes Received:
    2
    Trophy Points:
    31
    humm my current setting, if i go further it will end up crashing the driver

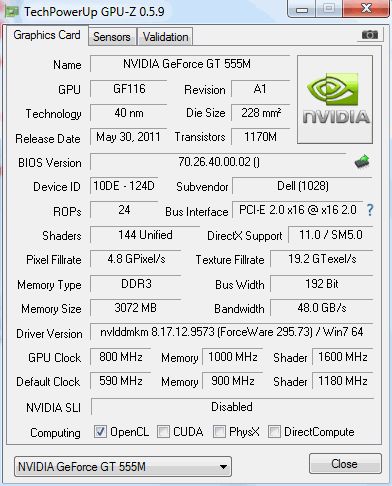

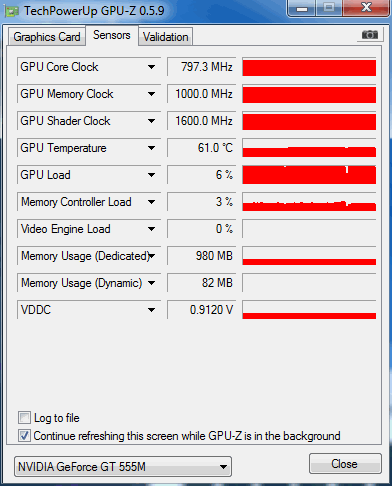

    [​IMG] [​IMG] [​IMG]

    ok some questions i have

    if i use this bios mod i can clock further right ?
    is there an unlocked bios ?
    if i flash this gpu bios, will it harm when i dont game ? like powerdrain or unable to use intel 3k apu ?
    how do i enable cuda ?

    WesleyNL, Mar 1, 2012
    #51
  2. WesleyNL

    WesleyNL Notebook Consultant

    Reputations:
    14
    Messages:
    151
    Likes Received:
    2
    Trophy Points:
    31
    no reactions anymore ?

    WesleyNL, Mar 4, 2012
    #52
  3. capitankasar

    capitankasar Notebook Deity

    Reputations:
    231
    Messages:
    1,663
    Likes Received:
    117
    Trophy Points:
    81
    sadly I am not sure if Sharadeos is watching actively this topic anymore. :s

    his last post at this topic is from 02-08-2012

    capitankasar, Mar 4, 2012
    #53
  4. Sharadeos

    Sharadeos Notebook Enthusiast

    Reputations:
    21
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    I find extra stability with lower voltages quite interesting. I am going to experiment on this once I get the time. :D

    I will get to work on it right away. :D
    [EDIT] BIOS file has been uploaded. Sorry for the long wait :x

    Yes there is an extremely good chance that you will be able to achieve higher GPU clocks. As of this moment there are currently no unlocked BIOS mods for all XPS laptops. :( The mod is only mean to change your 3D voltage. This will not affect your idle voltage and switching between the INTEL and NVIDIA graphics. As with CUDA that just might be a bug with GPU-Z this happens alot with Optimus enabled laptops as the program mixes the technologies enabled between your INTEL and NVIDIA graphics.

    Sharadeos, Mar 4, 2012
    #54
  5. capitankasar

    capitankasar Notebook Deity

    Reputations:
    231
    Messages:
    1,663
    Likes Received:
    117
    Trophy Points:
    81
    @Sharadeos
    oops I'm sorry,though you wasnt visiting this topic anymore

    then I didnt said anything ^_^

    capitankasar, Mar 4, 2012
    #55
  6. WesleyNL

    WesleyNL Notebook Consultant

    Reputations:
    14
    Messages:
    151
    Likes Received:
    2
    Trophy Points:
    31
    ok so im safe if i use the bios , cool, also why do they locked the bios its one thing i dont get with notebooks sofar its an awesome notebook for cheap

    WesleyNL, Mar 5, 2012
    #56
  7. Blök

    Blök Newbie

    Reputations:
    4
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5

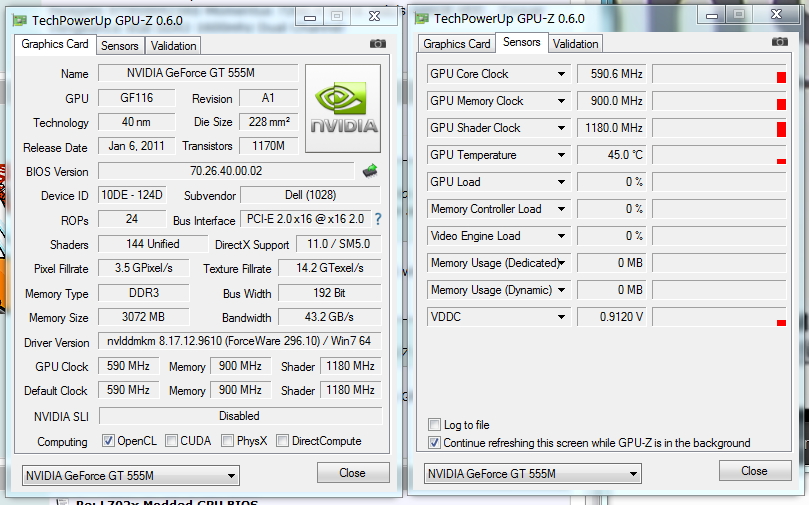

    "A16 GF116 GT555m2 0.9120 NOTE: 70.26.40.00.02" works fine.
    [​IMG] [​IMG]

    But I also like to see a undervoltage version @ 0.812 V.

    Blök, Mar 5, 2012
    #57
  8. Sharadeos

    Sharadeos Notebook Enthusiast

    Reputations:
    21
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    It might be due to the companies intent to keep things simple when it comes to non-enthusiast notebooks. The less settings there are to play with the less problems they might face when it comes to customer support.

    Thanks for all the thank you messages and feedback guys they really help. :D

    Sharadeos, Mar 6, 2012
    #58
  9. WesleyNL

    WesleyNL Notebook Consultant

    Reputations:
    14
    Messages:
    151
    Likes Received:
    2
    Trophy Points:
    31
    yet , the dell xps are moddabble w/o losing waranty

    WesleyNL, Mar 7, 2012
    #59
  10. yungbenny911

    yungbenny911 Notebook Enthusiast

    Reputations:
    0
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    5
    Finally!!! :D :D :D.. he replied! ^_^

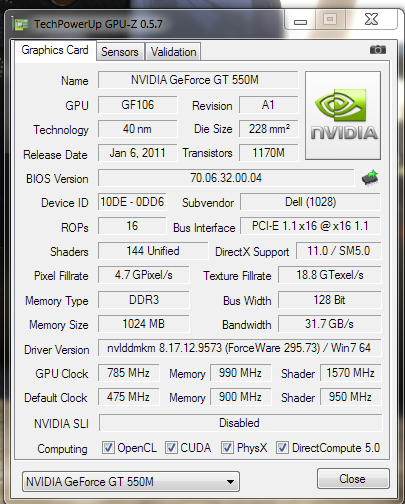

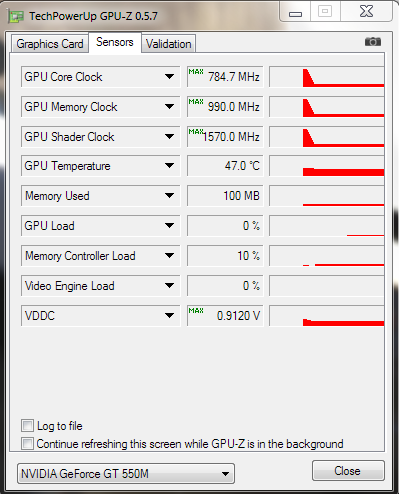

    i flashed my bios with the volt modded version and.........

    [​IMG] [​IMG]

    It Works Awesome man!!!
    "even though you're a guy" I am Totally in love with you lol <3 <3

    I have been using your bios for quite sometime now, running benchmarks as well as gamming, and the max temps are still the same, it never goes above 68c

    my 3dmark 11 score (P1794) @ 785mhz :).

    for some reason, msi afterburner is still set to 620mhz max and evga precision also set to 760mhz max. i could only go higher with the Nvidia "performance" control panel overclocking software. Does your evga precision go higher than 760mhz after over-volt?

    yungbenny911, Mar 8, 2012
    #60
  11. Sharadeos

    Sharadeos Notebook Enthusiast

    Reputations:
    21
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    That's great news! I only use the NVIDIA overclocking software as it gives decent range and is located in the same control panel but other software have varying ranges.

    Sharadeos, Mar 9, 2012
    #61
  12. bomoogo

    bomoogo Notebook Enthusiast

    Reputations:
    7
    Messages:
    29
    Likes Received:
    0
    Trophy Points:
    5
    hi,

    flashing worked and i am running the card with the higher voltag, but how to flash back to the old version?

    btw: how to get over 1080MHz in Memory Clock with evga precision? Seems that you also didnt pass the 1080 Mhz


    i have the bios 70.06.32.00.02

    thanks ;)

    bomoogo, Mar 10, 2012
    #62
  13. Sharadeos

    Sharadeos Notebook Enthusiast

    Reputations:
    21
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    You can use the stock A16 BIOS located in my first post to flash back to standard voltage. As for going over 1080MHz, You can use MSI Afterburner to reach higher memory clock speeds.

    Sharadeos, Mar 10, 2012
    #63
  14. PhanXP

    PhanXP Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    I'm successfully using the modded Bios 70.26.40.00.02 - thanks alot for this nice Bios Mod!

    Results in 3D Mark 11
    P 1442 (stock@590/900)
    P 1967 (850/960)

    Any chance to get the Bios of the GT 555 (192Bit Bus) modded with higher voltage as the temperatures still not go past 65°C for me so I think there is still room for higher clocks.

    PhanXP, Mar 11, 2012
    #64
  15. WesleyNL

    WesleyNL Notebook Consultant

    Reputations:
    14
    Messages:
    151
    Likes Received:
    2
    Trophy Points:
    31
    msi afterburner don't allow high clocks for me so i have to go evga
    [​IMG] [​IMG]

    WesleyNL, Mar 12, 2012
    #65
  16. WesleyNL

    WesleyNL Notebook Consultant

    Reputations:
    14
    Messages:
    151
    Likes Received:
    2
    Trophy Points:
    31
    and i wont try this bios bcuz someone is trying to unlock a16 bios , although its been weeks since he ever relpied he said a little more and it will be done , i'd love to see it though

    WesleyNL, Mar 13, 2012
    #66
  17. Nenormal

    Nenormal Notebook Enthusiast

    Reputations:
    6
    Messages:
    26
    Likes Received:
    2
    Trophy Points:
    6
    Is there going to be any update with modded A17 version? =]

    Nenormal, Mar 15, 2012
    #67
  18. WesleyNL

    WesleyNL Notebook Consultant

    Reputations:
    14
    Messages:
    151
    Likes Received:
    2
    Trophy Points:
    31
    is it me or does the new evga precision have no shader clock ?

    WesleyNL, Mar 25, 2012
    #68
  19. Sharadeos

    Sharadeos Notebook Enthusiast

    Reputations:
    21
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    You can always safely flashback to the default BIOS whenever you want. :)

    File has been uploaded. There is only 1 file for every GPU configuration available.

    Sharadeos, Mar 25, 2012
    #69
  20. elaesar

    elaesar Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    New version tested and works flawlessly so far (70.06.32.00.02 GT555m). will try it more the coming days.
    i would also like a higher voltage version of the mod (gpu temp still chilling at 65c!).

    3dmark Vantage: P8679 (840/1100)

    Thanks Sharadeos :D

    elaesar, Mar 26, 2012
    #70
  21. Nenormal

    Nenormal Notebook Enthusiast

    Reputations:
    6
    Messages:
    26
    Likes Received:
    2
    Trophy Points:
    6
    Works great!Good job! =]

    Nenormal, Mar 26, 2012
    #71
  22. Blök

    Blök Newbie

    Reputations:
    4
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Modded A17 works.
    [​IMG]

    Blök, Mar 26, 2012
    #72
  23. Sharadeos

    Sharadeos Notebook Enthusiast

    Reputations:
    21
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    Thanks for the feedback guys. They are greatly appreciated. :D

    Sharadeos, Mar 26, 2012
    #73
  24. hermitmaster

    hermitmaster Notebook Consultant

    Reputations:
    194
    Messages:
    128
    Likes Received:
    0
    Trophy Points:
    31
    More voltage! I'm only hitting 74C under load.

    hermitmaster, Mar 28, 2012
    #74
  25. sxjgbj23

    sxjgbj23 Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    i'm wondering: what's the point of this whole thread, of modding those BIOS if all it does can be done with MSI Afterburner software, and in these case, on the fly while running Windows??

    sxjgbj23, Mar 30, 2012
    #75
  26. fixdgchd

    fixdgchd Notebook Guru

    Reputations:
    0
    Messages:
    71
    Likes Received:
    0
    Trophy Points:
    31
    No it can't. You can modify clocks of gpu and gpu memory, but you cannot modify voltage, which enables you to overclock more (and this modded bios essentialy does that)

    fixdgchd, Mar 30, 2012
    #76
  27. elaesar

    elaesar Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    Modded BIOS let's you overclock the gpu core and memory higher than stock BIOS. In return you get better fps in games and in my case those higher fps come with the same temperatures as the stock BIOS.

    elaesar, Mar 30, 2012
    #77
  28. sxjgbj23

    sxjgbj23 Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    isn't it possible to do a complete all-in-one a16 bios (as with a17) instead of multiple a16 ones?

    sxjgbj23, Mar 31, 2012
    #78
  29. Sharadeos

    Sharadeos Notebook Enthusiast

    Reputations:
    21
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    Yes it is possible...D: I will be updating the files in a bit.

    Sharadeos, Mar 31, 2012
    #79
  30. chamade

    chamade Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    I have updated my BIOS with Sharadeos's version and now I can bring my 550M to 800/1600Mhz no problem. This takes gaming performance to another level so I am very happy.
    However during GPU intensive games, the GPU temp can steadily hover around 85/86C...should I worry?

    Thanks...and thanks for the BIOS Sharadeos.

    chamade, Apr 2, 2012
    #80
  31. Sharadeos

    Sharadeos Notebook Enthusiast

    Reputations:
    21
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    That temperature is a little on the high side but you should not have to worry about it. You can try cleaning out the vents or replacing the thermal paste to reduce temperatures if you want to lower it.

    Sharadeos, Apr 2, 2012
    #81
  32. Uruha

    Uruha Notebook Consultant

    Reputations:
    0
    Messages:
    218
    Likes Received:
    0
    Trophy Points:
    30
    wow this has made big progress! I remember being the 1st one to reply!

    Uruha, Apr 2, 2012
    #82
  33. Boekki

    Boekki Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hi, I installed the A17 for all GPUs and after an hour I reinstalled the Stock A17 (also tryed A16) but the voltage is still 0.9120. I don´t know whats the problem, can you help me pls?

    Edit: Ok after another hour it works dunno why ;)

    Boekki, Apr 3, 2012
    #83
  34. sumi09

    sumi09 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    I just wanted to post an update for my system... I have been running the modded A16 bios for a while now and my system never runs any hotter than 65 degrees celcius. I have overclocked everything to the max and it runs extremely stable. I also want to point out that I have noticed never before improvements in my gaming sessions. The ingame fps have significantly improved. Great work Sharadeos... :)

    Bios Version: 70.06.32.00.02
    A16 GF106 GT555m2 0.9120

    sumi09, Apr 4, 2012
    #84
  35. letmeknov

    letmeknov Notebook Consultant

    Reputations:
    27
    Messages:
    241
    Likes Received:
    0
    Trophy Points:
    30
    Sounds great! Could you share your overclocking settings? I am using 770 for core and 1000 for memory with the default voltage (0.862), so I just wondering how far I can go with 0.9120 voltage. :)

    letmeknov, Apr 4, 2012
    #85
  36. Double 0

    Double 0 Notebook Geek

    Reputations:
    72
    Messages:
    85
    Likes Received:
    5
    Trophy Points:
    16
    Eh.. will do this mod once my IC Diamond gets here

    Double 0, Apr 4, 2012
    #86
  37. elaesar

    elaesar Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    My best result in 3dmark vantage (P8790) without artifacts is with 832 core 1132 memory (gf106 gt555m). It gives a serious fps boost and with the same temps (65c under load which is the same as stock)

    elaesar, Apr 4, 2012
    #87
  38. letmeknov

    letmeknov Notebook Consultant

    Reputations:
    27
    Messages:
    241
    Likes Received:
    0
    Trophy Points:
    30
    Thanks for sharing! These numbers looks impressive. ;) Looking forward to find a spare time to test it myself.

    letmeknov, Apr 4, 2012
    #88
  39. batmemo

    batmemo Notebook Consultant

    Reputations:
    7
    Messages:
    110
    Likes Received:
    0
    Trophy Points:
    30
    It seems that i have very poor luck with my GPU chip.I tried with A16-A17 moded bios and every time when i set clock above 780 i play 5-10 min my system hang and need hard reset?It is not from overheating because the left palm is warm but not hot.I tried with diferent drivers but the result is the same.Somethimes even with 770 clock laptop hangs.With 0.862 voltage i clocked to 780 and 1100 memory and i have no problem.Is my GPU have allergy to higher voltage.

    batmemo, Apr 5, 2012
    #89
  40. letmeknov

    letmeknov Notebook Consultant

    Reputations:
    27
    Messages:
    241
    Likes Received:
    0
    Trophy Points:
    30
    Have you tried different games? As I remember all CMR Dirt series hangs up if GPU is overclocked, even in the most sparing way.

    letmeknov, Apr 5, 2012
    #90
  41. batmemo

    batmemo Notebook Consultant

    Reputations:
    7
    Messages:
    110
    Likes Received:
    0
    Trophy Points:
    30
    Anno 2070;Skyrim;Mass Effect 3 for now all hangs up only Need for Speed Hot pursuit run well and do not hang up and others like angry bird run well.Strange things.

    batmemo, Apr 5, 2012
    #91
  42. Sharadeos

    Sharadeos Notebook Enthusiast

    Reputations:
    21
    Messages:
    31
    Likes Received:
    0
    Trophy Points:
    15
    Hi babmemo, If you tell me your BIOS version number for your GPU, I would gladly check if there is anything wrong with the BIOS file itself for that specific GPU. As for the voltage issues, The worst thing about an error with the bios itself is your graphics driver crashing and resetting is self due to an unknown 3D voltage but this immediately happens once some form of 3D load occurs.

    System hangs are often related to the hard drive or SSD issues because communication ceases entirely within the system once your storage hangs. I also experience a system hang and needed a hard reset when I changed SSDs but this is an extremely rare occurrence.

    Sharadeos, Apr 5, 2012
    #92
  43. alex1103

    alex1103 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hi Sharadeos,

    thank you very much for the modded GPU Bios - it works fine.

    Do you think its also possible to reduce cpu vcore and/ or fan control with the method you used for modding gpu vcore?

    Best regards
    Alex

    alex1103, Apr 6, 2012
    #93
  44. batmemo

    batmemo Notebook Consultant

    Reputations:
    7
    Messages:
    110
    Likes Received:
    0
    Trophy Points:
    30
    Now i am using A17 moded bios,before that i was using this : 70.06.32.00.03 for A16 with gt555 106 chip.And the hang occur only when i play heavy games.I think that the problem unfortunately is with my GPU not in the bios mod.Today i played Syndicate with 800 mhz clock and after 15 min playing,the same thing happend. :)

    batmemo, Apr 8, 2012
    #94
  45. sumi09

    sumi09 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Hello letmeknov,

    I have core clock at 770, shader clock at 1535, and memory clock at 1080. I have also tried evga precision for higher clock settings but I am happy with MSI afterburner. The temps are great too. I have just bought a new 3d version of XPS 17. Will mod the bios and post more info... The machine just came in... :)

    sumi09, Apr 12, 2012
    #95
  46. batmemo

    batmemo Notebook Consultant

    Reputations:
    7
    Messages:
    110
    Likes Received:
    0
    Trophy Points:
    30
    Hi can you try some game in 3d and say how it is.I know it is not on topic but this realy be helpful for me

    batmemo, Apr 12, 2012
    #96
  47. sumi09

    sumi09 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Hello batmemo,

    I have been playing a lot of games on my new 3D version of L702x and so far the gaming performance is really good. But I must say that the temps are close to 68 degrees celsius while playing Resident Evil 5 (Direct-X 10 mode) for 4 hours. I am attaching the screens of the GPU-Z and MSI Afterburner for my overclock settings. Lemme know if you want to know about how any other games pan up on my machine specs.

    Drivers: 295.51
    GPU: Nvidia GeForce GT 555M
    Bios Mod: Voltage overclock by the awesome "Sharadeos" [​IMG][/IMG]

    sumi09, Apr 15, 2012
    #97
  48. sumi09

    sumi09 Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    [​IMG][/IMG]
    [​IMG]

    sumi09, Apr 15, 2012
    #98
  49. batmemo

    batmemo Notebook Consultant

    Reputations:
    7
    Messages:
    110
    Likes Received:
    0
    Trophy Points:
    30
    Your temps are great.My goes up to 76-77 with same clock.Did you push over the 800 mhz core clock,and do you play games in 3d mode or in normal

    batmemo, Apr 16, 2012
    #99
  50. sptimmeh

    sptimmeh Notebook Guru

    Reputations:
    0
    Messages:
    52
    Likes Received:
    0
    Trophy Points:
    15
    Hey there can anyone help,

    When flashing the BIOS, I open WinFlash and then I click to try and find the new BIOS file which in my case is the A17 0.9120 (I unpacked it onto desktop) and its not there, can't find it when browsing...

    Any help would be great, thanks
    btw I did read the instructions and I dont get the part about "change the file type to all" - this I take is my problem if someone could give me some more details... thanks!

    Edit:: Just found out my comp is running the A11 dell BIOS lol and also my GPU bios is 70.06.32.00.02 if that info is needed.

    Edit #2: Ok, so I just changed the file extension to "." which means all right? But I still cant see it / find it when I look for it to flash.

    sptimmeh, Apr 16, 2012
    #100
← Previous pageNext page →
