    Temperature Monitors

    Discussion in 'Dell XPS and Studio XPS' started by pscrzy, May 15, 2009.

  1. pscrzy

    pscrzy Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    Why does HWMonitor and HWiNFO32 report very different temperatures on my Dell XPS m1530


    Attached Files:

    pscrzy, May 15, 2009
    #1
  2. CyberVisions

    CyberVisions Martian Notebook Overlord

    Reputations:
    602
    Messages:
    815
    Likes Received:
    1
    Trophy Points:
    31
    You're kidding, right?? The Value number reported is the current reported temperature - a 1 degree fluctuation is hardly "very different". The Min/Max values are just that - upper and lower limits, and temperatures fluctuate fast enough that a monitor program can record the a value that changes a second later.

    The primary report number you should be concerned with is the current temperature value for the component being monitored, and as you can see, they're extremely close.

    You have to remember that system processes and CPU tasking are all changing at a very rapid pace, and that affects temperature at given points that are being monitored. It would be of concern if one was say, 10 degrees different than the other, but it's not.

    CyberVisions, May 15, 2009
    #2
  3. Hep!

    Hep! sees beauty in everything

    Reputations:
    1,806
    Messages:
    5,921
    Likes Received:
    1
    Trophy Points:
    206
    Min and max temps are generated from the time the program was initially opened.

    Hep!, May 15, 2009
    #3
  4. BondEternal

    BondEternal Notebook Consultant

    Reputations:
    21
    Messages:
    156
    Likes Received:
    0
    Trophy Points:
    30
    They look the same. Really!

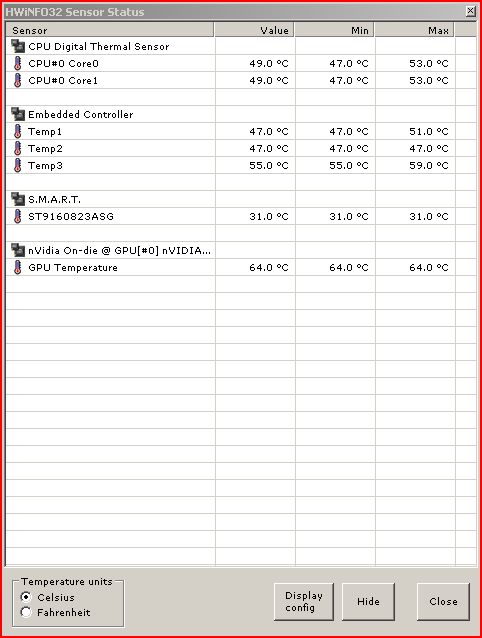

    Ok, look at the Value column in HWInfo32. CPU Core 0 and 1 has temps of 49°C, hard disk (the one under SMART) has a temp of 31.0°C and the GPU has a temp of 64.0°C. The embedded controller, I think, is the temperature of the motherboard. Average of around 50°C.

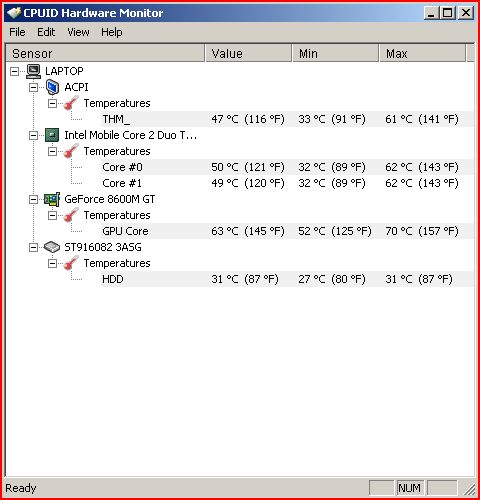

    Now look at the Value column in HWMonitor. CPU Core 0 and 1 has temps of 50°C and 49°C respectively, hard disk has a temp of 31.0°C and the GPU has a temp of 63.0°C. The THM_ is the motherboard and has a temp of 47°C

    The small differences between the temps of the components can be due to sensitivity of the sensors and of the programs.

    As for the big difference between the maximum and minimum temperatures between the two programs, I believe it is due to you opening HWMonitor first, before you opened HWInfo after or while running an intensive program. The programs will only start recording temperatures when they are opened. They don't record temperatures in the background.

    BondEternal, May 15, 2009
    #4
  5. N20D5OH

    N20D5OH Notebook Evangelist

    Reputations:
    4
    Messages:
    424
    Likes Received:
    0
    Trophy Points:
    30
    They look the same to me. Small differences can be from the scaling in the program.

    N20D5OH, May 15, 2009
    #5
  6. Ferretwulf

    Ferretwulf Notebook Consultant

    Reputations:
    94
    Messages:
    207
    Likes Received:
    0
    Trophy Points:
    30
    Lol, those are just about spot on. Try comparing HWMonitor, CoreTemp (.995), and TAT all seem to report differing numbers (by up to 10c on CPU temps).

    Ferretwulf, May 15, 2009
    #6
  7. terrapirata

    terrapirata Notebook Consultant

    Reputations:
    55
    Messages:
    102
    Likes Received:
    0
    Trophy Points:
    30
    terrapirata, May 15, 2009
    #7
  8. Ferretwulf

    Ferretwulf Notebook Consultant

    Reputations:
    94
    Messages:
    207
    Likes Received:
    0
    Trophy Points:
    30
    Heh, I love how the article says 'it will display correct CPU temperatures as you may verify with CoreTemp'...yet it is HWMonitor that is actually showing 10C higher than CoreTemp when used on my Penryn core T6400. The article says it will read 5C low.

    Still wondering which is correct.

    Ferretwulf, May 15, 2009
    #8
  9. krionX

    krionX Notebook Evangelist

    Reputations:
    1
    Messages:
    308
    Likes Received:
    0
    Trophy Points:
    30
    On my 1640, HWMonitor is reading exactly 5C lower than temps reported by Core Temp. I believe CoreTemp's readings are more accurate though.

    krionX, May 15, 2009
    #9
  10. mauric3

    mauric3 Notebook Guru

    Reputations:
    0
    Messages:
    67
    Likes Received:
    0
    Trophy Points:
    15
    im using t9500 and the temps reading between hwmonitor and core temp is different too.. the core temp is usuallly +5 degrees more compared to the hw monitor.. so which is really more accurate? hwmonitor or coretemp? :)

    mauric3, May 15, 2009
    #10
  11. Hirohata

    Hirohata GBF Danchou

    Reputations:
    492
    Messages:
    1,071
    Likes Received:
    1
    Trophy Points:
    56
    CoreTemp definitely reading 5C lower. I'll stick to HWMonitor since it'll be the first to reach higher temps. Better safe than sorry~

    Okay, that was weird. Now CoreTemp is 5C higher than HWMonitor. I'll just stick with HWMonitor as always...

    Hirohata, May 15, 2009
    #11
