    XPS 13 9350 i7 fan noise

    Discussion in 'Dell XPS and Studio XPS' started by hotnspicyjohnny, Feb 21, 2016.

  1. hotnspicyjohnny

    hotnspicyjohnny Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    14
    Trophy Points:
    16
    Hey there guys,

    i got my new XPS 13 four days ago. It has the i7, 16gb RAM, the intel IRIS HD 540 and the QHD resolution. So far it´s a great Notebook, well build and the screen is amazing as expected.

    But the fan noise...

    I had a Lenovo Thinkpad Yoga i7 before, which usually kicked in the fan every now and then, but never constantly running. The XPS one is running pretty much all the time and i honestly don´t know what to do - is this CPU too powerful for the Notebook and it simply has to run the fan all the time or is there a way to change this issue?

    Any ideas?

    Last edited: Feb 21, 2016
    hotnspicyjohnny, Feb 21, 2016
    #1
  2. hotnspicyjohnny

    hotnspicyjohnny Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    14
    Trophy Points:
    16
    Btw, the CPU Package has round about 65-70 celsius (hw info and aida64) while a core clock of ~800 MHz and an usage of ~5%... Fan spinning with 3600 RPM

    hotnspicyjohnny, Feb 21, 2016
    #2
  3. Marcelosiciliano

    Marcelosiciliano Notebook Consultant

    Reputations:
    4
    Messages:
    268
    Likes Received:
    20
    Trophy Points:
    31
    I think that is definitely not normal. You should give dell a call and maybe return it. Probably the heat sink is not not making full contact with the cpu

    Marcelosiciliano, Feb 21, 2016
    #3
  4. custom90gt

    custom90gt Doc Mod Super Moderator

    Reputations:
    7,909
    Messages:
    3,862
    Likes Received:
    4,823
    Trophy Points:
    331
    yeah I vote for not normal as well. You can either have dell fix it, or you could try to repaste it yourself.

    custom90gt, Feb 21, 2016
    #4
  5. hotnspicyjohnny

    hotnspicyjohnny Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    14
    Trophy Points:
    16
    The idle temps without doing anything are around 50 degree celsius, two tabs in chrome and it´s goes up to 70.

    Can anyone with the IRIS model tell me their idle temps?

    Last edited: Feb 21, 2016
    hotnspicyjohnny, Feb 21, 2016
    #5
  6. hotnspicyjohnny

    hotnspicyjohnny Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    14
    Trophy Points:
    16
    I just had a dell technician here and he changed the cooler and the fan - even applied better cooling paste.

    But still, idle temp while writing this without anything in the background is at 65-70 degree celsius and the fan is constantly spinning at 3600 RPM.

    Seems like the IRIS/i7 Combo ist simply too hot for this small device...

    hotnspicyjohnny, Feb 23, 2016
    #6
  7. GoNz0

    GoNz0 Notebook Virtuoso

    Reputations:
    259
    Messages:
    3,947
    Likes Received:
    1,378
    Trophy Points:
    231
    Looks like you have a really bad chip, now you have had an attempted fix I suggest you ask for a new replacement or a refund (to prompt a replacement as they hate refunding)

    GoNz0, Feb 23, 2016
    #7
  8. hotnspicyjohnny

    hotnspicyjohnny Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    14
    Trophy Points:
    16
    Well, i think you´re right with the bad chip :)

    The technician did a good job, right after he had installed the new cooler/fan we tested the XPS and everything worked fine (except for the idle temps ~65).

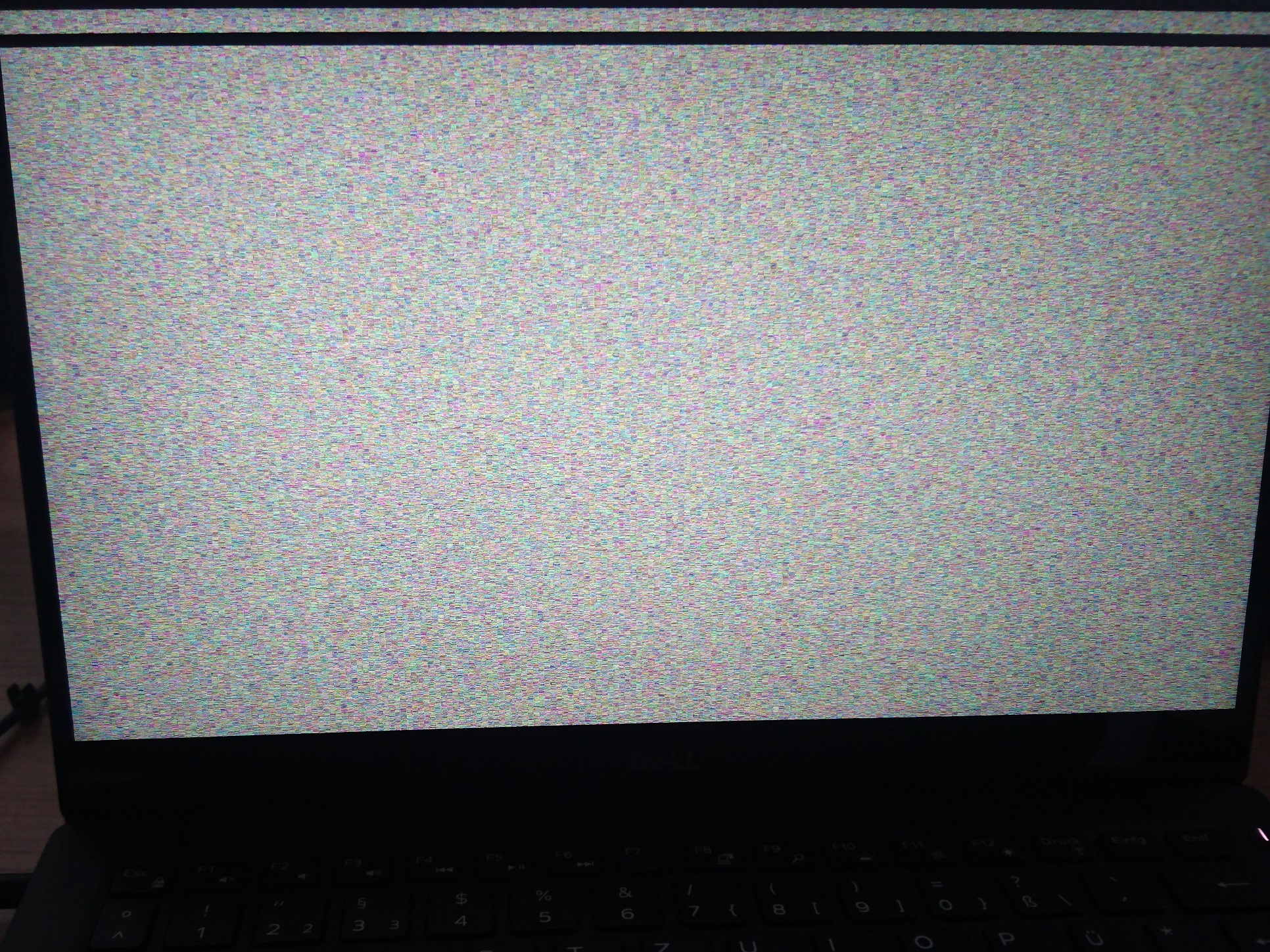

    I used it for aroud half an hour and rebooted, afterwards it gave me this screen right after powering on:


    Attached Files:

    hotnspicyjohnny, Feb 23, 2016
    #8
  9. GoNz0

    GoNz0 Notebook Virtuoso

    Reputations:
    259
    Messages:
    3,947
    Likes Received:
    1,378
    Trophy Points:
    231
    Call Dell back and mention all you have said, They will issues a new build.

    GoNz0, Feb 23, 2016
    #9
  10. Ben REIMEU

    Ben REIMEU Notebook Guru

    Reputations:
    2
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    ..... seems Dell still have issues with reliability :(
    I owned the xps 13 9343 (previous one), and it was a nightmare... first one has a rattling fan, and missing screws, changed it. Everything went fine with the new one for 3 or 4 month, then I had to change the motherboard 3 times before having a working computer ....
    Ended up in selling it, I just couldn't see it anymore.

    Ben REIMEU, Feb 23, 2016
    #10
  11. hotnspicyjohnny

    hotnspicyjohnny Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    14
    Trophy Points:
    16
    Not so sure what i get, a completly new device or just a New mainboard - depends on whats the first to arrive.

    hotnspicyjohnny, Feb 23, 2016
    #11
  12. Ben REIMEU

    Ben REIMEU Notebook Guru

    Reputations:
    2
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    Hope for you it'll be a new device, because most of the time "new mainboard" for Dell means "refurbished one with a problem maybe the new owner won't notice" .... :(

    Ben REIMEU, Feb 24, 2016
    #12
  13. GoNz0

    GoNz0 Notebook Virtuoso

    Reputations:
    259
    Messages:
    3,947
    Likes Received:
    1,378
    Trophy Points:
    231
    About a 10% chance in it being new!

    GoNz0, Feb 24, 2016
    #13
    pressing likes this.
  14. hotnspicyjohnny

    hotnspicyjohnny Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    14
    Trophy Points:
    16
    Good to know guys, i´m just talking to the Dell support ;)

    hotnspicyjohnny, Feb 24, 2016
    #14
  15. BallRoller

    BallRoller Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    How did it go for you?

    BallRoller, Feb 28, 2016
    #15
  16. hotnspicyjohnny

    hotnspicyjohnny Notebook Guru

    Reputations:
    0
    Messages:
    51
    Likes Received:
    14
    Trophy Points:
    16
    Hey there,

    the IRIS will be picked up by monday, atm i have the HD 520 Version - way better battery and noise! (Keep in my mind, that the last one had technical issues)

    hotnspicyjohnny, Feb 28, 2016
    #16
  17. PAPPL

    PAPPL Notebook Enthusiast

    Reputations:
    0
    Messages:
    42
    Likes Received:
    6
    Trophy Points:
    16
    Fan noise with XPS 9350 i7 IRIS 540 is very annoying.
    It's silent when doing nothing, but as soon as doing light tasks like watching youtube the fan kicks in and gets too loud.
    I read the temps with Intel Extreme Tool and don't understand why Dell lets the fan start at ~50°C.
    So hoping for a BIOS Update for Iris version to raise fan start temps (e.g +5°C).

    Installed new Dell Power Manager 2.1.0 for 9350 and set my XPS to Quiet. Fan does stop for 1 sec then starts again like at Balanced setting.

    http://www.dell.com/support/home/us/en/19/Drivers/DriversDetails?driverId=3N7TV

    PAPPL, Jun 13, 2016
    #17
  18. garysteel

    garysteel Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Does this install ok on the xps 3950 as it states "
    This package provides Dell Command | Power Manager and is supported on Latitude, Precision and Dell Venue 11 Pro models running the following Operating Systems: Windows 7, Windows 8, Windows 8.1 or Windows 10. "

    G

    garysteel, Jun 13, 2016
    #18
  19. PAPPL

    PAPPL Notebook Enthusiast

    Reputations:
    0
    Messages:
    42
    Likes Received:
    6
    Trophy Points:
    16
    XPS 9350 is listed under supported devices under the download link. Working fine, even shows many battery stats and health. Will be sitting in energy saving taskbar icon as add-on.

    PAPPL, Jun 13, 2016
    #19
    garysteel likes this.
  20. garysteel

    garysteel Notebook Enthusiast

    Reputations:
    2
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Spot on - Many thanks

    garysteel, Jun 13, 2016
    #20
  21. sebbe1991

    sebbe1991 Notebook Enthusiast

    Reputations:
    2
    Messages:
    45
    Likes Received:
    3
    Trophy Points:
    16
    mine starts at 70c not 50 :O I only hear mine when gaming!

    sebbe1991, Jun 13, 2016
    #21
  22. PAPPL

    PAPPL Notebook Enthusiast

    Reputations:
    0
    Messages:
    42
    Likes Received:
    6
    Trophy Points:
    16
    -Plugged in and charging?
    -Using USB-C?
    -Which BIOS version?
    -Dell driver updates installed?

    PAPPL, Jun 13, 2016
    #22
